Conformal Coating Systems
C5
The C5 model is the most flexible system in its class, equipped with three valves and a ±180° rotation head. It is perfectly suited for high-mix production environments and for handling complex PCB assemblies with precision and efficiency.
| Feature | C5 |
|---|---|
| Dimensions: L x W x H | 956 x 1,512 x 1,640 mm |
| Weight | Approx. 700 kg |
| Head structure | 3 valves |
| No. of axis movement | 4 (X, Y, Z, U) |
| Max. no. of valves | 3 |
| Tilt angle | 2 front valves tilt 35° inwards ± 180° |
| Rotation | ± 180° |
| Standard valves | 1 x CS-05, 1 x PD-01, 1 x FS-30 |
| Optional valves | N.A. |
| Feature | C5 |
|---|---|
| Type of drives | Closed loop servo motor |
| X, Y travelling speed | 1 - 800 mm/s |
| Practical working speed | 10- 200 mm/s |
| X, Y repeatability | ± 25 microns |
| Effective coating area: L x W | 460 x 460 mm (With T&C applied) |
| Z-axis movement | 100 mm |
| Com. port | SMEMA 4 pins |
| Feature | C5 |
|---|---|
| Conveyor type | Stainless steel |
| Board clearance | Top: 100 mm; bottom: 100 mm |
| Edge clearance | 5 mm |
| Conveyor height | 900 ± 20 mm |
| Conveyor speed | Max. 750 mm/s (Stepper motor control) |
| Conveyor direction | Left to right (Option: Right to left) |
| Conveyor width adjustment | 50 - 460 mm (Auto software control) |
| Feature | C5 |
|---|---|
| Power supply | 230 V AC, 50 Hz |
| Total power | 2.5 kW |
| Exhaust flow rate | 150 mm diameter ducting, min. 5 m3/min |
| Compressed air requirement | Min. 6 bar, 400 L/min |
| Feature | C5 |
|---|---|
| CCD vision camera | For fiducial check & programme teaching |
| Barcode/2D code scanning | For automatic programme switching function |
| 3-gallon material tank | For larger productivity Standard material tank: 1 gallon |
| Pallet return conveyor (Underneath) | For OMO concept Reduce manpower Reduce the number of pallets needed |
| Needle calibration station (PD-01) | Increase the accuracy & precision |
| Double indexing | For long boards up to 600 mm Machine total length will be extended by 100 mm |
| MES customization (i4.0) | Customize action to link up with customer's MES |

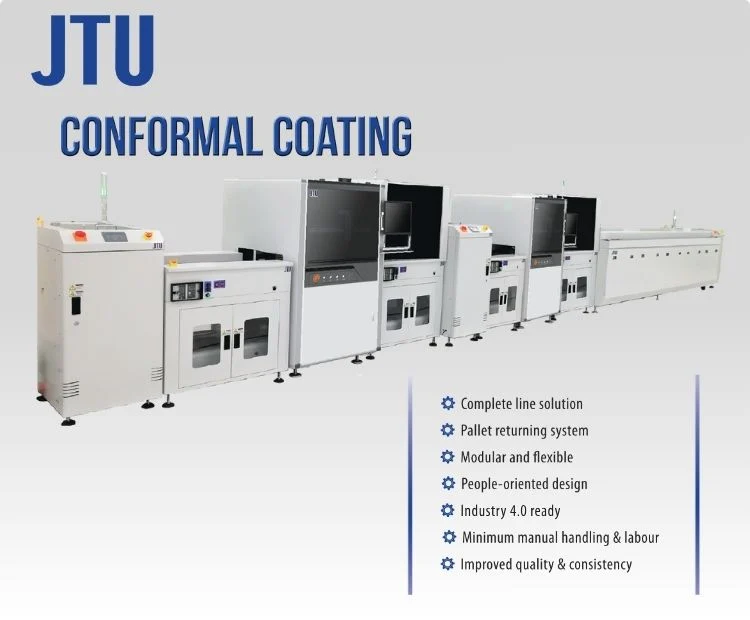

This product video introduces JTU C Series by summarizing its general working principle and typical application scenarios.
