Conformal Coating Curing Oven

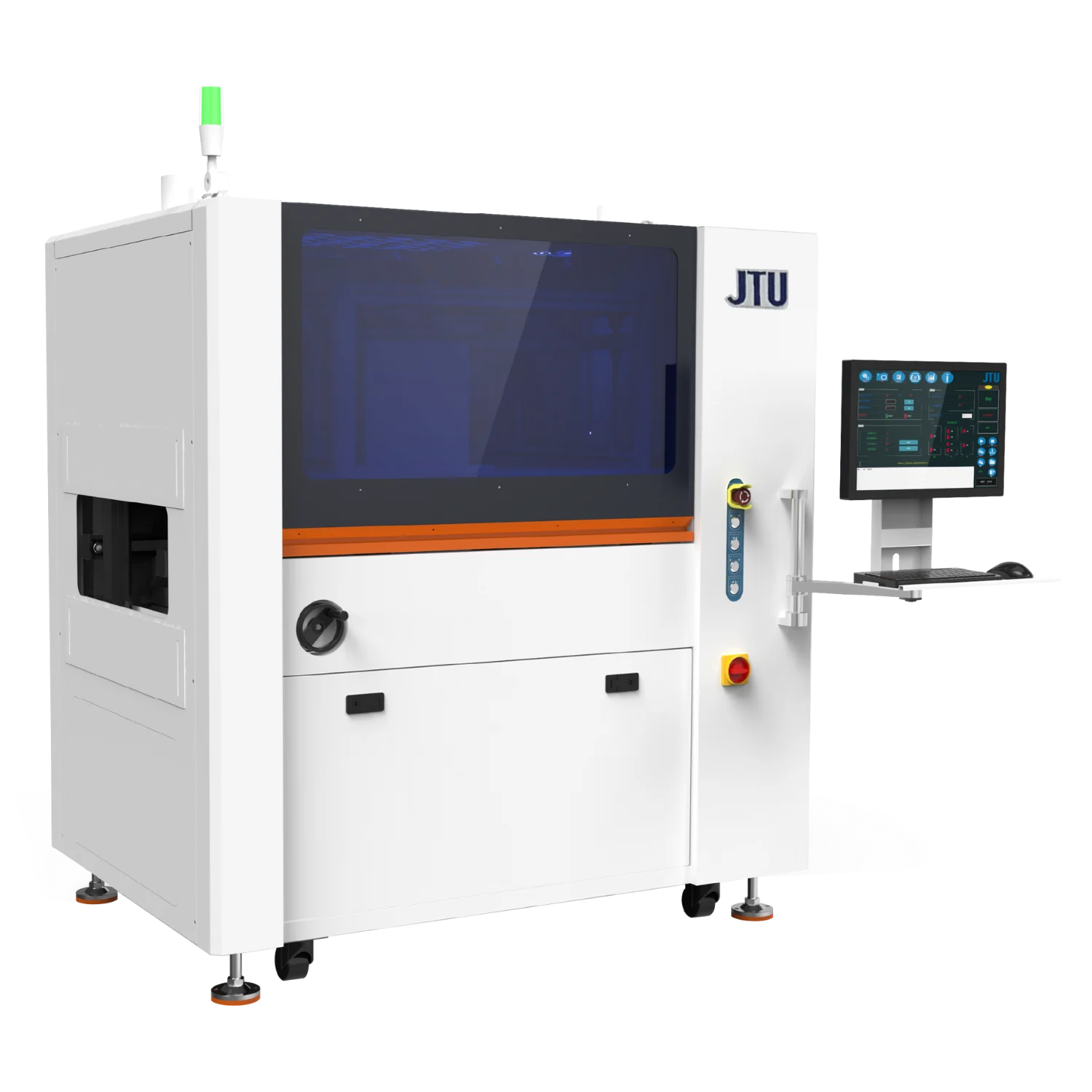

JCURE-2UV+
The jCURE-2UV+ is a UV curing oven designed for fast and efficient production. Its upgraded ventilation system and automatic eco mode provide optimized curing performance with reduced energy consumption.
| Feature | jCURE-2UV+ |
|---|---|
| Dimensions | 1800(L) x 1100(W) x 1850(H) mm |
| Weight | 450 kg |
| Control system | PLC + PC interface (Windows 10 OS) |
| Cooling system | Pulse width modulation (PWM) |
| Feature | jCURE-2UV+ |
|---|---|
| Conveyor type | Chain conveyor |
| Conveyor height | 900 ± 20 mm |
| Conveyor width | 50 - 460 mm (Auto adjustment) |
| Conveyor clearance | Above: 100 mm; bottom: 100 mm |
| Pin/Chain edge clearance | 5 mm |
| Conveyor speed | 500 - 3000 mm/min |
| Conveyor direction | Left to right (Option: Right to left) |
| Feature | jCURE-2UV+ |
|---|---|
| Type of UV lamp | Medium Pressure Mercury Arc |
| No. of UV lamp (Power) | 2 (6 kW per lamp. 1 running, 1 standby) |
| UV lamp focal height | 60 - 120 mm (Motorized adjustment) |
| UV lamp wavelength type | UVA, UVB, UVC & UVV |
| UV lamp power supply | 6 kW |
| UV light intensity (At 100 mm distance) | 119 W/cm (For 625 mm length UV lamp) |
| UV effective coverage area | 200(X) x 400(Y) mm (For 625 mm length UV lamp) |
| Guaranteed UV life | Min. 1,000 hours |
| Feature | jCURE-2UV+ |
|---|---|
| Pallet return conveyor (Underneath) | For OMO concept Reduce manpower Reduce the number of pallets needed |
This product video introduces jCURE-2UV+ by summarizing its general working principle and typical application scenarios.
