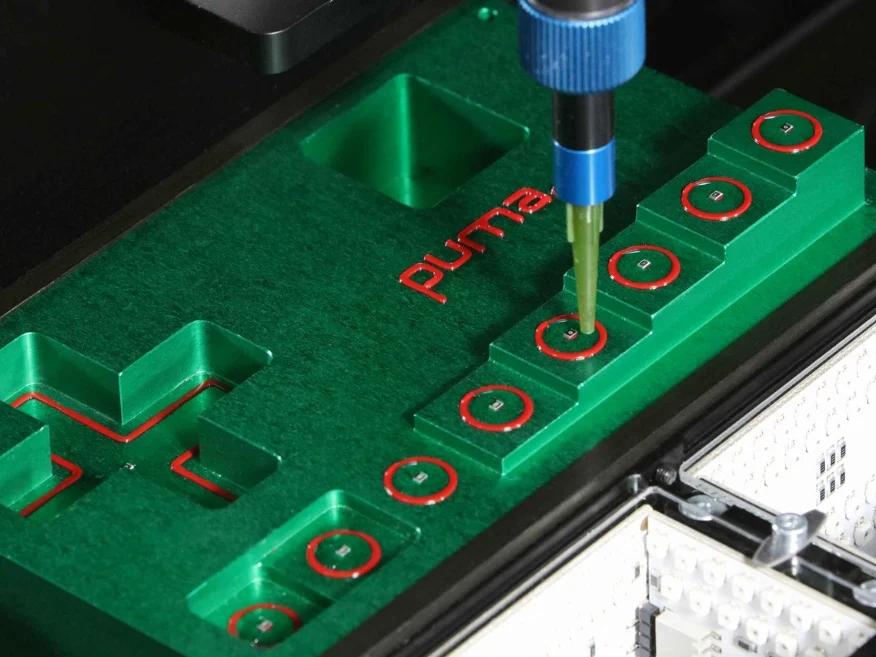

✔ High-speed placement and precision dispensing combined in a single pass-through operation.
✔ Configurable with 1, 2, or 4 placement axes and 1–2 dispensing processes for maximum flexibility.

✔ Delivers optimum 30,000 cph and up to 90,000 cph in line operation.
✔ Valve performance reaches 1,100,000 dots/h, with a system average of 350,000 dots/h for consistent, high-volume output.

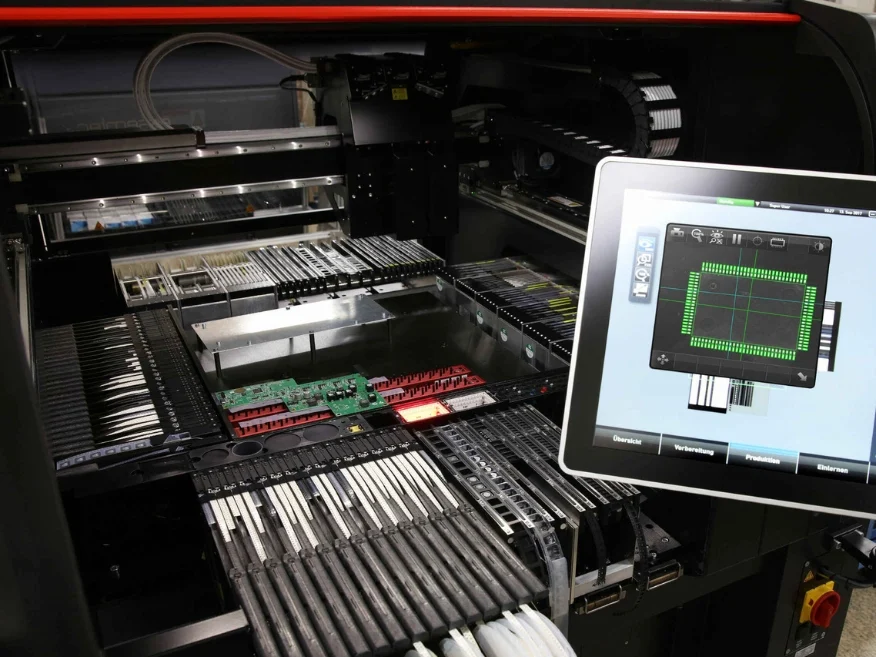

✔ Accommodates up to 280 feeders within just 2 m² (and up to 420 in line).
✔ Supports PCB sizes of 560 x 610 mm, with optional expansion to 1,800 x 610 mm.

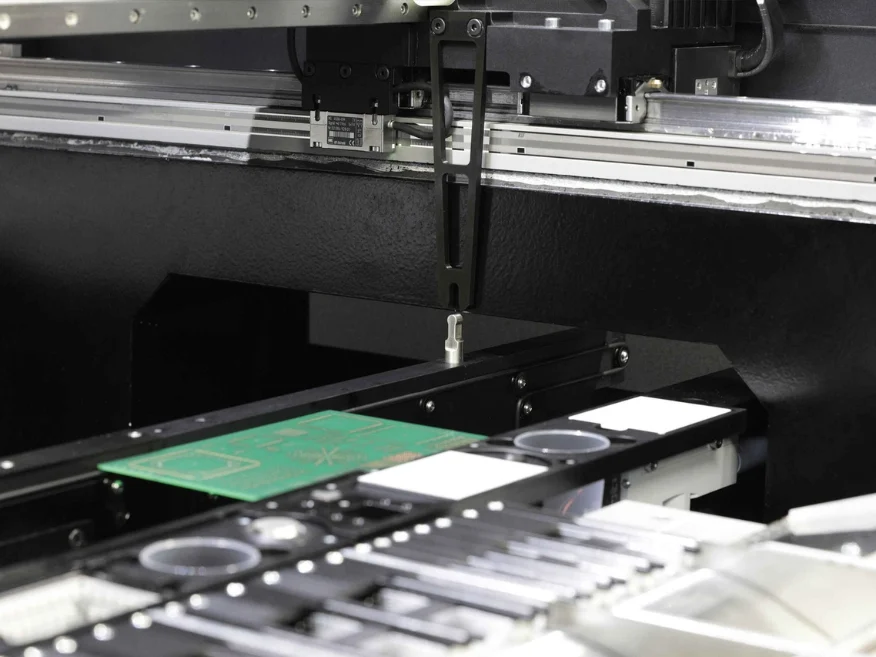

✔ Constructed with symmetric mineral casting for zero vibration, no warpage, and stable thermal performance.

✔ Enables nonstop production with intelligent smart feeders.

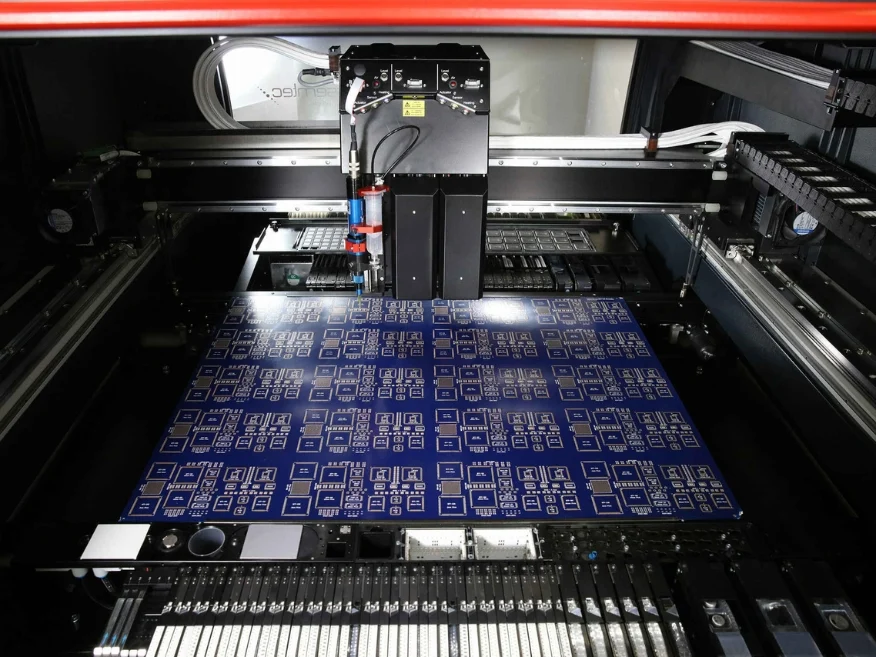

✔ Achieve continuous feeder replacement and seamless production changeover without downtime.

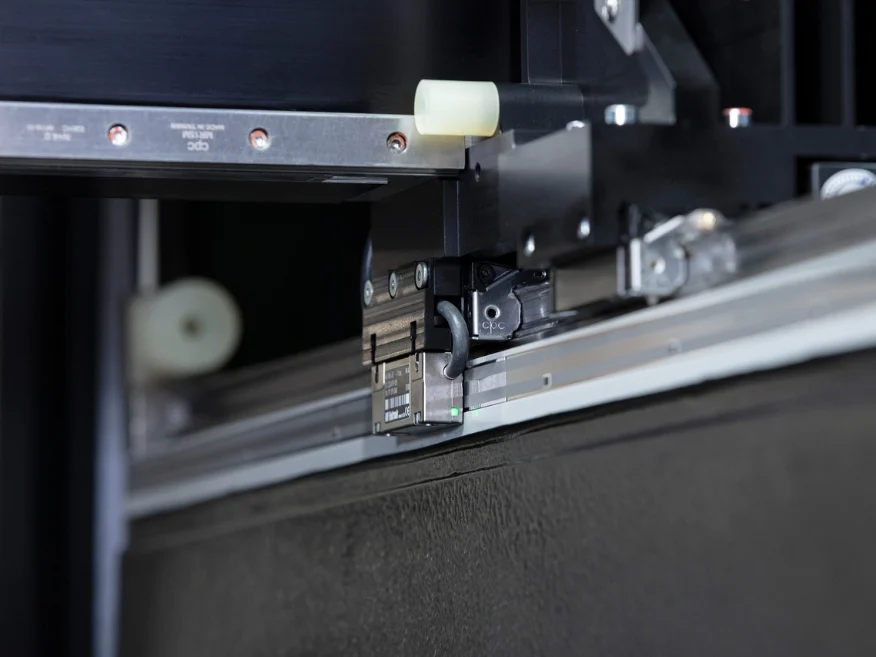

✔ Features fast, reliable dual-drive linear motors.
✔ Maintenance-free design ensures the longest operational lifetime.

For your optimal benefit, we have various product notes available for our optional equipment. Please contact your local consultant or our service team. Essemtec solutions are unique in the industry and characterized by fast and uncomplicated adaptation to general conditions and customer requirements.

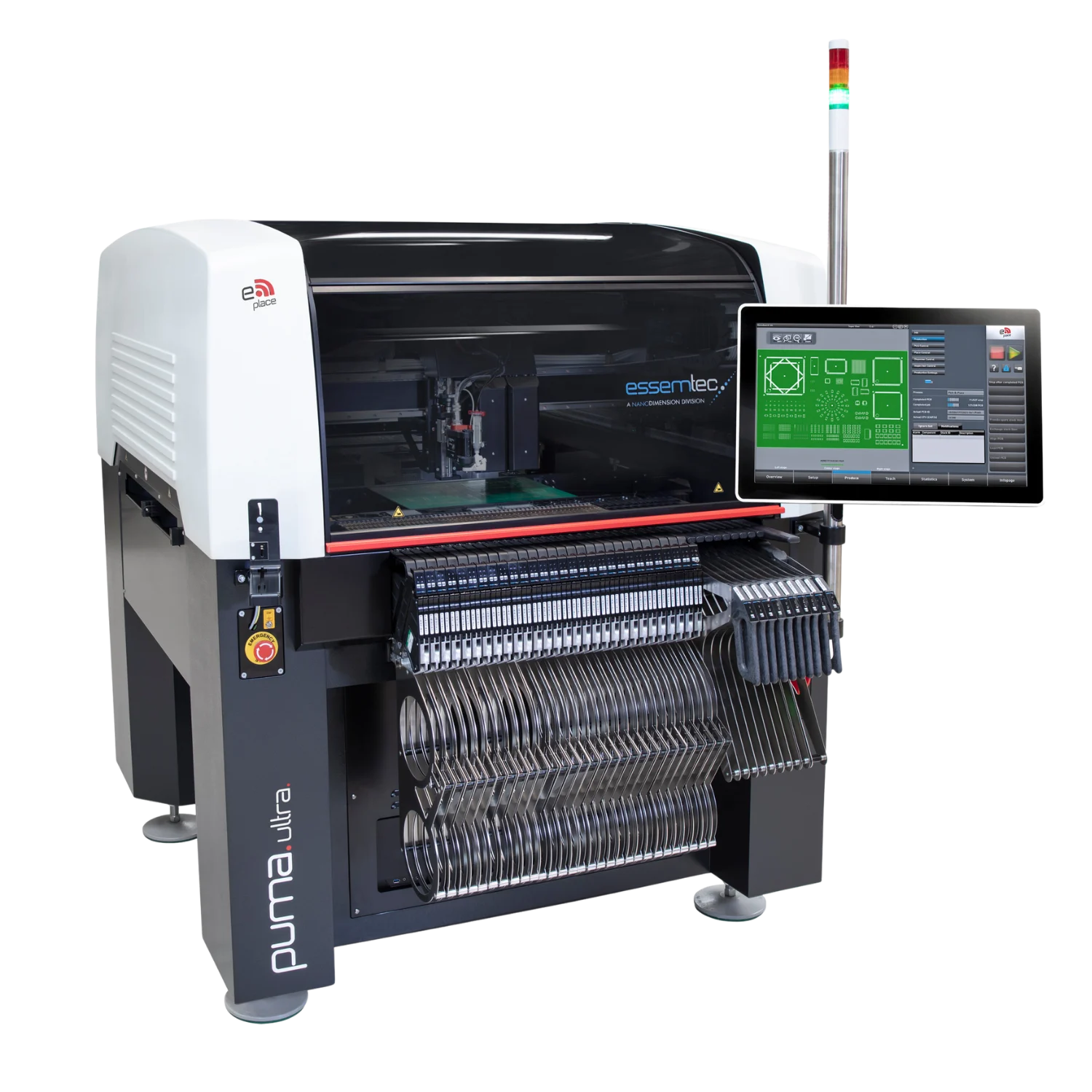

Advanced, fully graphical interface with a 21.5” 16:9 HD wide touchscreen designed for intuitive fingertip control. Supports universal CAD conversion, enables zoom functionality within camera windows, and integrates all-in-one job planning and setup optimization. Includes stock management, ERP/MES connectivity, data analysis, and line management capabilities.

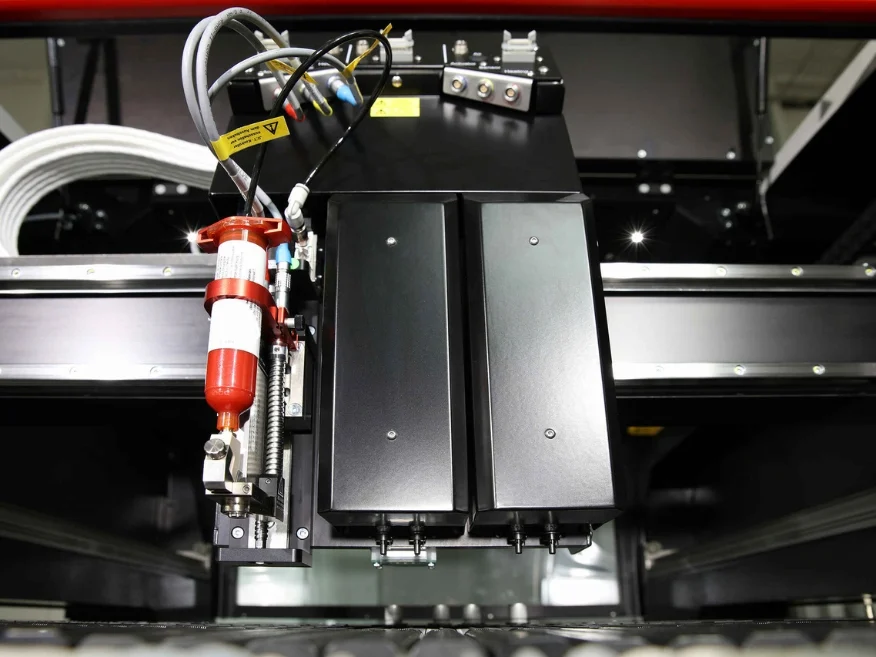

Designed for integration into high-speed lines and highly complex dispensing applications. Three processes can run at the same time. Plug-and-play functionality supports valve changes. Piezo Jet Valve provides super high speed for low viscosity. Solder Jet, Volume Displacement, Time/Pressure, and Archimedean Screw Valve are included. Full operator support is available through automated error analysis and KPI monitoring. Training, support, and troubleshooting are provided via advanced remote access. Investment protection is ensured, with all options and heads retrofittable.
