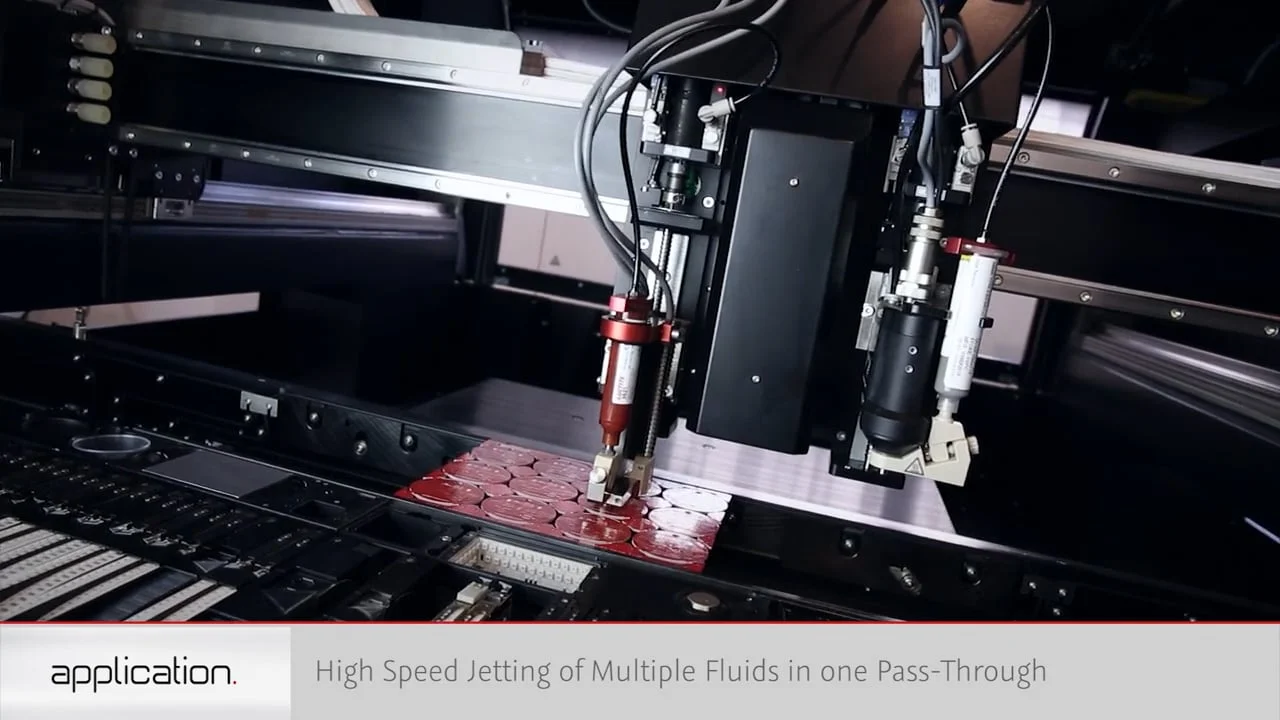

✔ Simultaneous operation with up to 3 dispense valves enables efficient multi-point dispensing.
✔ Supports 5 different valve types, allowing use across a wide range of applications.

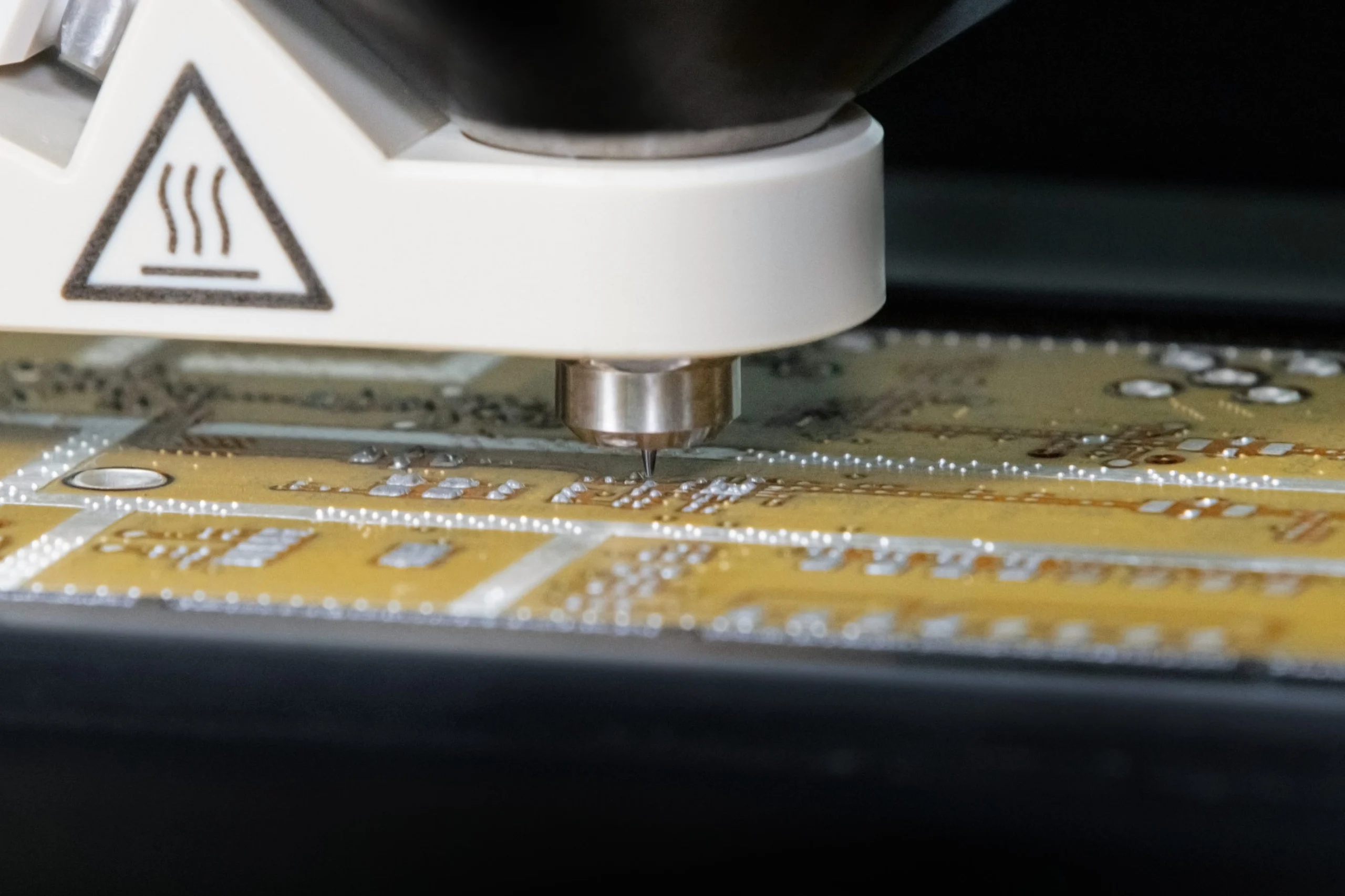

✔ Dispense dot size and weight are continuously monitored to ensure process consistency.
✔ Adjustments support process control and stabilization of dot formation.

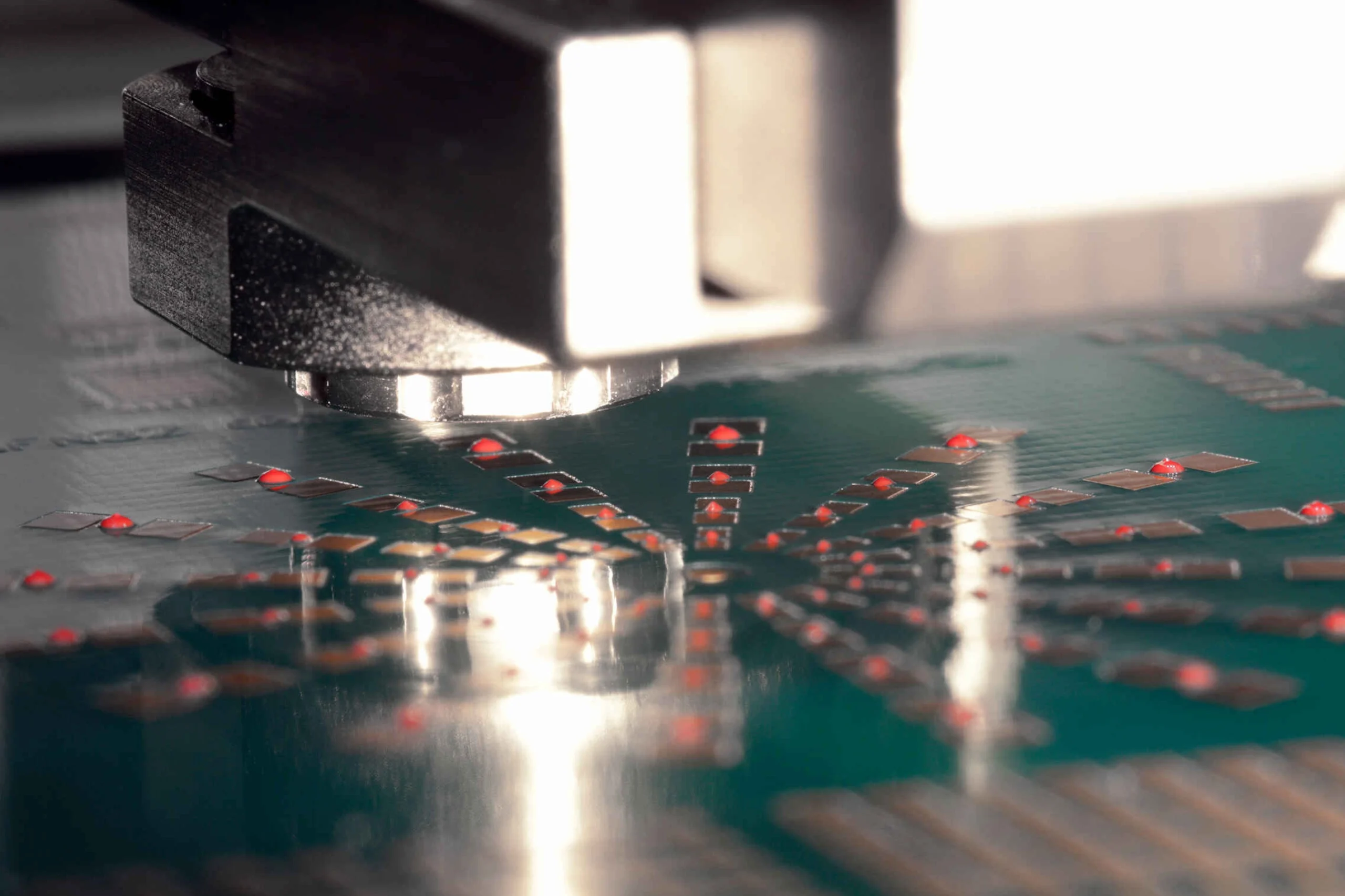

✔ Valve capability reaches 1,100,000 dots per hour, while system performance achieves Ø 350,000 dots/h.
✔ Line mode operation allows output of up to 2,000,000 dots per hour.

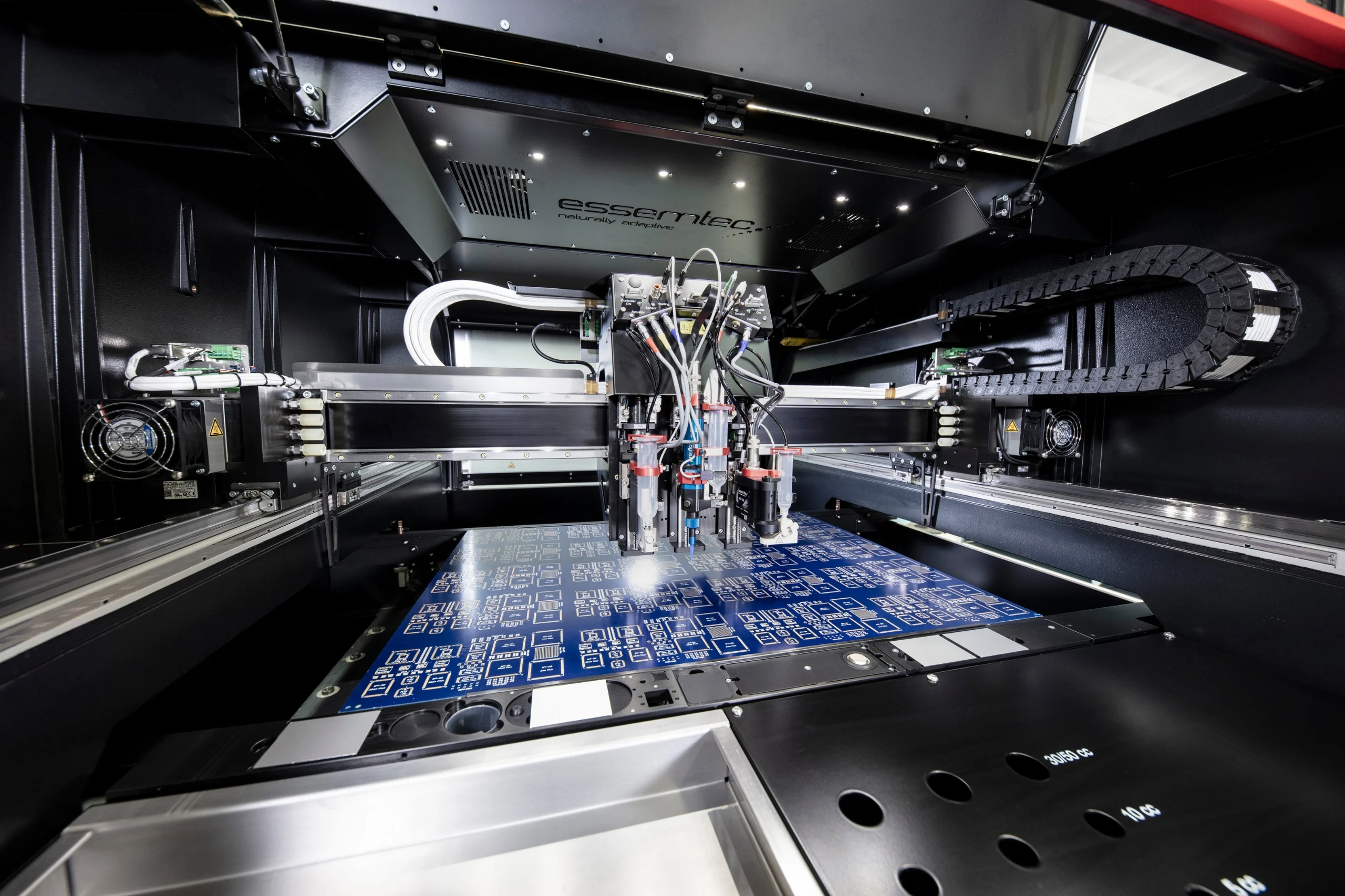

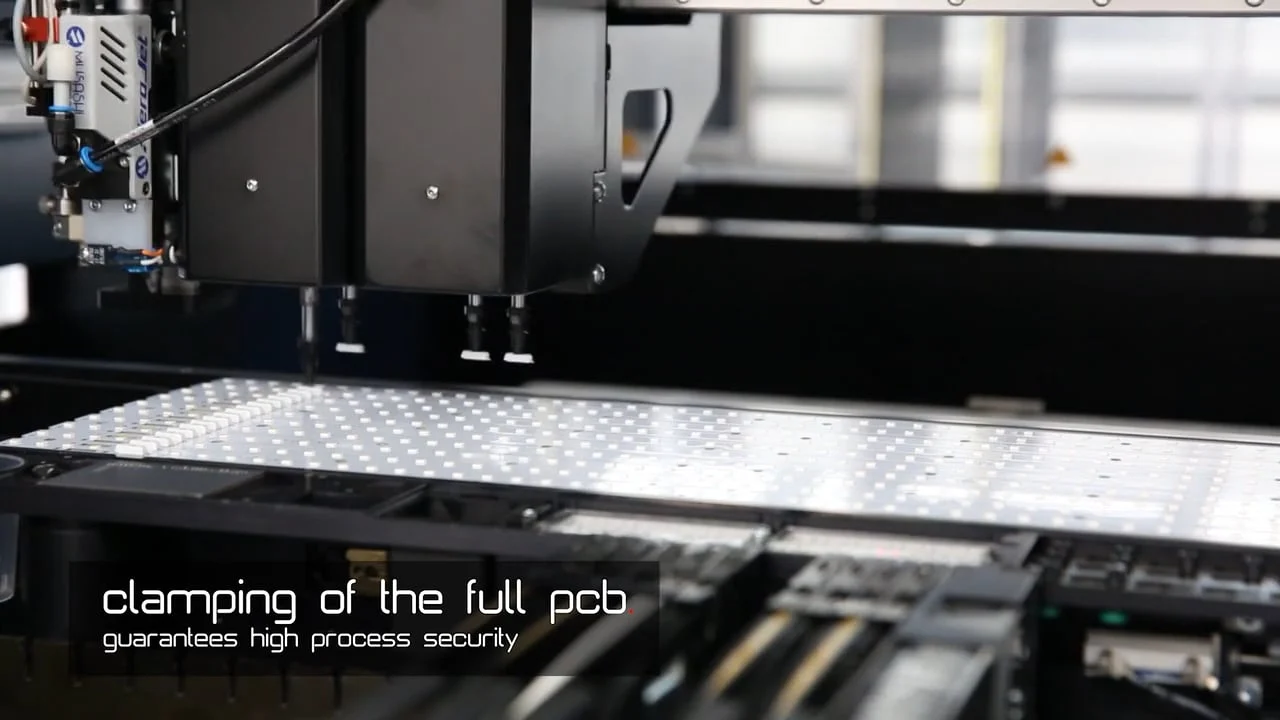

✔ Supports PCB dimensions of 560 x 610 mm, with an optional capacity of 1,800 x 610 mm.
✔ Provides up to 80 mm (3.35”) programmable Z stroke.

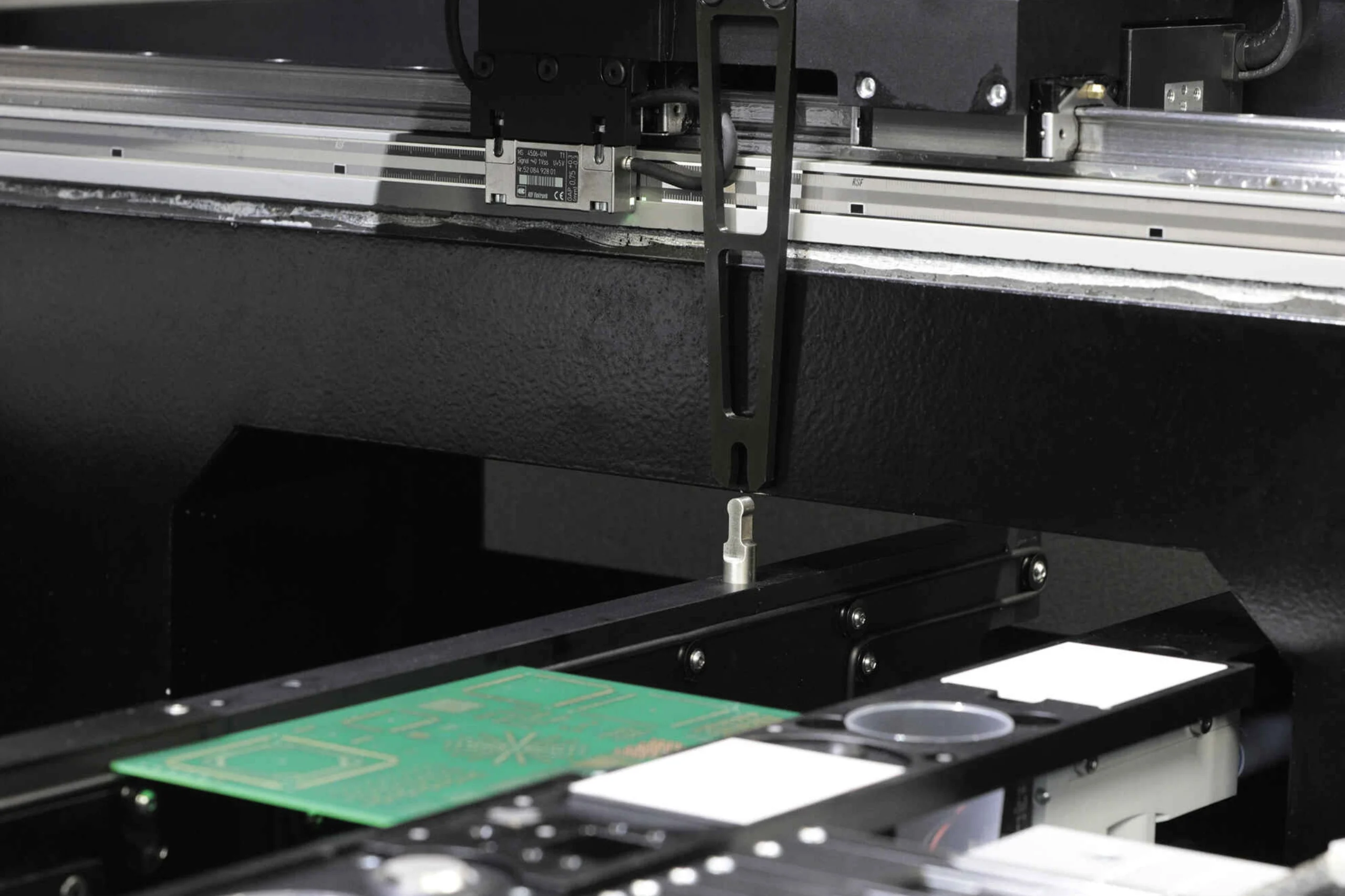

✔ Constructed with symmetrical mineral casting to eliminate vibration.
✔ Ensures no warpage and prevents thermal drift during operation.

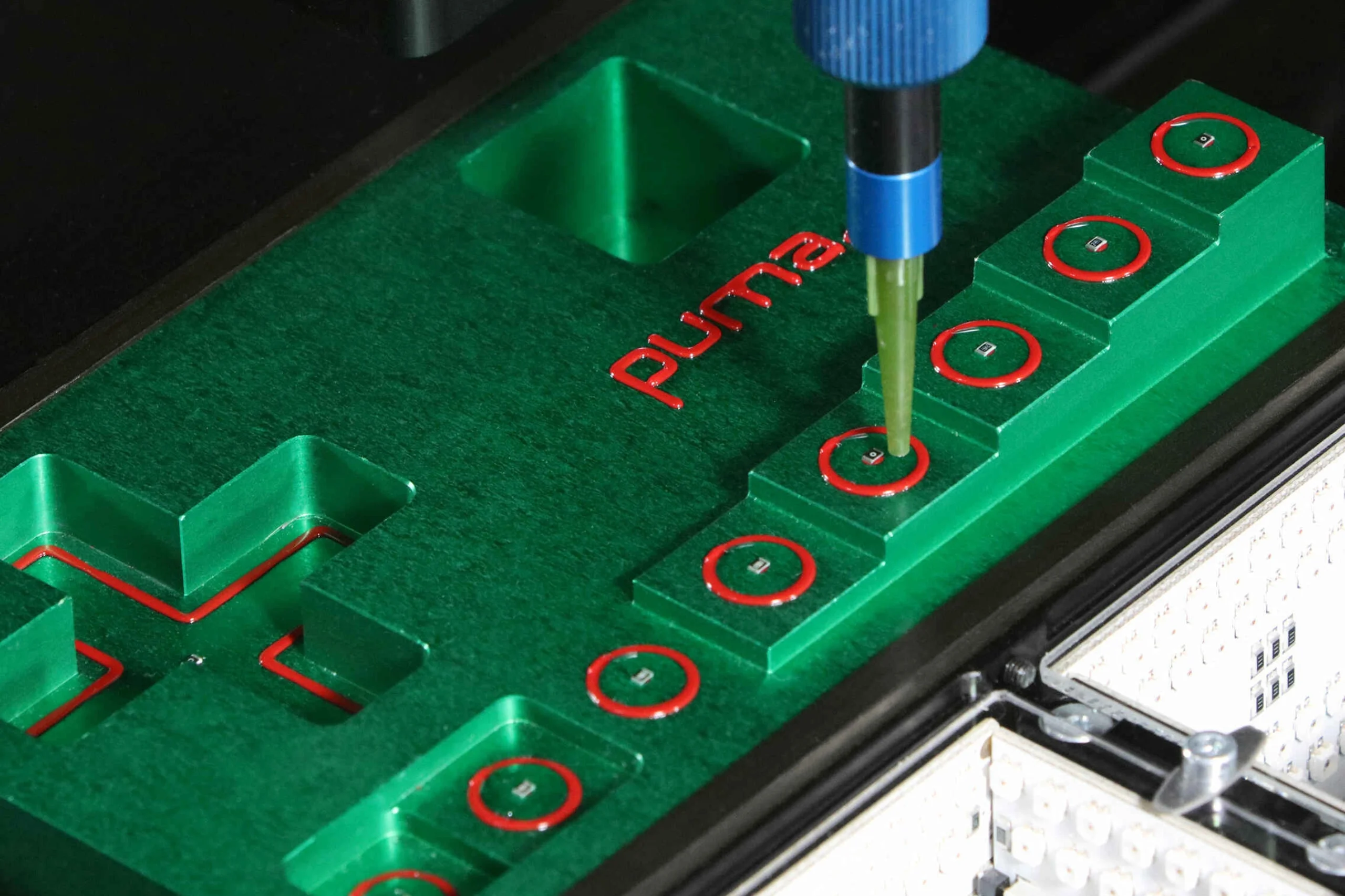

✔ Height mapping is performed using laser technology for precise surface detection.
✔ Enables compensation for substrate warpage and complex 3D contours.

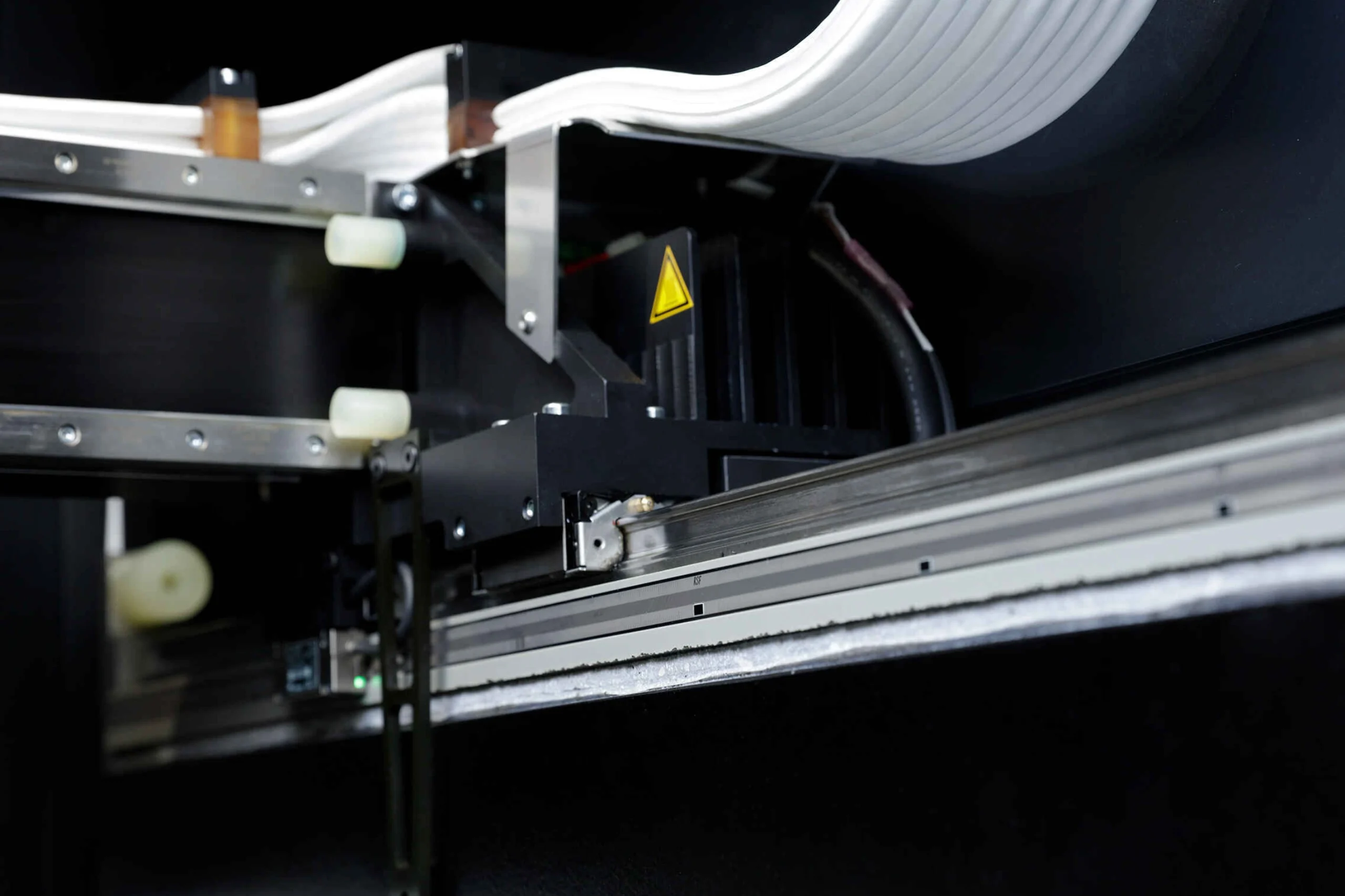

✔ Equipped with double-drive linear motors for fast and reliable movement.
✔ Maintenance-free design ensures extended operational lifetime.

For your optimal benefit, we have various product notes available for our optional equipment. Please contact your local consultant or our service team. Essemtec solutions are unique in the industry and characterized by fast and uncomplicated adaptation to general conditions and customer requirements.

Advanced, fully graphical interface with a 21.5” 16:9 HD wide touchscreen designed for intuitive fingertip control. Supports universal CAD conversion, enables zoom functionality within camera windows, and integrates all-in-one job planning and setup optimization. Includes stock management, ERP/MES connectivity, data analysis, and line management capabilities.

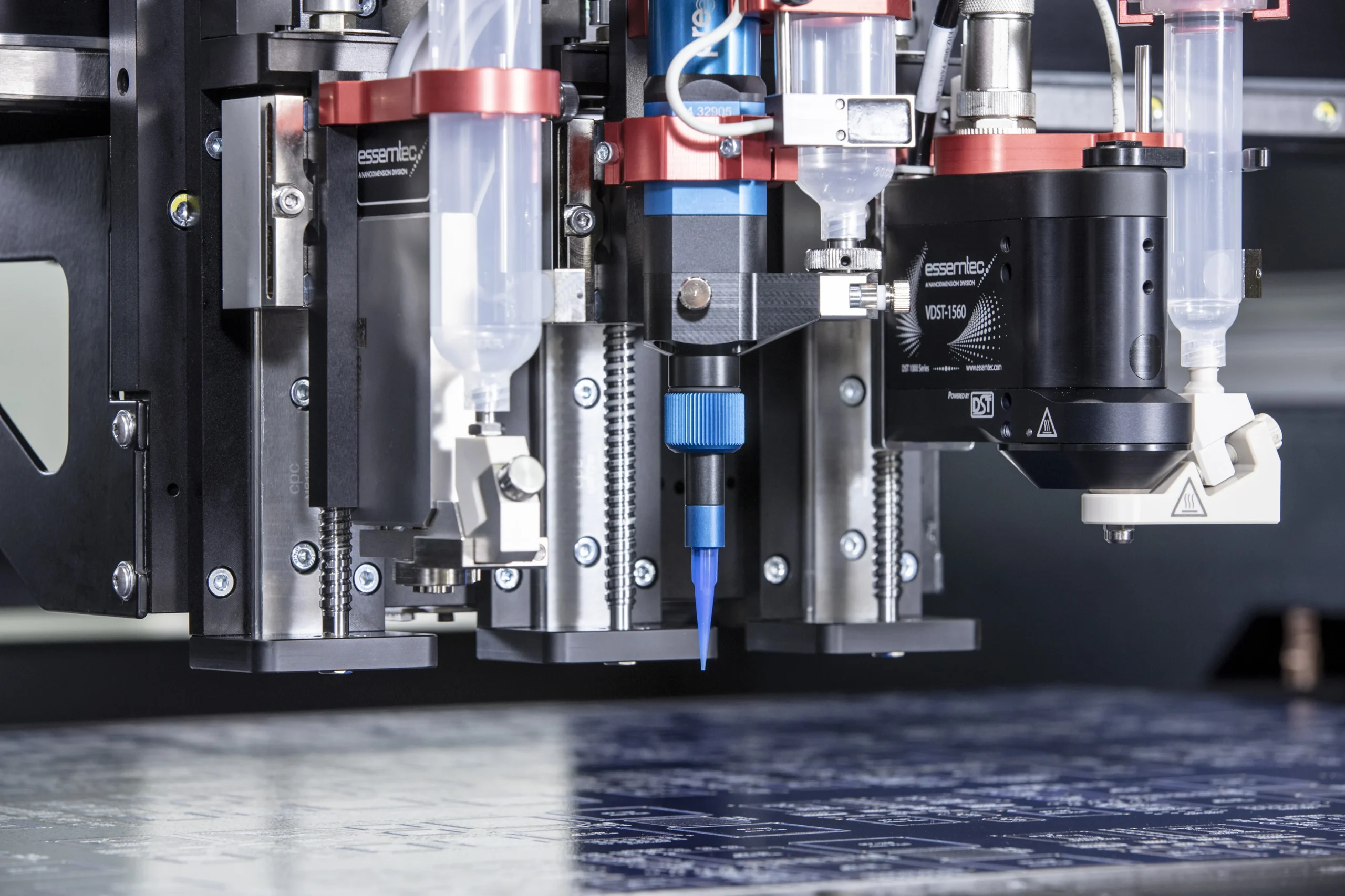

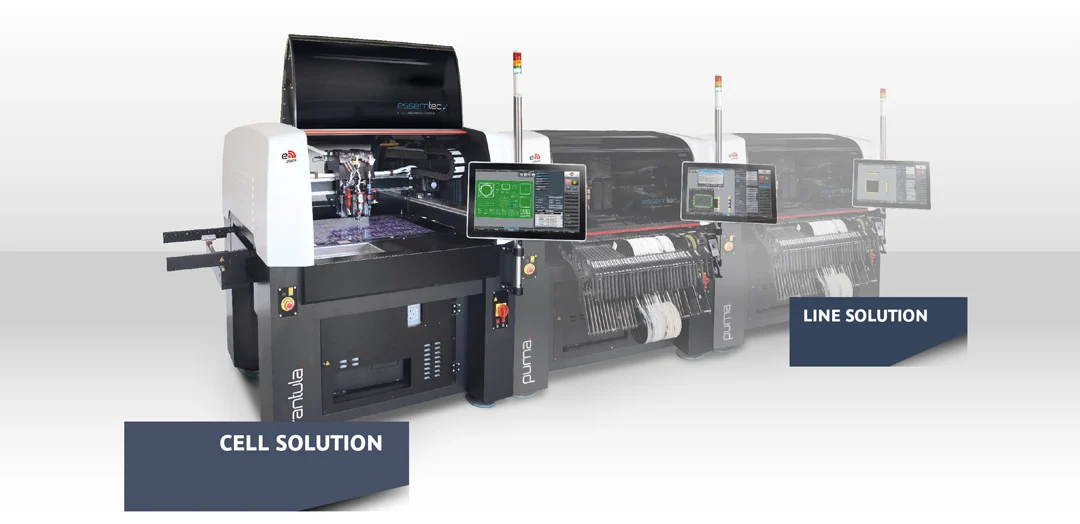

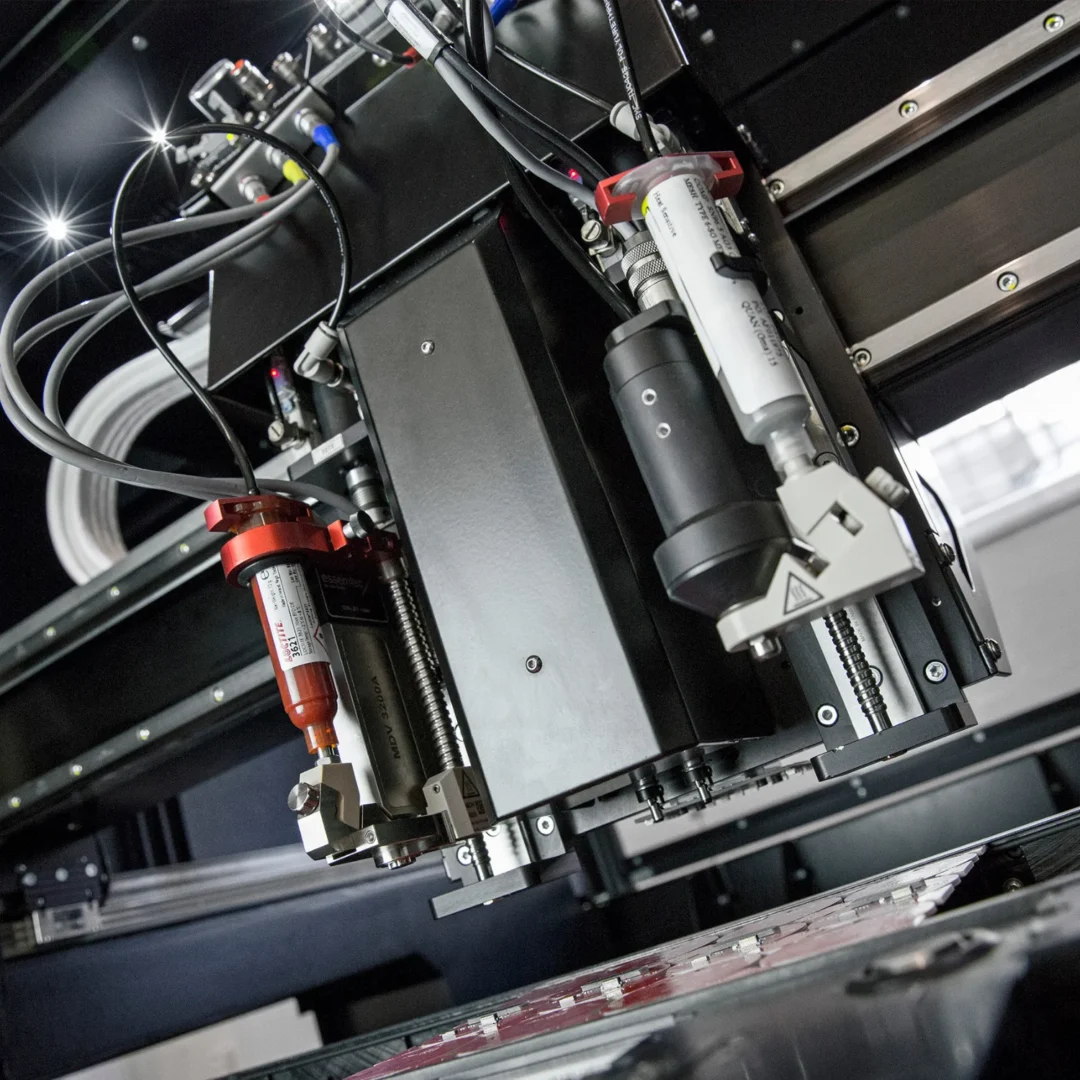

Designed for integration into high-speed lines and highly complex dispensing applications. Three processes can run at the same time. Plug-and-play functionality supports valve changes. Piezo Jet Valve provides super high speed for low viscosity. Solder Jet, Volume Displacement, Time/Pressure, and Archimedean Screw Valve are included. Full operator support is available through automated error analysis and KPI monitoring. Training, support, and troubleshooting are provided via advanced remote access. Investment protection is ensured, with all options and heads retrofittable.
