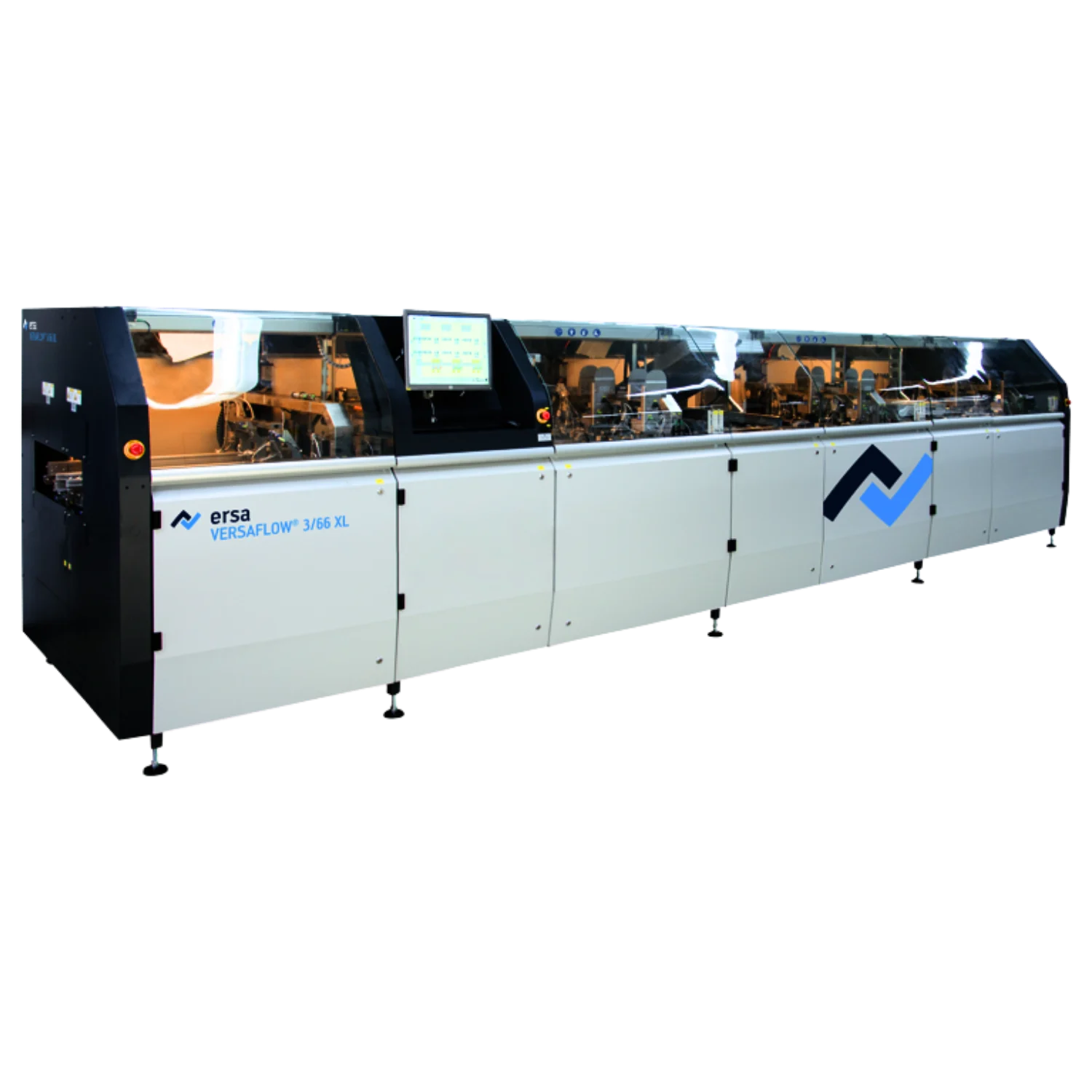

VERSAFLOW 3/66 XL

Selective Soldering System for PCBs up to 610 mm wide and 3,000 mm long

Wave & Selective Soldering | Selective Soldering

VERSAFLOW 3/66 XL

  • The VERSAFLOW 3/66, part of the third generation VERSAFLOW series, is engineered for selective soldering of XL-format assemblies.
  • Handling boards with dimensions up to 3,000 mm in length and 610 mm in width is effortless for this advanced system.
  • Depending on production needs and soldering tasks, additional fluxing, preheating, and soldering modules can be integrated.
  • The VERSAFLOW 3/66 supports up to three soldering modules, each configurable with one or two single-wave pots.
Request a Quote WhatsApp Inquiry
Technical Specification
Technical Specification VERSAFLOW 3/66 XL
Length 10,050 mm
Width 1,900 mm
Height 1,650 mm
Conveyor System
Conveyor System VERSAFLOW 3/66 XL
Conveyor Type Pin chain conveyor or roller conveyor
PCB width 100-610 mm
PCB length 150-3,000 mm
Max. PCB top structures top up to 120 mm
Max. circuit board structures at the bottom up to 60 mm
Max. PCB weight 10 kg (opt. 20 kg)
Fluxer/Preheating/Soldering Module
Fluxer/Preheating/Soldering Module VERSAFLOW 3/66 XL
Fluxer Drop jet in various sizes
Preheating IR radiator heating, convection or combination of IR and convection

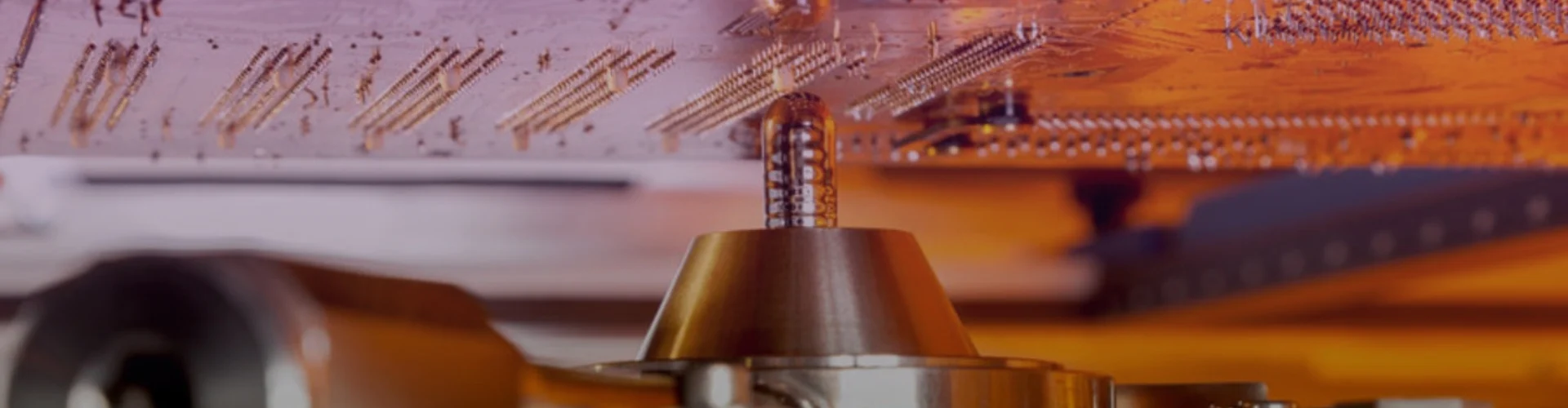

Soldering module Electromagnetic soldering pot, 1 module with up to 2 pots, solder volume 13 kg/pot
