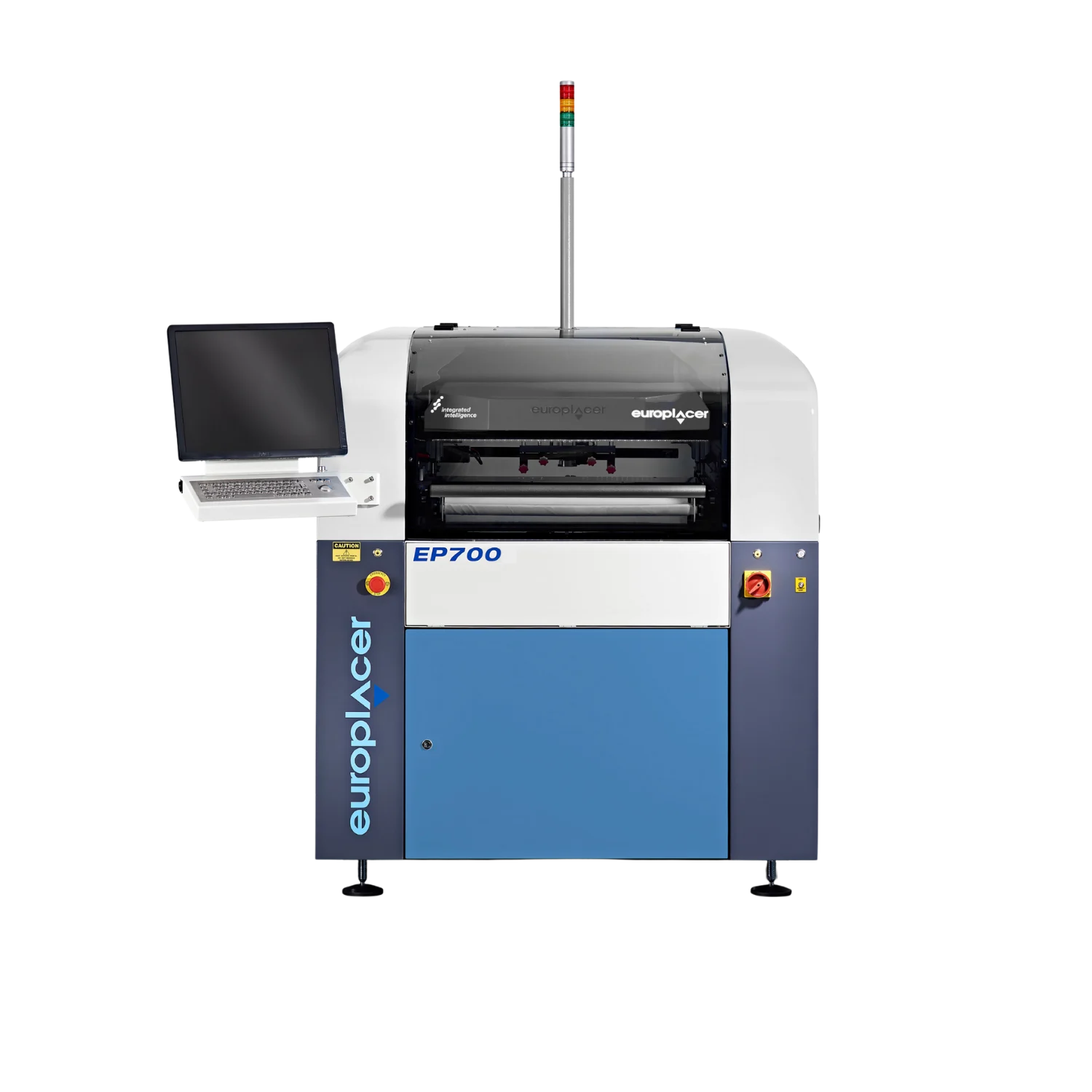

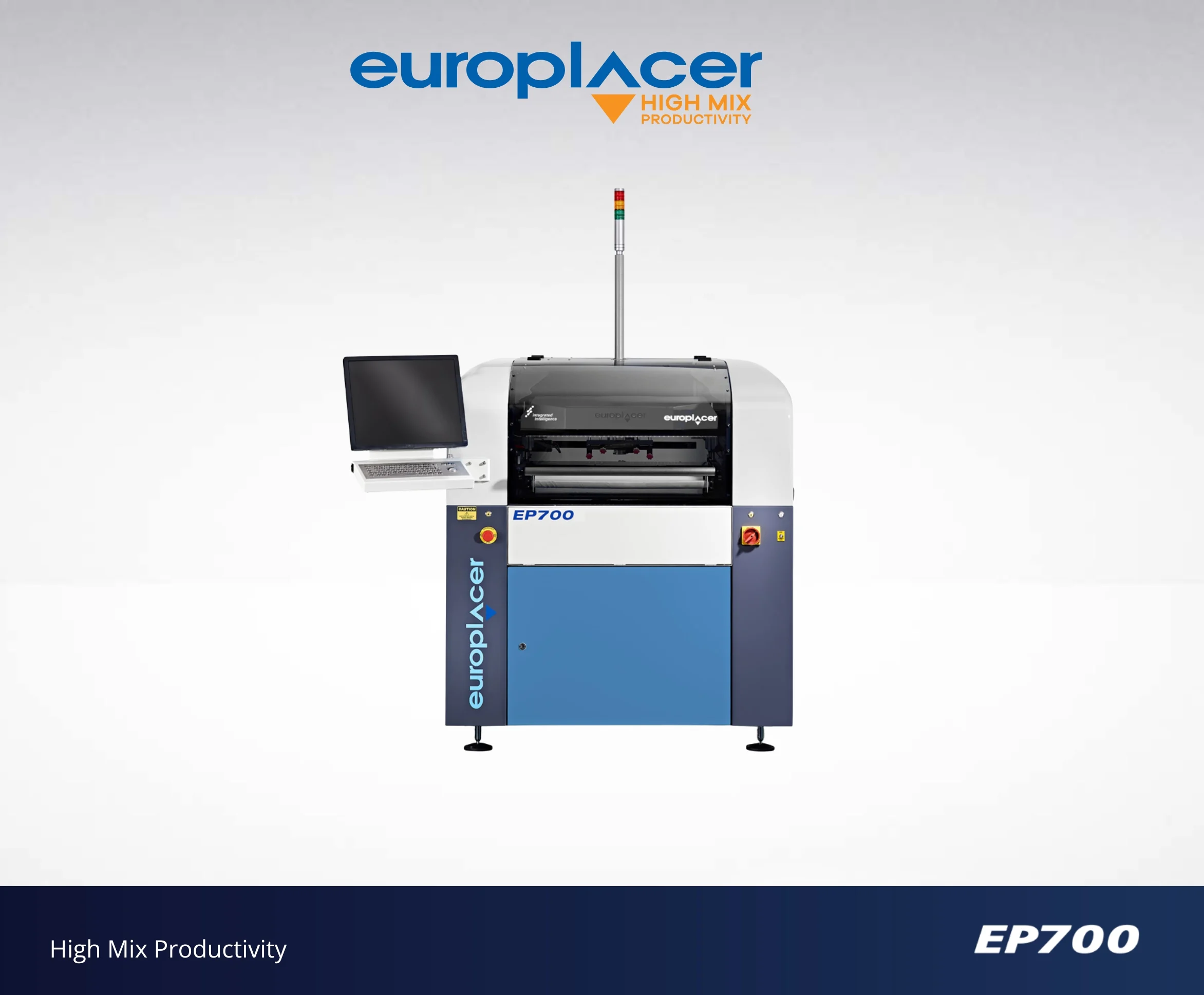

EP700 Series
Engineered for maximum usability, superior performance, and low operating costs, this versatile screen printer integrates advanced motion control technology with 1-micron linear encoders on every axis. Its intuitive software suite provides full process management for consistent, high-quality printing.
Standard features include automatic rail width adjustment, automatic stencil loading, a programmable under-stencil cleaning system, and automated paste inspection for improved efficiency and reliability.
It offers everything required for a complete SMT screen printing process – precise, efficient, and uncompromising.
The PCB handling system features a programmable board stop and pneumatic foil clamping for stable and secure transport.
Fully SMEMA-compatible, the printer seamlessly integrates with automated SMT production lines for total manufacturing connectivity.
Fully compatible with Industry 4.0 systems and SMEMA standards for seamless factory integration.
Quick setup and rapid product changeovers reduce downtime and boost productivity.
Compact footprint with high-end specifications ideal for space-efficient production lines.
The advanced Dual Roving Camera (DRc) system ensures precise alignment between board and stencil while verifying solder paste presence before each print.

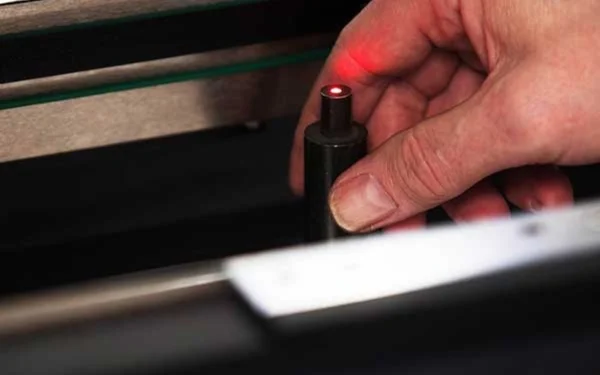

Laser tooling enables fast, precise placement of magnetic support pins for double-sided PCB setups, improving setup accuracy and efficiency.

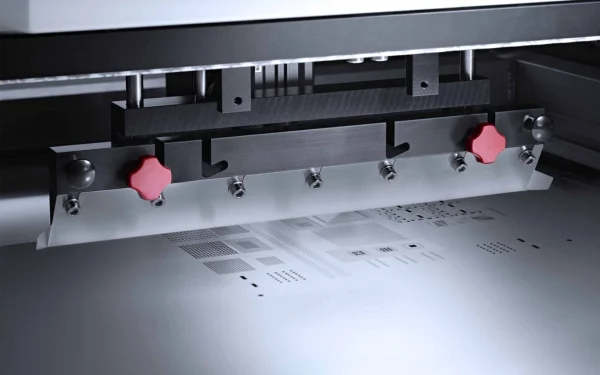

SmartCal offers quick, cost-free calibration—allowing operators to validate performance in under 30 seconds. It maintains optimal process accuracy throughout the printer’s lifecycle.

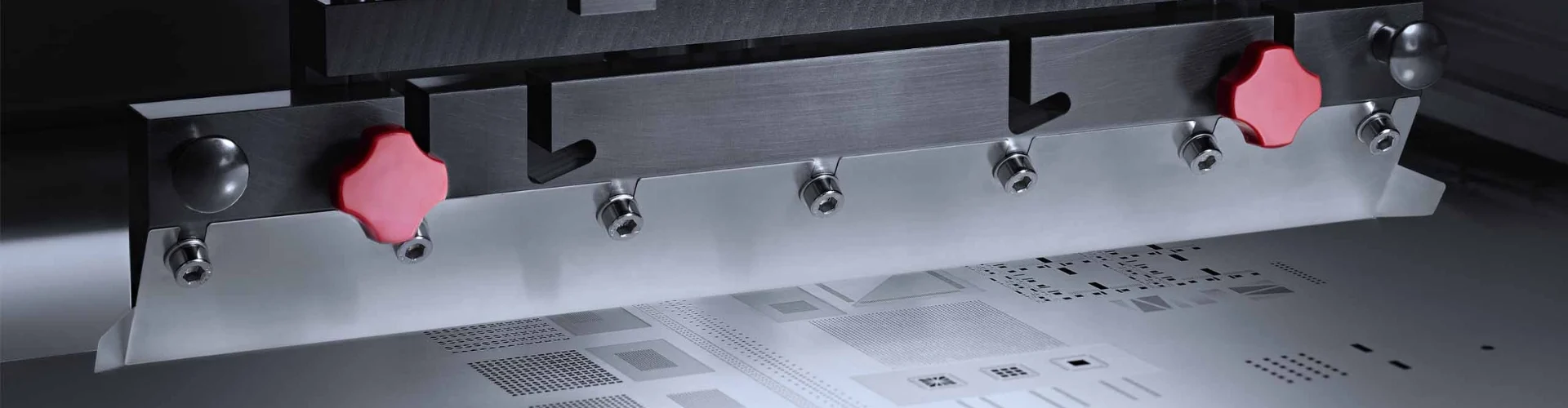

| Feature | EP700 |
|---|---|
| Max Board Size | 610mm x 515mm |
| Min Board Size | 45mm x 45mm |
| Machine alignment repeatability | 12.5μm @ 6 sigma 2Cpk |
| Full process repeatability | 20μm @ 6 sigma 2Cpk |
| X/Y PCB alignment | +/- 5mm |
| Stencil load/unload | Automatic |
| Squeegees material | Metal or polyurethane |
| Squeegee pressure | 1Kg to 20Kg |
| Print speed | 5mm/sec to 250mm/sec |
| Board clamping | Pneumatic foils (standard) |
| Clamping thickness | 0.2mm to 8mm |
| Board stop | Fully programmable |
| Cycle time | 11.5 secs (standard) |
| Up/down line protocol | SMEMA compatible |
| Operating system | Microsoft Windows™ 7 or higher |
| Power consumption | 13 Amps |
| Power supply | 110V to 240V AC, single phase |
| Operating temperature | 10°C to 35°C @ 30% to 50% RH |
| Weight | 650Kg |
