ii-P7

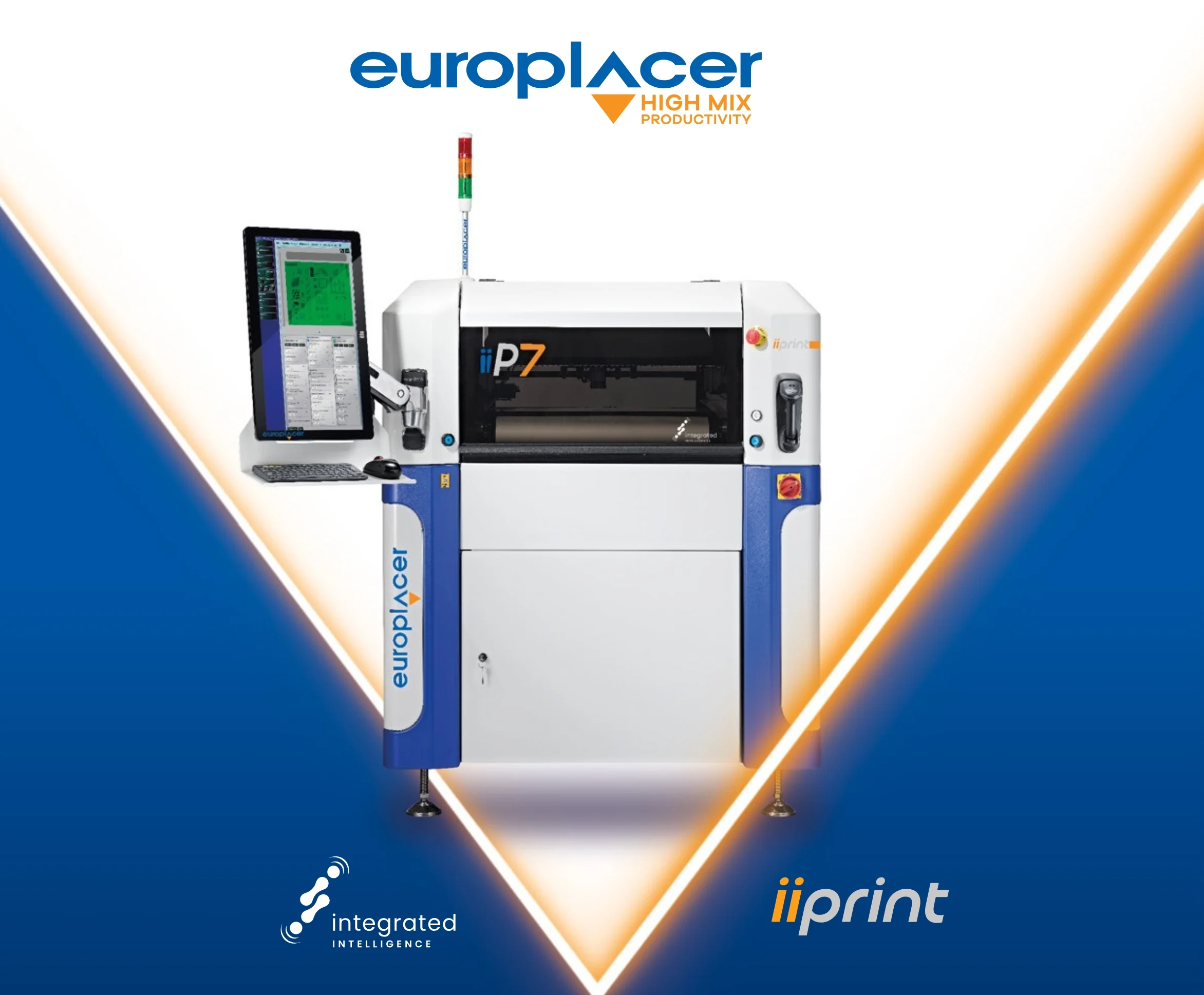

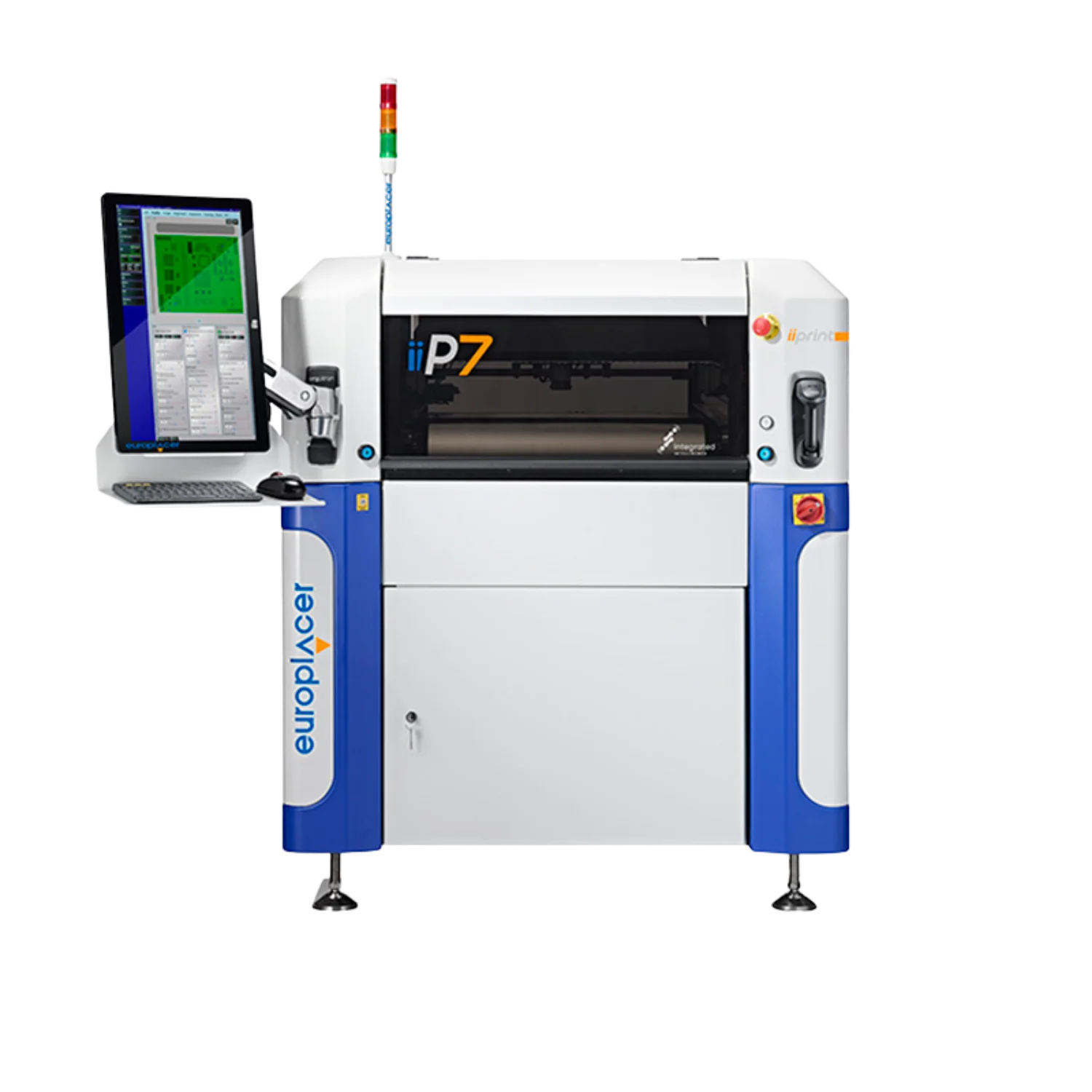

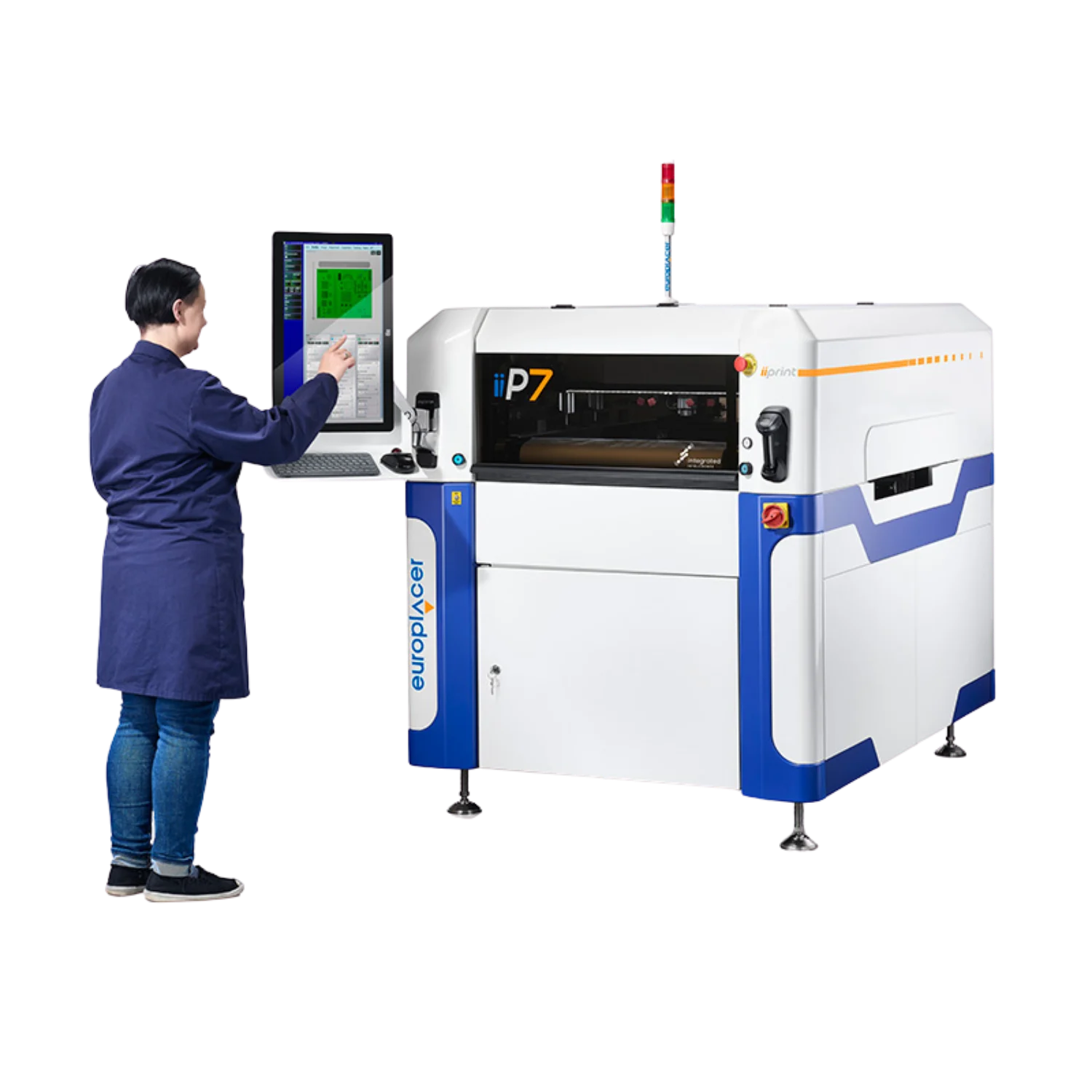

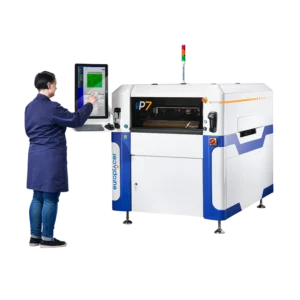

The ii-P7 is a high-precision, low-maintenance screen printer designed for superior print quality and production reliability.
Europlacer’s ii-P7 combines advanced engineering with 1-micron linear encoders on every axis, guaranteeing exceptional alignment accuracy and repeatable print results.
Powered by the advanced ii-PS software platform, it adapts seamlessly to both high-mix and high-volume SMT production lines.
With optional ADu+ dispensing for solder paste and adhesives, and S-Track barcode labeling for traceability, ii-P7 ensures full process control from the first print to final inspection.

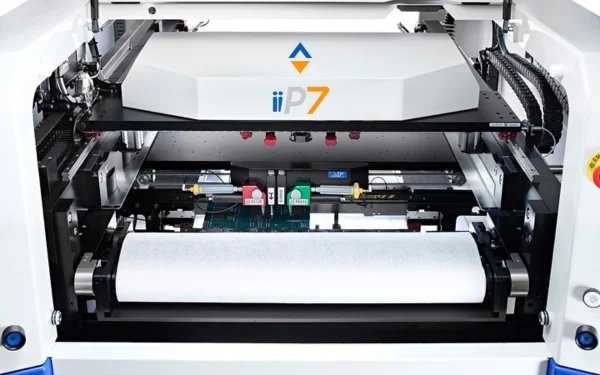

Cycle time as short as 5 seconds
Quick and simple setup process
Rapid changeovers
Perfect for prototype production
Supports large stencil printing areas
Superior repeatability
20 µm @ 6 sigma 2Cpk precision
Dual roving vision system

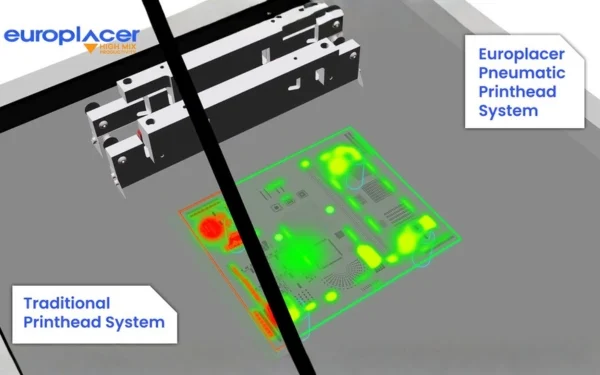

Standard cycle time is 9 seconds, but Velocity and Velocity+ software upgrades reduce this to 7 or even 5 seconds without compromising accuracy.

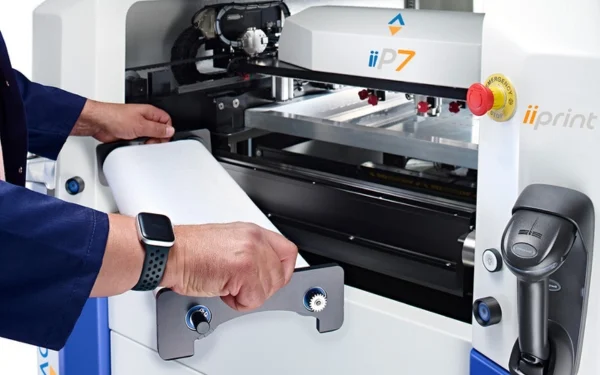

Minimizes cleaning duration with a single-pass under-screen cleaner and quick-change cartridge for faster changeovers.

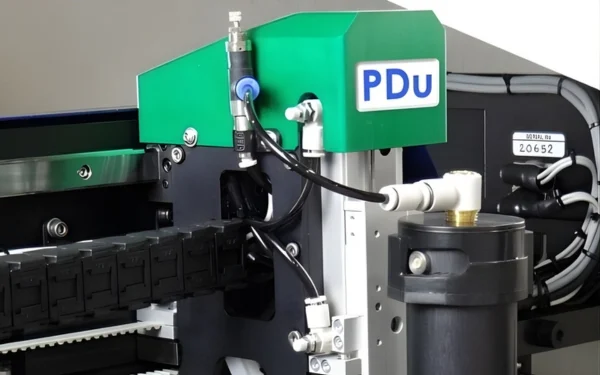

Automatically applies precise amounts of solder paste from 600g cartridges, either at startup or mid-production, improving consistency.

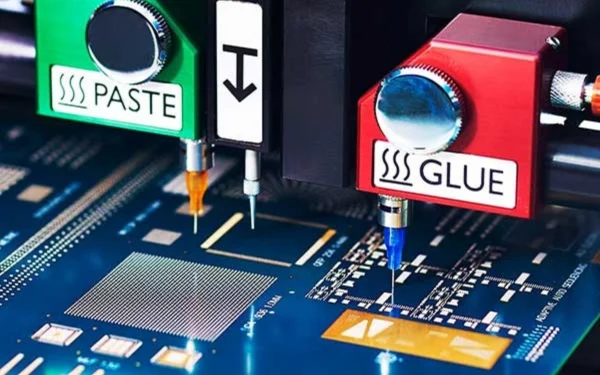

SmartCal 2 Captures 88% more calibration data within 90 seconds to ensure top-level accuracy and process stability. ADu+ Precision dispensing for solder paste and adhesives, ensuring consistent application.

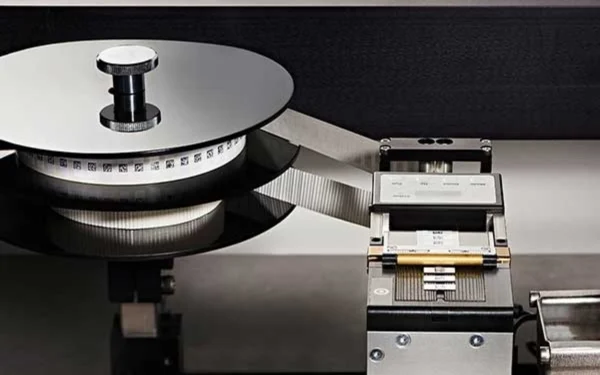

Automated barcode labeling for complete material and process traceability.
| Feature | ii-P7 |
|---|---|
| Max Board Size | 610mm (x) x 515mm (y) |
| Min Board Size | 45mm (x) x 45mm (y) |
| Max PCB Weight | 1Kg (2.2lb) |
| Max PCB thickness | Up to 8mm (0.315”) including 1% warpage |
| Min PCB thickness | 0.2mm (0.008”) |
| Feature | ii-P7 |
|---|---|
| User interface | 22” touch screen monitor |
| Operating system | Microsoft Windows™ 10 or higher |
| Feature | ii-P7 |
|---|---|
| Power consumption | 13 Amps |
| Power supply | 110V – 240V |
| Air supply | 6 bar clean air supply |
| Air consumption | 1.4 litres per cycle without clean, 16 litres during USC |
| Operating temperature | 10°C to 35°C (50°F to 95°F), humidity 30% to 50% relative humidity (non condensing) |
| Weight | 650Kg |
| Crated weight | 800Kg |
| Machine dimensions | 1226mm x 1731mm x 1285mm (L x W x H) |
| Feature | ii-P7 |
|---|---|

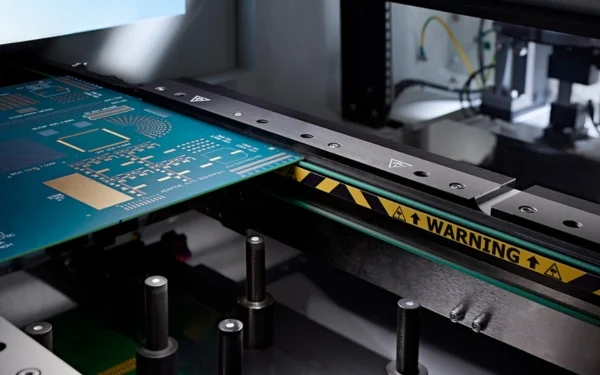

| Underside component clearance | 30mm |
| Underside edge clearance | 5mm |
| Minimum board edge clearance | 3mm |
| Machine alignment repeatability | 12.5µm @ 6 sigma 2Cpk |
| Full process repeatability | 20µm @ 6 sigma 2Cpk |
| Max print area | 610mm (x) x 515mm (y) |
| X/Y PCB alignment | ± 5mm |
| Stencil image | Front and centre dedicated |
| Stencil load/unload | Fully automatic (standard) |
| Stencil frame size (max) | 736.6mm (29”) x 736.6mm (29”) max frame height 40mm |
| Stencil frame size (min) | 584mm (23”) x 584mm (23”) max frame height 40mm |
| Squeegee pressure | 1-20Kg |
| Squeegee control | Pneumatic control using proportional valve |
| Print speed | 5-250mm/sec |
| PCB separation speed | 0.1-20mm/sec |
| Print modes | Print/print, flood/print, print/ flood |
| Transport direction | Right-left, left-right, left-left, right-right |
| Cycle time | 9-second standard. 7-second and 5-second available via upgrade. Excludes process elements. |
| Up/down line protocol | SMEMA, Hermes |
| SPI closed loop | Feedback loop with 3rd party SPI machines |

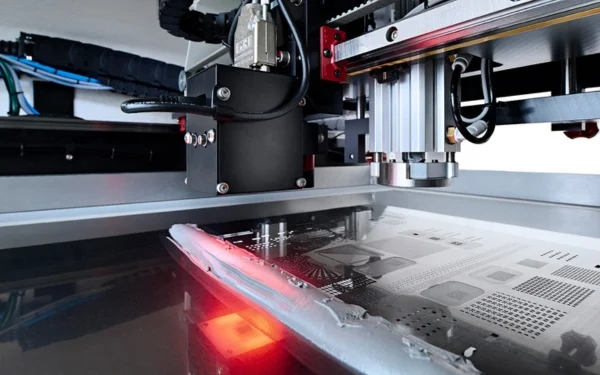

| Stencil paste roll inspection | Automatic validation of paste for defect prevention (standard) |
| PCB support | Magnetic tooling pins. Laser guided position assistance optional. 3rd party solutions available. |
| Camera field of view | 8mm by 10mm |
| Camera system | Dual roving camera - look down/look down |
| Number of fiducials | Unlimited |
| Fiducial size | 0.5 – 5mm |
