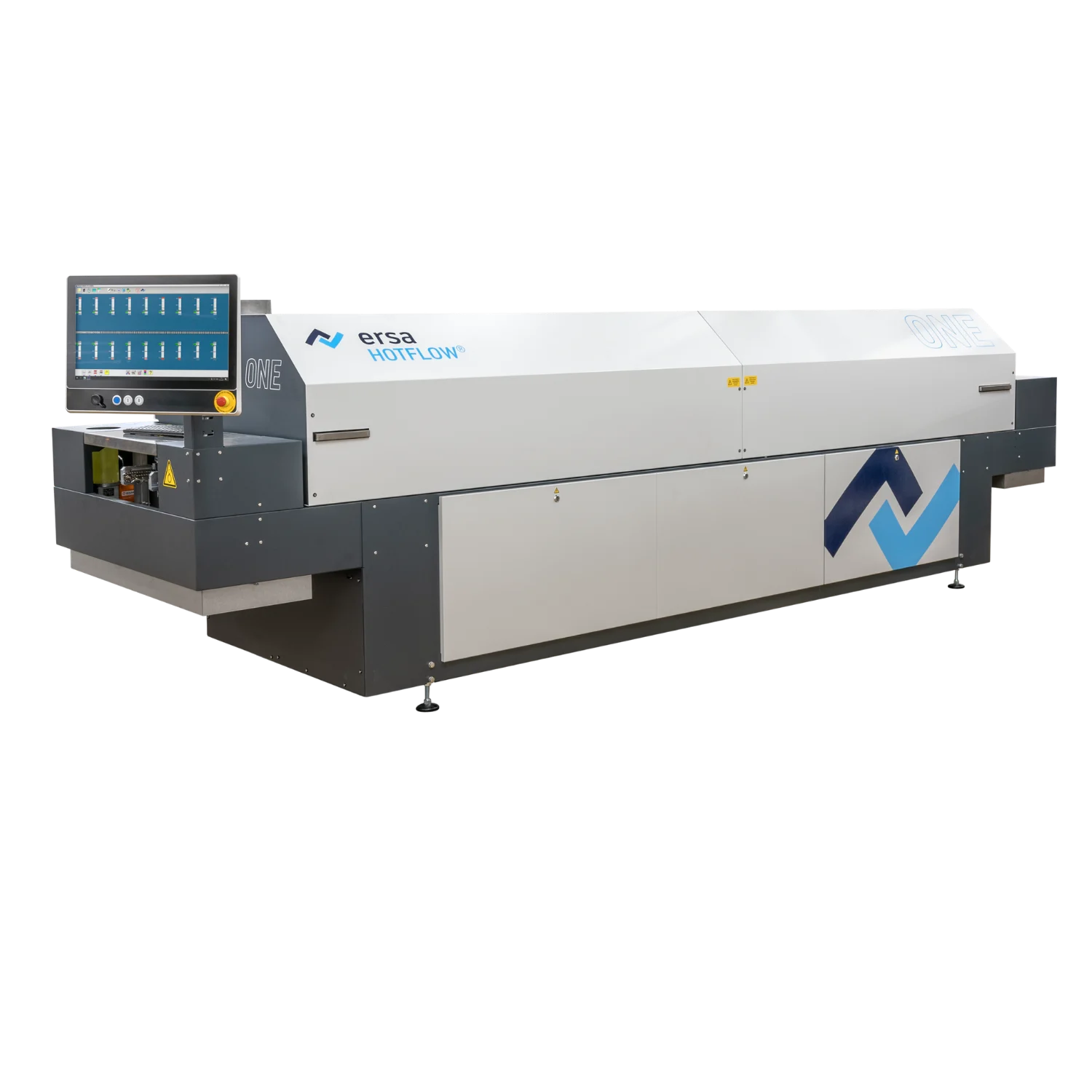

HOTFLOW ONE
The HotFlow One reflow soldering systems represent the entry level into the Ersa reflow process. They provide excellent soldering results supported by strong thermal performance, a stable cross profile, and optimal zone separation (available with 14 and 20 zones).
The system stands out with its attractive price-performance ratio and high operational efficiency. Its design is based on 35 years of Ersa reflow expertise, combining economic and technological solutions in a balanced structure. The outcome is reflected in high reliability and system availability, along with simplified maintenance and cleaning processes.
| Technical Specification |
|---|
| Preheating top and bottom |
| Soldering zone, convection modules top and bottom |
| Cooling, convection modules top and bottom |
| Low-mass transport system, 516 mm (optional Dual Track with 2x 230 mm) |
| Automatic chain lubrication |
| Industrial PC with touchscreen |
| Operating status display |
| Energy consumption management |
| Software Highlights |
|---|
| ERSASOFT process data recording |
| User-friendly ERSASOFT machine control |
| Autoprofiler for fast offline profile determination |
| Order management |
| Online help |
