MK 2049 Reflow Oven

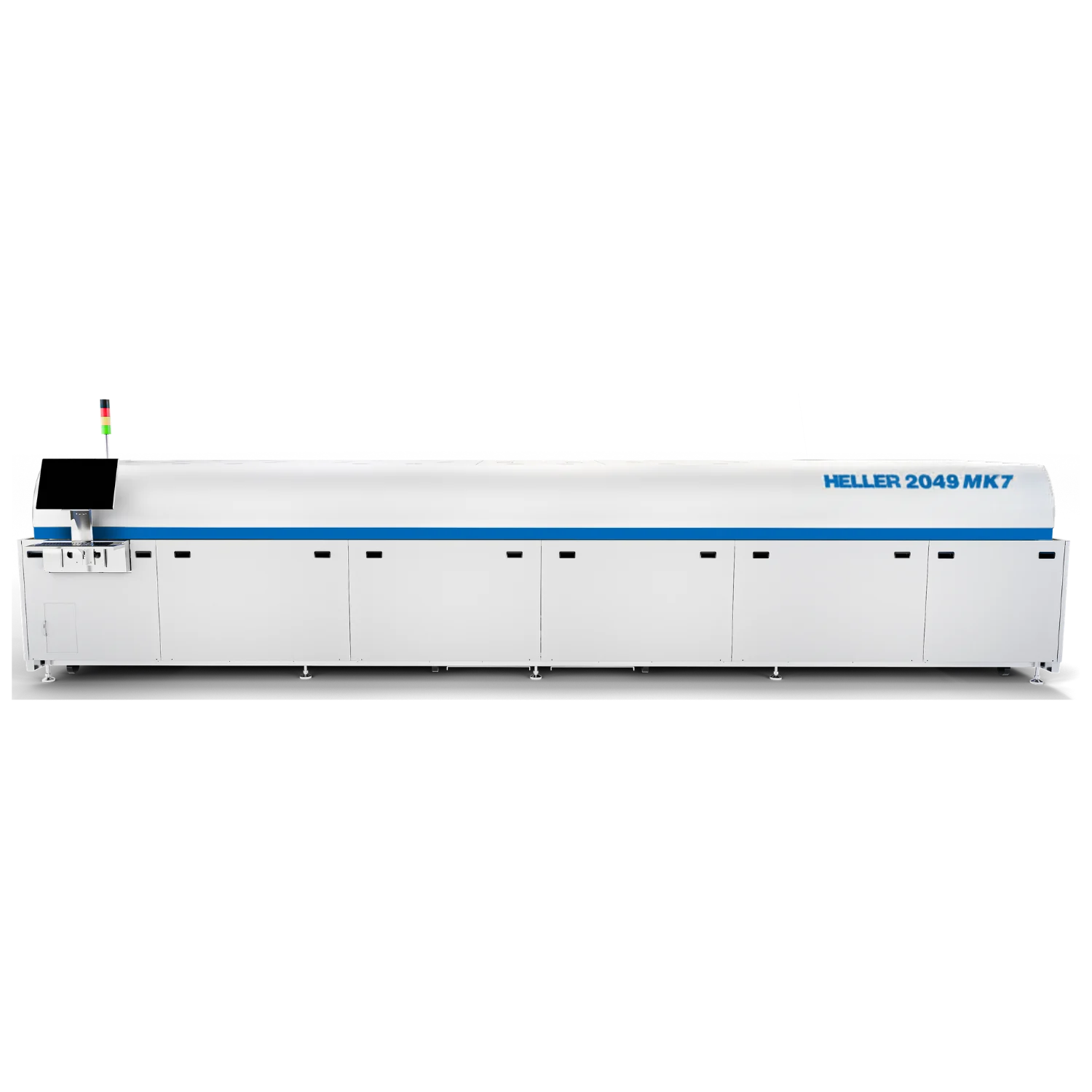

The 2049 MK7 Reflow Oven – High-Volume SMT Production with 15 Heating Zones
The 2049 MK7 reflow oven system is engineered for large-scale SMT manufacturing, featuring 15 heating zones and belt speeds up to 1.88 m/min.
It ensures the lowest Delta T, along with optimized nitrogen and power consumption, supported by advanced flux management options for stable and efficient soldering.
The 12” wide heater modules maintain profile compatibility with other SMT reflow systems.
New MK7 Reflow Oven for High-Throughput SMT and Semiconductor Applications
The MK7 reflow oven revolutionizes SMT and semiconductor production with innovative design and advanced engineering.
It integrates all key customer requests — including lower Delta T, reduced nitrogen usage, and extended preventive maintenance intervals — into a compact low-height system that ensures clear visibility across the production floor.
You’re invited to visit one of our three demo centers to run thermal profiles and collect data yourself to experience the MK7 reflow oven’s performance advantages. Alternatively, send us your most challenging PCB, and we will provide custom reflow soldering profiles and data tailored to your production needs.
Highest Yield and Efficiency!
✔ Lowest Delta T on the board
✔ Minimal nitrogen and power consumption
✔ Maintenance-free design
✔ VOID-free reflow process with vacuum option
✔ Industry 4.0 compatible system
✔ Integrated Cpk software – free of charge!
The low-height top shell provides easier access for operators. All exterior panels feature dual insulation, reducing reflow soldering energy loss by 10–15%.
The integrated low-temperature catalyst system decomposes flux into harmless CO₂ and H₂O without producing any harmful byproducts. It requires no additional power or cooling, reducing operational costs. The catalyst also lowers oxygen concentration, which decreases nitrogen usage while maintaining target PPM levels. As a result, the oven remains cleaner for longer, extends PM intervals, and increases productivity.
| Basic Data Features | MK 2049 |
|---|---|
| Oven Length | 744 cm (292″) |
| Process Gas Options | Air, Nitrogen |
| Heated Zones | Convection: 15 Top / 15 Bottom |
| Heated Length | 360 cm (142”) |
| Cool Zones | 4 Top (Bottom Option) |
| Max Working Temperature | Standard: 350°C (Option: 400°C) |
| Maximum PCB Width | 55.9cm (22”) |
| Cleanroom Option | Down to Class 1000 |
This product video introduces MK7 Series by summarizing its general working principle and typical application scenarios.
