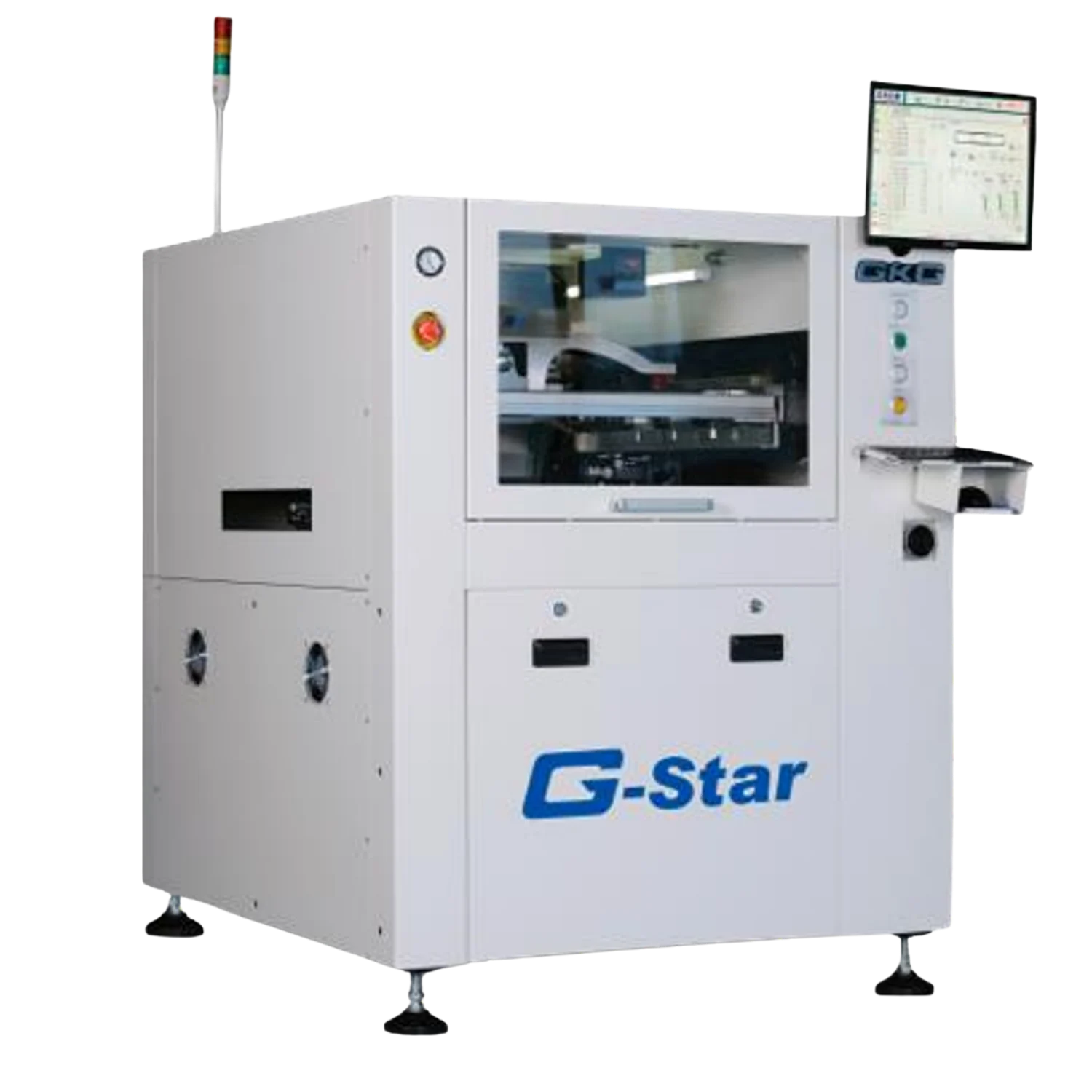

G-Star
The G-Star Screen Printer is specifically designed for M-size PCB boards, offering precise and stable printing performance. Capable of achieving high-accuracy printing down to 01005 components, it ensures reliability for demanding production environments. With full stencil contact and an enhanced cleaning system, it effectively removes residual solder paste before every print cycle, guaranteeing consistent, high-quality results.
Equipped with an advanced 2D solder paste inspection function, the G-Star detects defects such as insufficient paste, bridging, or print errors. Its manual top clamp combined with motorized side clamps provides superior board fixation, ensuring maximum stability and excellent printing quality.
| Feature | G-Star |
|---|---|
| Machine Alignment Capability | 2Cmk @ ±12.5 microns 6 sigma |
| Process Alignment Capability | 2Cpk @ ±25 microns 6 sigma |
| Core Cycle Time (excluding printing & cleaning time) | < 8.5 secs |
| Product Changeover Time | < 3 mins |
| New Product Set-up Time | < 10 mins |
| Feature | G-Star |
|---|---|
| Stencil Frame Size (L X W) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm |
| Print Gap (snap-off) | 0~20 mm |
| Printing Table Adjustment Range | X: ±3 mm, Y: ±7 mm : ± 2° |
| Print Speed | 6~200 mm/s |
| Squeegee Pressure | 0.5~10kg (program control) |
| Squeegee Type | Std.: Metal , Option: OPC, rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (software select) |
| Feature | G-Star |
|---|---|
| Max. Size (L x W) | 400 mm x 340 mm |
| Min. Size (L x W) | 50 mm x 50 mm |
| Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Manual (Auto is option. PCB max. width reduced to 310 mm) |
| PCB Max. Weight | 3 kg |
| PCB Edge Clearance | 3 mm |
| PCB Bottom Clearance | 15 mm (7 mm with optional auto PCB thickness adjustment) |
| PCB Warpage | Max. 1% diagonally |
| Clamping Method | Top clamp (manual) and motorized side clamp |
| Support Method | Magnetic support pins, bars, blocks, Vacuum suction |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | Max. 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| Feature | G-Star |
|---|---|
| Field-of-View (FOV) | 8 mm x 6 mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial size | 0.5~3.0 mm |
| Vision Methodology | CCD camera look up & down |
| 2D inspection | Max.500 windows to inspect missing & insufficient (std.) |
| Feature | G-Star |
|---|---|
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 2.5kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Dimension (excluding signal tower) | 1,158 mm (L) x 1,362 mm (W) x 1,463 mm (H) |
| Machine Weight | 1,000kg |
| Feature | G-Star |
|---|---|
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 10 |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| Feature |
|---|
| Paste Rolling Diameter Monitoring System |
| Stencil Apertures Inspection System |
| Auto Table Adjustment for PCB Thickness |
| SPI Closed-loop |
| External Barcode Scanner for PCB Traceability |
| Handheld Barcode Scanner for stencil, solder paste, squeegee traceability |
