G-Tera

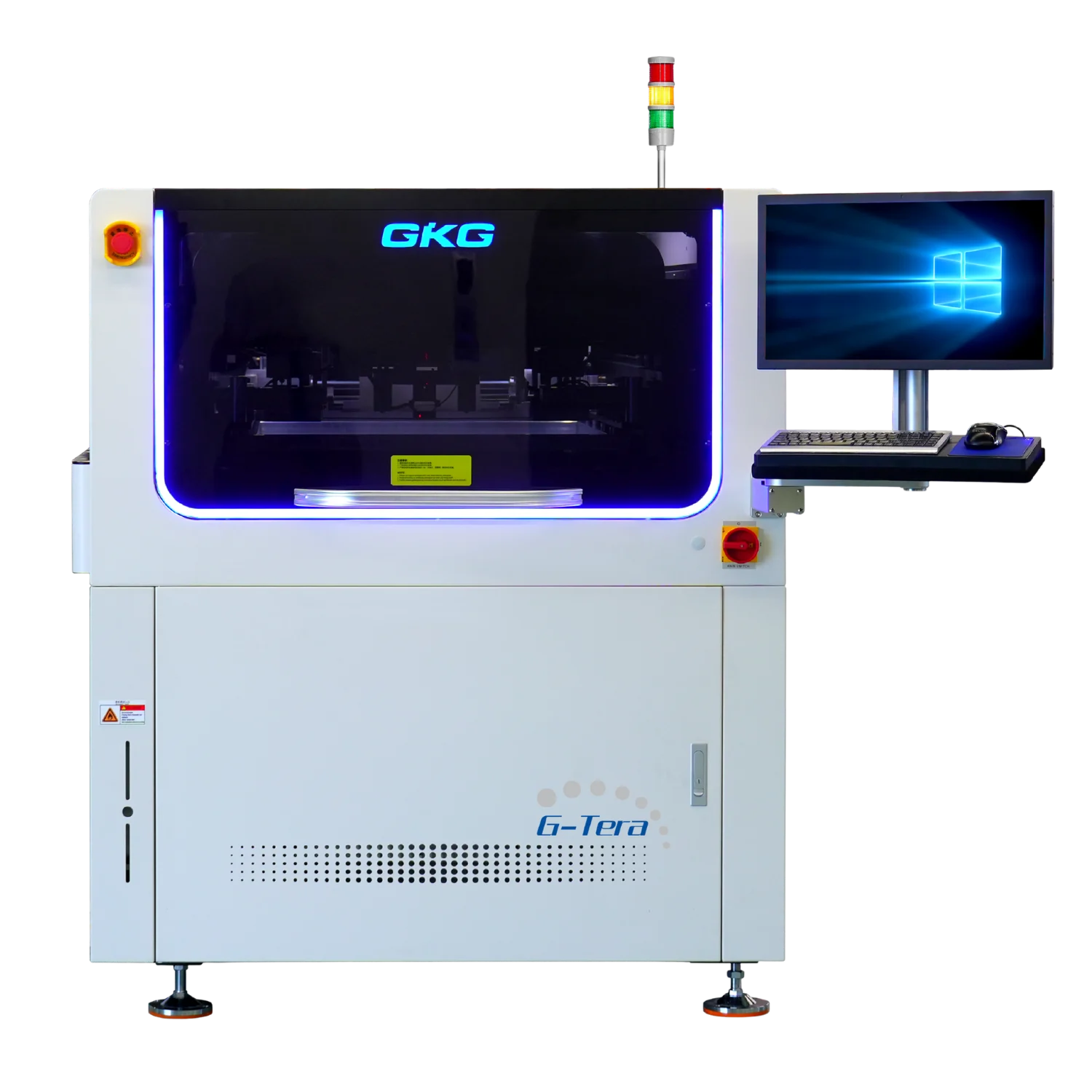

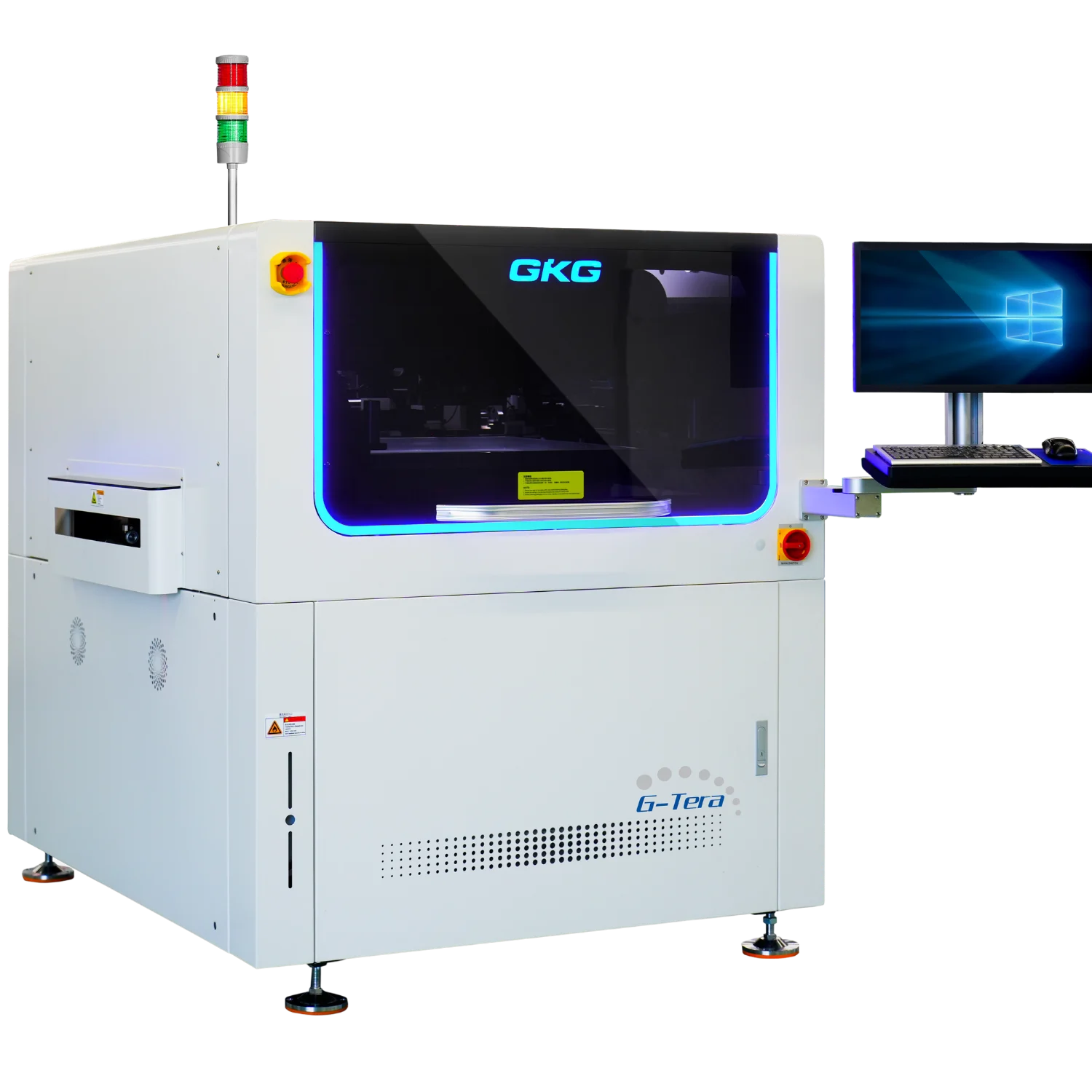

The all-new G-Tera automatic screen printer sets a new standard in SMT printing, equipped with a 3.0-megapixel LIGHT-Bolt CCD camera, an upgraded conveyor system, and an enhanced printing module. Compared to other GKG SMT printers, it can reduce cycle time by up to 40%. With its high-precision servo-driven dynamic system, the G-Tera guarantees fast and accurate alignment. Its independent cleaning system enables printing on ultra-fine pitch pads as small as 0201 metric, ensuring excellent solder paste printing quality and greater production efficiency.
The machine is fully computer-controlled, featuring an intuitive user interface and a wide array of software functions. Designed with future-ready capabilities, the G-Tera is the most advanced and intelligent model in the GKG SMT printer lineup.
| Feature | G-Tera |
|---|---|
| Machine Alignment Capability | ±8µm @ 6σ (CPK≥2.0) |
| Process Alignment Capability | ±12.5µm @ 6σ (CMK≥2.0) |
| Core Cycle Time (excluding printing & cleaning time) | 5.2 secs |
| Actual Cycle Time(including printing & cleaning time) | 12.5 secs |
| Product Changeover Time | 2 mins |
| New Product Set-up Time | 4 mins |
| Feature | G-Tera |
|---|---|
| Print Speed | 10~200 mm/s |
| Print Pressure | 0.5 - 20kg |
| Print Mode | Single or Dual squeegee printing |
| Squeegee Type | Std: OPC Squegee, Opt: Metal / Rubber / 2 Steps Squeegee |
| Snap Off Distance | 0-20mm |
| Snap Off Speed | 0-20mm/s |
| Stencil Frame Size (L x W) | Adjustable, 470 mm x 370 mm to 737 mm x 737 mm |
| Cleaning System | 2 in 1 Paperless self cleaning dry & secondary wet lint-free paper with vacuum suction (software select) |
| Stencil Positioning Method | Automatic Y-direction positioning |
| Cleaning System | 2 in 1 Paperless self cleaning dry & secondary wet lint-free paper with vacuum suction (software select) |
| Feature | G-Tera |
|---|---|
| Max. Size (L x W) | Single Stage : 510 mm x 510 mm, 3-Stage : 265mm x 510mm (Optional 400mm x 510mm) |
| Min. Size (L x W) | 50 mm x 50 mm |
| Board Thickness | 0.4~6 mm |
| PCB Thickness Adjustment | Automatic Height Adjust Platform |
| PCB Max. Weight | 5 kg |
| PCB Edge Clearance | 2.5 mm |
| PCB Bottom Clearance | 20 mm |
| Conveyor Height | 900 ± 30mm |
| Max. Conveyor Speed | 1500mm / s |
| Conveyor Belt | U-Shape Belt |
| Conveyor Direction | L to R, R to L, R to R, L to L |
| Support Method | Magnetic support pins, bars, dedicated vacuum block |
| Clamping Method | Auto retractable top clamp, motor controlled side clamp |
| Feature | G-Tera |
|---|---|
| Field-of-View (FOV) | 10 mm x 8 mm |
| CCD Camera | 3.0 MP CCD Digital camera look up & down concurrently |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial Size | 0.1~6.0 mm |
| Number of Fiducial | 2 - 4pcs |
| Feature | G-Tera |
|---|---|
| Power Supply | AC220±10%, 50/60Hz 2.2kW |
| Air Supply | 4~6kgf/cm² |
| Air Consumption | ~5L/min |
| Working Temperature | -20°C ~ +45°C |
| Dimension (Excluding signal light) | 1,258(L) x 1,540(W) x 1,520(H) mm |
| Machine Weight | 1,250kg ~ 1,300kg |
