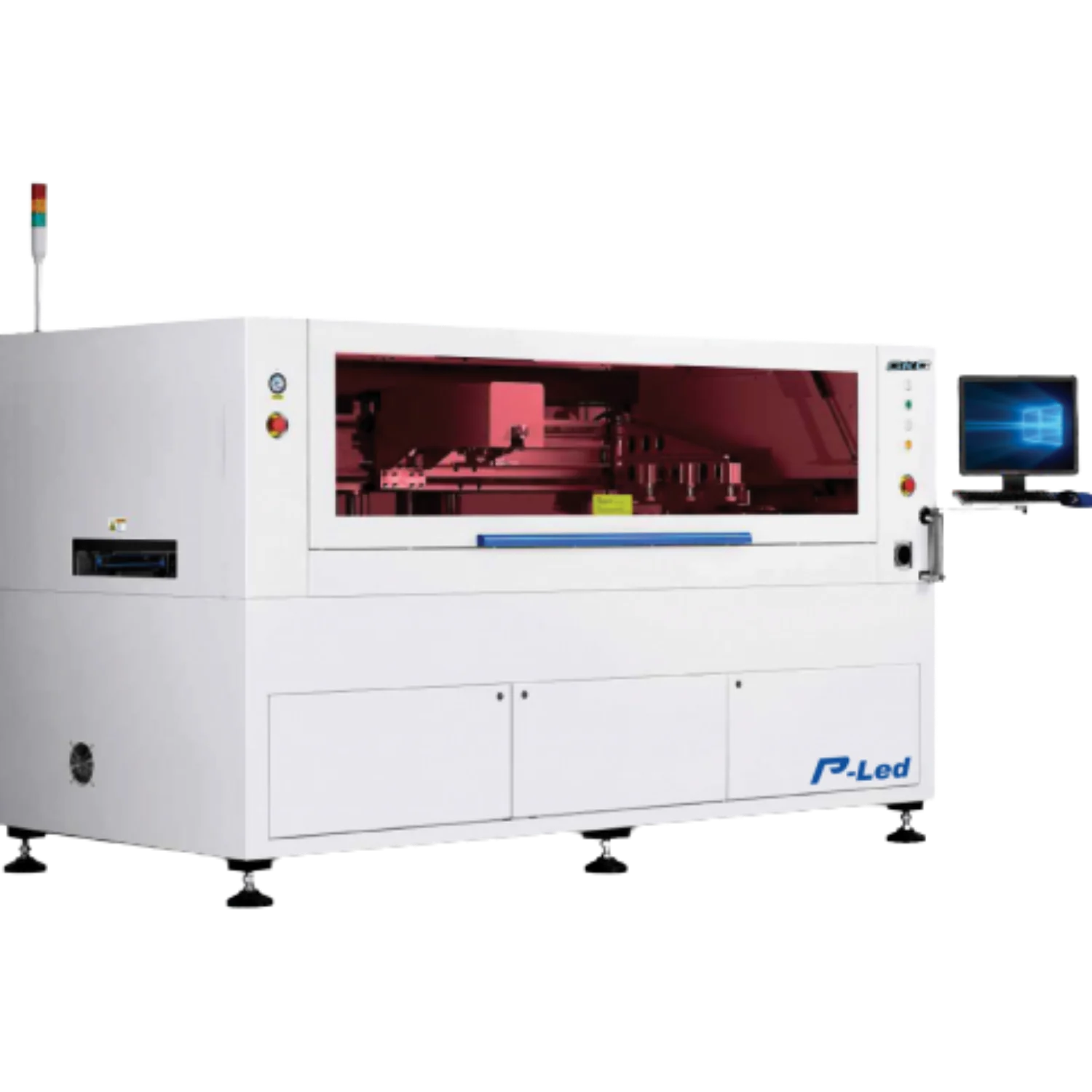

P-LED
The P-LED printer is specifically designed to meet ultra-long printing requirements, capable of handling LED tube PCBs up to 1.5 meters in length.
With its X-axis printing movement, it delivers stable and precise printing across the full board length. Featuring an integrated 2D solder paste inspection system, it reliably detects insufficient paste, bridging, and other printing defects.
All GKG printers are subjected to strict quality testing, ensuring consistent reliability and high-performance printing for demanding production environments.
| Feature | P-LED |
|---|---|
| Machine Alignment Capability | 2CmK @ ±15 microns 4 Sigma |
| Process Alignment Capability | 2CpK @ ±30 microns 4 Sigma |
| Core Cycle Time(excluding printing & cleaning time) | < 12 secs |
| Product Changeover Time | < 4 mins |
| New Product Set-up Time | < 6 mins |
| Feature | P-LED |
|---|---|
| Hardware | LCD Monitor, Mouse & Keyboard |
| Operating System (OS) | Windows 10 |
| Control Method | Industrial PC controlled |
| I/O Interface | SMEMA Standard |
| Feature | P-LED |
|---|---|
| Stencil Frame Size (L X W) | Adjustable, 720 mm x 300 mm to 1,800mm x 750mm |
| Printing Table Adjustment Range | X: ±10 mm, Y: ±10 mm/ : ± 2° |
| Print Speed | 10~200 mm/s |
| Printing Stroke Direction | Left to Right, Right to Left (X-Axis) |
| Squeegee Pressure | 0.5~15kg (program control) |
| Squeegee Type | Std.: Metal 280/370mm, Option: Rubber |
| Squeegee Angle | Std. 60°, Option 45°, 50°, 55° |
| Cleaning System | Auto wet, dry, vacuum (Software select) |
| Cleaning Stroke Direction | Left to Right, Right to Left (X-Axis) |
| Feature | P-LED |
|---|---|
| Max. Size (L x W) | 1,500 mm x 360 mm |
| Min. Size (L x W) | 80 mm x 50 mm |
| Thickness | 0.8~6 mm |
| PCB Thickness Adjustment | Automatic |
| PCB Max. Weight | 10 kg |
| PCB Edge Clearance | 3.5 mm |
| PCB Bottom Clearance | 15 mm |
| Clamping Method | Top clamp (Manual) & Motorized side clamp |
| Support Method | Std. Magnetic support pins, bars, blocks. |
| Conveyor Direction | L to R, R to L, R to R, L to L (software control) |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Height | 900 ± 40 mm |
| Conveyor Speed | Max. 1,500 mm/s |
| Conveyor Width Adjustment | Automatic |
| Feature | P-LED |
|---|---|
| Field-of-View (FOV) | 10 mm x 8 mm |
| Fiducial Types | Circle, triangle, square, diamond, cross |
| Fiducial size | 0.5~6.0 mm |
| Vision Methodology | CCD camera look up & down |
| 2D inspection | Max.500 windows to inspect missing & insufficient (std.) |
| Feature | P-LED |
|---|---|
| Power Supply | AC220V ± 10% 50/60Hz |
| Power Consumption | 3kW |
| Air Supply | 4 ~ 6Kgf/cm² |
| Dimension (excluding signal tower) | 2,570 mm (L) x 1,210 mm (W) x 1,509 mm (H) |
| Machine Weight | 1,500kg |
| Feature |
|---|
| SPI Closed-loop |
| Temperature, humidity monitoring & display |
| External Barcode/QR Code Scanner for PCB Traceability |
| Handheld Barcode Scanner for stencil, solder paste, squeegee traceability |
