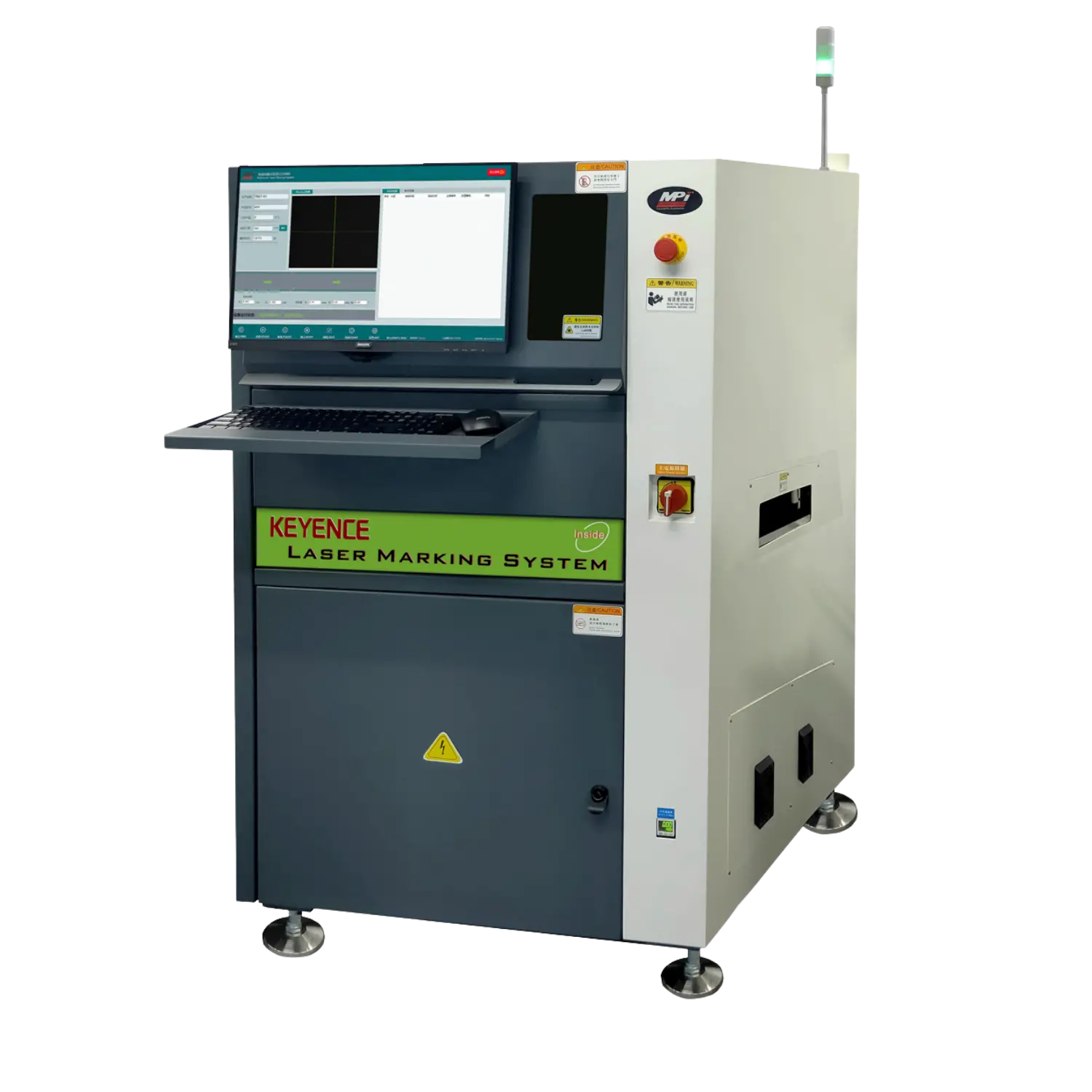

CLM-Z Series
Engraving Large PCB Size W510×L530mm
| Features | CLM-Z800 | CLM-Z880 |
|---|---|---|
| PCB Marking Mode | Single-sides marking | Double-sides marking |
| PCB Size | W50×L50 ~ W330×L460 mm | W50×L50 ~ W330×L460 mm |
| Marking Scope | W330×L460 mm | W330×L460 mm |
| Laser Source | Japan made KEYENCE 30W CO2, Laser unit | Japan made KEYENCE 30W CO2, Laser unit |
| Support Marking Type | 2D, 1D Bar Code, Font | 2D, 1D Bar Code, Font |
| Cycle Time | Transfer <1 seconds, Marking Time <0.3 seconds | Transfer <1 seconds, Marking Time <0.3 seconds |
| System Connection Function | It can connect to SHOPFLOW, MES, IMS, PMS and other production management systems | It can connect to SHOPFLOW, MES, IMS, PMS and other production management systems |
| Transport Direction | Left to Right or Right to Left (option) | Left to Right or Right to Left (option) |
| Conveyor Height | 900±30 mm | 900±30 mm |
| I/O Signal | Standard SMEMA | Standard SMEMA |
| Power | AC 220V50 / 60Hz 1 pH | AC 220V50 / 60Hz 1 pH |
| Air Pressure | 4~6 kg/cm² | 4~6 kg/cm² |
| Machine Size (L×W×H) | L880×W1600×H1500 mm | L880×W1600×H1500 mm |
| Weight | 850 Kg | 920 Kg |
