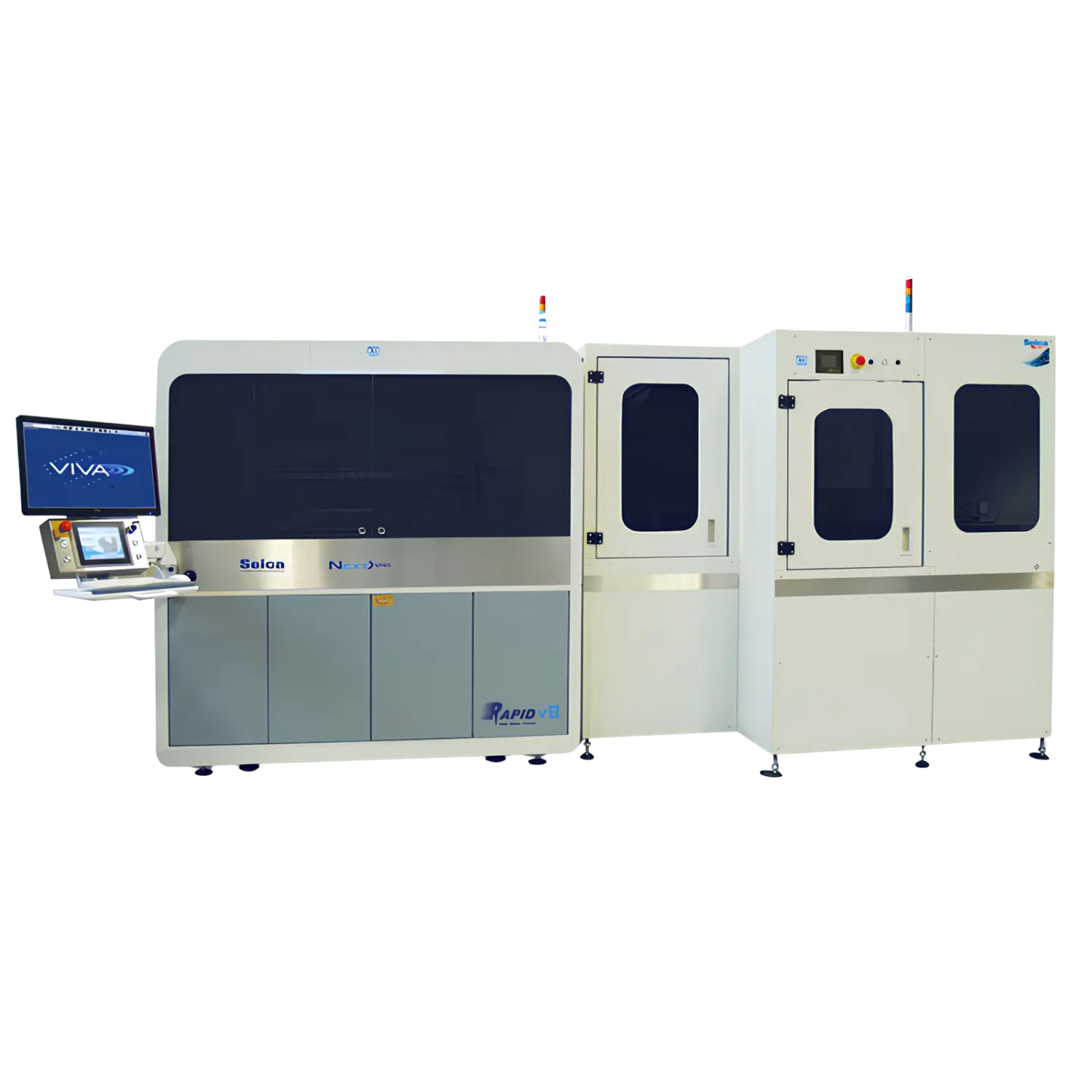

Rapid V8
The RAPID V8 test system combines the versatility and reduced footprint of a vertical system with the automation featuring the testers with horizontal architecture. Through the Rapid V8 vertical system, unique in the galaxy of Flying probers for PCBs, Seica answers the most demanding requirements in terms of versatility and ease of use, combined with high-performance standards.
The system is provided with 8 completely independent measurement probes allowing high test speed. Four (4) probes on each side allow the most accurate measurements on both sides of the PCB. All types of testing methods are available, such as standard electrical PCB tests, Kelvin test, as well as testing of active and passive embedded components.
- RAPID VX is engineered to test inner layers, ceramic substrates, flexible circuit boards, and printed circuit boards.
- The system is equipped with 8 independent flying probes.
- It features 2 CCD cameras dedicated to top and bottom fiducial markers.
- The system provides a test area of 540mm x 610mm (21" x 24").
- It performs high voltage and high impedance isolation tests.
- A vacuum table option is available.
- The architecture ensures precise probing on small pads and fine pitch components.
- It delivers very high speed testing capabilities.
- Repair station software is embedded into the system.
- Soft touch capabilities are standard.
- It supports in-circuit tests of embedded components.
- Manual and automatic board loading configurations are available.
- Powered by Seica VIVA® Software.
Through advanced hardware and software integration, the flexible architecture easily addresses all unique market segments. Seica is the only ATE manufacturer providing the RAPID Line with two complementary architectures to satisfy diverse operational and manufacturing process requirements.
The horizontal architecture offers systems designed for in-line configurations, allowing full automation of the testing process and eliminating operator intervention. In the modern market, in-line automation signifies the capability to test dozens of unique batches or board part numbers in small or large quantities, rather than just high-volume production.
An integrated, automated conveyor compliant with SMEMA standards enables in-line deployment or combination with the MTBH loading and unloading module for automatic handling of various board sizes.
Conversely, the vertical systems feature an ergonomic design and a reduced footprint, making them suitable for space-constrained environments where operators can work efficiently. Quick manual loading and unloading procedures, coupled with fast test program turnaround times, ensure precise testing of individual PCBs even during continuous test modifications.
All RAPID testers utilize the Seica VIP platform to deliver high performance and user-friendly operation. Furthermore, optical fiber digital communication keeps signal transmissions completely exempt from interference, which guarantees the maximum accuracy and repeatability of measurements.
