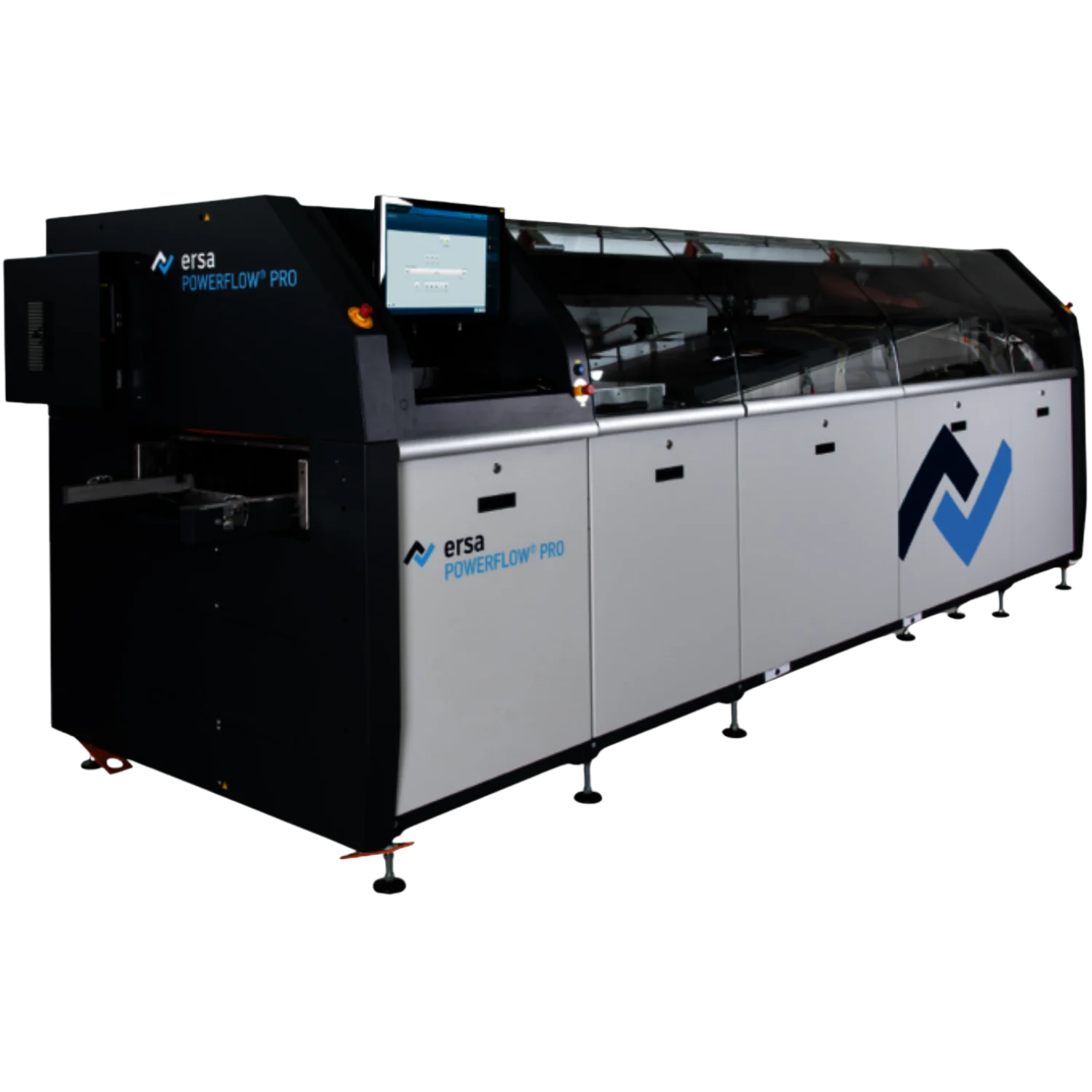

POWERFLOW PRO
The POWERFLOW PRO, part of the Ersa POWERFLOW series, is a high-performance full-tunnel wave soldering system designed for cost-optimized wave soldering in a nitrogen atmosphere while maintaining an attractive price-performance ratio.
With the ERSASOFT 5 machine software, product-specific spray ranges can be precisely defined, significantly reducing flux consumption.
Modular and flexible preheating concept, individually expandable and variably configurable in length and output (retrofit possible)
Award-winning ERSASOFT 5 database-based operating software > ready for Industry 4.0
Finger and frame transport systems with different working widths
| Technical Specification | POWERFLOW PRO |
|---|---|
| Length | 3 Preheating modules 3,9000 mm |
| Length | 4 Preheating modules 4,650 mm |
| Width | approx. 1,400 mm |
| Height | approx. 1,600 mm |
| Transport System | POWERFLOW PRO |
|---|---|
| Transport Type | Finger transport, frame transport |
| Max. Transport speed | 2.5 m/min |
| Max. Working width | 458 mm |
| Max. PCB structures up to | 100 mm |
| Preheating/Soldering Module | POWERFLOW PRO |
|---|---|
| Preheating | heat transfer by means of convection, medium-wave radiation and short-wave radiation |
| Individually configurable | up to 2,000 mm preheating length |
| Soldering module | 525-630 kg solder content depending on configuration |

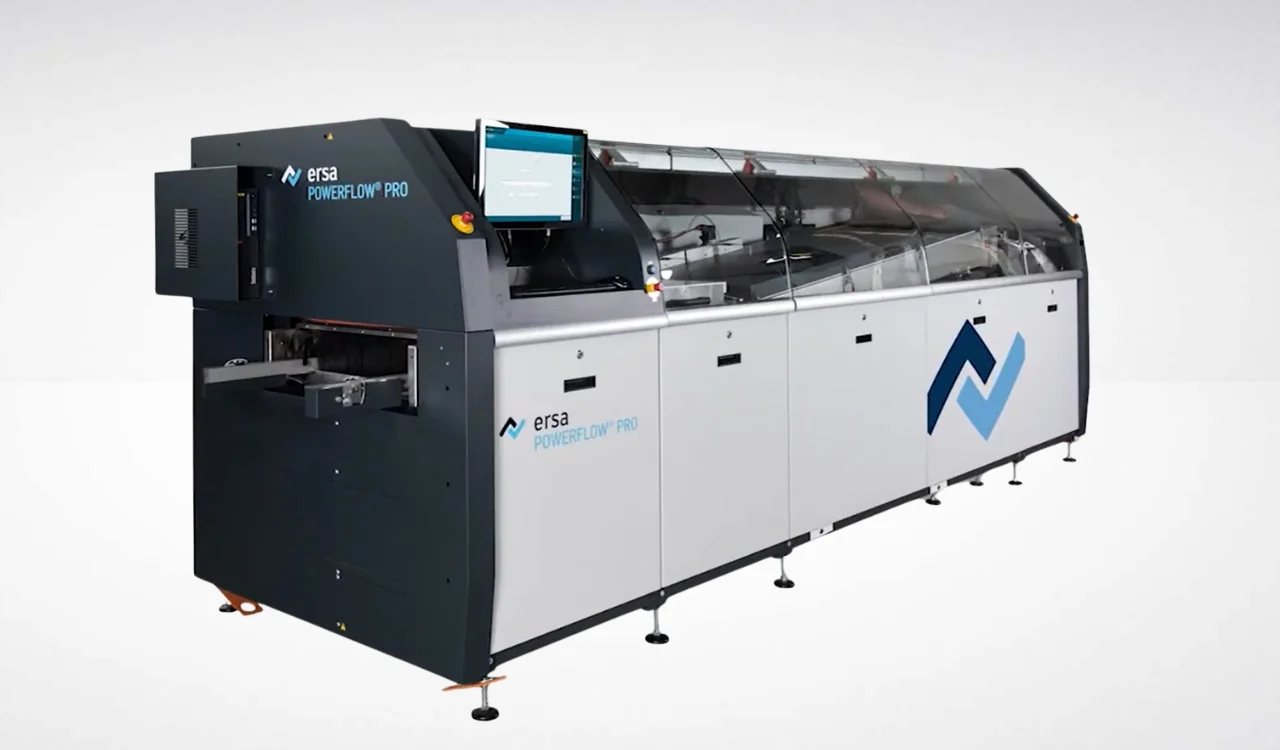

This product video introduces POWERFLOW PRO by summarizing its general working principle and typical application scenarios.
