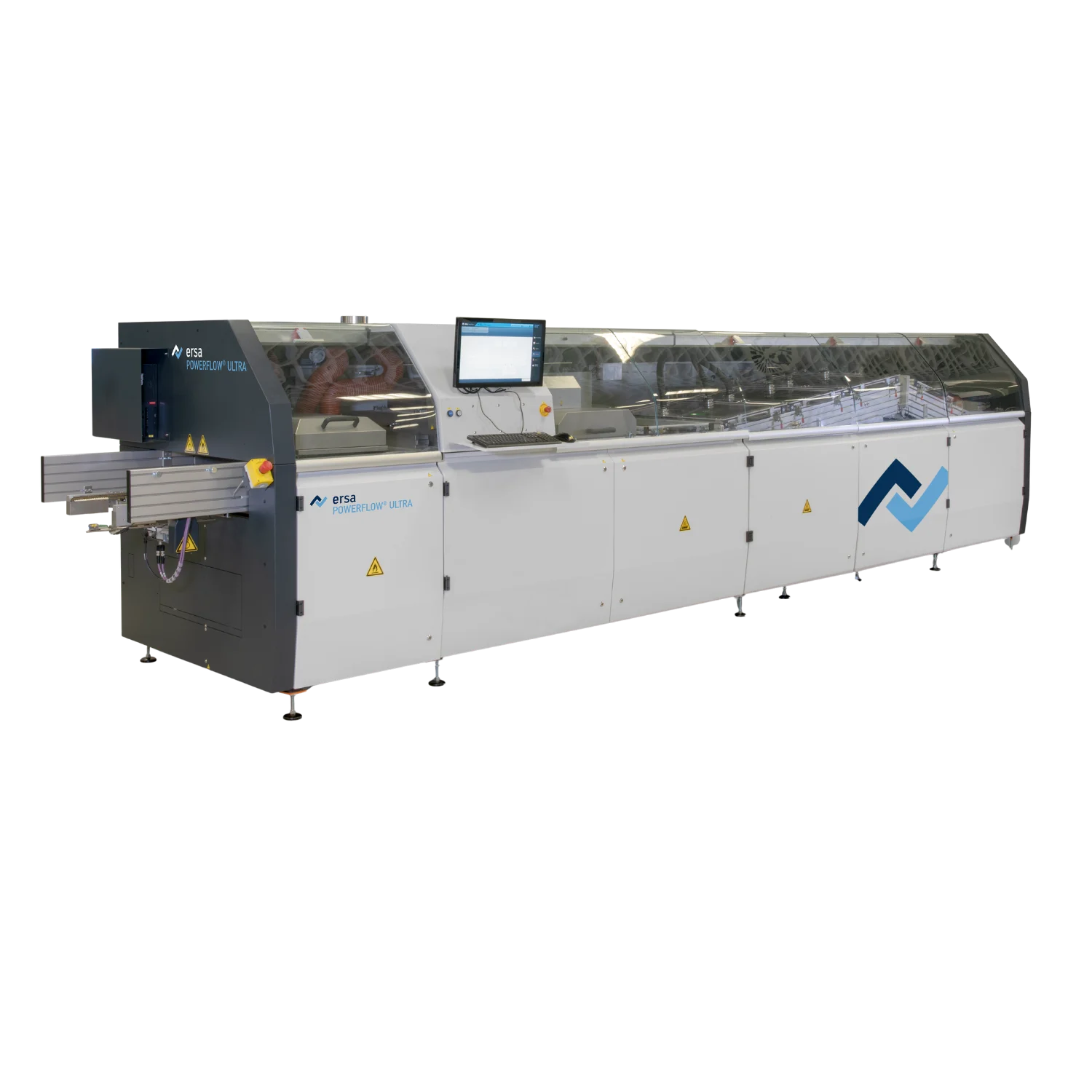

POWERFLOW ULTRA
The POWERFLOW ULTRA represents an innovation within the wave soldering portfolio of Ersa GmbH. This full-tunnel nitrogen wave soldering system is designed to address current and future requirements in terms of flexibility and throughput.
The machine is available with both frame and finger transport options. Working widths ranging from 330 mm to 610 mm (XXL version) are supported. The system is also suitable for soldering server boards used in 5G communication applications.
| Technical Specification | POWERFLOW ULTRA |
|---|---|
| Length | from 5,700 mm to 7,200 mm |
| Width | approx. 1400 mm |
| Height | approx. 1,580 mm |
| Transport System | POWERFLOW ULTRA |
|---|---|
| Transport Type | Finger transport, frame transport |
| Max. Transport speed | 2.5 m/min |
| Max. Working width | 406 mm |
| Max. PCB structures up to | 150 mm |
| Preheating/Soldering Module | POWERFLOW ULTRA |
|---|---|
| Preheating | heat transfer by means of convection, medium-wave radiation and short-wave radiation |
| Individually configurable | up to a preheating length of 3,000 mm |
| Soldering module | 525 to 725 kg solder content depending on configuration |
