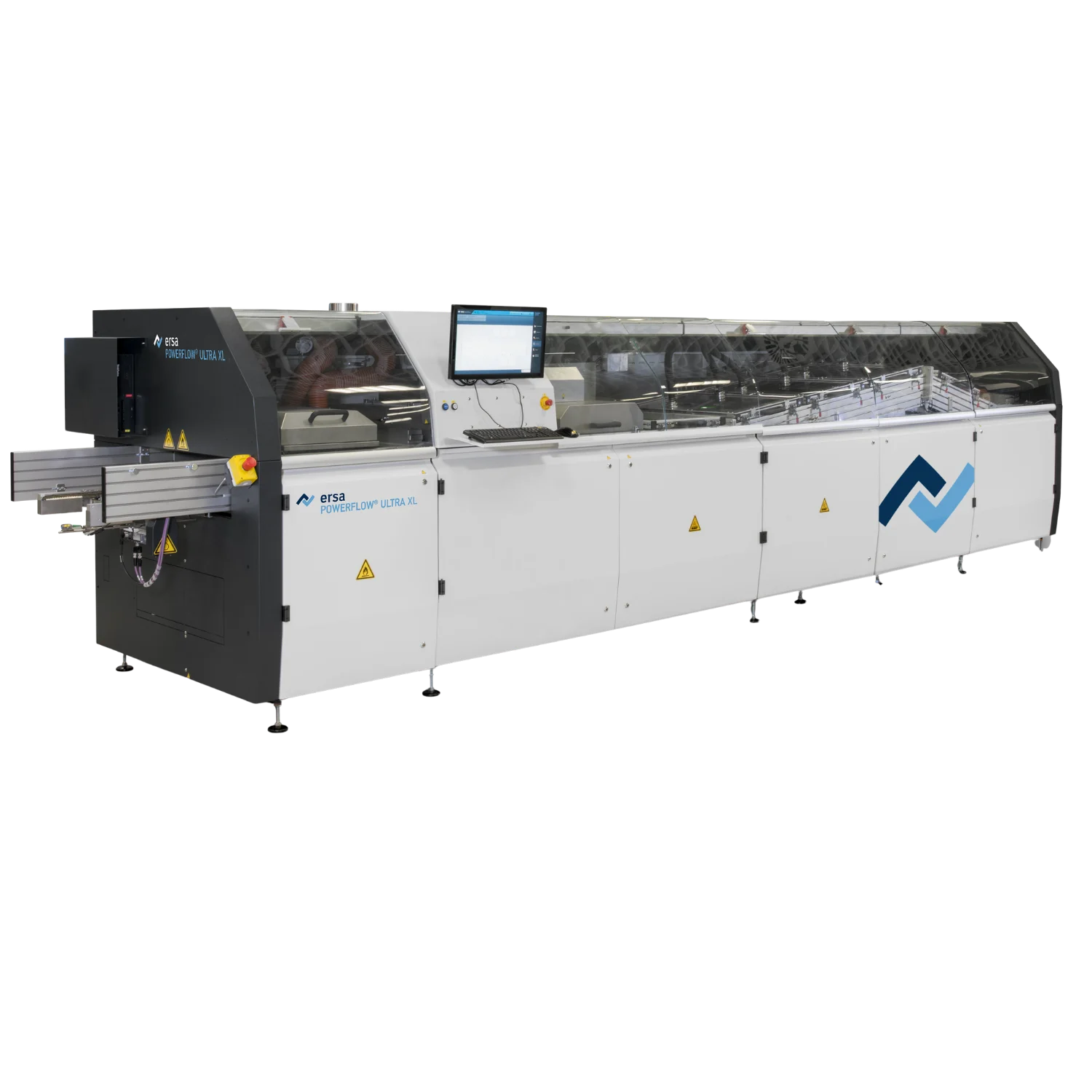

POWERFLOW ULTRA XL Full-Tunnel Wave Soldering System
POWERFLOW ULTRA XL
The POWERFLOW ULTRA represents an innovation within the wave soldering product portfolio of Ersa GmbH. This full-tunnel wave soldering system is developed to meet both current and future requirements in terms of flexibility and throughput.
The system is available with frame transport as well as finger transport configurations. Working widths ranging from 330 mm to 610 mm (XXL version) are supported. It is also suitable for soldering server boards designed for 5G communication.
| Technical Specification | POWERFLOW PRO |
|---|---|
| Length | from 5,700 mm to 7,200 mm |
| Transport System | POWERFLOW PRO |
|---|---|
| Transport Type | Finger transport, frame transport |
| Max. Transport speed | 2.5 m/min |
| Max. Working width | 520 mm |
| Max. PCB structures up to | 150 mm |
| Preheating/Soldering Module | POWERFLOW PRO |
|---|---|
| Preheating | heat transfer by means of convection, medium-wave radiation and short-wave radiation |
| Individually configurable | up to a preheating length of 3,000 mm |
| Soldering module | 525 to 725 kg solder content depending on configuration |
This product video introduces POWERFLOW PRO by summarizing its general working principle and typical application scenarios.
