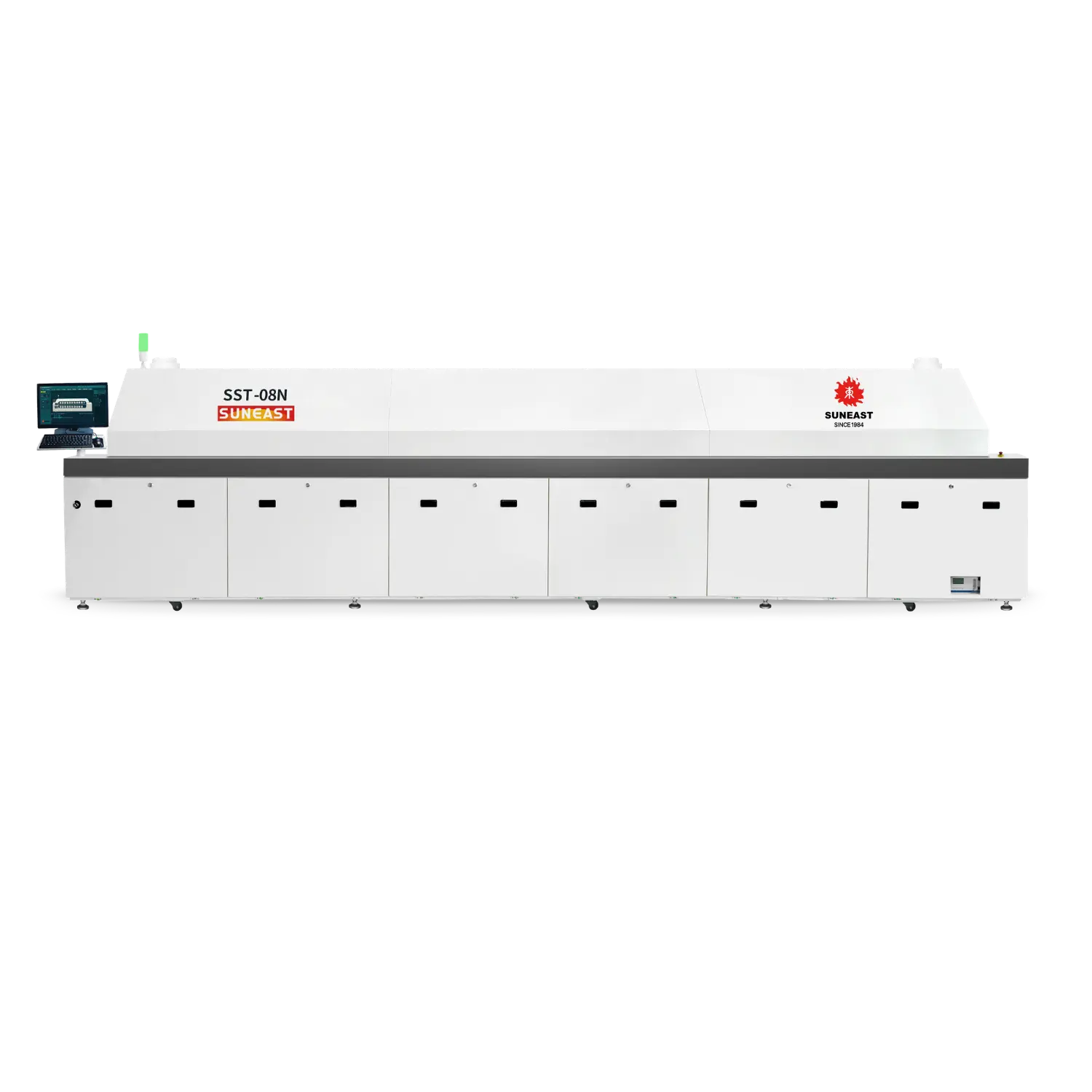

The system features durable, interchangeable double-sided rails enhanced with a special hardening process. Product conveying is handled by a practical stainless steel belt chain equipped with a protective guard and an anti-clamp design. Maintenance efficiency is maximized through a new, fully modular flux recovery system that significantly reduces downtime and maintenance costs. For thermal performance, the unit incorporates a patented hot air system that delivers faster heat compensation and increased heating efficiency. Additionally, an updated furnace structural design with multi-layer heat insulation effectively lowers the surrounding working environment temperature.
| Feature | SST-08A/SST-08N | SST-10A/SST-10N | SST-12A/SST-12N |
|---|---|---|---|
| Heating zone structure | 8 Heating Zones, 16 Heating modules | 10 Heating Zones, 20 Heating modules | 12 Heating Zones, 24 Heating modules |
| Heating length | 3120mm | 3870mm | 4635mm |
| Cooling Type | Three cooling zones:forced air cooling/water cooling | Three cooling zones:forced air cooling/water cooling | Three cooling zones:forced air cooling/water cooling |
| Outlet Exhaust Diameter,valume | 2-Φ145, Exhaust demand 15m³/min x 2 | 2-Φ145, Exhaust demand 15m³/min x 2 | 2-Φ145,Exhaust demand 10m³/min x2 |
| Feature | SST-08A/SST-08N | SST-10A/SST-10N | SST-12A/SST-12N |
|---|---|---|---|
| Product Width | min50mm-max400mm | min50mm-max400mm | min50mm-max400mm |
| Conveying Direction | L→R, R→L | L→R, R→L | L→R, R→L |
| inlet Height | 900±20mm | 900±20mm | 900±20mm |
| Fixed Rail Side | Front rail Fixed(Option: Rear Rail Fixed) | Front rail Fixed(Option: Rear Rail Fixed) | Front rail Fixed(Option: Rear Rail Fixed) |
| Conveyor Type | Chain+mesh belt synchronous transmission | Chain+mesh belt synchronous transmission | Chain+mesh belt synchronous transmission |
| Component Height | Clearance based on the rail: above 30mm, below 25mm | Clearance based on the rail: above 30mm, below 25mm | Clearance based on the rail: above 30mm, below 25mm |
| Conveying Speed | 300mm-2000mm/min | 300mm-2000mm/min | 300mm-2000mm/min |
| Feature | SST-08A/SST-08N | SST-10A/SST-10N | SST-12A/SST-12N |
|---|---|---|---|
| Power Supply | AC3Φ, 5W,380V,50/60HZ | AC3Φ, 5W,380V,50/60HZ | AC3Φ, 5W,380V,50/60HZ |
| Total Power | 59KW | 73KW | 91KW |
| Start up Power | 30KW | 35KW | 40KW |
| Running Power | 7.5KW | 9.5KW | 11.5KW |
| Temperature Range | Room temp to 320°C | Room temp to 320°C | Room temp to 320°C |
| Control Type | PC+PLC Control System | PC+PLC Control System | PC+PLC Control System |
| Rail Width Adjusting Mode | Electric+Manual | Electric+Manual | Electric+Manual |
| Temp Control accuracy | ±1°C | ±1°C | ±1°C |
| PCB Temp Deviation | ±1°C | ±1°C | ±1°C |
| Data Storage | Process Data and status storage | Process Data and status storage | Process Data and status storage |
| Power Outage Protection | Equipped with UPS | Equipped with UPS | Equipped with UPS |
| Operation Interface | Windows Chinese simplified, English online free switching | Windows Chinese simplified, English online free switching | Windows Chinese simplified, English online free switching |
| Feature | SST-08A/SST-08N | SST-10A/SST-10N | SST-12A/SST-12N |
|---|---|---|---|
| Dimension (L×W×H) | 5580x1450x1620 | 6300x1450x1620 | 7020x1450x1620 |
| Weight | 2200-2400kg | 2600-2800kg | 3000-3200kg |
| Color | Bright wrinkled white | Bright wrinkled white | Bright wrinkled white |
