STDC-705L

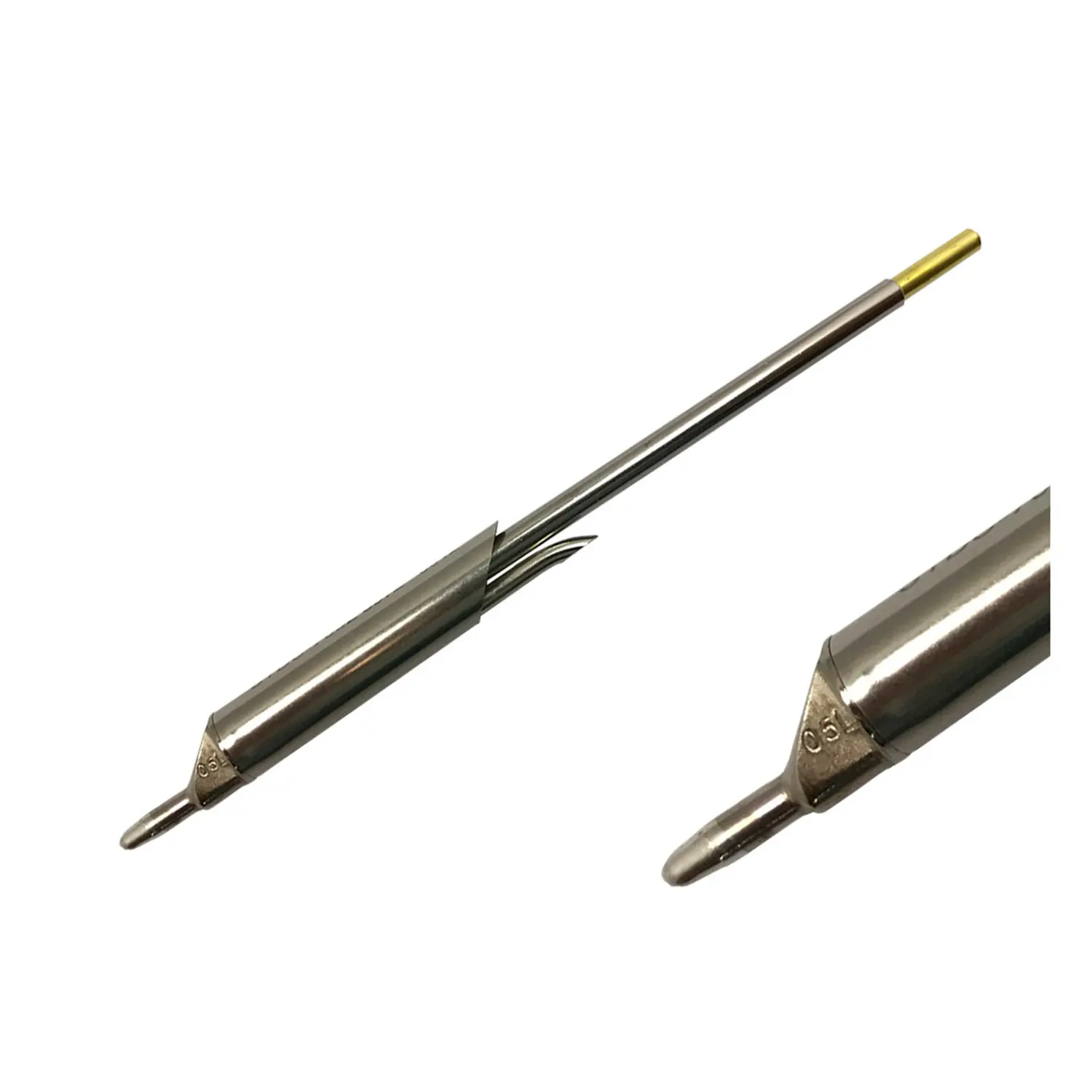

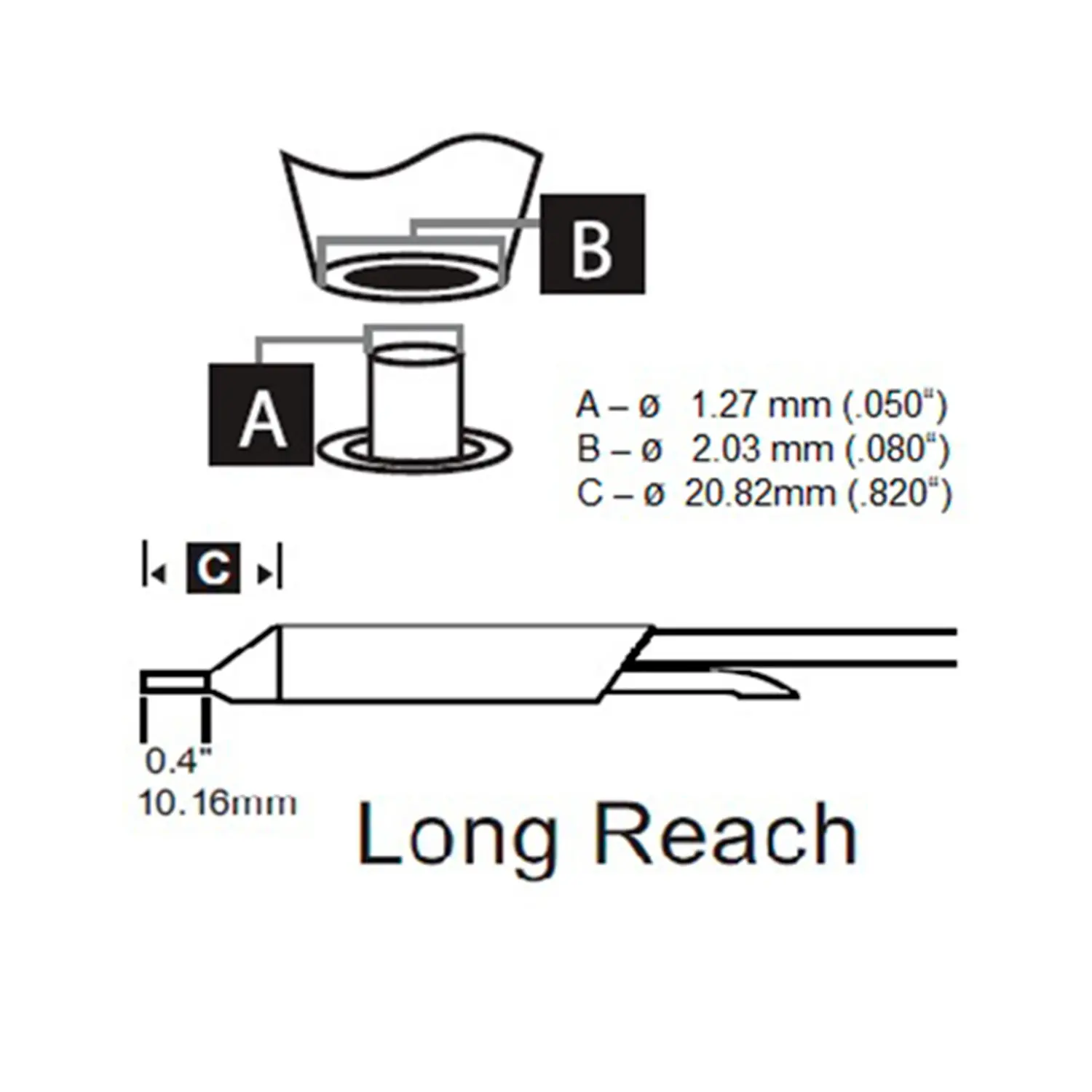

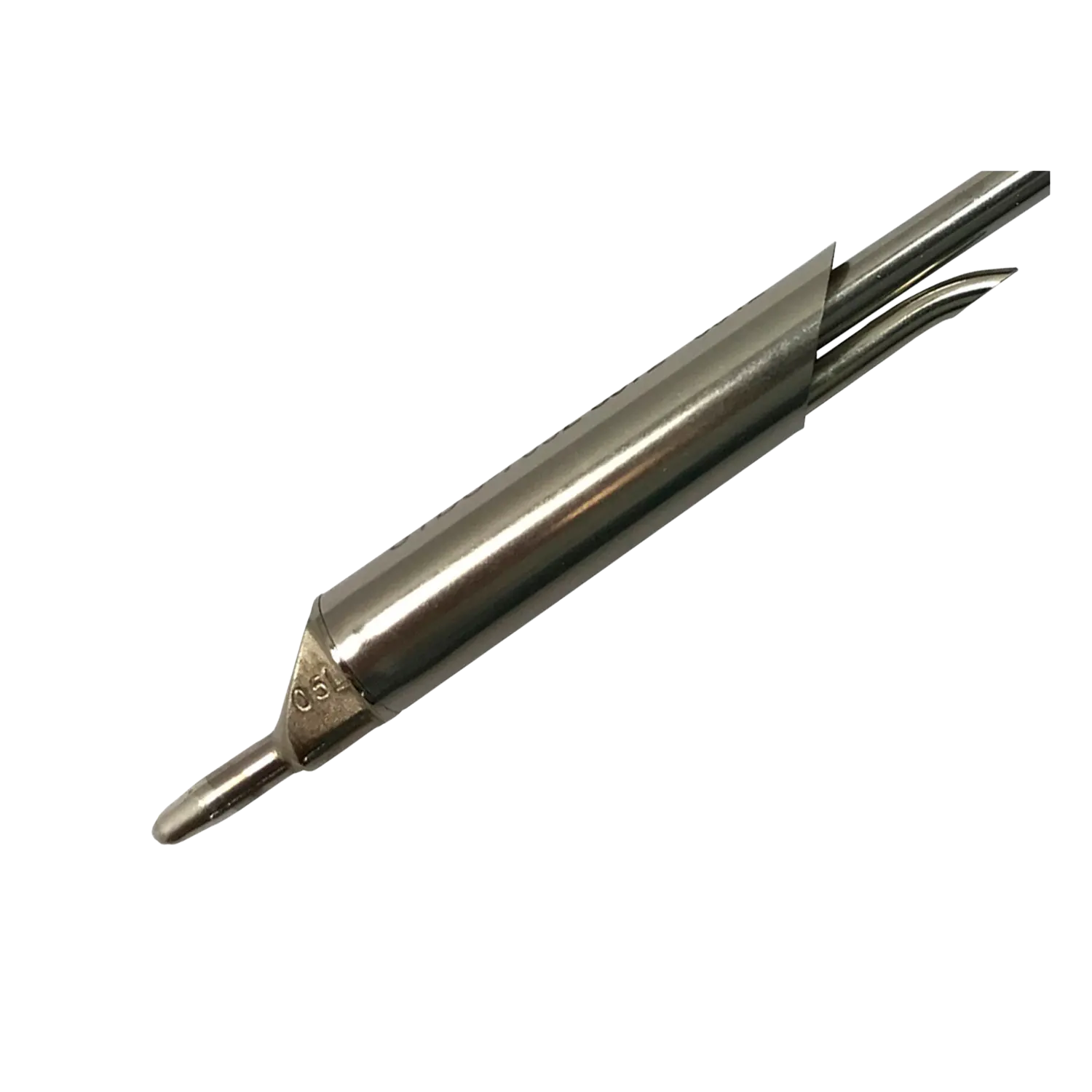

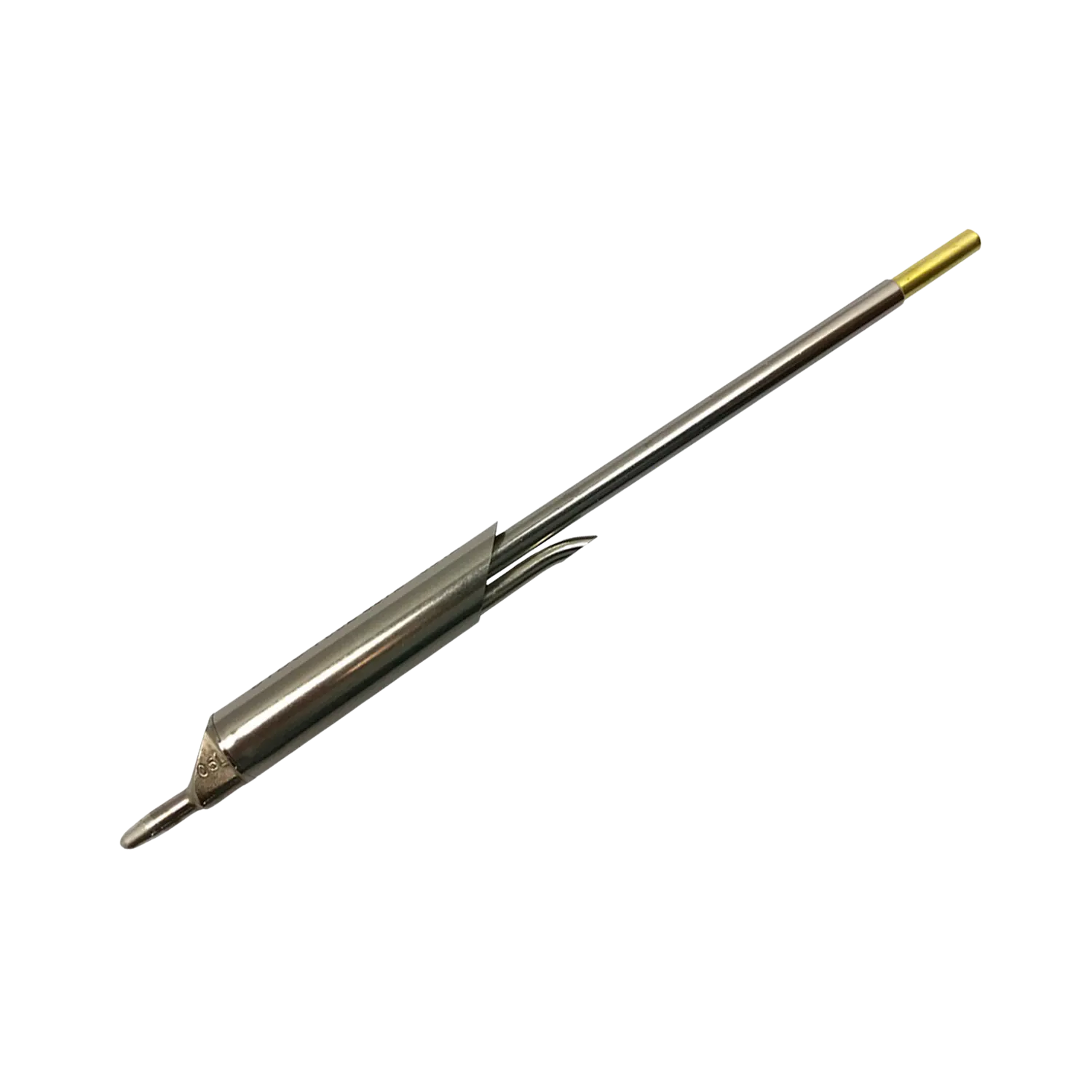

STDC Desolder Cartridge, Long Reach Standard Type, ID=1.27mm, 20.82mm Tip Length, 700 Series
The STDC Desolder Cartridge serves as the standard desoldering tip range engineered for Metcal MX-500, MX-5200, and MX-5200 series desoldering systems. These advanced components are available in multiple temperature configurations, including the 600-Series operating at 357°C, the 700-Series at 413°C (with nominal variations at 390°C), and the 800-Series reaching up to 510°C (with nominal variations at 450°C). The specific temperature designation is indicated by the initial digit after the dash in the part number, where the 600-Series corresponds to STDC-0xx, the 700-Series to STDC-1xx/7xx (or STTC-1xx), and the 800-Series to STDC-8xx (or STTC-8xx). The 700-Series is highly recommended for a broad majority of standard soldering applications, whereas the 800-Series is specifically tailored for high-temperature and thermally demanding tasks. This versatile solution functions seamlessly with both leaded and lead-free solder alloys. Furthermore, the integrated SmartHeat-Technology dynamically regulates power delivery throughout every individual operation to ensure optimal thermal performance.
