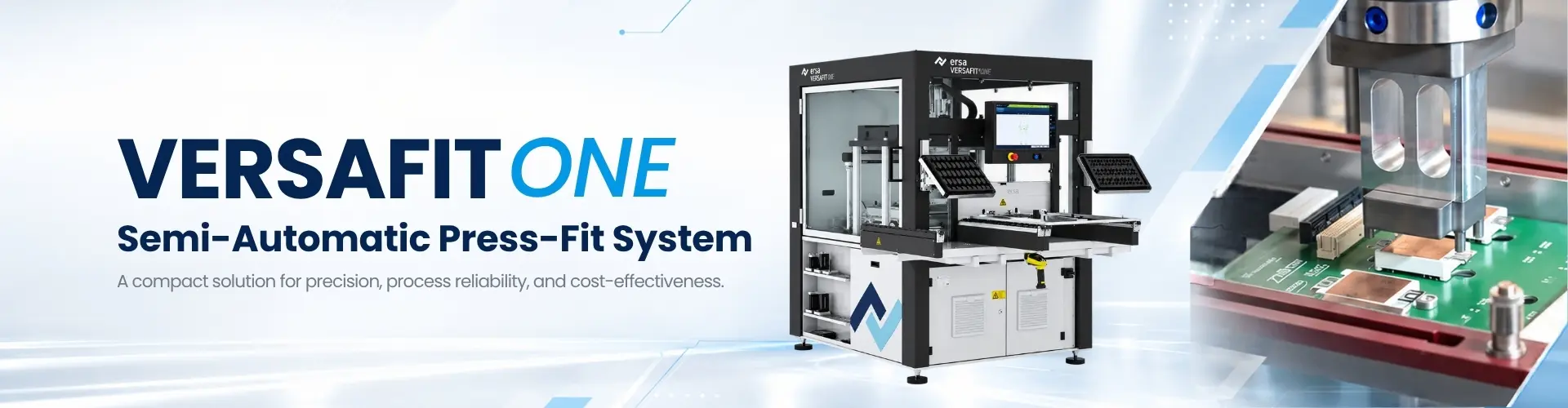

Semi-Automatic Press-Fit System for Electronics Manufacturing
The Ersa VERSAFIT ONE introduces a new generation of semi-automatic press-fit systems, combining precision, process reliability, and cost-effectiveness in a compact batch machine. Designed for medium-sized manufacturing companies with a high product mix, it offers flexibility for diverse production requirements.
VERSAFIT ONE incorporates the proven technology of the high-end VERSAFIT 500 system into a compact, space-saving design. By eliminating inline capability, Ersa has reduced the machine’s overall size while achieving an attractive price-performance ratio.
With its focus on precision, process reliability, and flexibility, VERSAFIT ONE provides a cost-effective press-fit solution for manufacturers handling a wide variety of products.
VERSAFIT ONE | Technical Highlights
✔ Servo-electric press cylinder
✔ High flexibility
✔ Continuous process monitoring
✔ Easy maintenance
✔ Slide rail transport for goods carriers
✔ Loading table with roller transport
| Feature | Versafit ONE |
|---|---|
| Length | 1,600 mm x 800 mm loading table |
| Width | 1,400 mm |
| Height | 2,010 mm |
| Feature | Versafit ONE |
|---|---|
| Press force | 5 kN |
| Linearity for force sensor | +/-5% FSO adjustable measuring range |
| Tool magazine (optional) | external manual - for 10 tools |
| Tool length | max. 150 mm |
| Feature | Versafit ONE |
|---|---|
| PCB width | max. 610 mm |
| PCB length | max. 610 mm |
| Transport clearance | max. 120 mm |
| Versafit ONE |
|---|
| Shifting table for additional product carriers |
| Storage for component blisters (400 x 300 mm) |
| Traceability/MES |
| PCB thickness measurement |
| Automatic tool rotation |
| Force testing equipment |
| Tool storage in the machine |
| Up to 5 upper and lower tools |
This product video introduces Versafit ONE by summarizing its general working principle and typical application scenarios.
