Flexible Inline Press-Fit System for Electronics Manufacturing

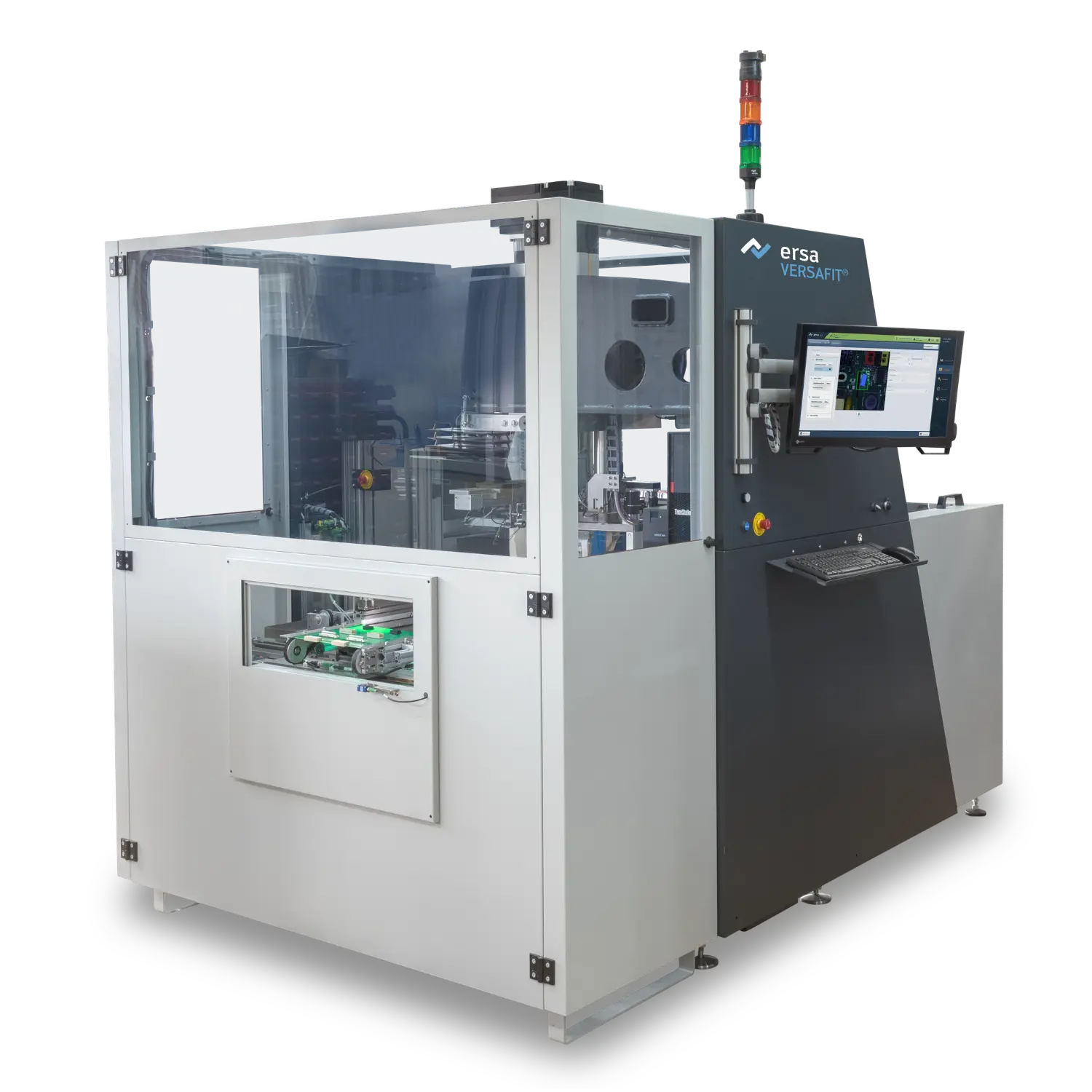

The Ersa VERSAFIT 500 is a highly flexible inline press-fit system designed to enhance competitiveness in electronics manufacturing. By utilizing press-fit technology, the system offers significant advantages over other assembly processes in certain applications.
Press-fit technology enables more reliable connections, shorter production cycle times, and assembly without additional thermal stress or flux residues. The process also eliminates the need for nitrogen gas flushing while significantly reducing energy consumption.
With the Ersa VERSAFIT 500, manufacturers can benefit from reduced production costs and improved assembly quality through a flexible inline press-fit solution.
VERSAFIT 500 | Technical Highlights
✔ Servo-electric press cylinder
✔ High-precision X/Y table
✔ Tool magazine with capacity for up to 10 tools (5 upper, 5 lower)
✔ High flexibility
✔ Program-controlled tool selection
✔ Continuous process monitoring
✔ Flat belt transport system
✔ Easy maintenance
| Feature | Versafit 500 |
|---|---|
| Length | 2,680 mm |
| Width | 2,110 mm |
| Height | 2,500 mm |
| Weight | 2,300 kg |
| Feature | Versafit 500 |
|---|---|
| Press force | 50 kN |
| Linearity for force sensor | +/-5% FSO adjustable measuring range |
| Tool magazine (optional) | 5 above, 5 below |
| Tool length | max. 100 mm |
| Feature | Versafit 500 |
|---|---|
| PCB width | max. 508 mm |
| PCB length | max. 508 mm |
| Transport clearance | top/bottom max. 100 mm |
| Versafit 500 |
|---|
| Individual width adjustment |
| Tool rotator |
| ERSASOFT 5 |
| Integrated control cabinet |
| Touchscreen operation on the computer |
| x/y axis adjustment and password protection |
