CompaCLEAN III

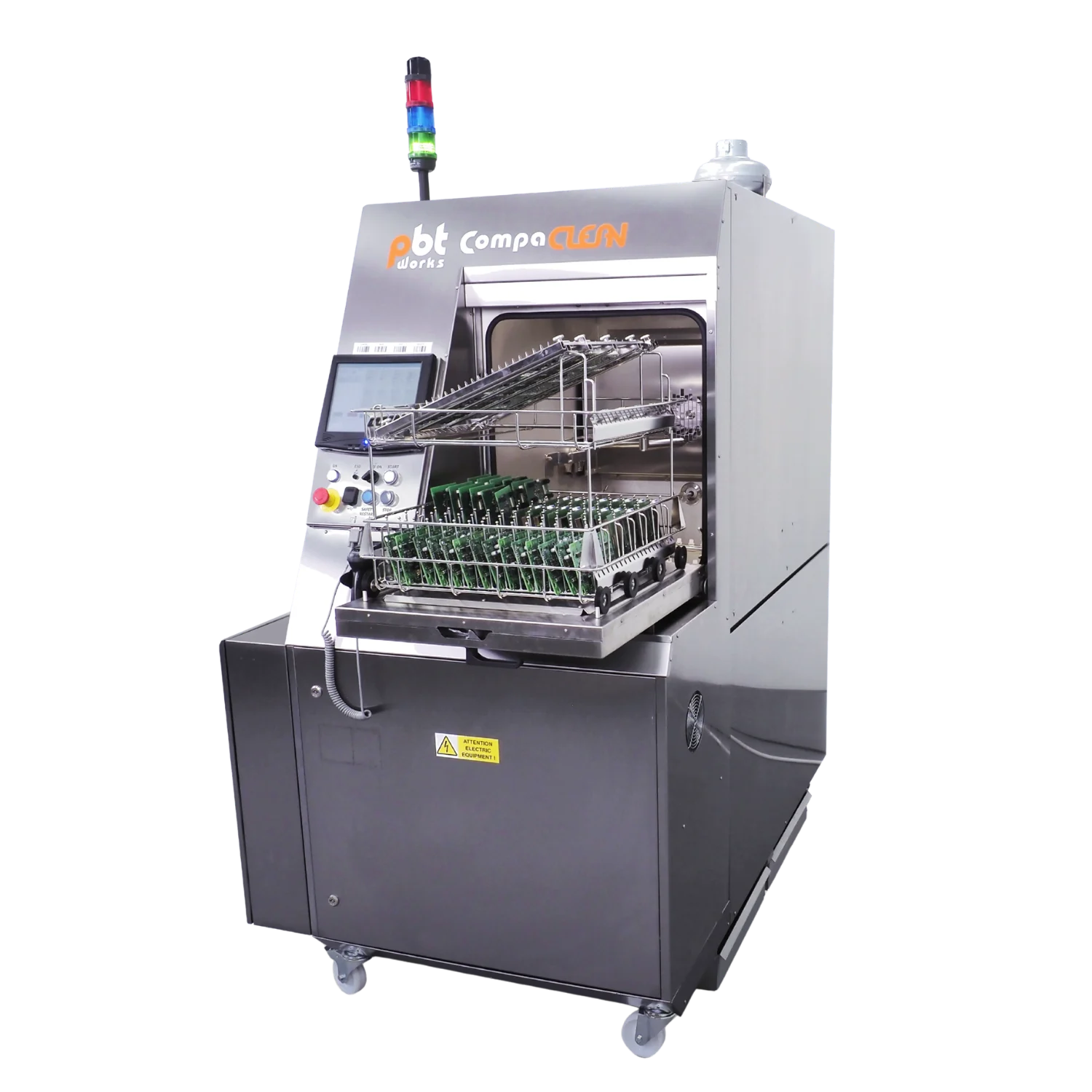

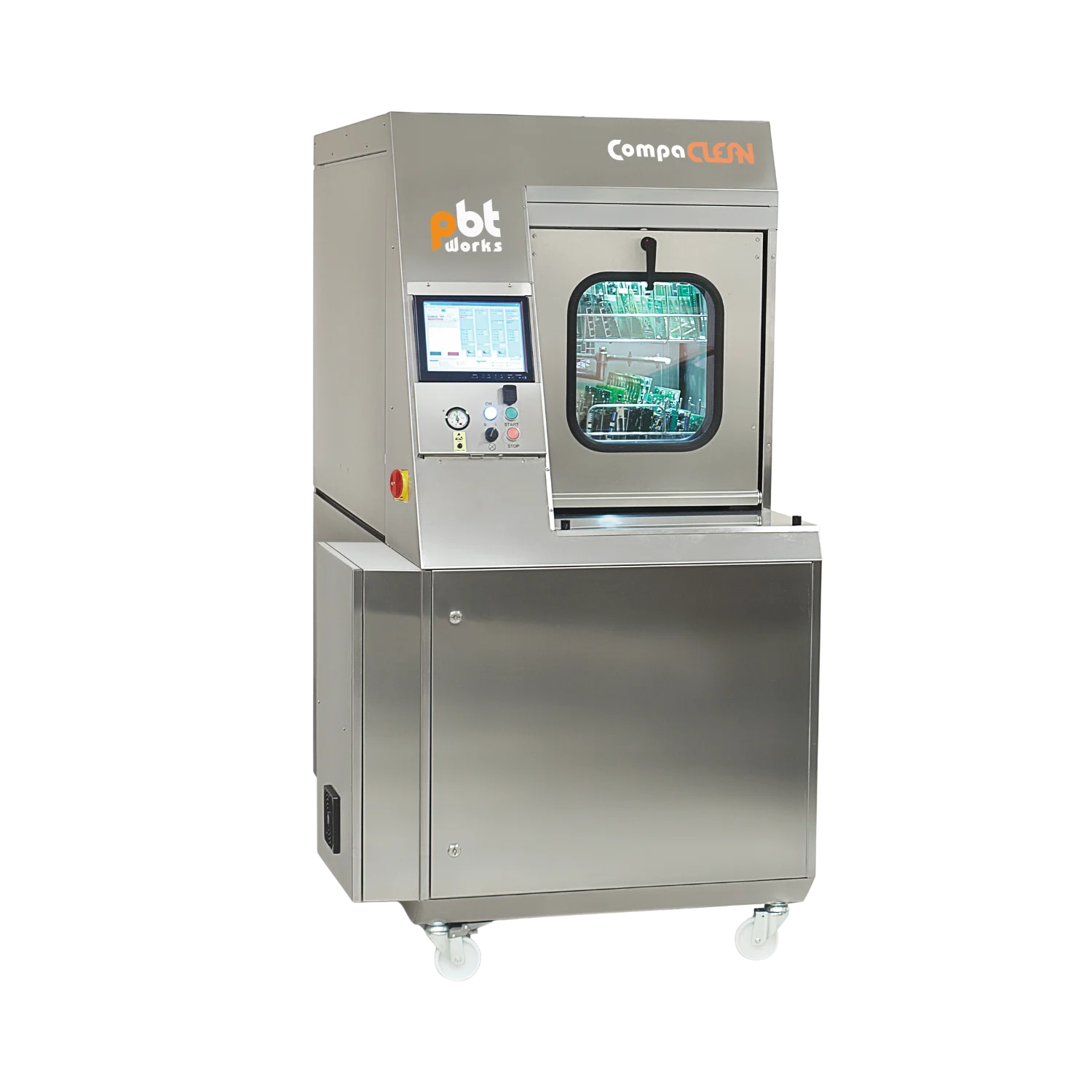

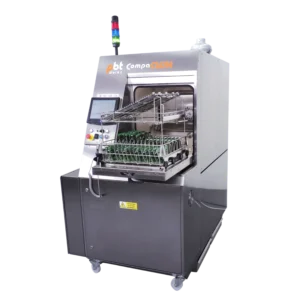

The CompaCLEAN III is designed for customers who prefer a traditional dishwasher-style cleaning system. It delivers a familiar cleaning approach while reducing the shadow effect through its unique linear tangent spray technology. PCBs are loaded in a manner similar to placing plates in a standard kitchen dishwasher.
| Cleaning Machines Overview | CompaCLEAN III |
|---|---|
| Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height) | 480 x 500 x 500 |
| Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height) | 430 x 490 x 500 or 430 x 490 x 2 x 200 |
| PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc. | √ |
| Eurocards (100 x 160 mm) [pcs per cycle] | 140 |
| Cycle time [minute] | 30 - 60 |
| Metal & Plastic stencils (paste, glue) | X |
| Stencils [pcs per cycle] | X |
| Cycle time [minutes] | X |
| Maintenance parts from soldering process (solder pallets, filters, carrier, etc.) | √ |
| Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional) | 6 |
| Cycle time [minute] | 20-40 |
| Cleaning agent volume (Ready-to-use) | 71 L |
| Max. cleaning temperature | 60°C |
| Max. rinsing temperature | 40°C |
| Max. drying temperature | 110°C |
| Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door | 1100 x 1700 x 2220 |
| Machine weight without liquid | 455 - 485 kg |

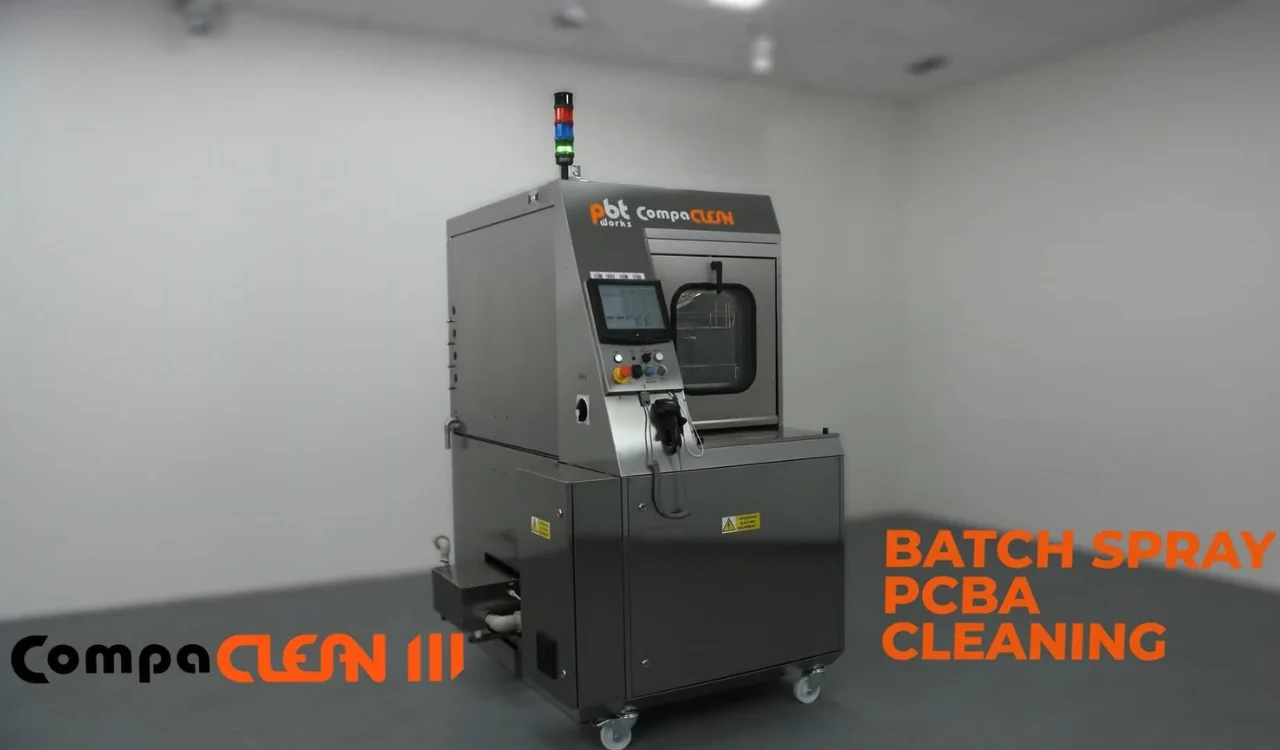

This product video introduces CompaCLEAN III by summarizing its general working principle and typical application scenarios.
