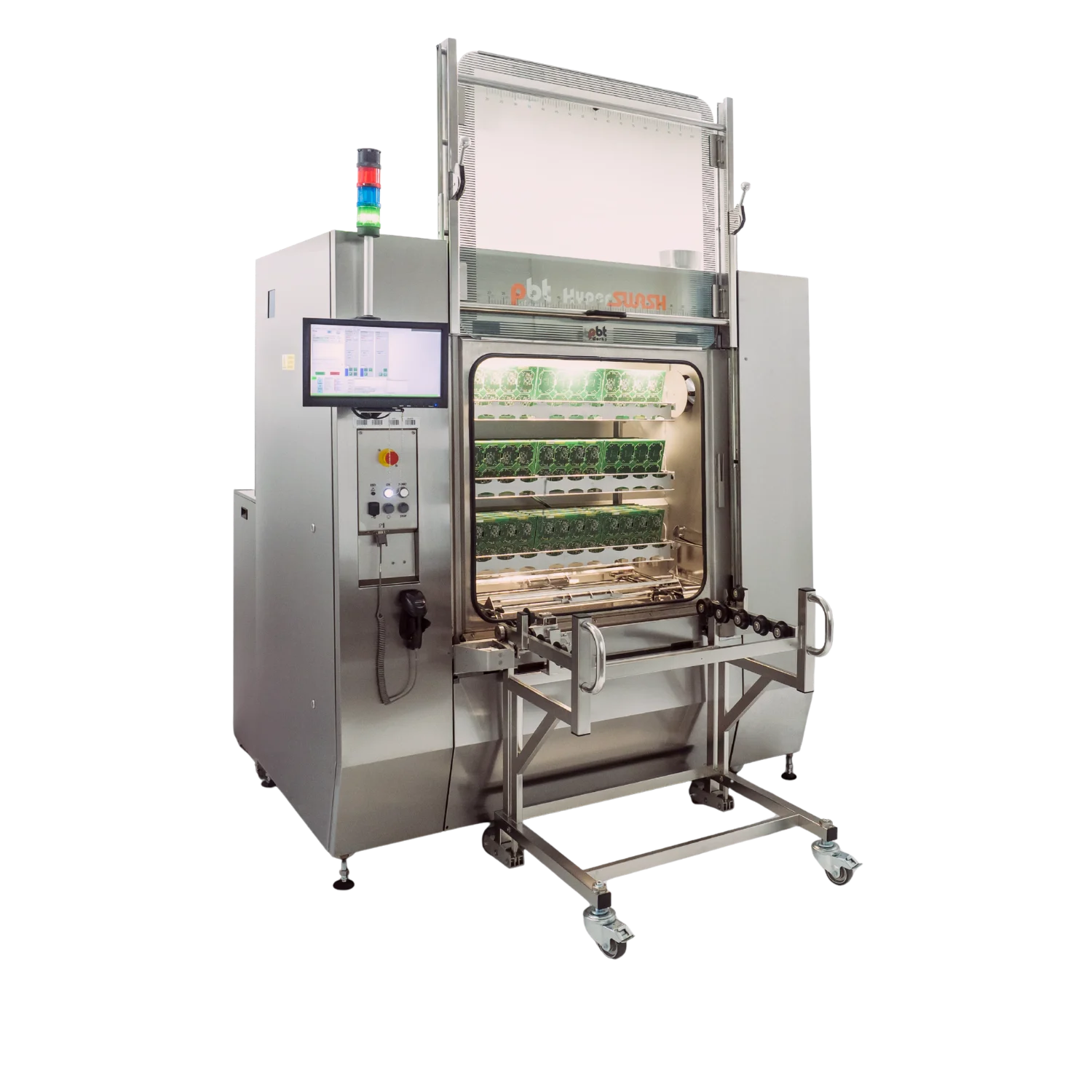

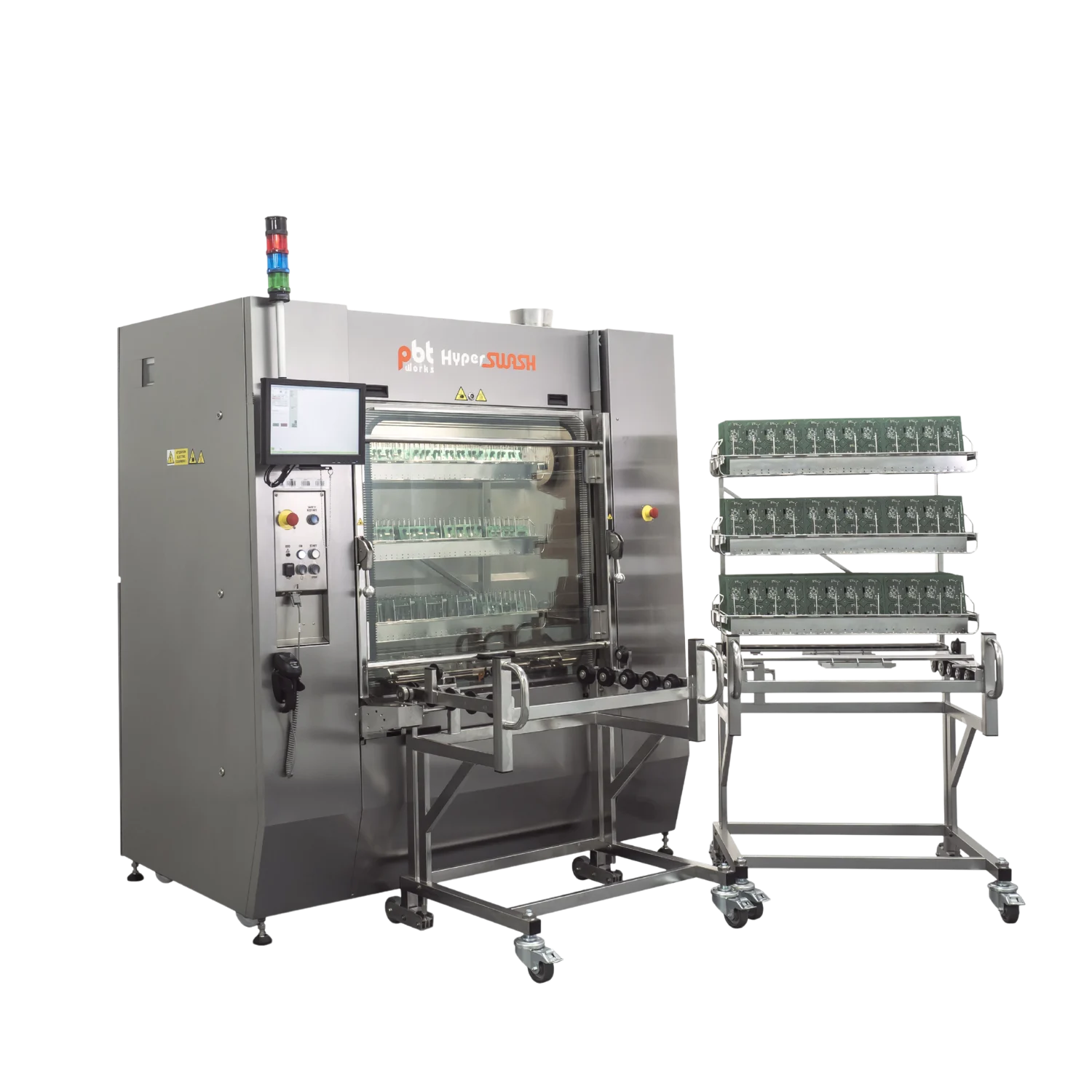

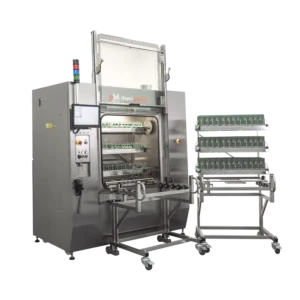

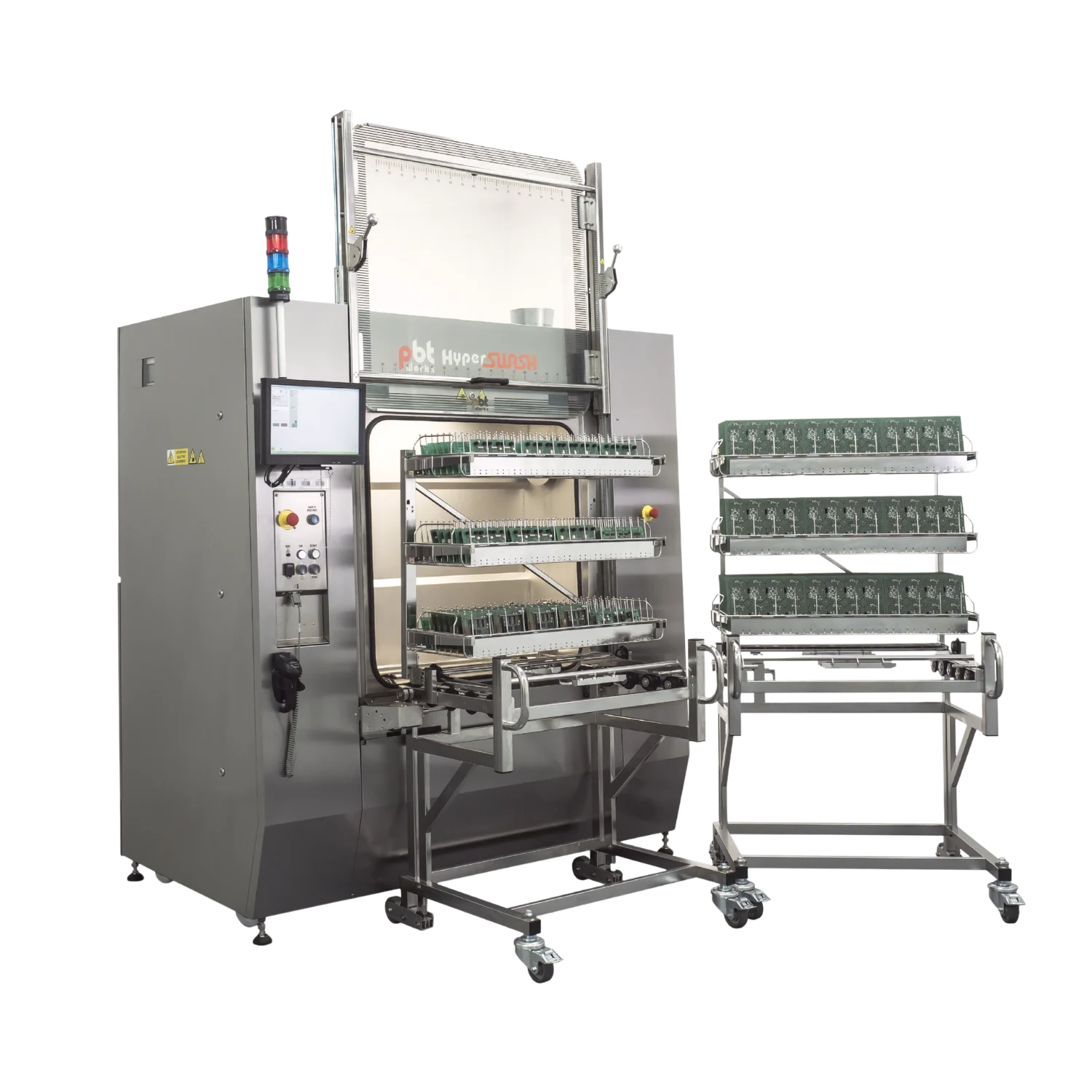

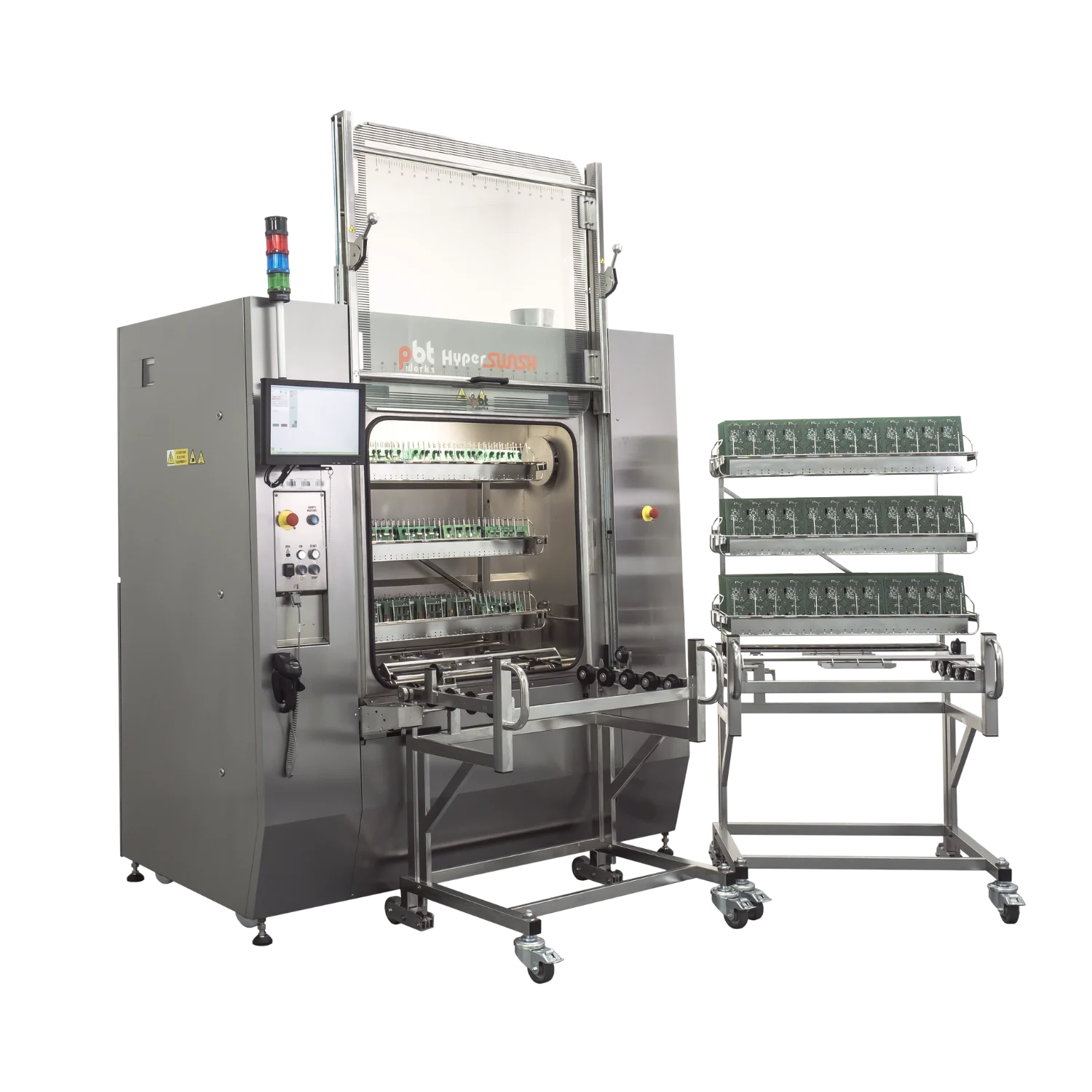

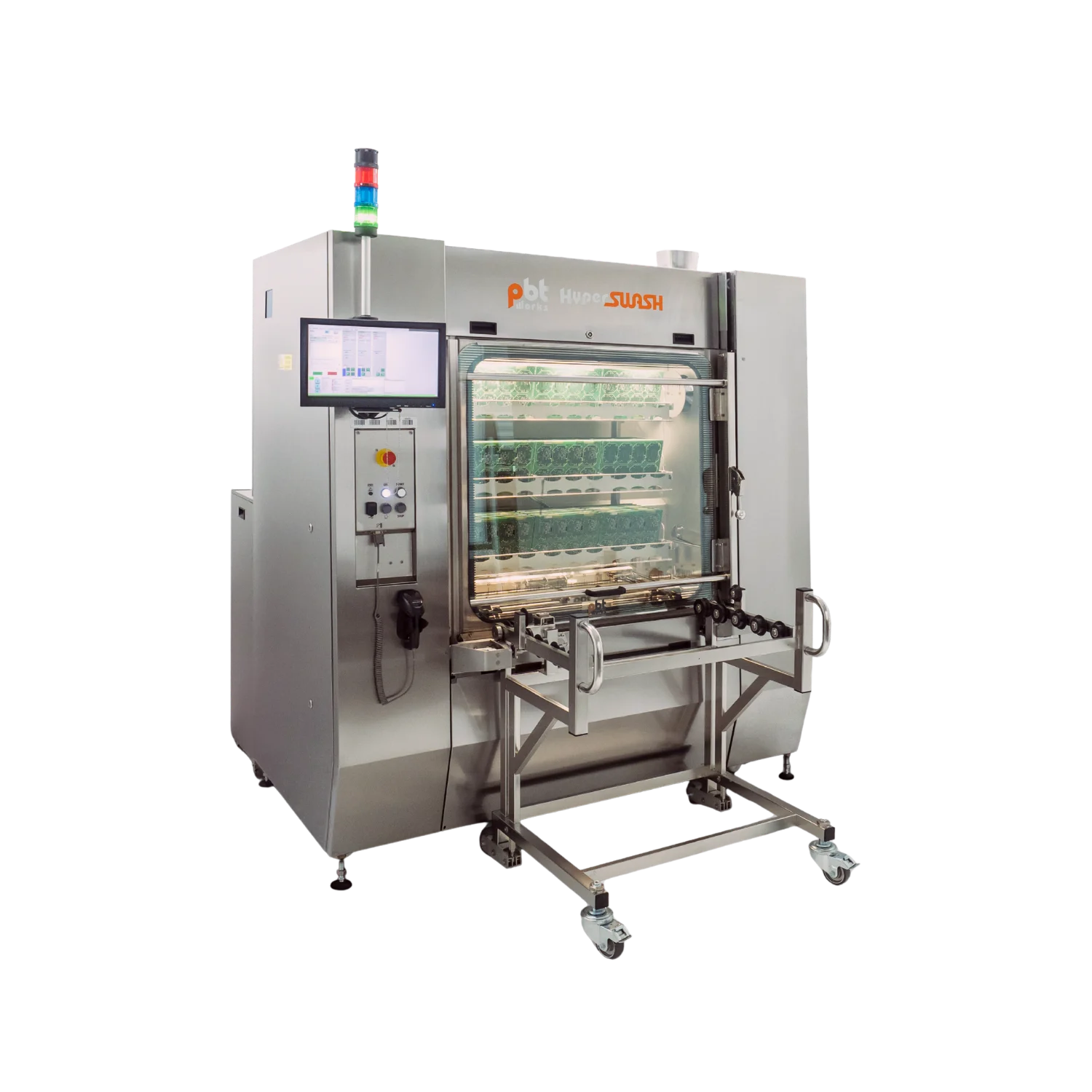

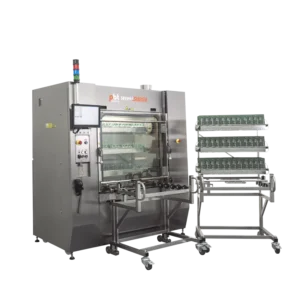

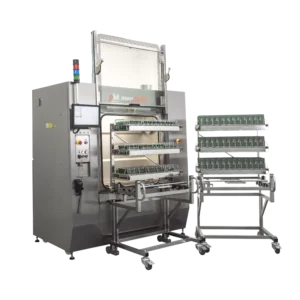

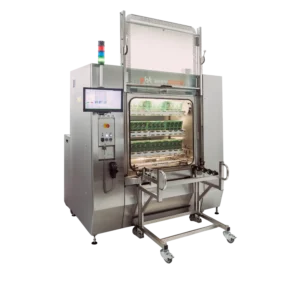

HyperSWASH III
Top-end solution designed for customers seeking high-quality cleaning results together with high throughput performance, with a strong emphasis on data management and automation. The system is engineered to deliver maximum data output while requiring minimal human interaction.
| Cleaning Machines Overview | Twingo | Combo |
|---|---|---|
| Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height) | 2 x 890 x 80 x 850 | 2 x 890 x 315 x 300 or 3 x 890 x 315 x 170 |
| Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height) | 2 x 740 x 80 x 695 | 2 x 788 x 728 x 300 or 3 x 788 x 278 x 165 |
| PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc. | ✔ | ✔ |
| Eurocards (100 x 160 mm) [pcs per cycle] | 40 | 112/168 |
| Cycle time [minute] | 20-40 | 20-40 |
| Metal & Plastic stencils (paste, glue) | ✔ | ✖ |
| Stencils [pcs per cycle] | 2 | ✖ |
| Cycle time [minutes] | 7 | ✖ |
| Maintenance parts from soldering process (solder pallets, filters, carrier, etc.) | ✖ | ✖ |
| Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional) | ✖ | ✖ |
| Cycle time [minute] | ✖ | ✖ |
| Cleaning agent volume (Ready-to-use) | 80L | 80L |
| Max. cleaning temperature | 60°C | 60°C |
| Max. rinsing temperature | 40°C | 40°C |
| Max. drying temperature | 110°C | 110°C |
| Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door | 2010 x 2075 x 2615 | 2010 x 2075 x 2615 |
| Machine weight without liquid | 1000 KG | 1000 KG |

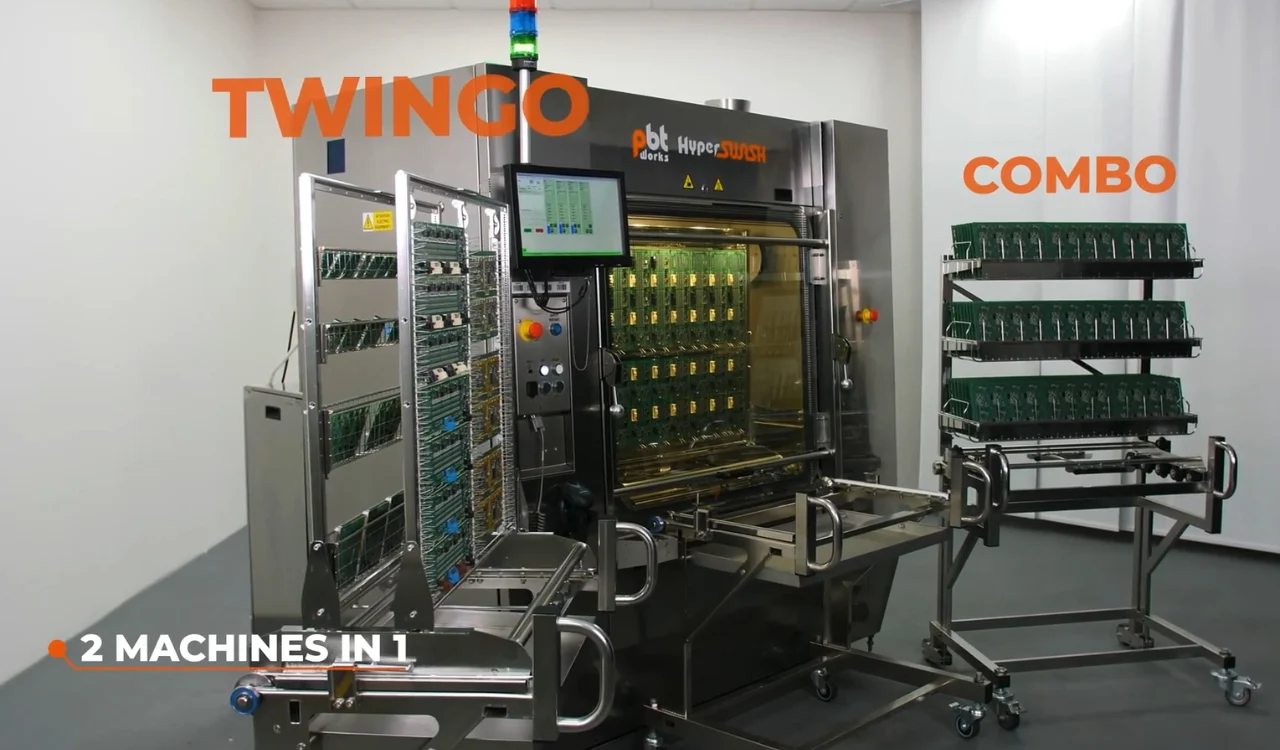

This product video introduces HyperSWASH III by summarizing its general working principle and typical application scenarios.
