HyperCLEAN III
The HyperCLEAN III is a high-capacity defluxing machine designed for low-mix production environments. It is positioned as an effective solution for processes where cleaner and flux combinations are well matched.
| Cleaning Machines Overview | HyperCLEAN III |
|---|---|
| Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height) | 780 x 1200 x 810 |
| Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height) | Combo 1 Short: 700 x 700 x 300 Combo 2 Short: 2 x 700 x 700 x 300 Combo 1 long: 700 x 1000 x 700 |
| PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc. | √ |
| Eurocards (100 x 160 mm) [pcs per cycle] | 128 |
| Cycle time [minute] | 40-60 |
| Metal & Plastic stencils (paste, glue) | X |
| Stencils [pcs per cycle] | X |
| Cycle time [minutes] | X |
| Maintenance parts from soldering process (solder pallets, filters, carrier, etc.) | √ |
| Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional) | 11 - 22 |
| Cycle time [minute] | 35-60 |
| Cleaning agent volume (Ready-to-use) | 114 L |
| Max. cleaning temperature | 60°C |
| Max. rinsing temperature | 60°C |
| Max. drying temperature | 110°C |
| Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door | Short : 1700 x 3200 x 2500 Long : 1500 x 3510 x 2500 (incl. pushcart) |
| Machine weight without liquid | 1200 - 1500 kg |

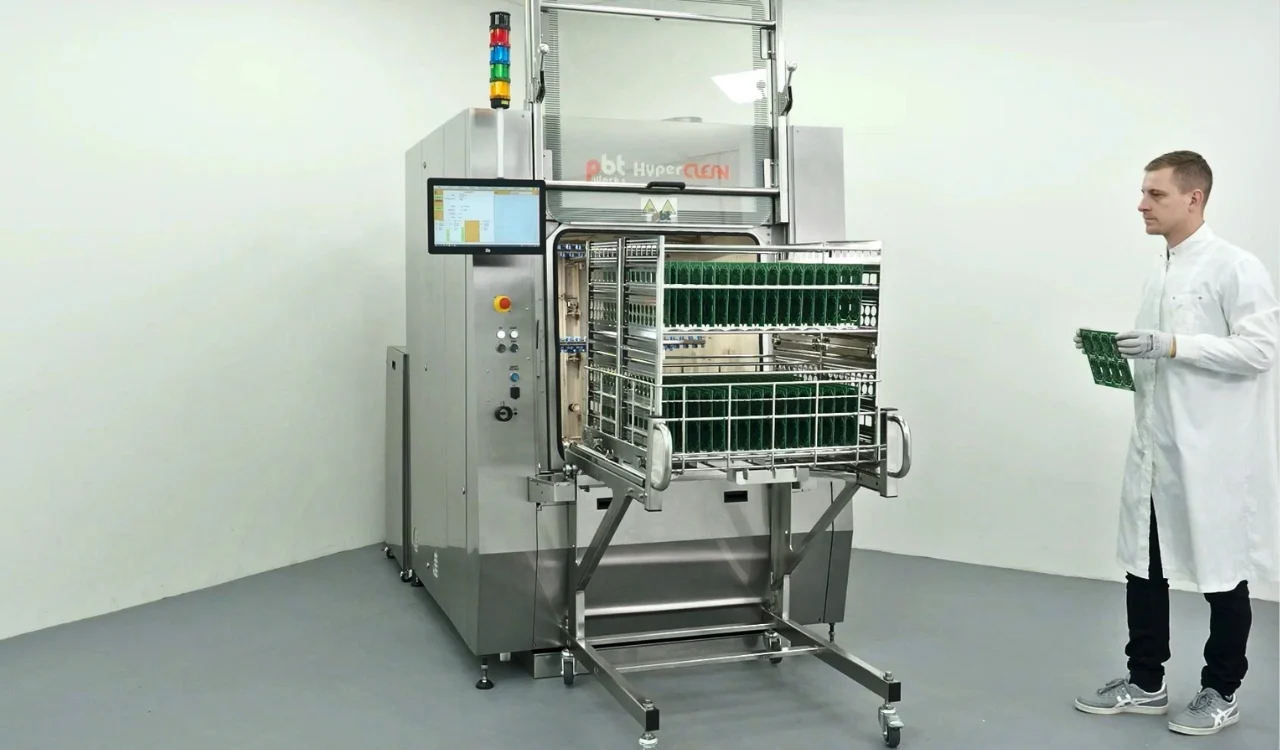

This product video introduces HyperCLEAN III by summarizing its general working principle and typical application scenarios.
