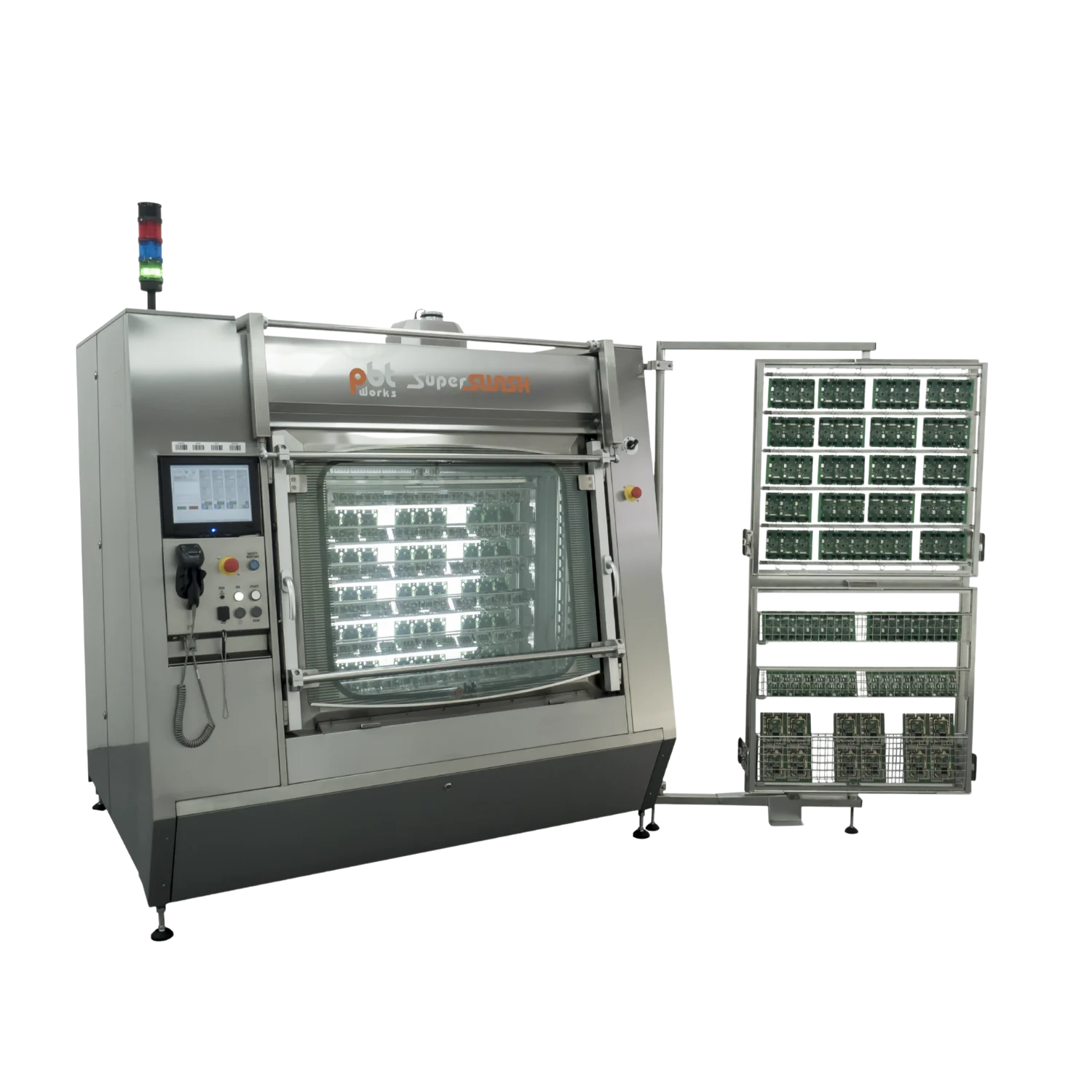

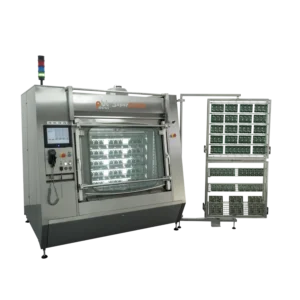

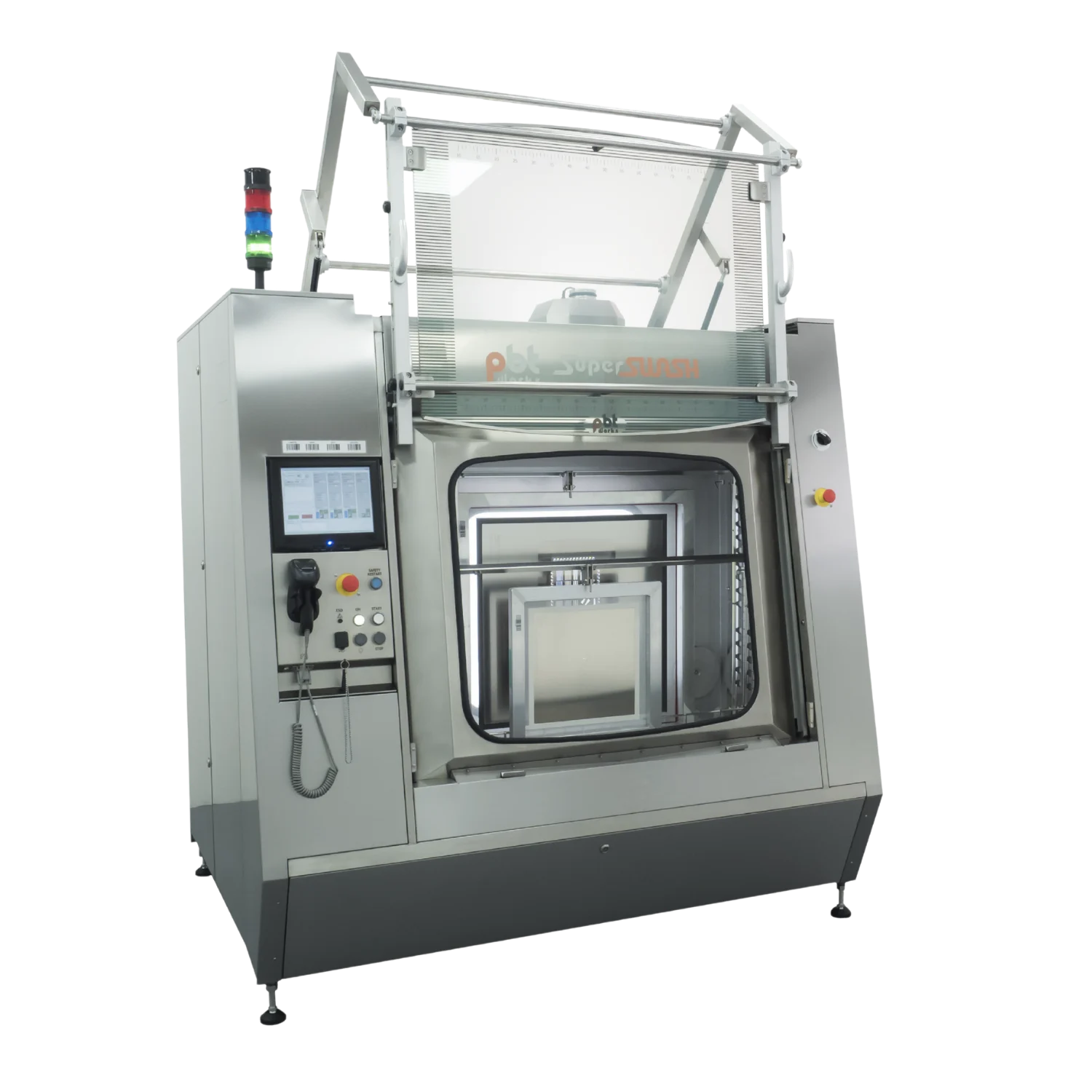

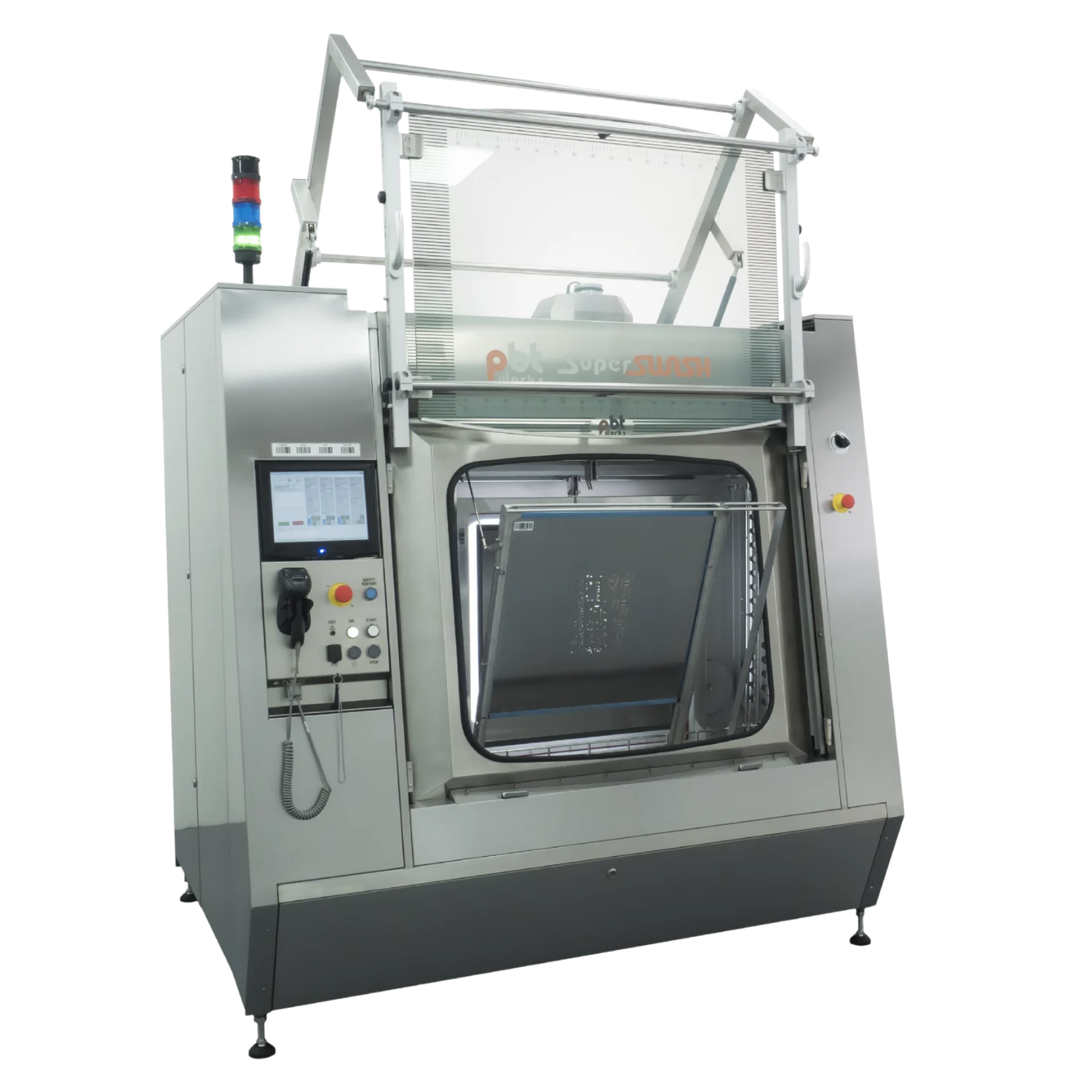

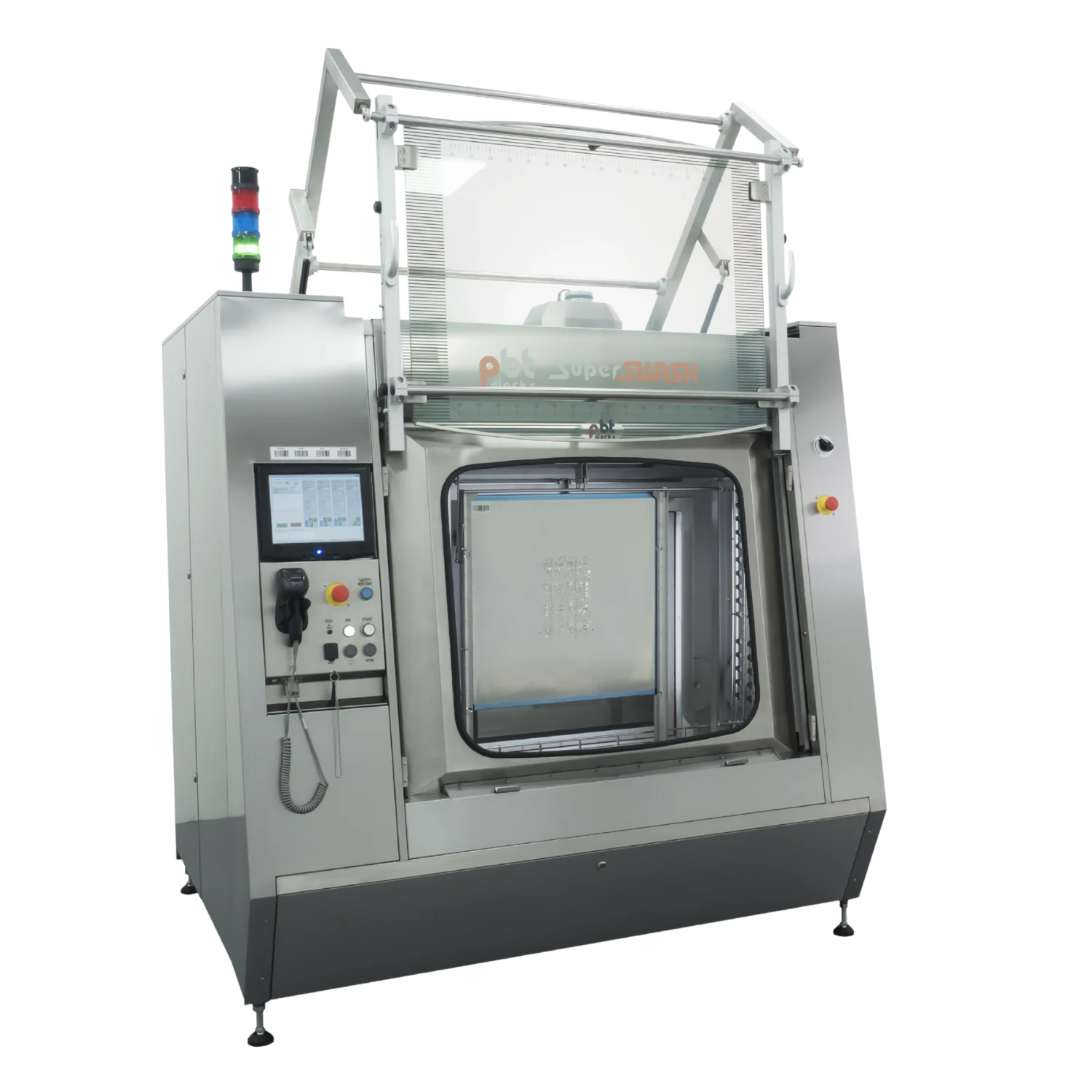

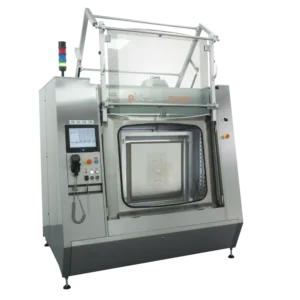

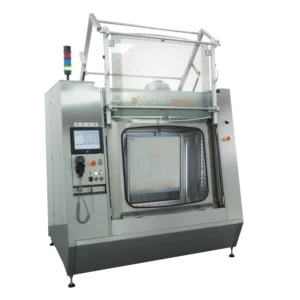

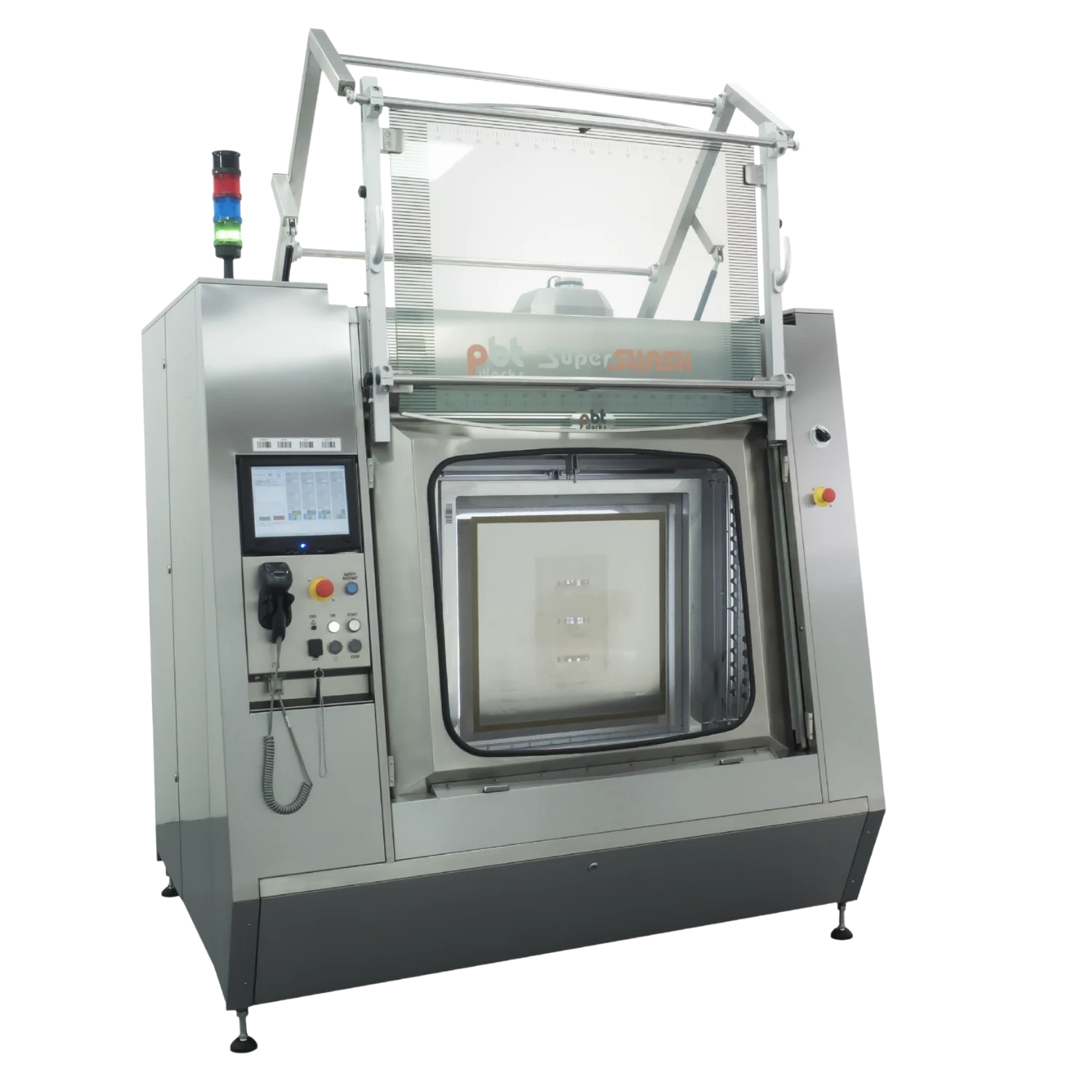

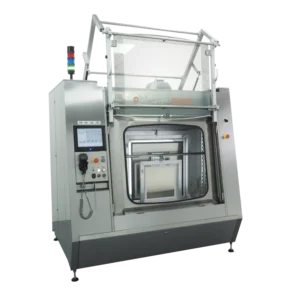

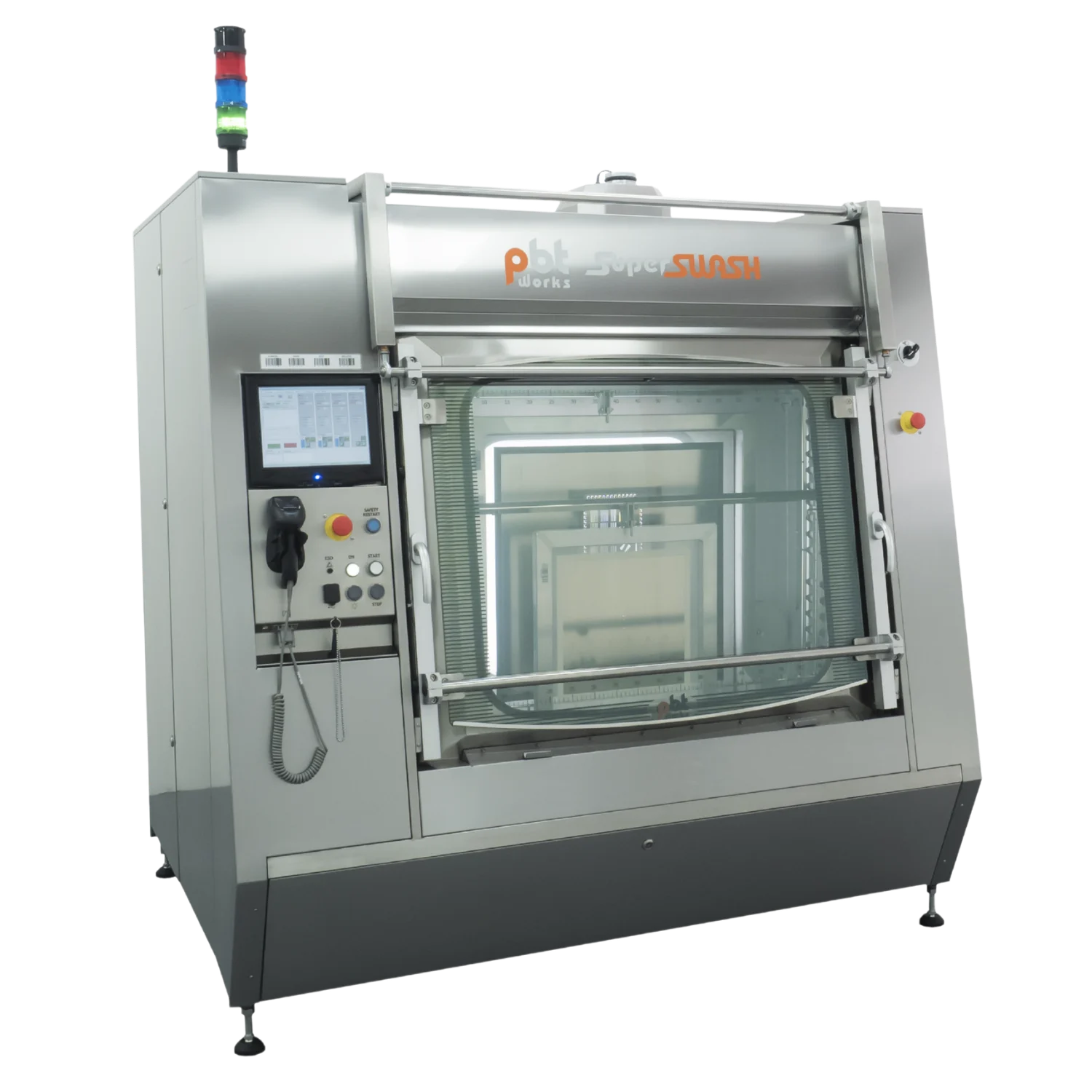

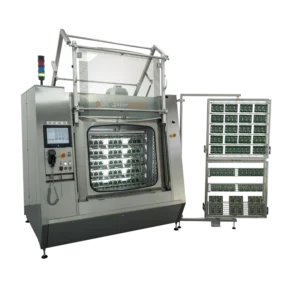

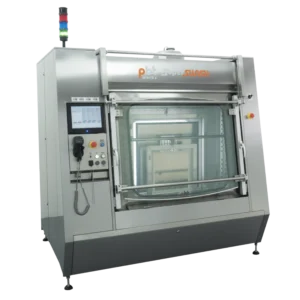

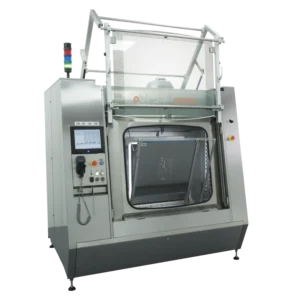

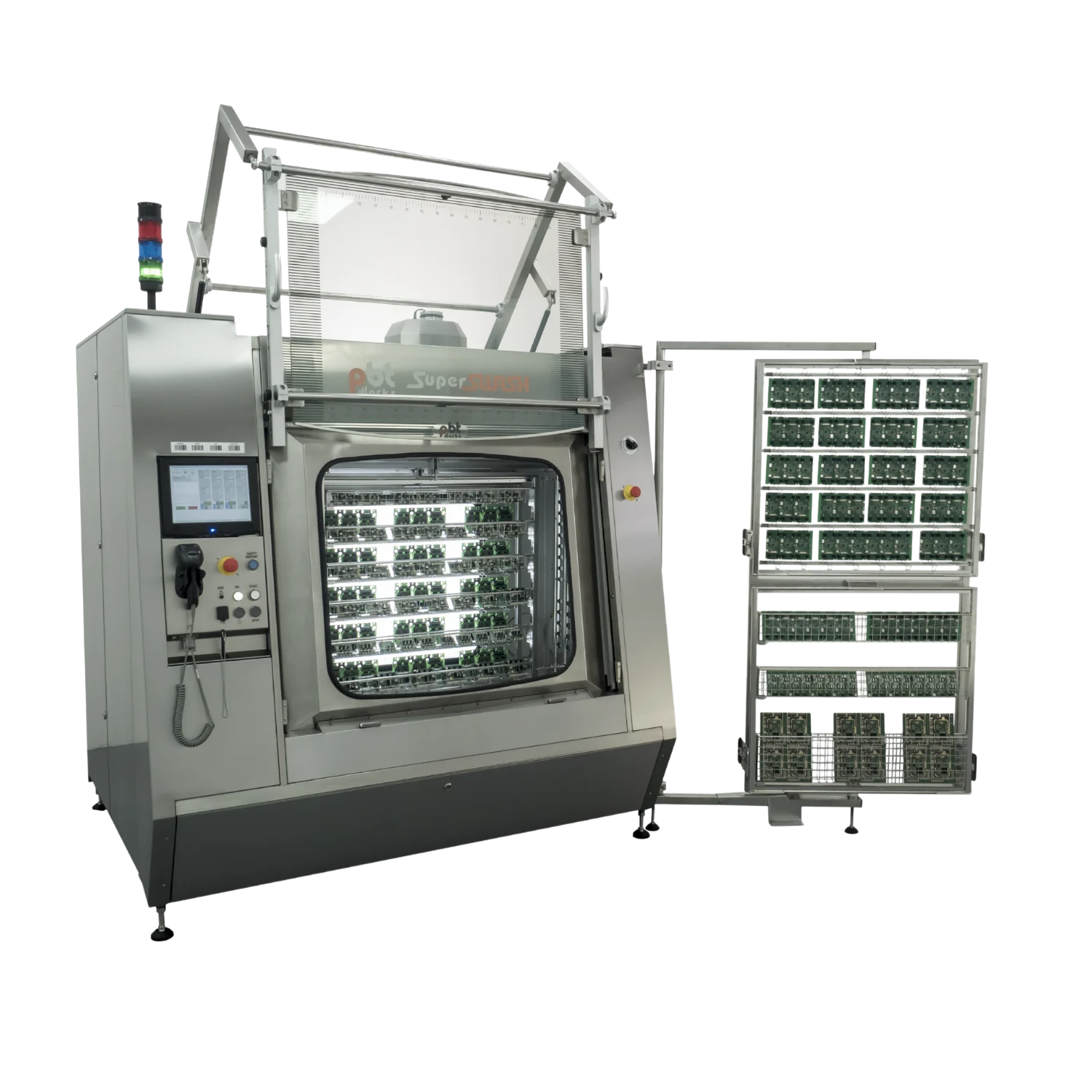

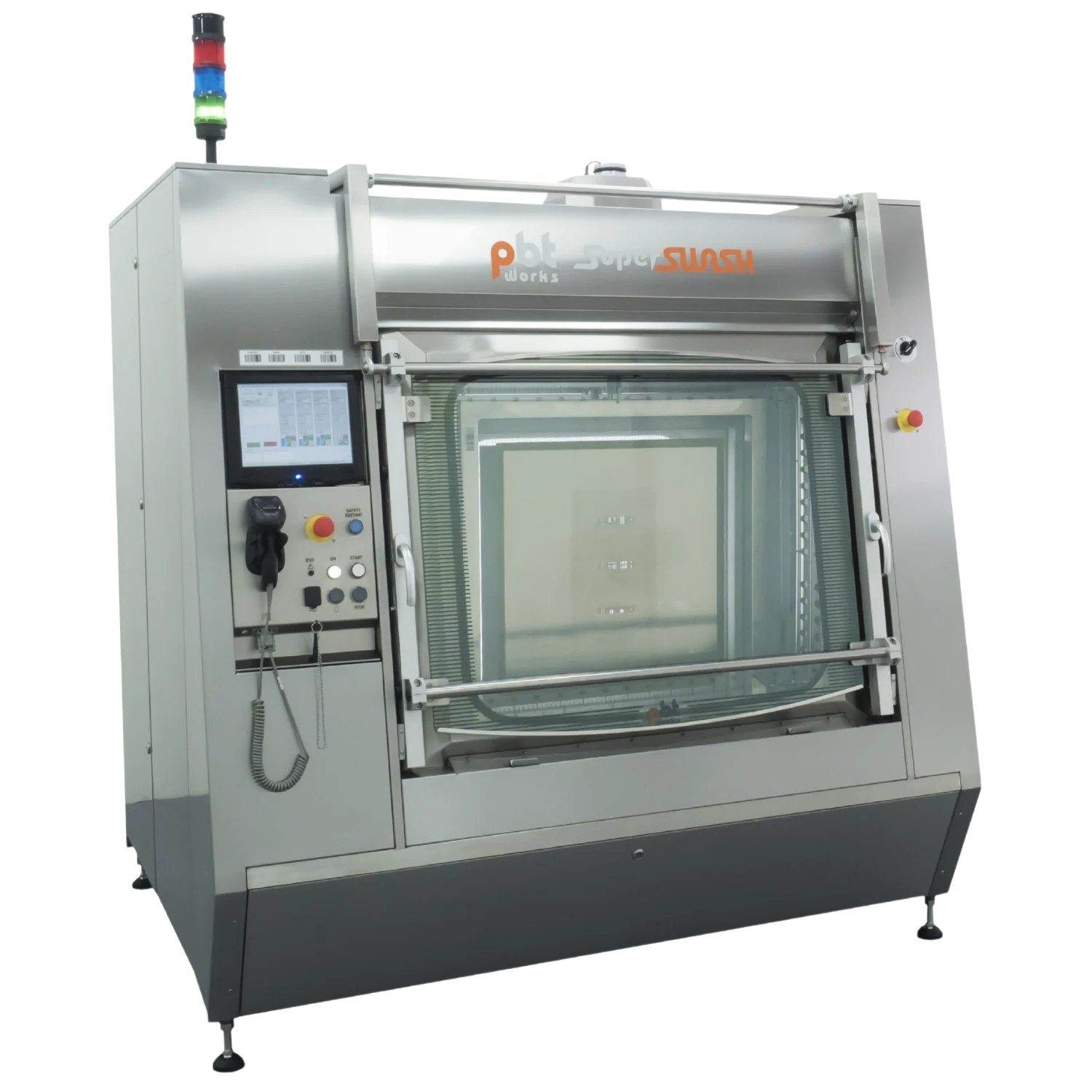

SuperSWASH II
The SuperSWASH II is a high-capacity and durable cleaning machine designed for stencils, squeegees, and misprinted PCBs. It is suitable for large-scale production environments and supports intensive operational requirements. The system is capable of cleaning up to 10 stencils per hour, ensuring efficient processing performance.
| Cleaning Machines Overview | Single | Twingo |
|---|---|---|
| Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height) | 835 x 80 x 815 or 835 x 150 x 815 | 2 x 835 x 50 x 740 |
| Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height) | 740 x 80 x 772 or 740 x 150 x 772 | 2 x 740 x 50 x 695 |
| PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc. | ✔ | ✔ |
| Eurocards (100 x 160 mm) [pcs per cycle] | 20 | 40 |
| Cycle time [minute] | ✔ | ✔ |
| Metal & Plastic stencils (paste, glue) | 1 | 2 |
| Stencils [pcs per cycle] | 7 | 7 |
| Cycle time [minutes] | ✖ | ✖ |
| Maintenance parts from soldering process (solder pallets, filters, carrier, etc.) | ✖ | ✖ |
| Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional) | ✖ | ✖ |
| Cycle time [minute] | 80L/57L (II/III) | 80L/57L (II/III) |
| Cleaning agent volume (Ready-to-use) | 80L | 80L |
| Max. cleaning temperature | 60°C | 60°C |
| Max. rinsing temperature | 40°C | 40°C |
| Max. drying temperature | 110°C | 110°C |
| Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door | 1700 x 1500 x 2450 | 1700 x 1500 x 2450 |
| Machine weight without liquid | 570-630 kg | 570-630 kg |

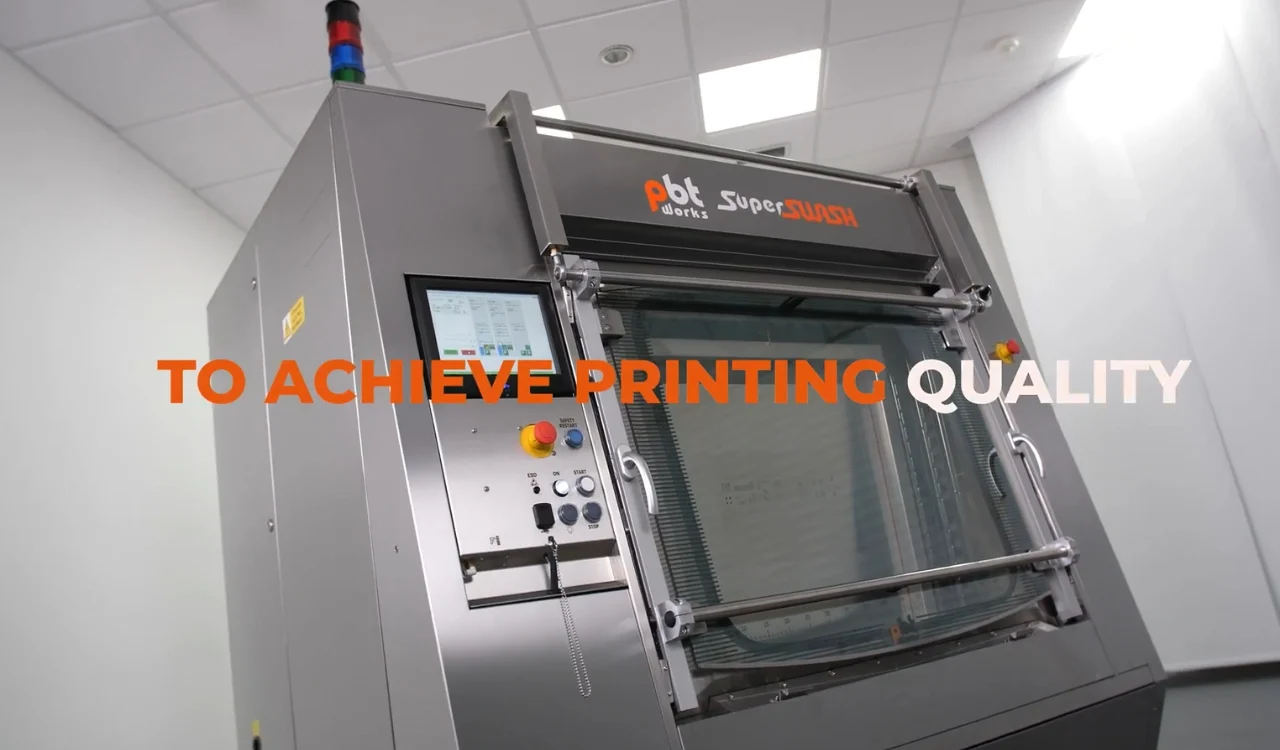

This product video introduces SuperSWASH II by summarizing its general working principle and typical application scenarios.
