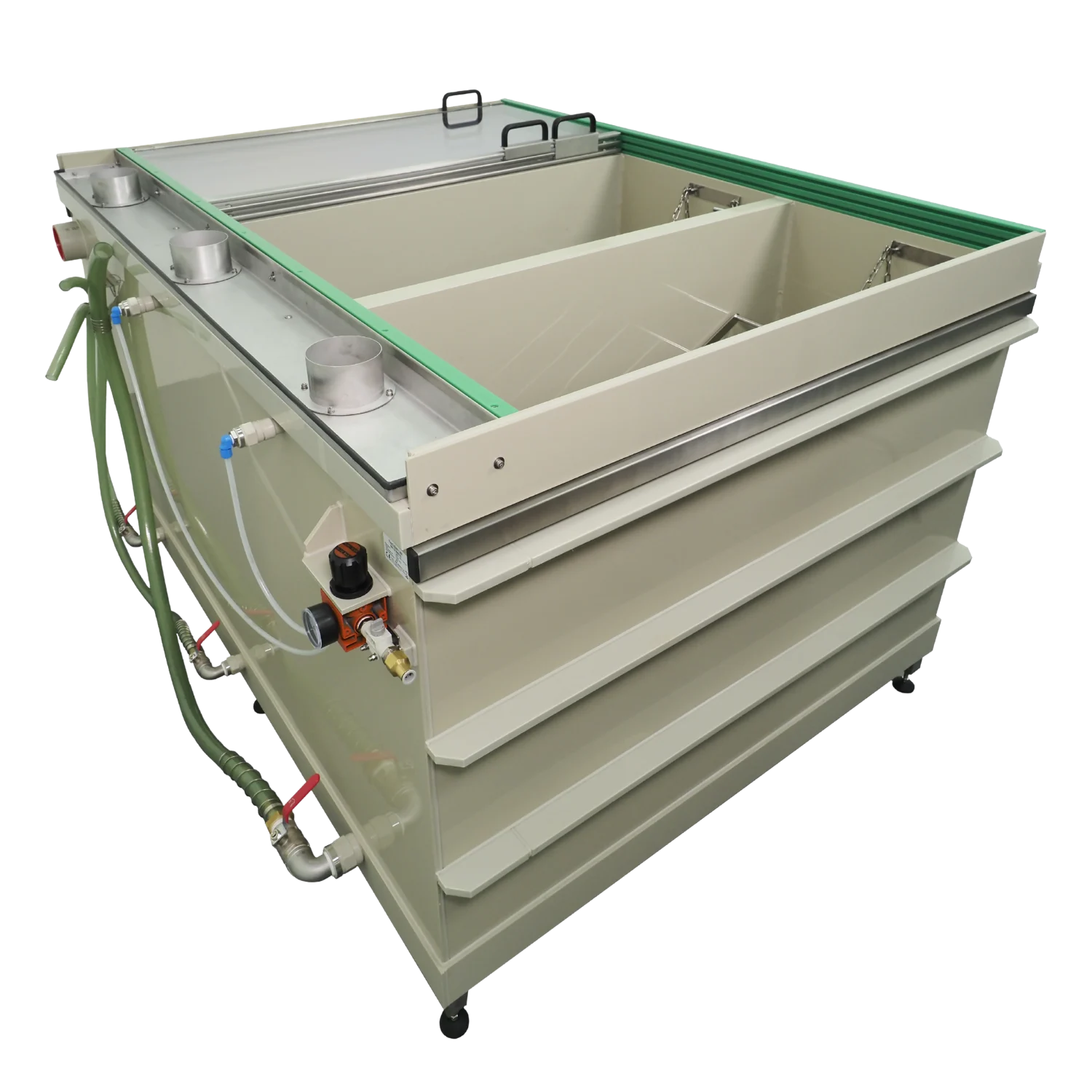

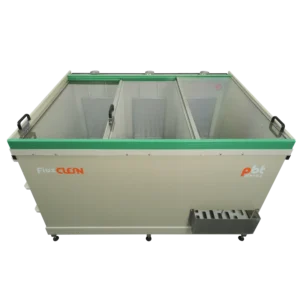

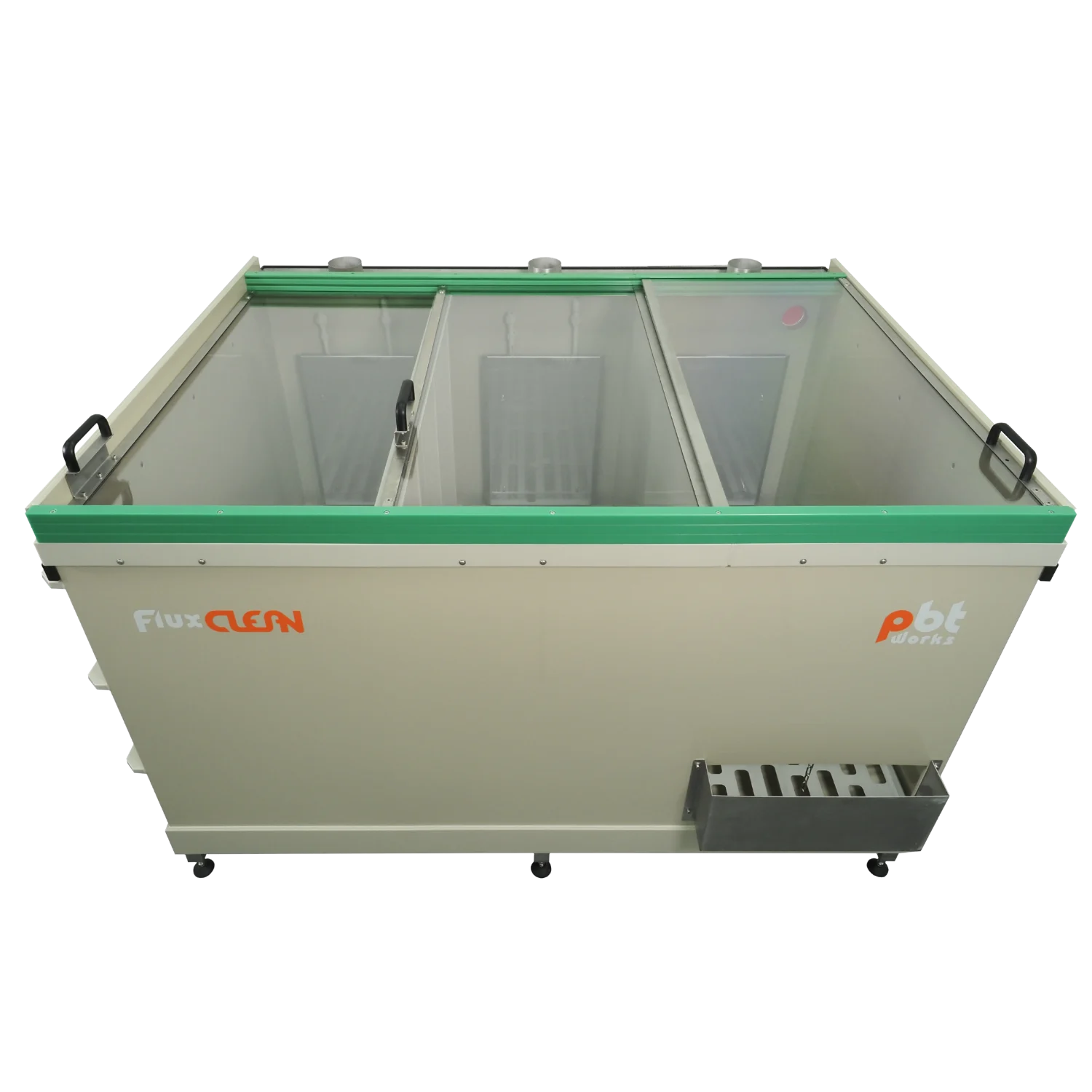

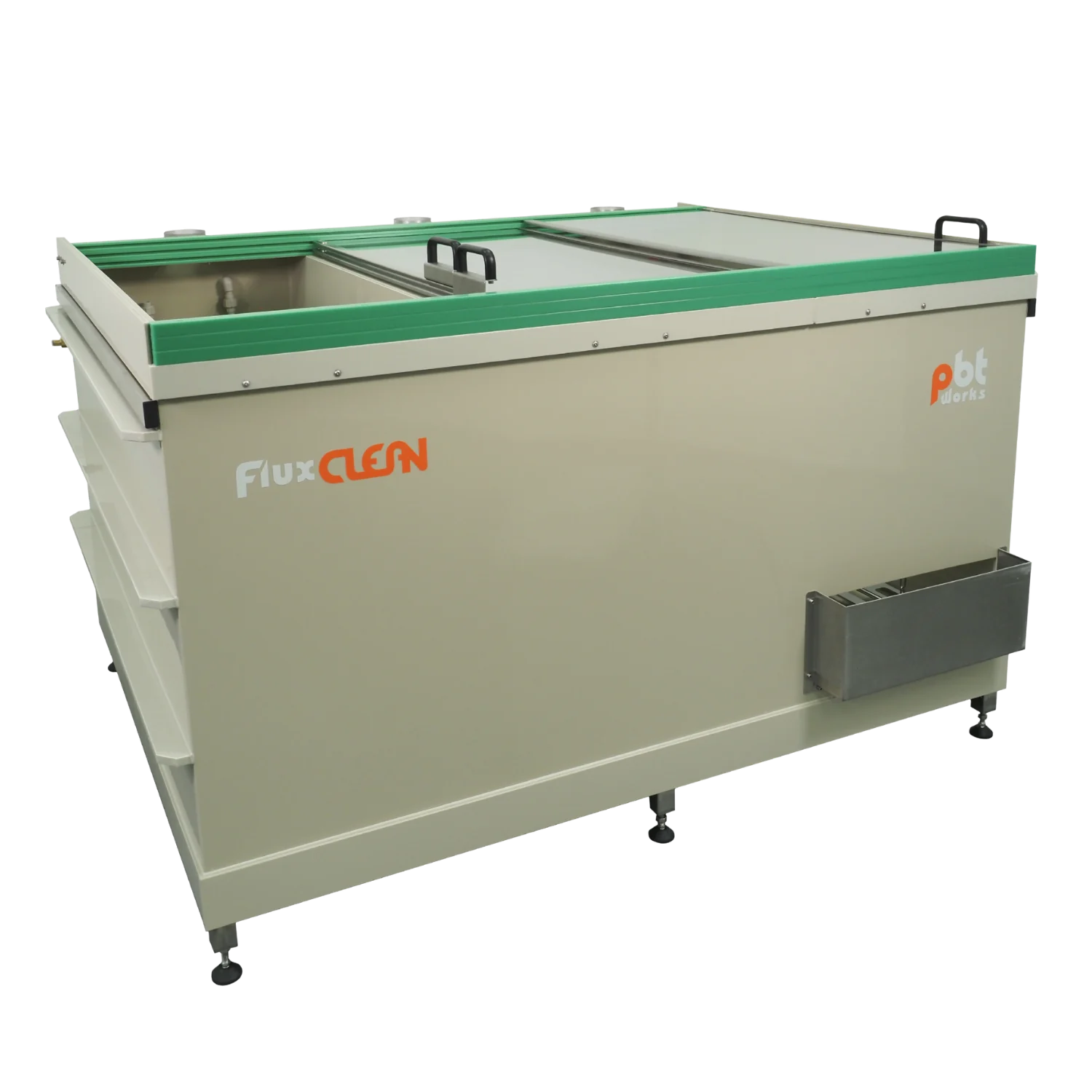

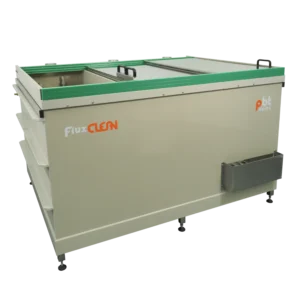

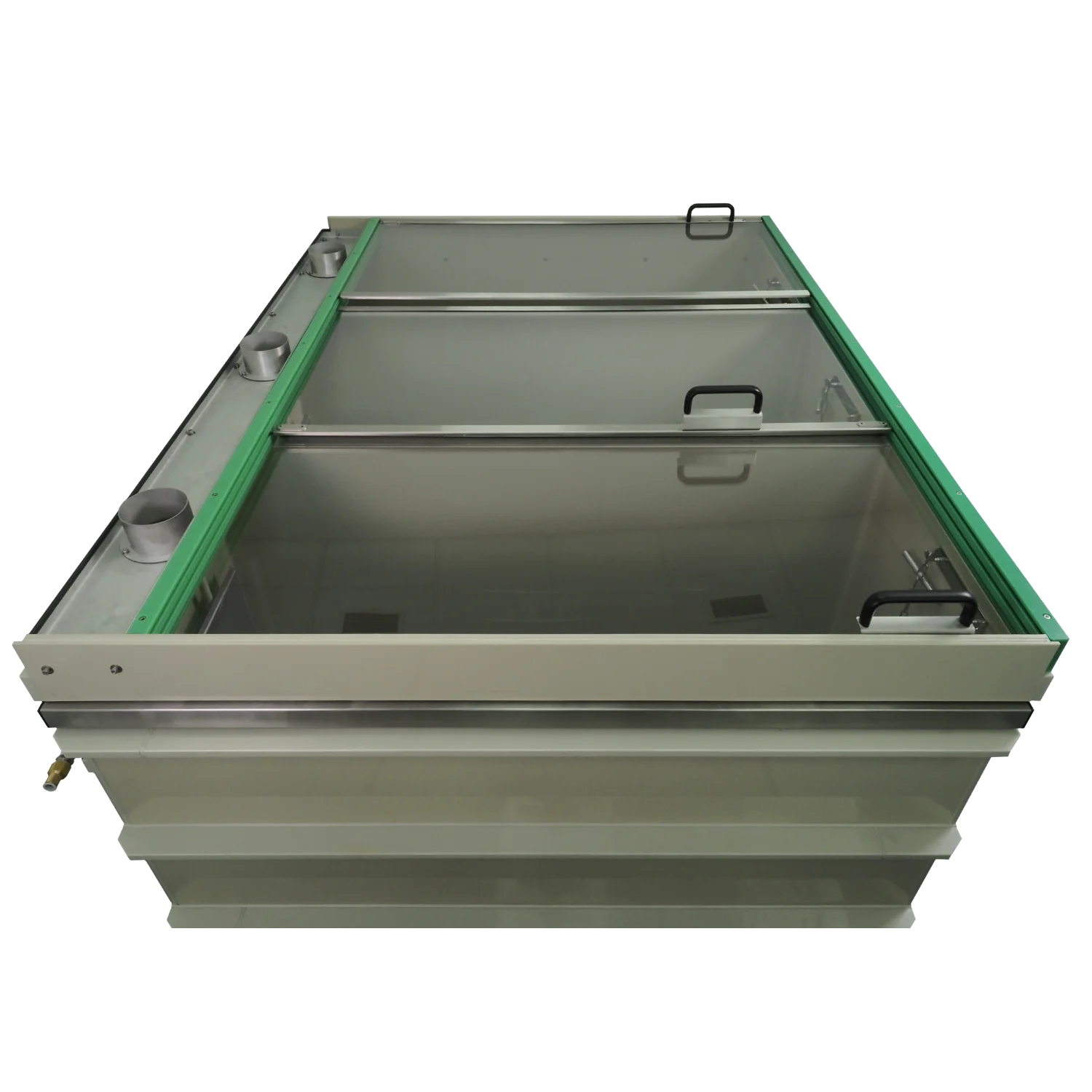

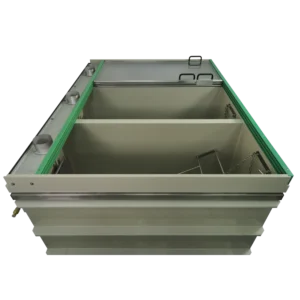

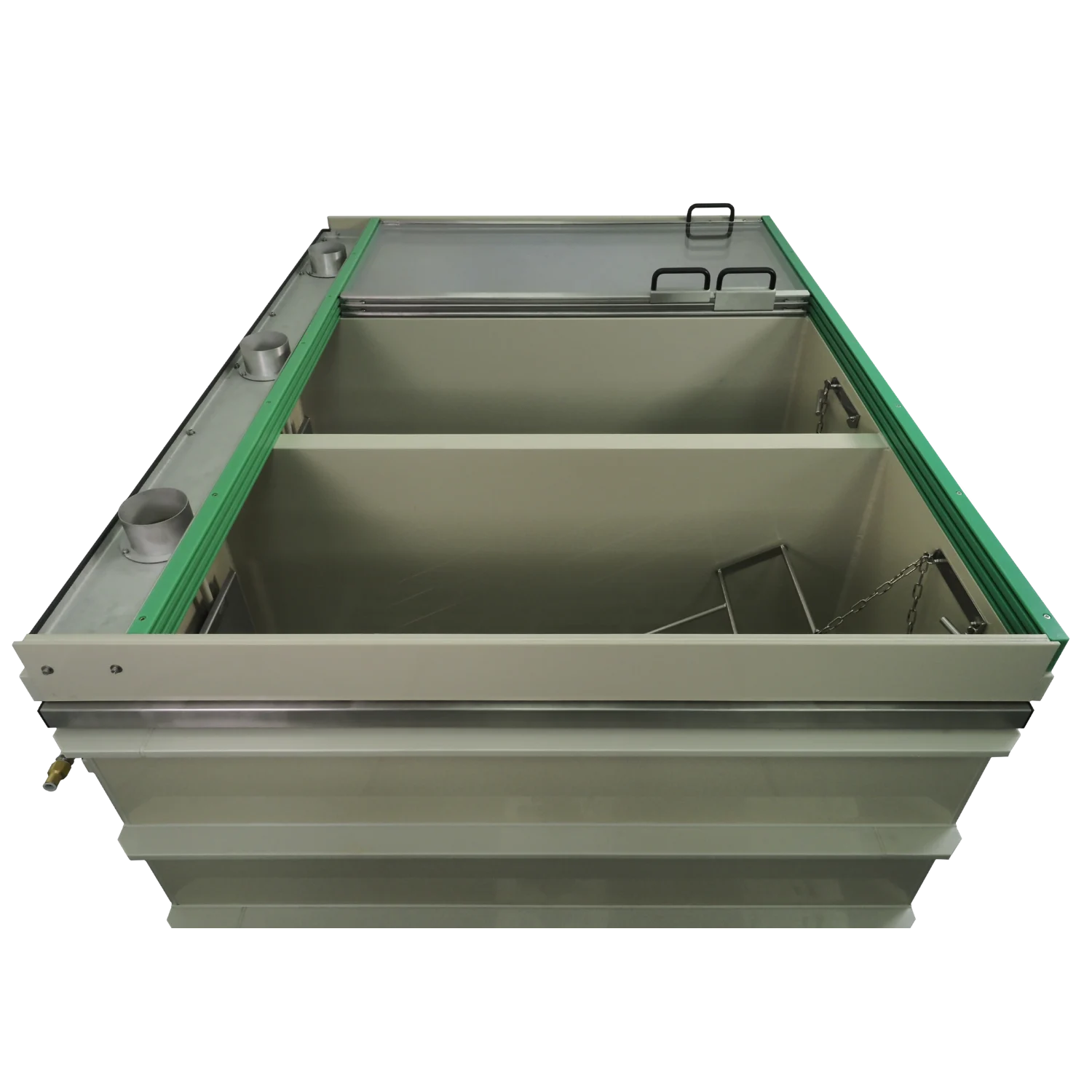

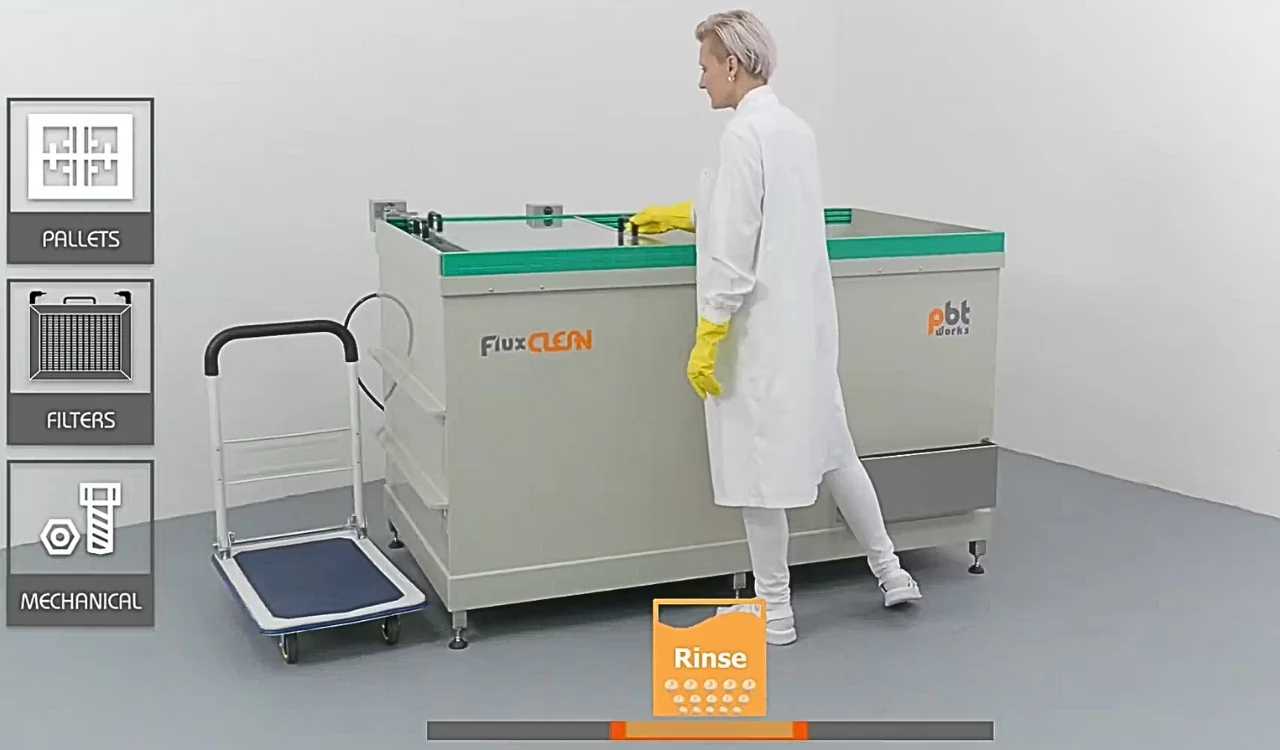

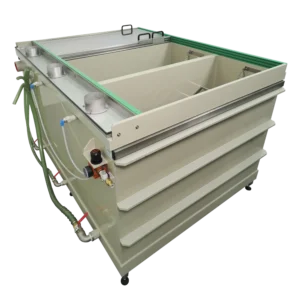

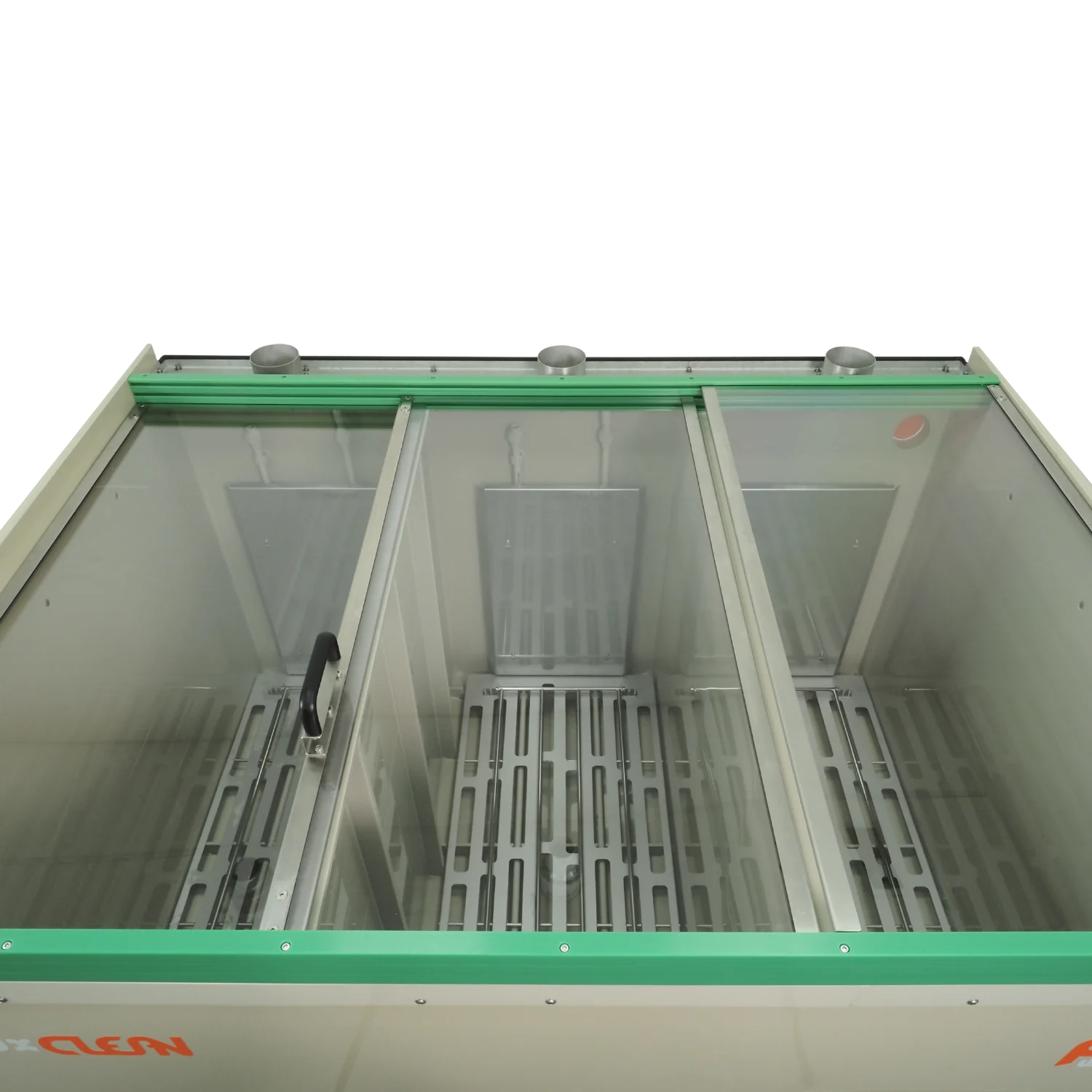

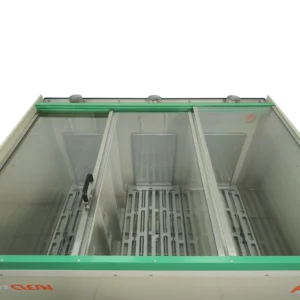

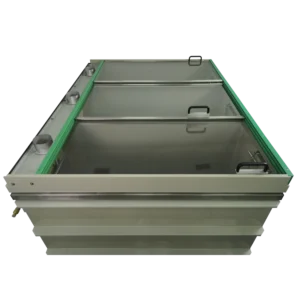

FluxCLEAN

Manual maintenance cleaning machine designed for lower throughput applications. The FluxCLEAN provides a cost-effective solution for handling maintenance cleaning requirements.

Application: Filters, Pallets, Coolers
Capacity: Small Volume
Contamination Solubility: Easy to Moderate

Request a Quote WhatsApp Inquiry

Technical Features of FluxCLEAN

Cleaning Machines Overview	FluxCLEAN
Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height)	500 x 850 x 550 or 500 x 1200 x 550
Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height)	500 x 850 x 550 or 500 x 1200 x 550
PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc.	✖
Eurocards (100 x 160 mm) [pcs per cycle]	✖
Cycle time [minute]	✖
Metal & Plastic stencils (paste, glue)	✖
Stencils [pcs per cycle]	✖
Cycle time [minutes]	✖
Maintenance parts from soldering process (solder pallets, filters, carrier, etc.)	✔
Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional)	2 - 4
Cycle time [minute]	40
Cleaning agent volume (Ready-to-use)	310 L /425 L (PP 850 / PP 1200)
Max. cleaning temperature	ambient
Max. rinsing temperature	ambient
Max. drying temperature	ambient
Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door	PP 850: 1800 x 1210 x 1150 PP 1200: 1800 x 1560 x 1150
Machine weight without liquid	175-215 kg

Product Brochure of FluxCLEAN

Download the product brochure of FluxCLEAN to learn about its key features, technical structure, and application areas.

Download Brochure Technical Data Sheet
