SuperSWASH III
The SuperSWASH III is designed for customers seeking top-level cleaning performance without requiring automation or extremely high throughput. It is positioned as an optimal solution for medium to low production volumes of complex products that demand precise and thorough cleaning.
| Cleaning Machines Overview | Single | Twingo |
|---|---|---|
| Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height) | 835 x 80 x 815 or 835 x 150 x 815 | 2 x 835 x 50 x 740 |
| Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height) | 740 x 80 x 772 or 740 x 150 x 772 | 2 x 740 x 50 x 695 |
| PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc. | ✔ | ✔ |
| Eurocards (100 x 160 mm) [pcs per cycle] | 20 | 40 |
| Cycle time [minute] | ✔ | ✔ |
| Metal & Plastic stencils (paste, glue) | 1 | 2 |
| Stencils [pcs per cycle] | 7 | 7 |
| Cycle time [minutes] | ✖ | ✖ |
| Maintenance parts from soldering process (solder pallets, filters, carrier, etc.) | ✖ | ✖ |
| Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional) | ✖ | ✖ |
| Cycle time [minute] | 80L/57L (II/III) | 80L/57L (II/III) |
| Cleaning agent volume (Ready-to-use) | 80L | 80L |
| Max. cleaning temperature | 60°C | 60°C |
| Max. rinsing temperature | 40°C | 40°C |
| Max. drying temperature | 110°C | 110°C |
| Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door | 1700 x 1500 x 2450 | 1700 x 1500 x 2450 |
| Machine weight without liquid | 570-630 kg | 570-630 kg |

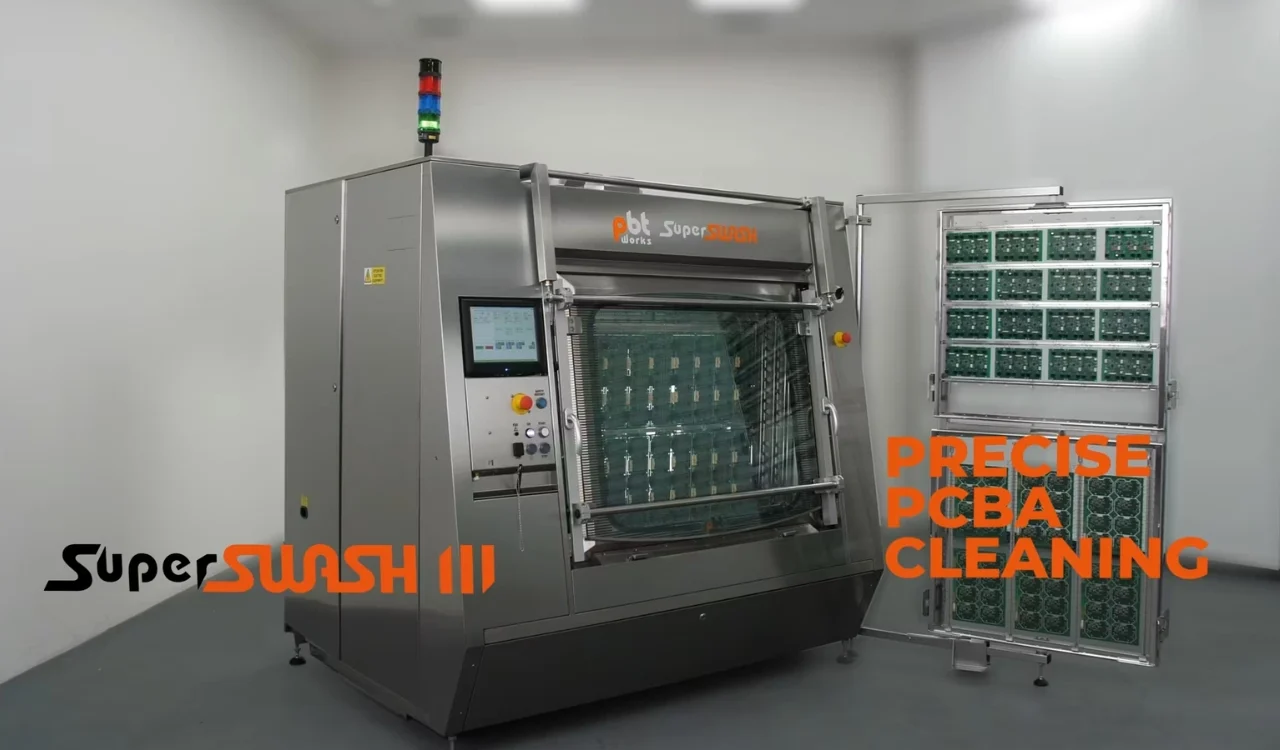

This product video introduces SuperSWASH III by summarizing its general working principle and typical application scenarios.
