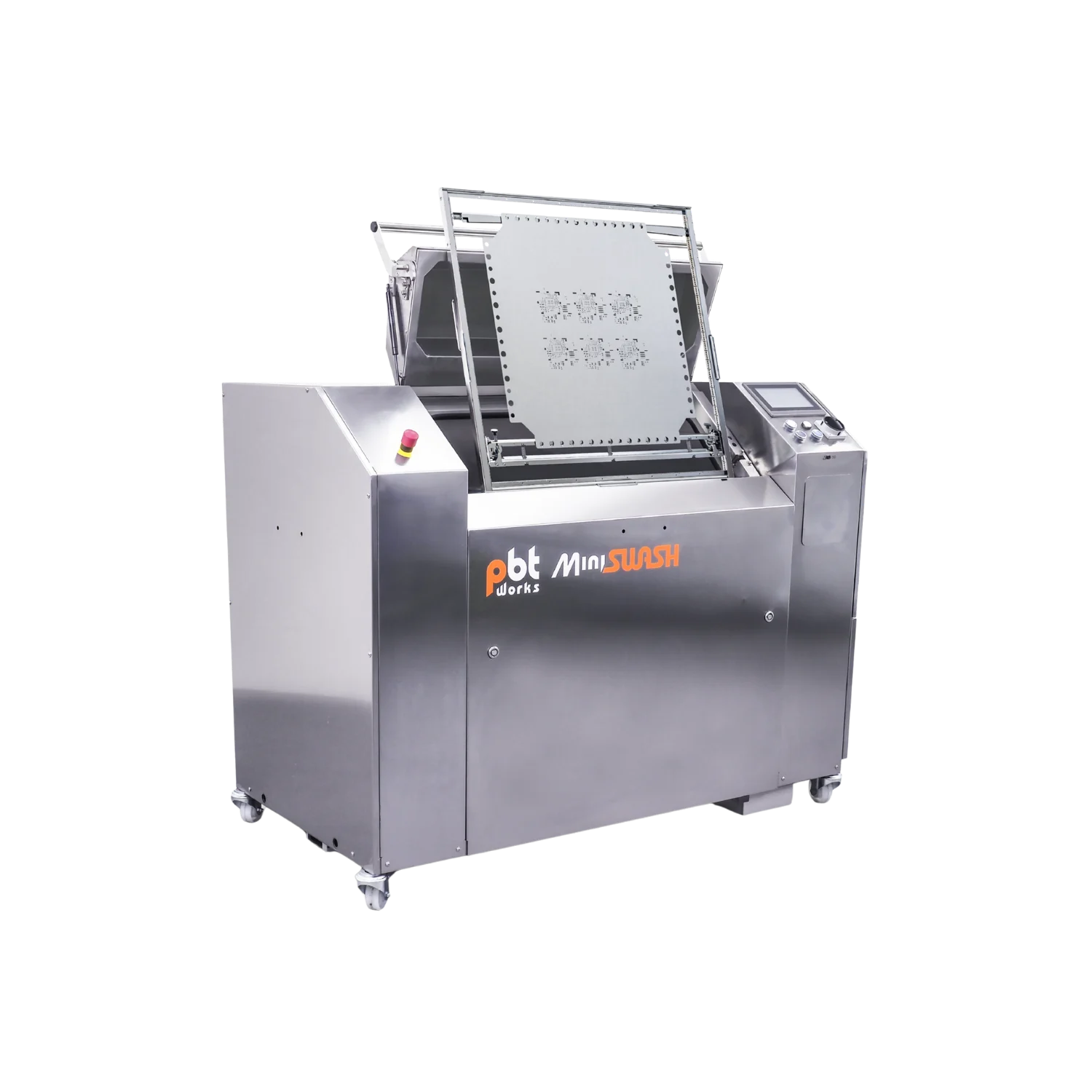

MiniSWASH III
The MiniSWASH III is positioned as a cost-effective cleaning solution for users who do not require daily PCBA cleaning. It is suited for environments such as research and development centers, prototyping facilities, start-ups, and very low-volume production operations, where consistent cleaning results are required at smaller scales.
| Cleaning Machines Overview | MiniSWASH III |
|---|---|
| Usable chamber size: W x L x H [mm] (W=left-right, L=front back, H=height) | 810 x 60 x 740 |
| Usable space for standard clamping: W x L x H [mm](W=left right, L=front back, H=height) | 740 x 60 x 695 |
| PCBA, HDI, DC, BGA, PoP, SIP CSP, BTC, QFN, MELF hybrids, etc. | ✔ |
| Eurocards (100 x 160 mm) [pcs per cycle] | 20 |
| Cycle time [minute] | 20-40 |
| Metal & Plastic stencils (paste, glue) | ✔ |
| Stencils [pcs per cycle] | 1 |
| Cycle time [minutes] | 10 |
| Maintenance parts from soldering process (solder pallets, filters, carrier, etc.) | ✖ |
| Solder pallets [pcs per cycle] 500 x 500 x 40 mm (other sizes optional) | ✖ |
| Cycle time [minute] | ✖ |
| Cleaning agent volume (Ready-to-use) | 62 L |
| Max. cleaning temperature | 60°C |
| Max. rinsing temperature | 40°C |
| Max. drying temperature | 90°C |
| Machine dimensions W x L x H [mm] (W=left-right, L= front-back, H = height) * height with opened door | Open loop: 1600 x 850 x 1200/1600 Closed loop: 1600 x 1400 x 1200/1600 (w/wo signal tower) |
| Machine weight without liquid | 250-450 kg |

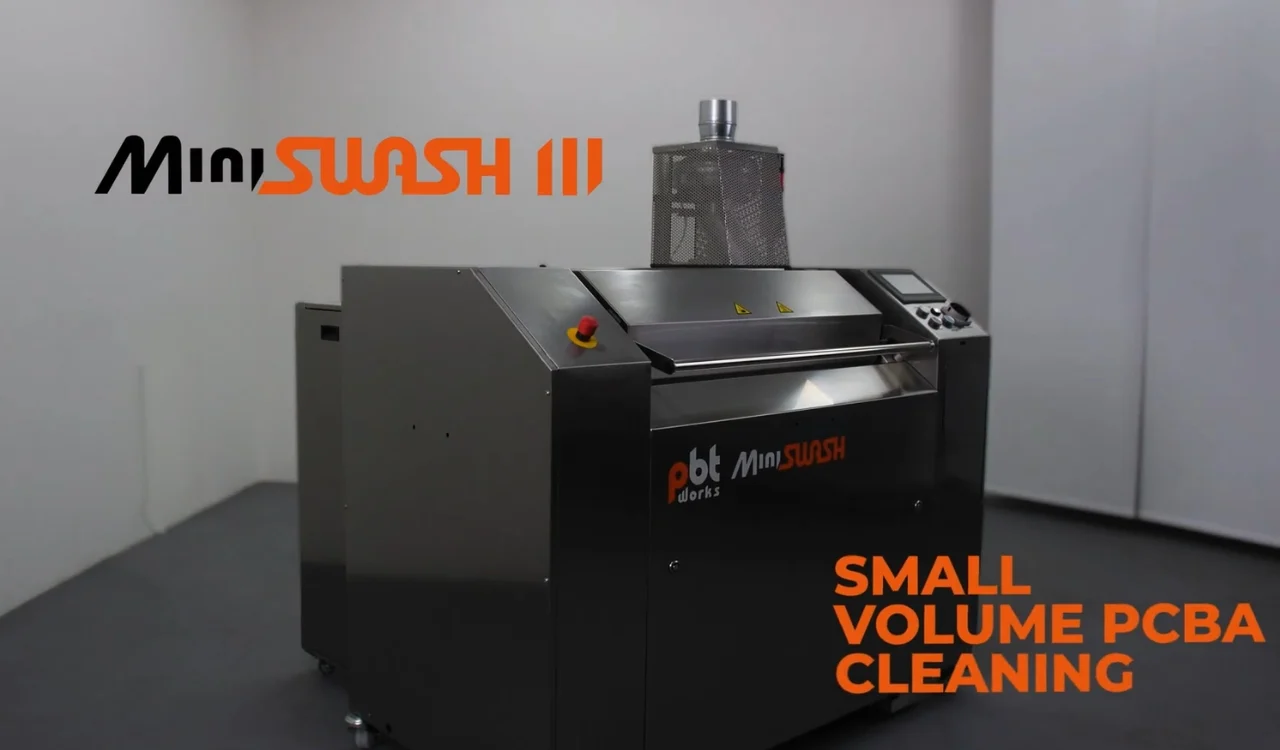

This product video introduces MiniSWASH III by summarizing its general working principle and typical application scenarios.
