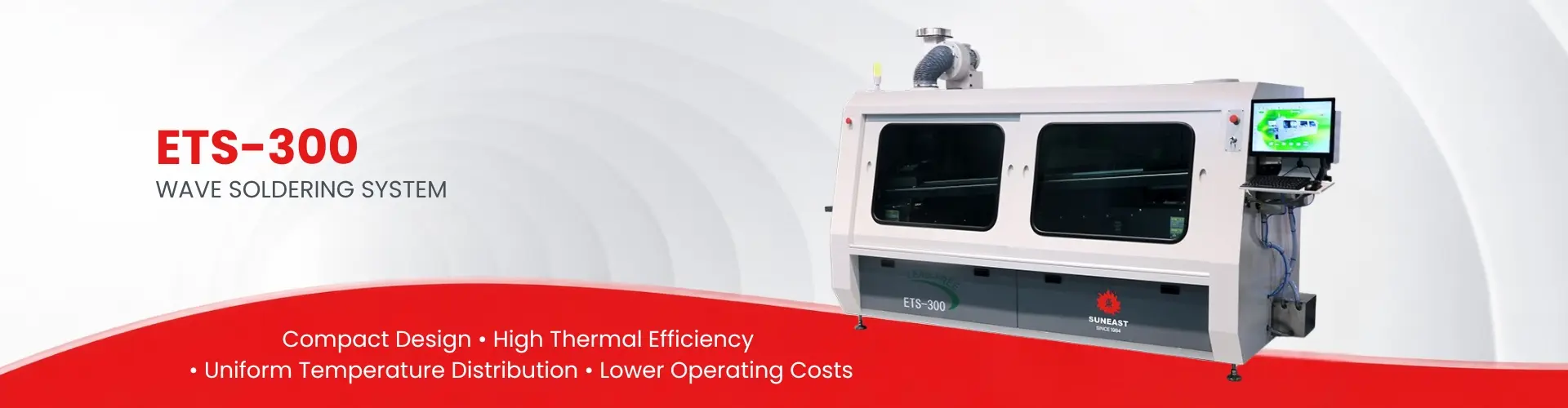

✔ Compact structure and small footprint.
✔ PC+PLC control system.
✔ IR preheating, high thermal efficiency and uniform temperature.
✔ Step motor control spraying, more stable and reliable.
✔ Adopts small solder pot, reduces the cost.
✔ Transportation: Input board directly.Stainless steel chain conveyor， durable and special design for aluminum alloy track.Applied floating track for different stages for preventing deformation.
✔ Pre heating system: Drawer-typeenergy-saving design, IR preheating, PID mode temperature control， temperature control accuracy can reach ±2℃， the temperature dropping is≤5℃ between preheating zone and soldering zone
✔ Flux spraying system: Managed by digital control.The motion of the spray nozzle is controlled by stepper motor.Flux supply is controlled automaticallyfor optimized effect.Exhausting and filter system installed on the top
✔ The solder pot is made by cast iron with anti-corrosion ceramic coating equipped with two low flow rate nozzles.
✔ Forced air cooling system.
✔ PC+PLC control system, Windows 7 operating system, Chinese/English operation interface process profile/data automatic storage function, lower or higher flux level alarm；lower tin level alarm.
| Feature | ETS-300 | ETS-300E |
|---|---|---|
| Dimension：LxWxH(mm) | 3385x1240x1540 | 3385x1190x1540 |
| Weigh | Approx.1150kg | Approx.1100kg |
| Power Supply | 3PH 380V 50HZ | 3PH 380V 50HZ |
| Startup Power | 28KW | 27KW |
| Operation Power Consumption | 7KW | 6.7KW |
| Control System | PC+PLC | PC+PLC |
| Spraying movement | Step motor | Step motor |
| Spraying Pressure | 0.2Mpa~0.4Mpa | 0.2Mpa~0.4Mpa |
| Flux Flow Arrange | Option | Option |
| Auto Fill Flux | Standard | Standard |
| Exhaust | Top exhaust | / |
| Exhaust Ducting Diameter(mm) | φ250 | φ250 |
| Exhaust fan power | 370W | / |
| Preheating Mode | IR | IR |
| Control Mode | PID | PID |
| Preheating Zone Number | 2 | 2 |
| Preheating Length(mm) | 1800 | 1800 |
| Preheating Temperature | Room temperature~200℃ | Room temperature~200℃ |
| Warm-up Time(min) | Approx.12min(setting:150℃) | Approx.12min(setting:150℃) |
| PCB Width(mm) | 50~300 | 50~300 |
| Convoyor Direction | L-R(Option：R-L) | L-R(Option：R-L) |
| Conveyor Speed(mm/min) | 500-1800 | 500-1800 |
| Conveying Height(mm) | 750±20 | 750±20 |
| Available Component Height(mm) | Top120,Bottom15 | Top120,Bottom15 |
| Conveying Speed Control Mode | Closed loop stepless speed regulation by inverter | Closed loop stepless speed regulation by inverter |
| Fingers | 1.Heavy type double hook finger / 2.Light double hook finger(Option) | 1.Heavy type double hook finger / 2.Light double hook finger(Option) |
| Conveying Angle | 4~6° | 4~6° |
| Type of solder Pot | Motor drive | Motor drive |
| Solder Pot Material | Casting Iron | Casting Iron |
| Wave Height Adjustment | In verte Approx：Digital Control by PC | In verte Approx：Digital Control by PC |
| Cooling Method | Air cooling | / |
| Heater Power | 9KW | 220V 9KW |
| Solder Pot Temperature | 300℃ | 300℃ |
| Solder Pot Capacity | Approx.350KG | Approx.350KG |
| Wave Driving Power | 180W*2 3PH 220VAC | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting:250℃) | Approx.150min(setting:250℃) |
| Temperature Control Mode | PID | PID |
| Finger Cleaning System | Brush | Brush |
