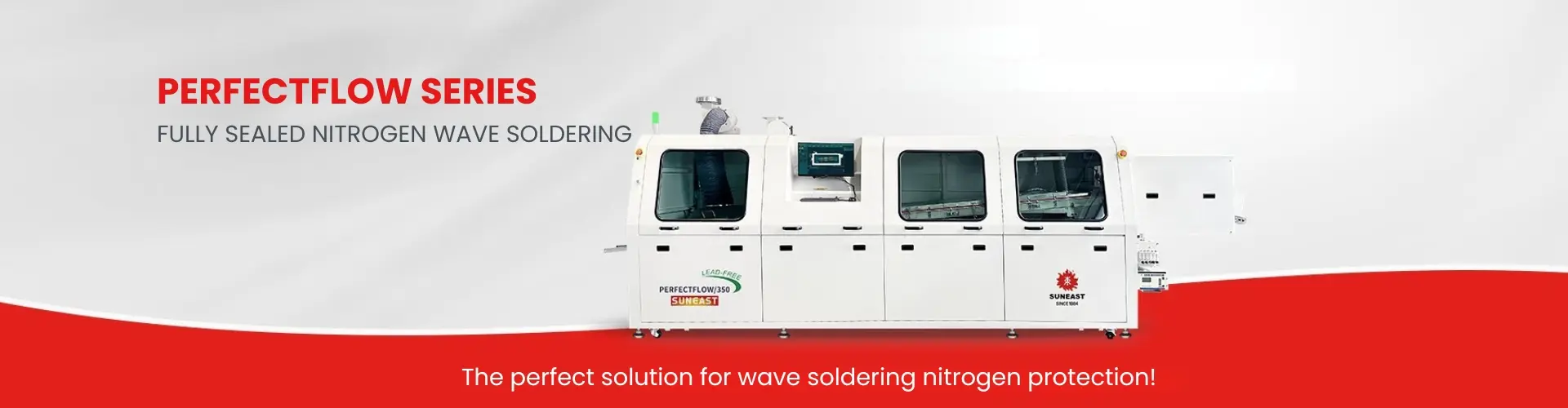

The PERFECTFLOW series is a tunnel-type, fully sealed nitrogen-filled wave soldering system. Utilizing the world’s first sealing solution for the welding zone alongside an innovative segmented conveying system, it easily meets flexible welding angle requirements while expanding board bottom clearance. This design resolves jamming issues as well as operation and maintenance challenges typical of segmented conveyors in standard wave soldering machines. Consequently, it maximizes the effectiveness of nitrogen protection and significantly enhances both equipment performance and overall process quality.
Tunnel Type Full Sealing Nitrogen Filled Wave Soldering Machine PERFECTFLOW Series Characteristics
✔ Conveyor system: Featuring a segmented floating design, the conveyor system efficiently prevents guide rail deformation. The innovative segmented setup delivers smoother transport while allowing flexible clearance configurations for the underside of the PCB.
✔ Preheating system: Built with an energy-saving drawer-type module, this system combines infrared and hot air convection heating based on process needs. It incorporates PID temperature regulation alongside infrared heat compensation positioned between preheating zones and the soldering unit to minimize thermal loss.
✔ Soldering system: Heat is applied externally to the solder pot, which features a cast iron inner liner with anti-corrosion treatment. The pot utilizes a special elastic sealing material and includes an electric adjustment feature for smooth, free vertical positioning.
✔ Nitrogen filled system: Utilizing a world-first sealing design for the welding area, this setup supports flexible processing angles and incorporates an oxygen separator to track residual oxygen levels.
✔ PC+PLC control system: Operating on Windows 10 with a dual Chinese/English user interface, the control unit includes automated profile and data logging, alongside alarm systems for flux liquid deviations and low tin levels.
Equipped with an oxygen separator to track residual oxygen levels, the system incorporates a transparent glass viewing window for clear visual inspection. The solder pot features motorized movement for multi-axis positioning (in, out, up, and down). It includes an integrated spray fluxer unit with an optional selective spray device. Furthermore, rail welding process angles are flexible and fully adjustable, while the clearance at the bottom side can be customized according to specific application requirements.
| Feature | Perfectflow / 350 | Perfectflow / 450 | Perfectflow / 610 |
|---|---|---|---|
| Dimension:LxWxH(mm) | 6000×1422×1750 | 6000×1522×1750 | 6000×1692×1750 |
| Weight | Approx.1850kg | Approx.2050kg | Approx.2300kg |
| Power Supply | 3PH 380V 50HZ | 3PH 380V 50HZ | 3PH 380V 50HZ |
| Start up Power | 33KW | 33KW | 45KW |
| Normal Running Power | Approx.8.5KW | Approx.9KW | Approx.11KW |
| Control System | PC+PLC | PC+PLC | PC+PLC |
| Spraying movement | Step motor | Step motor | Step motor |
| Spraying Pressure | 0.2Mpa~0.4Mpa | 0.2Mpa~0.4Mpa | 0.2Mpa~0.4Mpa |
| Flux Flow Control | Option | Option | Option |
| Auto Flux Filling | Standard | Standard | Standard |
| Exhausting | Top exhaust | Top exhaust | Top exhaust |
| Exhausting Pipe Diameter(mm) | φ250 | φ250 | φ250 |
| Exhaust fan power | 750 | 750 | 750 |
| Preheating Mode | Hot air convection/IR | Hot air convection/IR | Hot air convection/IR |
| Temperature Control Mode | PID | PID | PID |
| Preheating Zone Quantity | 3 | 3 | 3 |
| Preheating Zone Length(mm) | 1800 | 1800 | 1800 |
| Preheating Temperature Range | Room temperature~200℃ | Room temperature~200℃ | Room temperature~200℃ |
| Warm-up Time(min) | Approx.12min(setting:150℃) | Approx.12min(setting:150℃) | Approx.12min(setting:150℃) |
| Preheating Blower Motor | 250W 3PH 220VAC | 250W 3PH 220VAC | 250W 3PH 220VAC |
| Width(mm) | 50~350 | 50~450 | 50~610 |
| Conveying Height(mm) | 750±20 | 750±20 | 750±20 |
| Available Component Height(mm) | (Top)120,(Bottom)15 | (Top)120,(Bottom)15 | (Top)120,(Bottom)15 |
| Conveying Speed Control Mode | Closed loop stepless speed regulation by inverter | Closed loop stepless speed regulation by inverter | Closed loop stepless speed regulation by inverter |
| Finger | Heavy type double hook finger / Option:Special jig for fixture | Heavy type double hook finger / Option:Special jig for fixture | Heavy type double hook finger / Option:Special jig for fixture |
| Conveying Angle | 4.5~6.3° | 4.5~6.3° | 4.5~6.3° |
| Solder Pot Type | Mechanical | Mechanical | Mechanical |
| Solder Pot Material | Casting Iron | Casting Iron | Casting Iron |
| Wave Height Adjustment | Inverter:Digital Control by PC | Inverter:Digital Control by PC | Inverter:Digital Control by PC |
| Cooling type | Nitrogen knife cooling | Nitrogen knife cooling | Nitrogen knife cooling |
| Solder Pot Heating Power | 13.5KW | 13.5KW | 18KW |
| Max Solder Pot Temperature | 300℃ | 300℃ | 300℃ |
| Solder Pot Capacity | Approx.480kg | Approx.550kg | Approx.640kg |
| Wave Driving Power | 180W*2 3PH 220VAC | 180W*2 3PH 220VAC | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting:250℃) | Approx.150min(setting:250℃) | Approx.150min(setting:250℃) |
| Temperature Control Mode | PID | PID | PID |
| Finger Cleaning System | Brush | Brush | Brush |
| Nitrogen purity | 99999% | 99999% | 99999% |
| Nitrogen consumption | Approx.20m³/h | Approx.22m³/h | Approx.25m³/h |
| Nitrogen pressure | 0.4Mpa~0.6Mpa | 0.4Mpa~0.6Mpa | 0.4Mpa~0.6Mpa |
| External spraying unit (option) 500mm The total length+500mm | PERFECTFLOW/350-Z | PERFECTFLOW/450-Z | PERFECTFLOW/610-Z |
