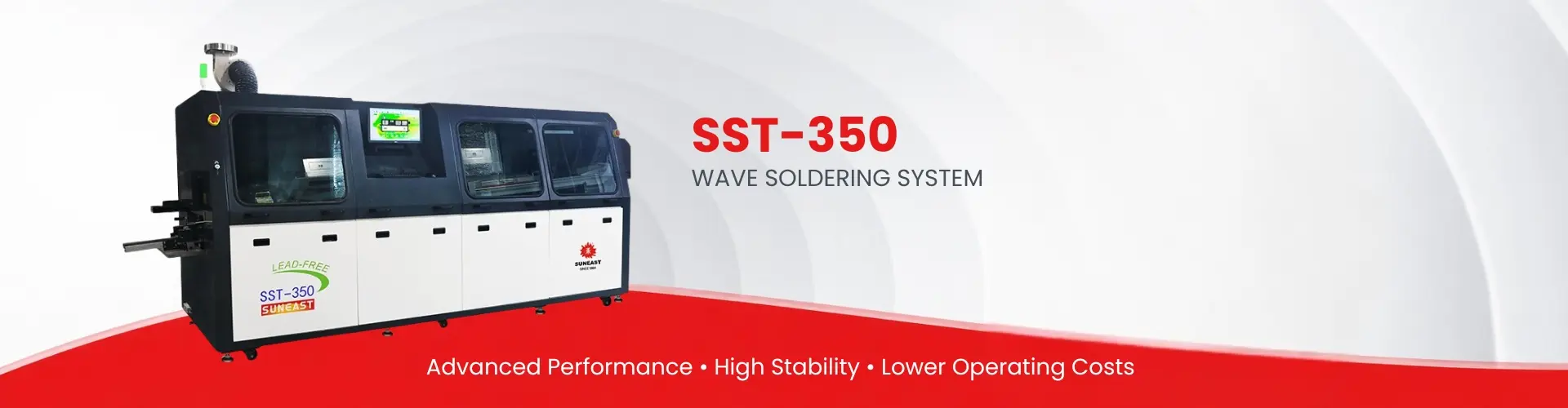

The SST series represents a fully upgraded wave soldering solution featuring enhanced modular, digital, and humanized design to meet diverse customer needs. Offering comprehensive functionality, advanced performance, and improved stability and reliability, this system streamlines operation and maintenance while significantly reducing customer operational costs.
The SST series incorporates a direct buffering input structure featuring a durable stainless steel chain conveyor and a specially engineered aluminum alloy track. The system utilizes a segmented floating structure to effectively prevent track deformation under thermal stress.
The preheating zones offer energy-efficient, removable drawer modules that support any custom combination of infrared and hot air convection. Utilizing PID temperature control, the system achieves ±2°C accuracy, keeping total temperature variation between preheating and soldering zones within 5°C.
The flux spraying system operates via digital control, driving spray nozzle movement through a high-precision stepper motor. Automated flux supply control optimizes coverage, supported by an integrated top-mounted exhausting and filter system.
Constructed from heavy-duty cast iron with an anti-corrosion ceramic coating, the solder pot features dual low-flowrate nozzles. An adjustable air cooling system delivers a cooling rate of 4-6°C/s.
System operations are managed through a PC+PLC control framework running Windows 7 with a bilingual Chinese/English interface. This platform features automated processing profile and data logging alongside intelligent level detection alarms for flux and solder reserves.
✔ Build in spraying unit
✔ Lead-free nozzle
✔ Exhausting and Filtering System
✔ Flexible combination of preheat system
✔ Cooling system
✔ Solder pot is motorized in/out/up/down
The system incorporates an integrated spray unit alongside dedicated lead-free nozzles. Exhausting and filtering systems maintain operational air quality, while the flexible preheat configuration adapts to varied thermal profiles. Complete with an integrated cooling system, the motorized solder pot offers full electronic in, out, up, and down positioning.
| Feature | SST-350 |
|---|---|
| Dimension: LxWxH(mm) | 4350×1422×1750 |
| Weight | Approx.1600kg |
| Power Supply | 3PH 380V 50HZ |
| Start up Power | 33KW |
| Operation Power Consumption | 8KW |
| Control System | PC+PLC |
| Spraying movement | Step motor |
| Spray Pressure | 0.2Mpa-0.4Mpa |
| Flux Flow Arrange | Option |
| Auto Fill Flux | Standard |
| Exhaust | Top exhaust |
| Exhaust Ducting Diameter(mm) | Φ250 |
| Exhaust fan power | 750W |
| Preheating Mode | Hot air Convection / IR |
| Control Mode | PID |
| Preheating Zone Number | 3 |
| Preheating Length(mm) | 1800 |
| Preheating Temperature | Room temperature~200℃ |
| Warm-up Time(min) | Approx.12min(setting: 150℃) |
| PCB Width(mm) | 50-350 |
| Conveyor Direction | L-R(Option: R-L) |
| Conveyor Speed(mm/min) | 500~1800 |
| Conveyor Height(mm) | 750±20 |
| Available Component Height(mm) | Top:120,Bottom:15 |
| Conveyor Speed Control Mode | Closed loop stepless speed regulationg Inverter |
| Fingers | Spring Pressing Finger/D-40Type Fingor/Double-hook Finger/Heavy type double hook finger,Options |
| Conveyor Angle | 4-7° |
| Type of Solder Pot | Motor drive |
| Solder Pot Material | Casting Iron |
| Wave Height Adjustment | Digital Control by PC |
| Cooling Method | Air Cooling (Option: Watercooling) |
| Heater Power | 13.5KW |
| Solder Pot Temperature | 300°C |
| Solder Pot Capacity | Approx.480KG |
| Wave Drive Power | 180W*2 3PH 220VAC |
| Solder Pot Warm-up Time | Approx.150min(setting: 250°C) |
| Temperature Control Mode | PID |
| Finger Cleaning System | Brush |
