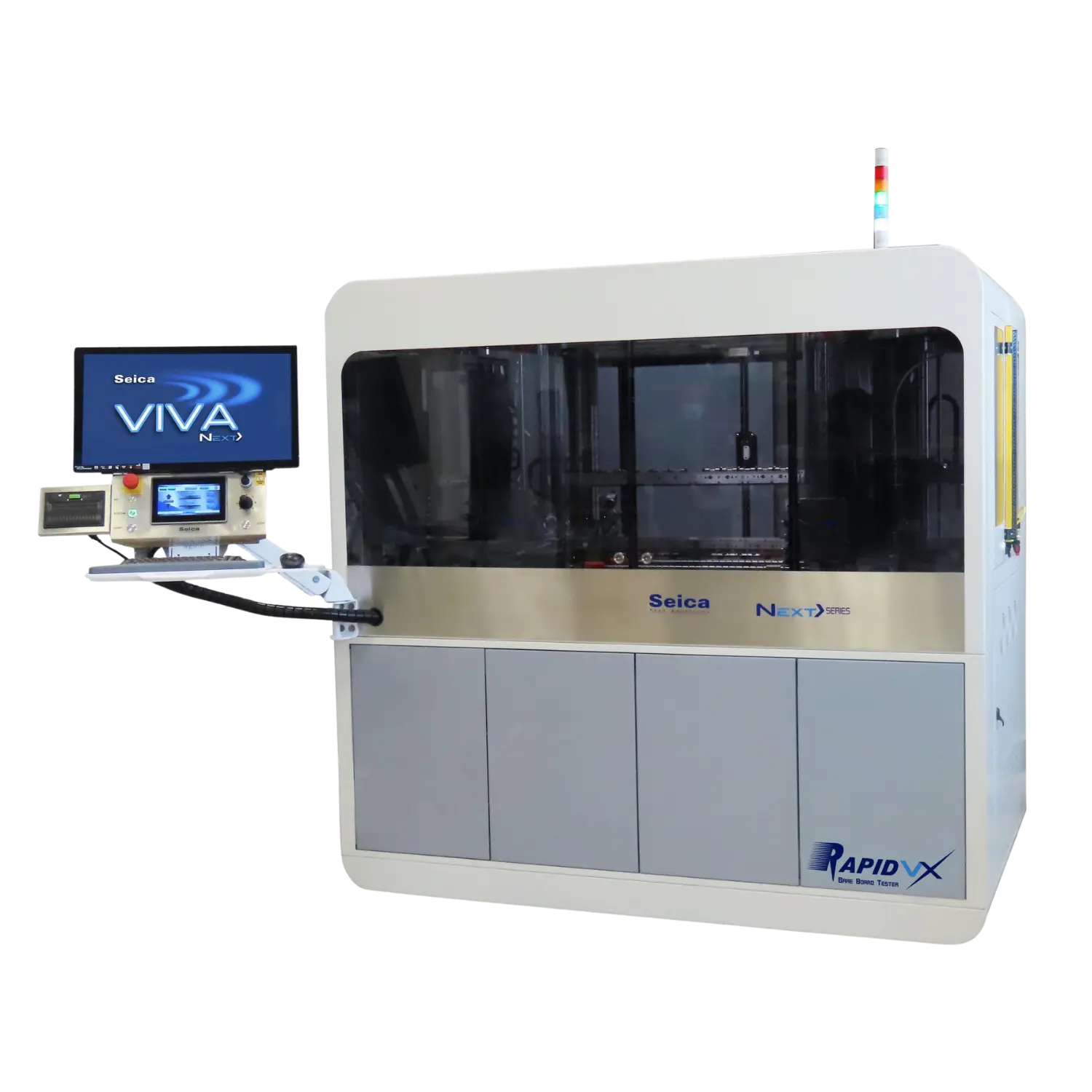

Rapid VX
RAPID VX is the latest vertical flying probe test system, available in manual and automatic versions, designed to test printed circuit boards (PCB) without the need for fixtures or mechanical adapters. The system utilizes 8 completely independent mobile test probes to perform simultaneous testing on both sides of the UUT, with 4 probes allocated to each side.
It is specifically engineered for testing prototypes, samples, and medium-to-high production volumes, offering maximum operational flexibility to minimize PCB testing time and expenses. Due to its advanced automation capabilities, the system can be seamlessly integrated into a production flow to optimize and reduce test time and costs. Furthermore, the automatic version features a built-in stretch fixture system.
- RAPID VX features a double-side configuration with 8 heads (4+4)
- The system supports manual or automated loading options
- It includes an integrated MTBH conveyor
- The test speed reaches up to 12000 hits/min
- It performs ultrafast capacitive tests
- A stretch fixture system is built-in
- The system utilizes Kelvin/Barrel testing methods
- It includes ICT capabilities for embedded components
- An automatic marker system is integrated
- Laser warpage calculation is included
- The system is designed for medium or high production environments
- It uses a soft touch probe mechanism.
- Soft land capability is standard
- High Frequency impedance analysis capability is integrated
- Optional: Camera with motorized focus
- Powered by Seica VIVA® Software
Through advanced hardware and software integration, the flexible architecture easily addresses all unique market segments. Seica is the only ATE manufacturer providing the RAPID Line with two complementary architectures to satisfy diverse operational and manufacturing process requirements.
The horizontal architecture offers systems designed for in-line configurations, allowing full automation of the testing process and eliminating operator intervention. In the modern market, in-line automation signifies the capability to test dozens of unique batches or board part numbers in small or large quantities, rather than just high-volume production.
An integrated, automated conveyor compliant with SMEMA standards enables in-line deployment or combination with the MTBH loading and unloading module for automatic handling of various board sizes.
Conversely, the vertical systems feature an ergonomic design and a reduced footprint, making them suitable for space-constrained environments where operators can work efficiently. Quick manual loading and unloading procedures, coupled with fast test program turnaround times, ensure precise testing of individual PCBs even during continuous test modifications.
All RAPID testers utilize the Seica VIP platform to deliver high performance and user-friendly operation. Furthermore, optical fiber digital communication keeps signal transmissions completely exempt from interference, which guarantees the maximum accuracy and repeatability of measurements.
