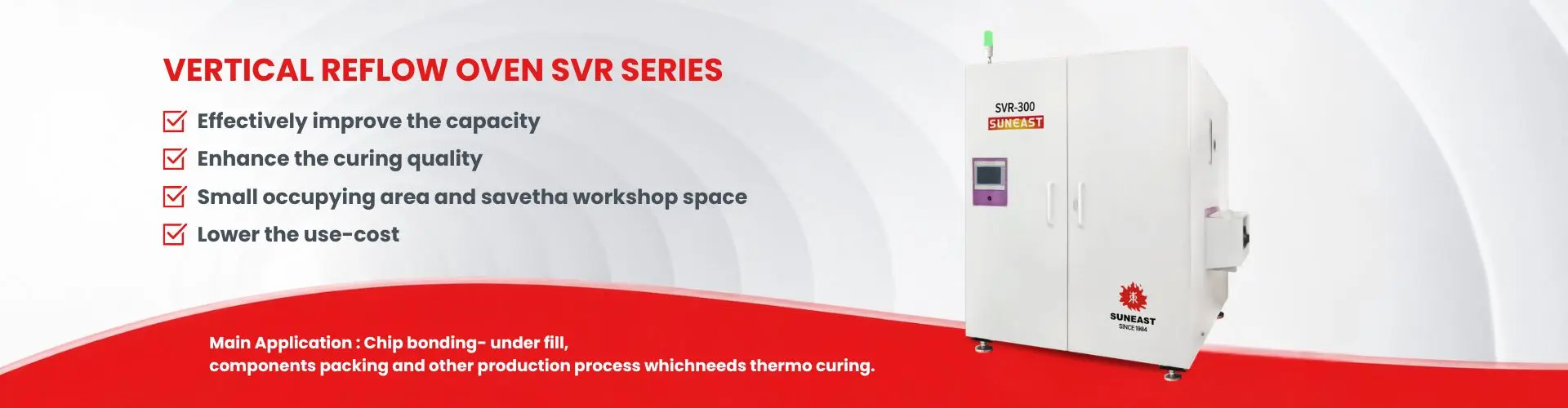

The in-line vertical oven features a compact structure with a small footprint, maximizing the savings of workshop space. It provides high production efficiency that significantly exceeds traditional curing ovens, particularly for products requiring extended curing times, effectively boosting overall production capacity. As market demand for vertical ovens continues to rise, this technology is replacing traditional curing systems to become the industry trend.
Advantages
✔ Vertical Curing Oven SVR SERIE effectively improves production capacity.
✔ It enhances overall curing quality.
✔ The equipment features a small occupying area that saves valuable workshop space.
✔ It significantly lowers the use-cost.
The double lifting system provides a great quantity of storage space to meet high-efficiency production requirements. High accuracy step motors are adopted for the buffer and push structure, ensuring precise pushing accuracy. Furthermore, PCB conveying detection inside the oven utilizes imported fiberoptic sensors to ensure long-term operation reliability.
Application
Main application: Chip bonding, under fill, components packing, and other production processes requiring thermo curing. These processes include LED, FPC, automobile, 3C electronic products, motors, instruments, communication, and other relevant industries.
SVR-V series is especially suitable for long board curing, such as LED strips and FPC.
Options
Cooling Unit
✔ Equipped with a cooling docking conveyor after the oven (option: water chiller for quick cooling)
✔ Equipped with a cooling stocker after the oven, large storage quantity.
Nitrogen system
✔ Equip with Nitrogen regulating flowmeter and the oxygen analyzer
Heating system
✔ Available for 4 modules, 8 modules, 12 modules
Conveyor system
✔ The storage quantity and the spacing between boards can be customized according to the production process.
Rack
✔ Space can be reserved for the bottom fixture return line.
Temperature profile
✔ The temperature profile of vertical oven is composed of heating stage and constant temperature stage.
✔ Test fixture: L260mmW200mmH20mm, temperature uniformity deviation ≤1°C.
Adjust the warming up speed according to your need
| Feature | SVR-200 | SVR-300 | SVR-400 |
|---|---|---|---|
| Machine Dimension | L2140xW1800xH2150mm | L2390xW1870xH2150mm | L2870xW2010xH2150mm |
| Machine Weight | Approx.1600kg | Approx.1800kg | Approx.2000kg |
| Product size | MAX:W250xL320mm | MAX:W320xL410mm | MAX:W460xL530mm |
| Inlet height | 900±20mm | 900±20mm | 900±20mm |
| Storage type | Vertical storage | Vertical storage | Vertical storage |
| Storage quantity | 30pcs | 30pcs | 30pcs(Can be customized.) |
| Pitch height | Integral multiple of 25.4mm | Integral multiple of 25.4mm | Integral multiple of 25.4mm(Can be customized.) |
| Temperature range | Room temp ~ 200°C | Room temp ~ 200°C | Room temp ~ 200°C |
| Warming up time | Approx. 15min | Approx. 15min | Approx.15min (Set temp 150°C) |
| Running power | Approx.6KW | Approx.6KW | Approx.6KW |
| Temperature control accuracy | ±1°C | ±1°C | ±1°C |
| Abnormal alarm | Tricolor signal lamp + Human-machine interface prompt | Tricolor signal lamp + Human-machine interface prompt | Tricolor signal lamp + Human-machine interface prompt |
| Power supply | 3P5L 380V 50/60Hz | 3P5L 380V 50/60Hz | 3P5L 380V 50/60Hz |
