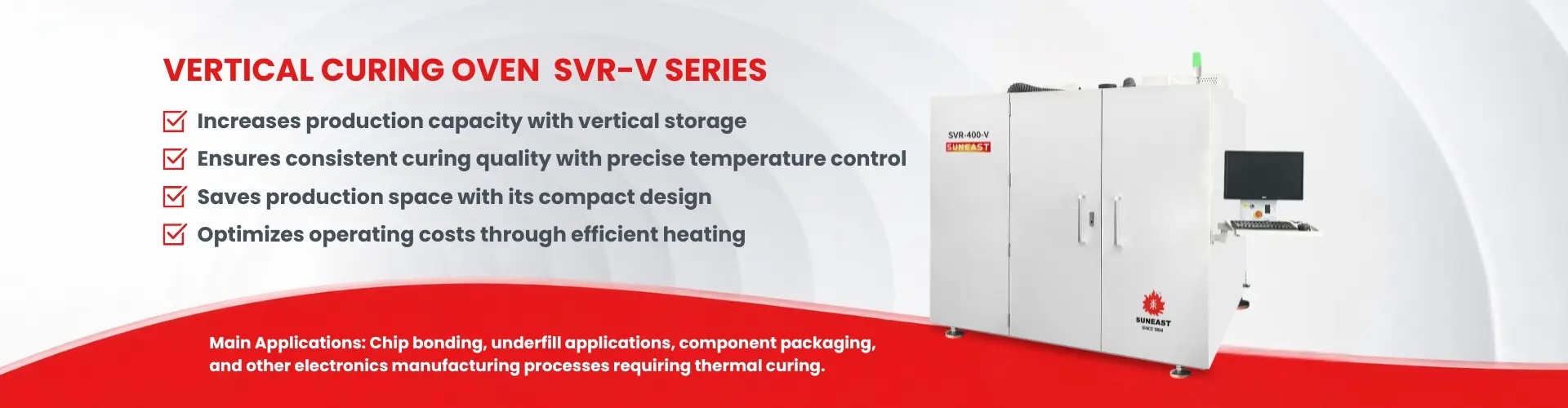

The SVR-V series on-line vertical oven features a newly upgraded design engineered for enhanced operational convenience. Incorporating segmented heating with independent temperature control, the unit optimizes thermal efficiency while delivering precise temperature management. Its stable and reliable transportation system simplifies operation and maintenance while supporting automatic loading, unloading, and intelligent manufacturing workflows. By maximizing vertical space within a compact footprint, it effectively shortens the overall production line length. The SVR-V series vertical oven is particularly advantageous for curing long boards up to 1200mm. Additionally, it offers cleanroom compatibility configurations ranging from Class 10,000 to Class 100 to fulfill stringent clean production process standards.
Advantages
✔ Optimal solution for longboard curing
✔ Open layout, simple, easy to maintain
✔ The storage quantity can be set, flexible operation
✔ Smaller space, lower energy consumption
Roller type conveying mode eliminates rail wear risks and requires no oil lubrication, significantly reducing use and maintenance costs. The lifting system is equipped with a standard servo motor drive to deliver smooth operation and precise positioning, which effectively improves overall process stability. Additionally, an optional barcode reader can be integrated to trace product information and support smart factory construction.
Application
Main application: Chip bonding, under fill, components packing, and other production processes requiring thermo curing. These processes include LED, FPC, automobile, 3C electronic products, motors, instruments, communication, and other relevant industries.
SVR-V series is especially suitable for long board curing, such as LED strips and FPC.
Options
Cooling Unit
✔ Equipped with a cooling docking conveyor after the oven (option: water chiller for quick cooling)
✔ Equipped with a cooling stocker after the oven, large storage quantity.
Nitrogen system
✔ Equip with Nitrogen regulating flowmeter and the oxygen analyzer
Heating system
✔ Available for 4 modules, 8 modules, 12 modules
Conveyor system
✔ The storage quantity and the spacing between boards can be customized according to the production process.
Rack
✔ Space can be reserved for the bottom fixture return line.
Temperature profile
✔ The temperature profile of vertical oven is composed of heating stage and constant temperature stage.
✔ Test fixture: L260mmW200mmH20mm, temperature uniformity deviation ≤1°C.
Adjust the warming up speed according to your need
| Feature | SVR-200-V | SVR-300-V | SVR-400-V |
|---|---|---|---|
| Machine Dimension | L1486xW1830xH2100mm | L1736xW1930xH2150mm | L2036xW2030xH2150mm |
| Machine Weight | Approx.1300kg | Approx.1600kg | Approx.1800kg |
| Product size | Min: W50*L200mm / Max: W250*L520mm | Min: W50*L200mm / Max: W350*L900mm | Min: W50*L200mm / Max: W450*L1200mm |
| Inlet height | 900±30mm | 900±30mm | 900±30mm |
| Storage type | Vertical storage | Vertical storage | Vertical storage |
| Storage quantity | 30pcs | 30pcs | 30pcs(Can be customized.) |
| Layers spacing | 20mm | 20mm | 20mm (Can be customized.) |
| Curing time | ≥1min Curing time can be set. | ≥1min Curing time can be set. | ≥1min Curing time can be set. |
| Heating module | 4 Heating modules | 8 Heating modules | 8 Heating modules |
| Temperature range | Room temp ~ 200°C | Room temp ~ 200°C | Room temp ~ 200°C |
| Warming up time | Approx. 15min | Approx. 15min | Approx.15min (Set temp 150°C) |
| Running power | Approx. 4KW | Approx. 5KW | Approx. 6KW |
| Temperature control accuracy | ±1°C | ±1°C | ±1°C |
| Temperature deviation | ≤±2°C | ≤±2°C | ≤±2°C |
| Abnormal alarm | Tricolor signal lamp + Human-machine interface prompt | Tricolor signal lamp + Human-machine interface prompt | Tricolor signal lamp + Human-machine interface prompt |
| Power supply | 3P5L 380V 50/60Hz | 3P5L 380V 50/60Hz | 3P5L 380V 50/60Hz |
