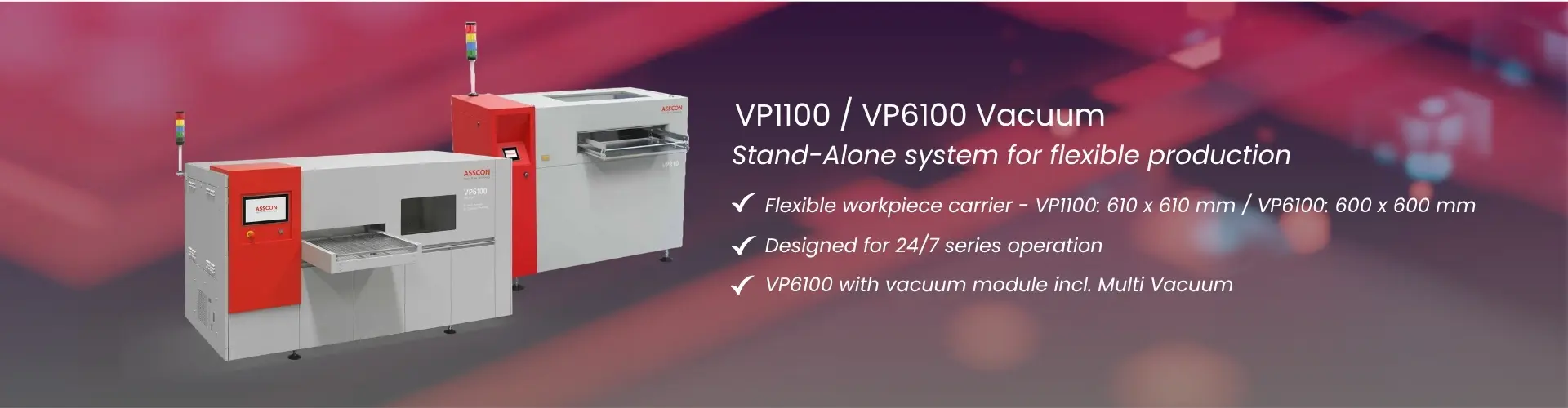

With flexibly loadable workpiece carriers and a maximum solder size of 610 x 610 mm, this system is ideally suited for both small and large product volumes.
✔ Oxidation-free preheating and soldering process
✔ Continuously adjustable temperature gradient through sensor-based profiling
✔ Optional: Dynamic Profiling and Dynamic Profiling PLUS+
✔ Can be used in 24/7 series operation
✔ 2-Chamber-System
✔ Low medium consumption
✔ Internal memory of up to 500 soldering programs
✔ Cost-effective soldering system for the highest technological requirements
Maximum flexibility and optimum soldering quality are essential features of ASSCON stand-alone vapor phase soldering systems. By using workpiece carriers, these systems are excellently suited for small and large production quantities as well as for any design and size of assemblies.
Due to their compact design, multi-chamber systems can find a place in almost any production environment. The conception as batch systems allows island production. In this way, the system can be fed from a wide variety of production stations.
| Features | VP1100 | VP6100 Vacuum |
|---|---|---|
| Workpiece carrier format | 610 x 610 mm | 600 x 600 mm |
| Maximum solder height | 60 mm | 60 mm |
| Maximum transport clearance | 100 mm | 100 mm |
| Power Supply | 400 V / 3 / N / PE 50 Hz | 400 V / 3 / N / PE 50 Hz |
| Connection Load | 9,2 kW | 13,4 kW |
| Average energy consumption | 3,3 kWh | 3,7 kW |
| End vacuum (pump) | — | 0,5 mbar |
