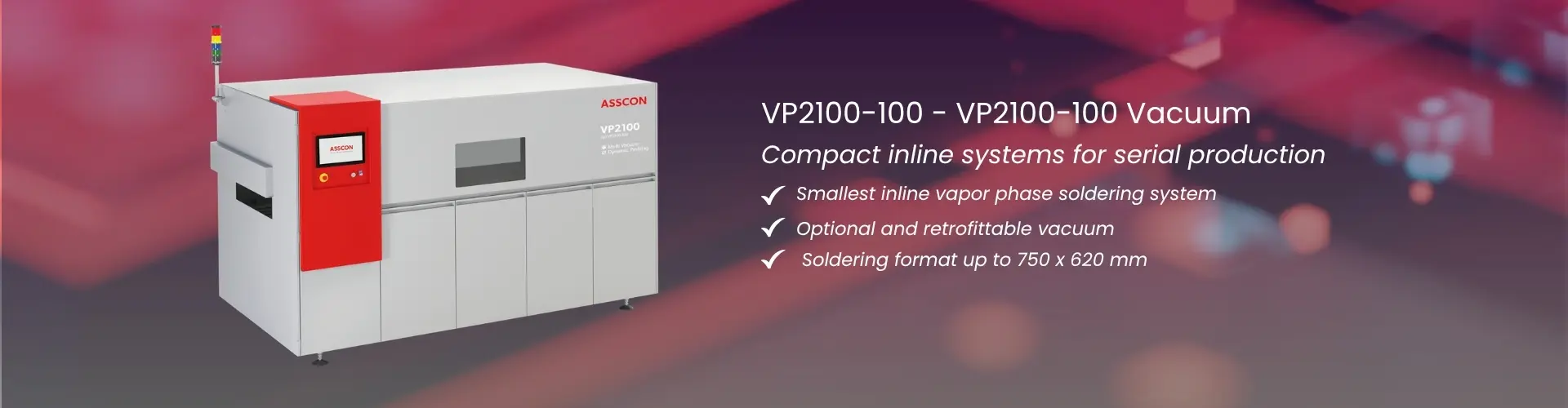

VP2100-100
The soldering chamber has been enlarged to 750 x 620 mm. Both smaller assemblies up to a load of four in the batch and larger assemblies up to the maximum size of the soldering chamber can be processed.
✔ Perfect solder joints thanks to advanced technology integration
✔ Reproducible process conditions
✔ Protection against overheating or destruction of electronic components
✔ Low energy costs through intelligent energy management
✔ Low overall running costs
✔ Full traceability
✔ Product changeover without waiting times
VP2100-100 vacuum
Optionally, the system can be equipped with patented Multi Vacuum technology. A vacuum module that can be activated during the process reduces voids in the solder joints with minimal maintenance requirements. The vacuum module is also retrofittable.
✔ … and additionally in the vacuum version
✔ Adjustable vacuum guarantees optimum, void-free solder joints
✔ Simple activation and deactivation of the vacuum process ensures maximum flexibility in production
✔ Multi Vacuum process
Full inline integration and elimination of workpiece carriers represent the primary focus of ASSCON vapor phase inline soldering systems. Simple transfer and takeover of PCBs via pin chains characterize this type of inline system. Electrically width-adjustable transport systems allow fast and uncomplicated adaptation to changing products, providing the flexibility required in modern electronics production. Integration into inline control computers is also supported. Full automation combined with process quality forms the core operating principle.
With patented Multi Vacuum technology, voids in solder joints are reduced and void rates <1% are achievable. The vacuum module, which can be activated during the process, is located outside the soldering area (Clean Vacuum Technology) and is therefore extremely low in maintenance.
| Features | VP2100-100 | VP2100-100 Vacuum |
|---|---|---|
| Transportation type | Single Lane | Single Lane |
| Maximum solder format | up to 750 x 620 mm | up to 620 x 520 mm |
| Maximum PCB length - 2 PCB loading | up to 370 mm | up to 290 mm |
| Maximum PCB length - 3 PCB loading | up to 235 mm | up to 180 mm |
| Maximum PCB length - 4 PCB loading | up to 165 mm | up to 125 mm |
| Maximum component height at top | 60 mm | 60 mm |
| Connection load | 9,6 kW | 15,5 kW |
| Time to operation | ca. 30 min | ca. 60 min |
This product video introduces VP2100 Series by summarizing its general working principle and typical application scenarios.
