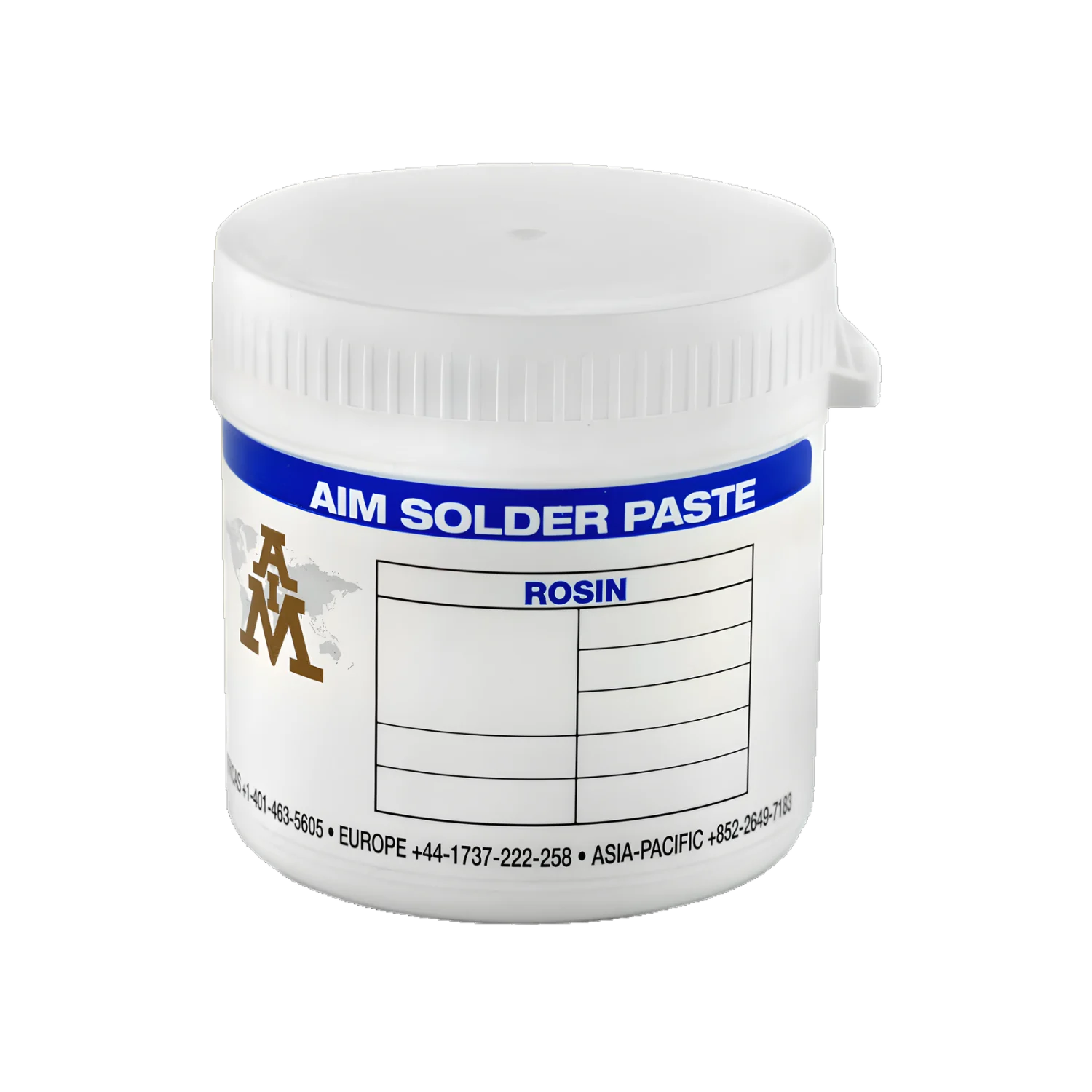

Rma258-15r Rosin-Based Solder Paste
AIM’s RMA258-15R Rosin-Based Solder Paste is specifically formulated to cater to the military, space, and aerospace markets. This solder paste efficiently combines the demands of high-reliability performance, meeting legacy specifications, with the capabilities of modern solder pastes.
RMA258-15R ensures stable print definitions and boasts long pause-to-print capabilities. It effectively minimizes voiding, HiP, and NWO defects, enhancing the overall reliability of soldered joints. The superior wetting characteristics of RMA258-15R are observed with both leaded and lead-free alloys, resulting in bright, smooth, and shiny solder joints.
This solder paste excels in exceptional reflow performance, even during long, hot profiles. After reflow, it leaves amber-colored post-reflow residues, which are specifically designed for removal in saponified batch, in-line, or solvent wash processes.
✔ Engineered for use with Mycronic jet printers
✔ For use with Mycronic AG type ejector
✔ Clear, pin-testable residues
✔ 8-12 hour tack time
✔ Excellent wetting characteristics, even on leadless devices
✔ Vapor phase compatible
✔ Reduces voiding under micro-BGAs
✔ Prolongs ejector/cassette life
✔ Provides stable dispensing and jetting performance for the most demanding assembly applications
✔ Reduces voiding on a variety of LED, QFN, and LGA components
✔ Residues are clear, pin-testable with high SIR properties
✔ Formulated for jet dispensing with Mycronic MY500, MY600, and MY700 jet printers
| Alloys | SAC305 | Sn63/Pb37 |
|---|---|---|
| Melting Temperatures (℃) | 217°C -220°C | 183°C |
| Peak Reflow Temperature Range (℃) | 230°C-260°C | 215°C-225°C |
| Alloy Attributes | Excellent wetting characteristics - Compatible with all flux types - Lead-free alloy | Legacy alloy for high reliability applications - Leaded alloy - J-STD-001 complaint |
| * | T4 powder mesh size is standard. Additional powder sizes and alloys may be available upon request. | T4 powder mesh size is standard. Additional powder sizes and alloys may be available upon request. |
