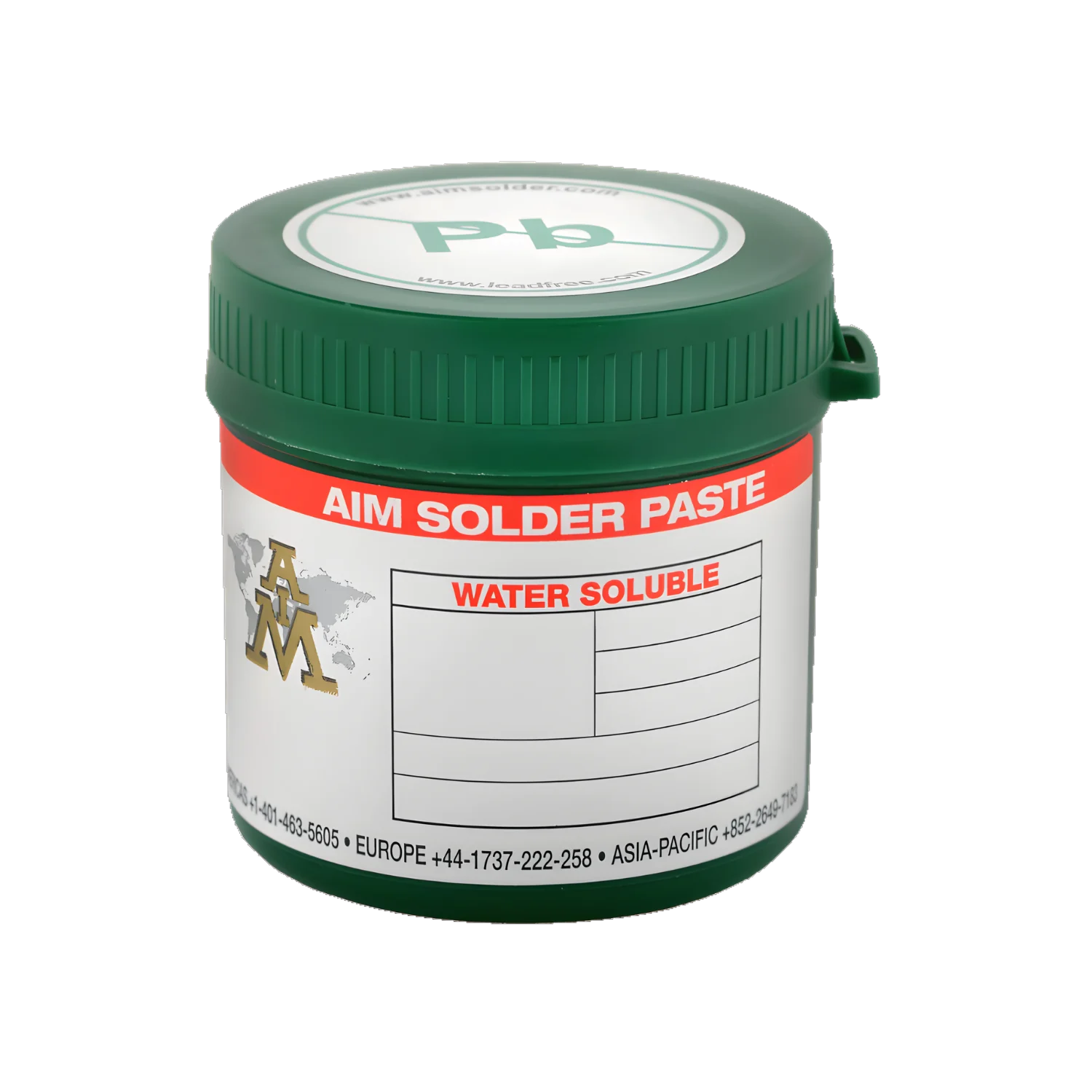

W20 Water Soluble Solder Paste
AIM’s W20 Water Soluble Solder Paste has been developed to meet the industry’s demand for a consistently reliable zero-halogen water soluble solder paste. W20 offers enhanced wetting performance in an innovative halogen-free flux chemistry.
W20 exhibits excellent print performance with an 8+ hour stencil life while reducing voids on challenging SMT components. This all-purpose water soluble solder paste leaves post-reflow residues that are easily removed with plain or DI water, even under low stand-off devices.
W20 is formulated for use with SAC305 T4 powder and is a RoHS compliant solder paste. W20 solder paste can be combined with WS716 liquid flux and WS482 solder wire for a zero-halogen water soluble solution.
*lead-free alloys
✔ Zero halide & halogen per current Rev J-STD-004
✔ 8+ hour stencil life
✔ Low voiding on QFN and BGA’s
✔ Easy to clean residues using DI water
✔ Extended cleaning window of 2+ weeks
✔ Low foaming formulation
✔ Wide reflow process window
✔ Available in SAC305
✔ RoHS Compliant*
✔ For use in SMT applications where PCB washing is required. W20 residues are easily cleaned using DI water, even under low standoff components
✔ Provides stable print performance for the most demanding electronic assemblies
✔ Reduces overall voiding without nitrogen
✔ Post reflow residues can be cleaned easily after waiting 2 weeks after initial reflow
| Alloys | SAC305 |
|---|---|
| Melting Temperatures (℃) | 217°C -220°C |
| Peak Reflow Temperature Range (℃) | 230°C-260°C |
| Alloy Attributes | Excellent wetting characteristics - Compatible with all flux types |
| * | T4 powder mesh size is standard. Additional powder sizes and alloys may be available upon request. |
This product video introduces W20 by summarizing its general working principle and typical application scenarios.
