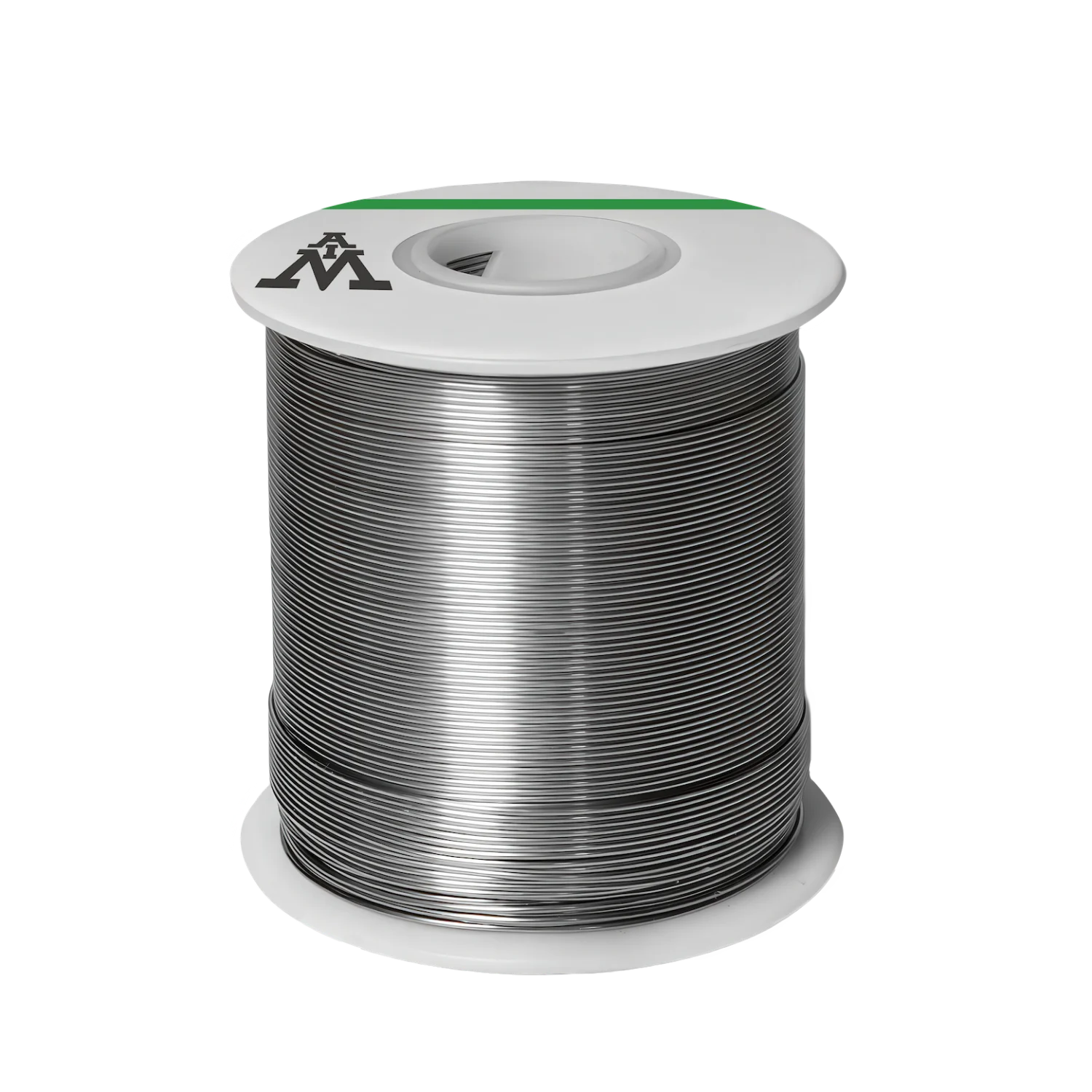

Cx18 No Clean Cored Solder Wire
CX18 No Clean Cored Solder Wire is specifically designed for a manual soldering process such as hand soldering and rework. CX18 provides fast wetting on all surface finishes with all alloys and is preferred by operators due to its low odor/smoke formula. Its post soldering residues are minimal, clear and pass the current rev of IPC J-STD-004 for SIR and corrosion requirements.
CX18 is the optimum manufacturer’s choice for solder wire for electronics as it extends solder tip life and has excellent thermal transfer characteristics which eliminates the need to add additional flux. CX18 as a lead-free solder wire is REACH and RoHS compliant and is also available in leaded alloys such as Sn63/Pb37.
Given AIM’s wide range of alloy offerings, CX18 is the ideal cored solder wire for any application such as consumer electronics, automotive, and aerospace.
*Lead-free alloys
✔ Fast wetting/flowing
✔ Minimal/clear residue
✔ Extends solder tip life
✔ ROL0 per IPC J-STD-004
✔ Low odor/fumes
✔ REACH and RoHS Compliant*
✔ Available in leaded and lead-free alloys
✔ Available in multiple diameters
✔ Engineered for manual solder applications
✔ Low odor/smoke results in high operator satisfaction
✔ Extends solder tip life
✔ No need for additional flux
✔ Available in multiple alloy offerings;
- High reliability alloys suitable for automotive and military applications
- Low-cost SAC alternatives
✔ REACH and RoHS compliant (lead-free)
| Alloys | Melting Temperatures (℃) | Alloy Attributes | * |
|---|---|---|---|
| SAC305 | 217°C -220°C | -Excellent wetting characteristics - Compatible with all flux types | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
| REL61 | 208°C -215°C | - Enhanced reliability vs low/no-silver alloys - Low-cost alternative to SAC alloys - Improved wetting vs low/no-silver alloys | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
| REL22 | 210°C -219°C | - High reliability for use in extremely harsh environments - Improved thermal cycling performance - Improved wetting vs low/no-silver alloys | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
| SN100C | 227°C | - Low-cost alternative to SAC alloys - Silver-free - Bright shiny solder joints | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
| SAC0307 | 217°C -227°C | - Low-cost alternative to SAC alloys - Excellent solder joint reliability - Fast wetting comparable to SAC305 | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
| Sn63/Pb37 | 183°C | - Legacy alloy for electronics soldering - Mil-spec approved - Leaded alloy | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
| Low Temperature Alloy | <190°C | -Reduces component warpage - Reduces energy consumption - Coming soon! | %2,5 flux standarttır. Talep üzerine farklı flux oranları ve çap seçenekleri sunulabilir. |
