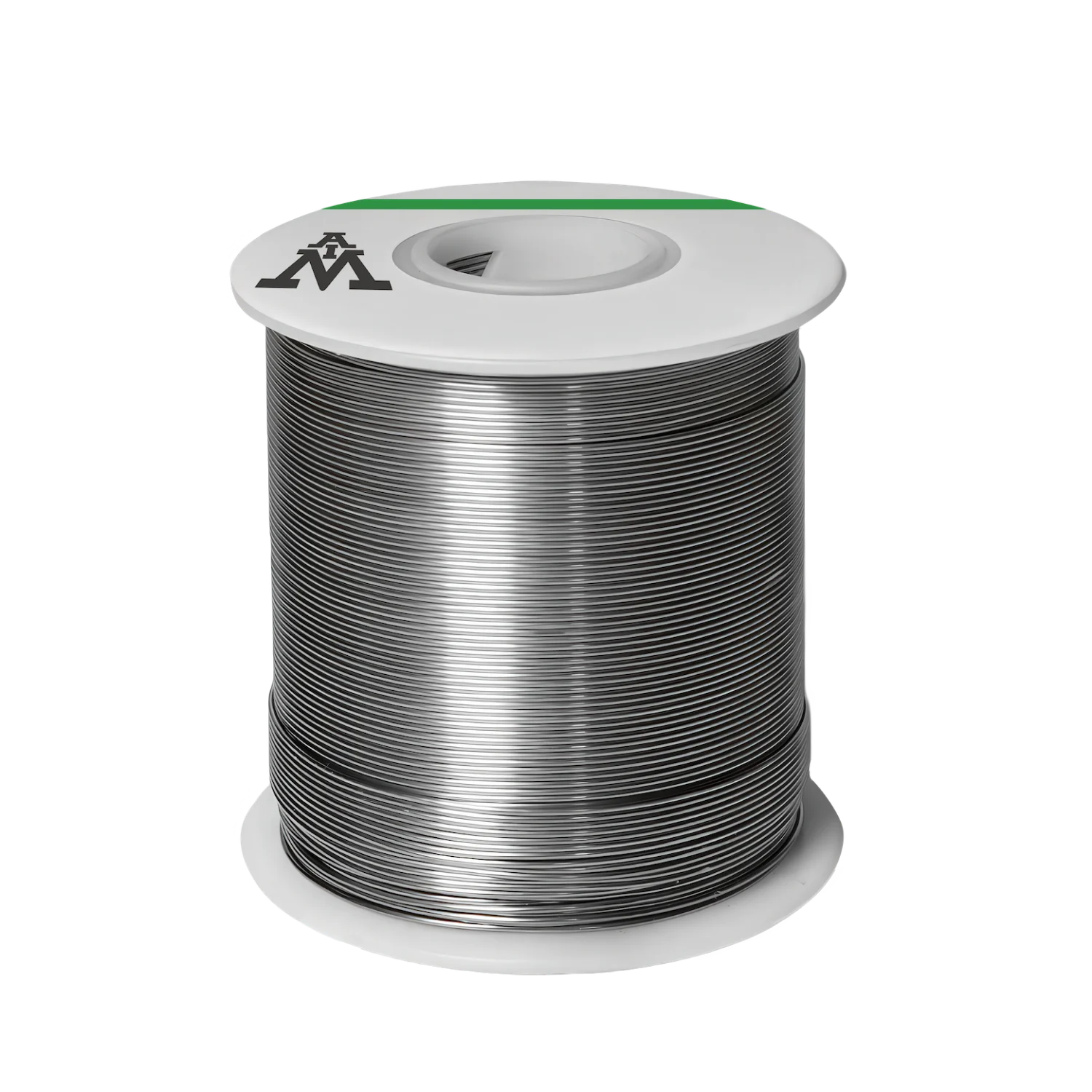

Lv05 No Clean Flux Cored Solder Wire
LV05 No Clean Flux Cored Wire is designed for use in high throughput, high volume electronics assembly processes. LV05 demonstrates consistent, rapid wetting required for robotic and rework/hand soldering operations while leaving safe post-soldering residues.
This no clean solder wire is engineered for operator satisfaction and eliminates the need for external flux.
LV05 is available in SAC305 alloy. LV05 is compatible with AIM’s full line of no clean flux chemistries.
*lead-free alloys
✔ Excellent Wetting Properties
✔ Excellent Thermal Transfer
✔ REACH and RoHS Compliant*
✔ ROL1 per Current J-Std-004
✔ Available in SAC305
✔ Fast, consistent wetting ideal for automated soldering
✔ Operator-preferred: low spatter, fast wetting, and excellent spread
✔ ROL1 flux classification acceptable for use in automotive, medical, and military applications
✔ Extended tip life: flux formulation designed to minimize corrosion of soldering iron tip
| Alloys | Melting Temperatures (℃) | Alloy Attributes | * |
|---|---|---|---|
| SAC305 | 217°C -220°C | Excellent wetting characteristics - Compatible with all flux type. | 2.5% flux is standard. Additional flux percentages and diameters may be available upon request. |
