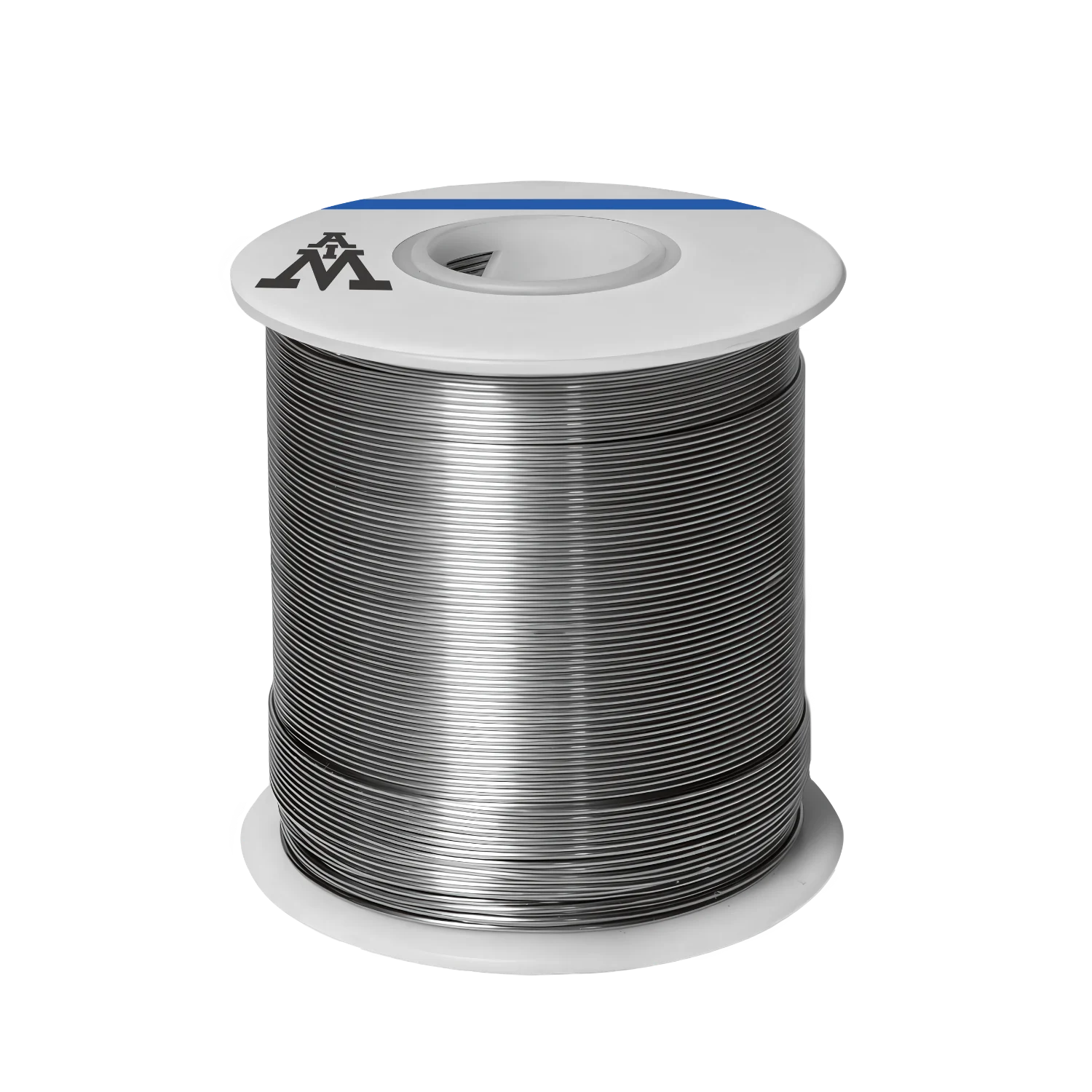

RMA Rosin Core Solder Wire
RMA Rosin Core Solder Wire is the manufacturers’ choice for mildly activated, general-purpose rosin solder wire, ideal for military and aerospace applications. RMA rosin flux provides fast wetting and excellent tarnish/oxide removal, producing bright and shiny joints.
RMA post-process residues may remain in place after soldering. High reliability assemblies may be cleaned using commercially available flux removers.
RMA is available in lead-free and leaded alloys.
✔ Rosin Mildly Activated Flux
✔ Fast Wetting
✔ Good Activity Level
✔ Easily Cleaned
✔ High Thermal Transfer
✔ ROL0 per J-STD-004
✔ Rosin activated general purpose solder wire
✔ ROL0 per current rev J-STD-004
✔ Complies with MIL-F-14256 and QQ-S-571 specifications
✔ Slight to moderate post-process residues may remain in place
✔ For high-reliability applications, post-process residues can be removed with commercial flux cleaners
| Alloys | Melting Temperatures (℃) | Alloy Attributes | * |
|---|---|---|---|
| SAC305 | 217°C -220°C | Excellent wetting characteristics - Compatible with all flux type. | 3% flux is standard. Additional flux percentages and diameters may be available upon request. |
| Sn63/Pb37 | 183°C | Legacy alloy for electronics soldering - Mil-spec approved - Leaded alloy | 3% flux is standard. Additional flux percentages and diameters may be available upon request. |
