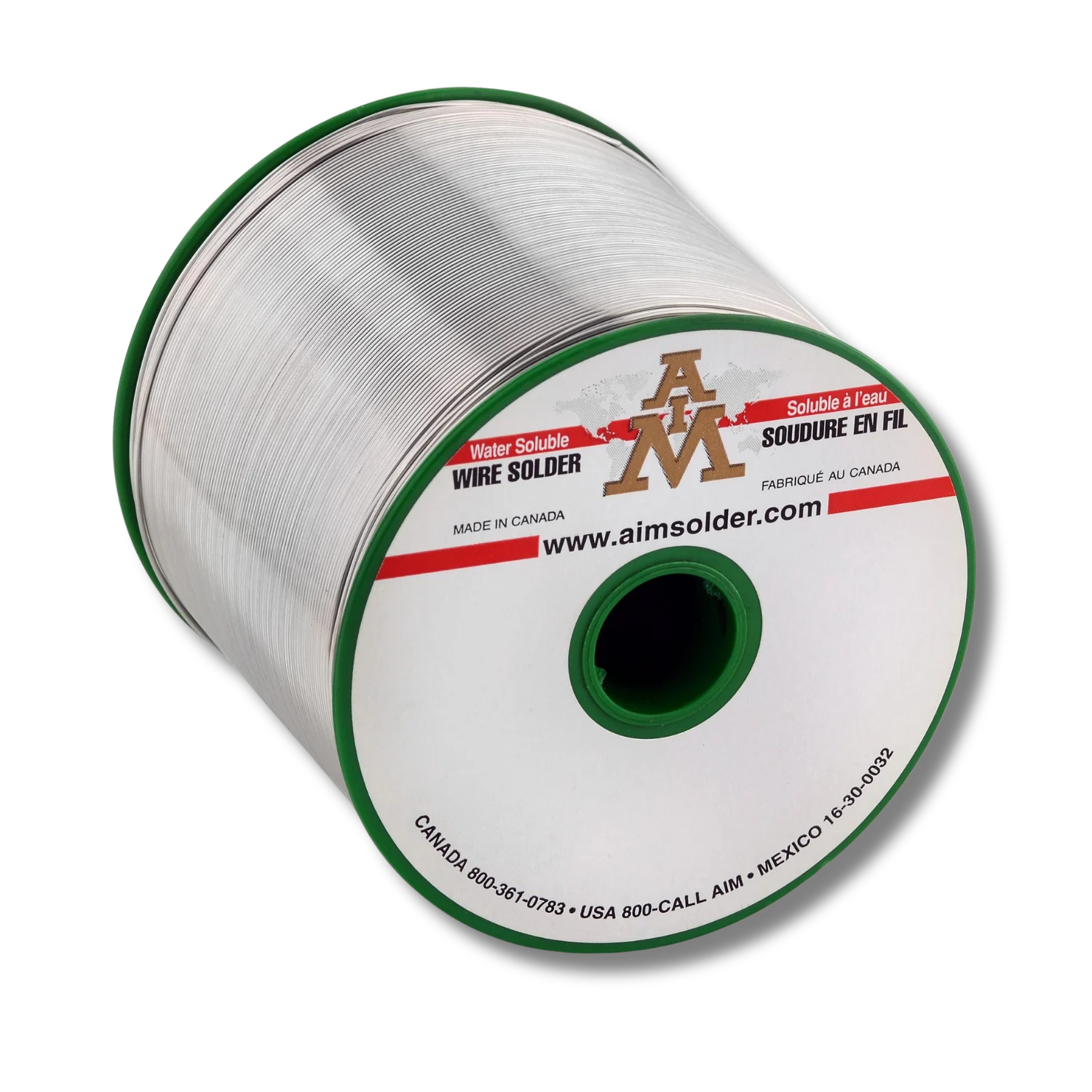

WS482 Water Soluble Cored Solder Wire
WS482 Water Soluble Cored Solder Wire is a halide-free water soluble flux cored solder wire engineered for high flux activity, without halides.
WS482 wire solder provides excellent wetting and soldering characteristics on all surface finishes and plating. WS482 cored solder wire residue is non-corrosive and can be left in place for up to 7 days without cleaning.
It is available in lead-free alloys including SN100C and SAC305 solder wire. WS482 is compatible with AIM’s unique halide/halogen-free water soluble product offerings including paste and wave solder fluxes.
✔ Halide-Free
✔ High activity
✔ Excellent wetting
✔ Residues cleaned with DI water alone
✔ Extended cleaning times – safe up to 7 days
✔ Extends iron tip life
✔ Improved thermal transfer
✔ IPC J-STD-004C classification: ORM0
✔ Designed for robotic soldering and hand soldering processes
✔ Operator preferred: Minimal smoke/odor
✔ Strong and fast wetting for 100% barrel-fill on PTH components and reduced cycle time
✔ Exceptional thermal stability designed for lead-free alloys
✔ Extended cleaning window offers increased manufacturing flexibility
✔ Residues completely removed with DI water alone
| Alloys | Melting Temperatures (℃) | Alloy Attributes | * |
|---|---|---|---|
| SAC305 | 217°C -220°C | Excellent wetting characteristics - Compatible with all flux types | 3% flux is standard. Additional flux percentages and diameters may be available upon request. |
| SN100C | 227°C | Low-cost alternative to SAC alloys - Silver-free - Bright shiny solder joints | 3% flux is standard. Additional flux percentages and diameters may be available upon request. |
