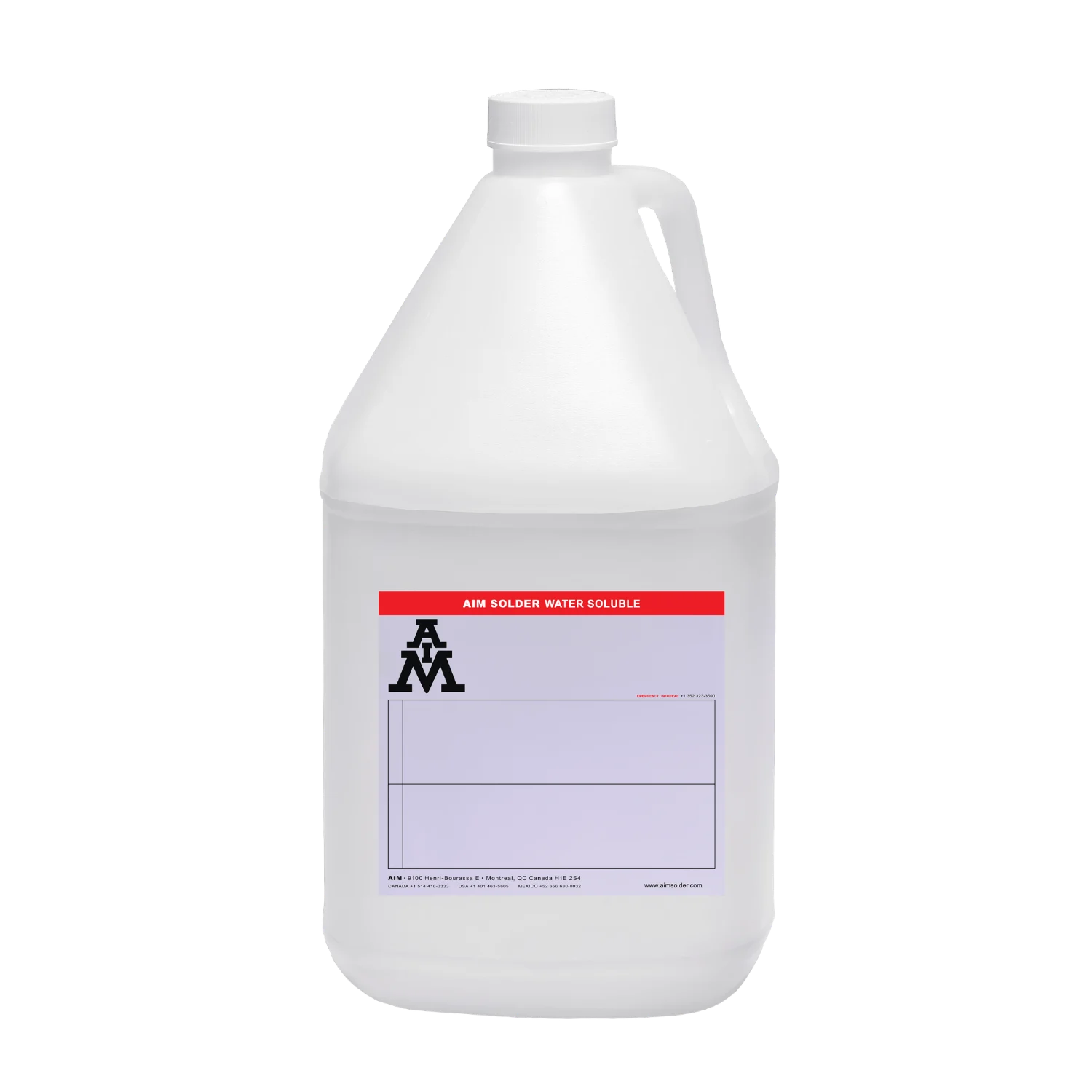

WS715M Water Soluble Liquid Flux
WS715M Water Soluble Liquid Flux is a neutral alcohol based, organically activated, rosin-free, liquid flux designed specifically for wave soldering or selective soldering applications.
WS715M is a Ph buffered water soluble flux with high activity which promotes good wetting on bare copper, solder coated, and organic surface finishes. WS715M buffered formula reduces equipment degradation without reducing solderability.
WS715M flux residues must be washed after soldering followed by a DI water rinse.
✔ Neutral PH Flux
✔ Lead-Free and Tin-Lead Compatible
✔ Excellent Wetting
✔ Wide Process Window
✔ Can be Foamed, Sprayed, Brushed or Dipped
✔ Low Foaming in High Pressure Wash
✔ Designed for use in selective and wave soldering processes
✔ Produces bright, shiny solder joints even on difficult to wet surfaces
✔ Strong wetting promotes 100% barrel-fill on PTH components
✔ ORH1 per IPC J-STD-004 current rev
| Flux Type | Applications | Application Method | Alloy Compatibility |
|---|---|---|---|
| ORH1 | Wave/Selective Soldering | Spray or Foam Fluxer Brushed Dipped | Pb and PB-Free |
