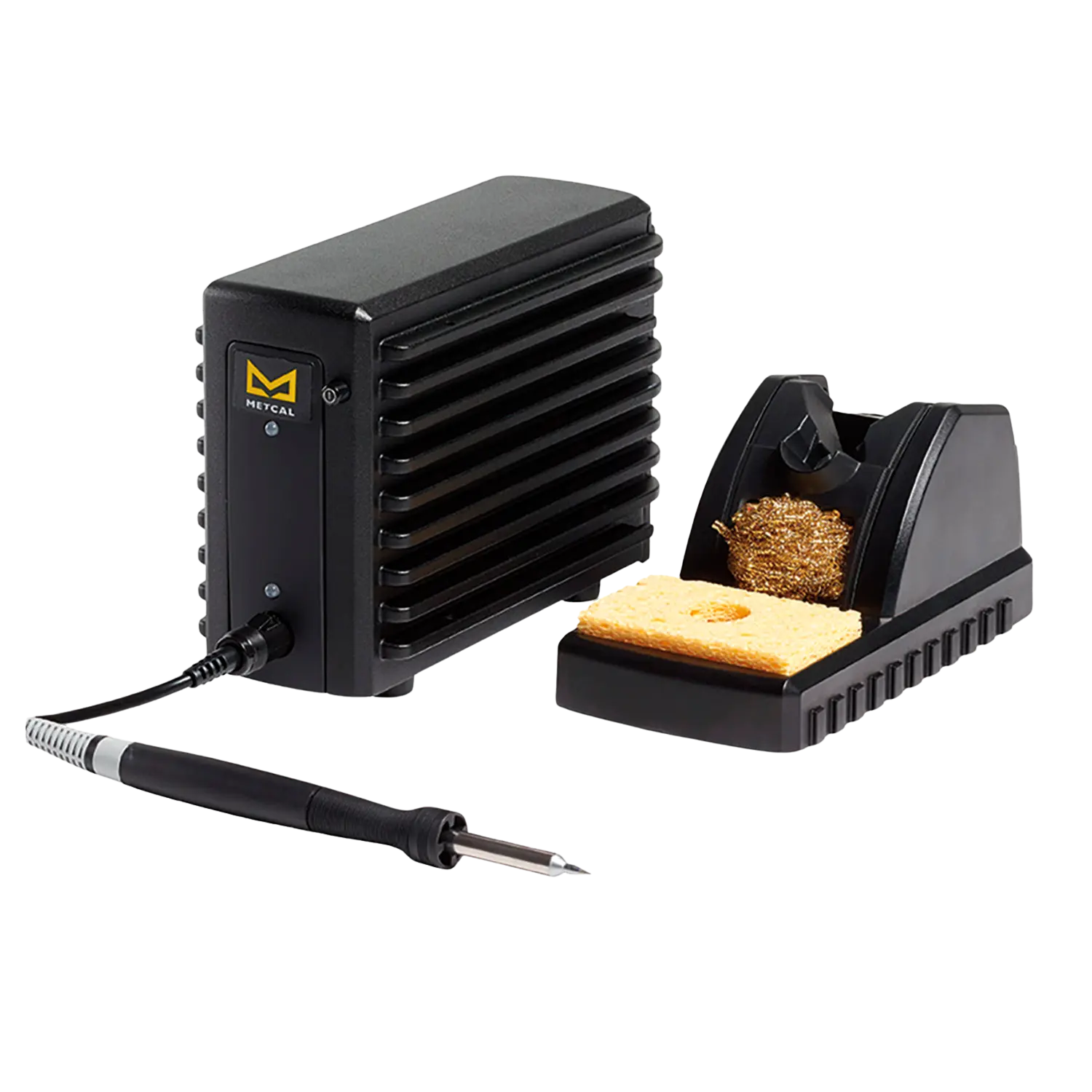

MFR-1120 Single Output Soldering & Rework System
MFR Single-Port System, Soldering Handpiece
The MFR-1100 Single Output Series is designed to minimize training investments, maximize application solutions, and increase productivity. This compact and versatile series can be used with a soldering tip, cartridge, or tweezer handpiece. Additionally, a shop air desoldering option is available as an upgrade kit.
SmartHeat® Technology provides exceptional power for high thermal demand applications.
Single or dual simultaneous outputs allow for versatile single or dual handpiece configurations. Furthermore, five distinct handpieces are available to expand application solutions for soldering. This allows for desoldering via the MX-UK5 upgrade kit, as well as rework capabilities integrated into a single system. Each handpiece is compatible with a comprehensive range of cartridges or tips to ensure maximum flexibility. Additionally, ergonomic handpieces are designed to optimize operator safety and comfort.
Product Comprise of
✔ MFR-PS1100 Soldering Station
✔ MFR-H2-ST2 Handpiece
✔ WS1 Workstand
| Feature | MFR-1120 |
|---|---|
| Input Line Voltage | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption | 70 W max. |
| Output Power | Variable, 60 W max.* |
| Output Frequency | 450 KHz |
| Heating Method | Induction, SmartHeat® |
| Connections | Single Port |
| Power Supply Dim. W x D x H | 90 x 200 x 152.5 mm (3.5" x 7.9" x 6") |
| Power Supply Weight | 2.3 kg (5.05 lb) |
| Certification / Marking | cTUVus, CE |
| Tip-to- Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Ground Detection | Permanent |
| Surface Resistivity | 10⁵ - 10⁹ Ohm |
| Idle Temperature Stability | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length | 183 cm, 18/3 SJT |
| Warranty | 1 year |
| Ambient Operating Temp | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp | 55 °C (131 °F) |
| Solder-Pen Specification | |
| Hand-Piece Cable Length | 122 cm (48”), burn proof, ESD-safe |
| Hand-Piece - RF Connector | 8-pin circular DIN |

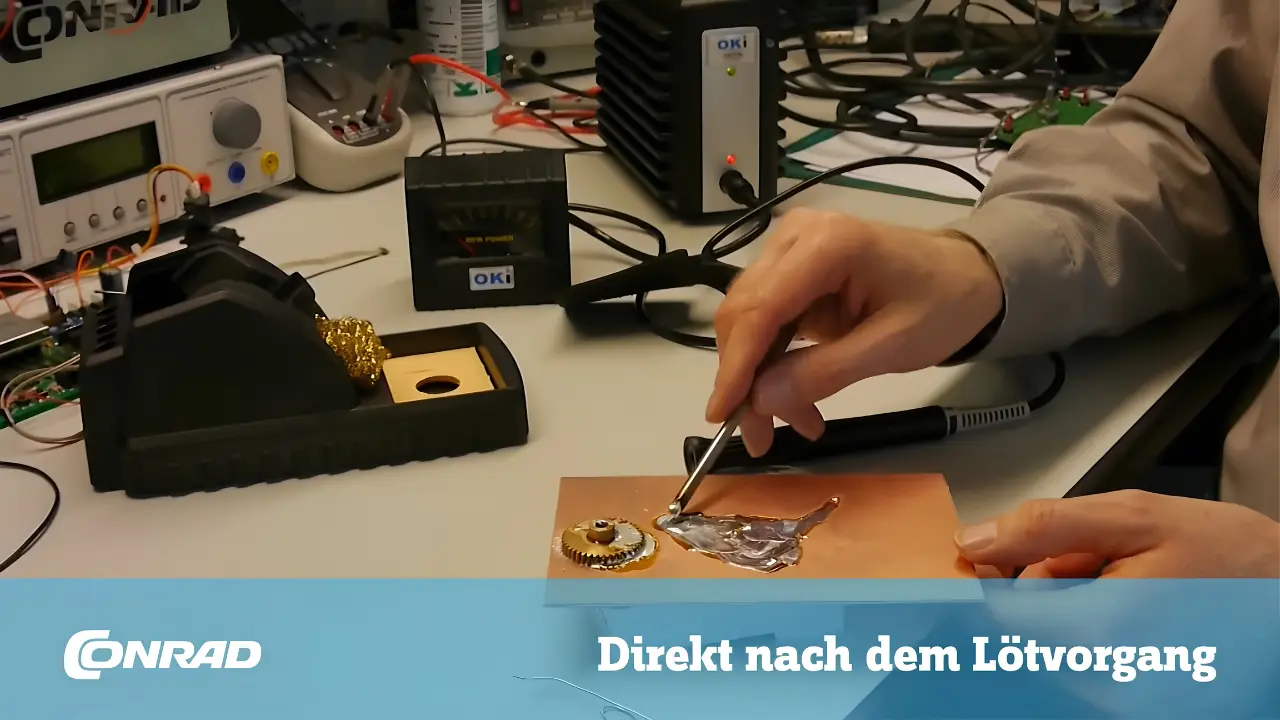

This product video introduces MFR-1120 by summarizing its general working principle and typical application scenarios.
