MX-5210 Soldering & Rework System

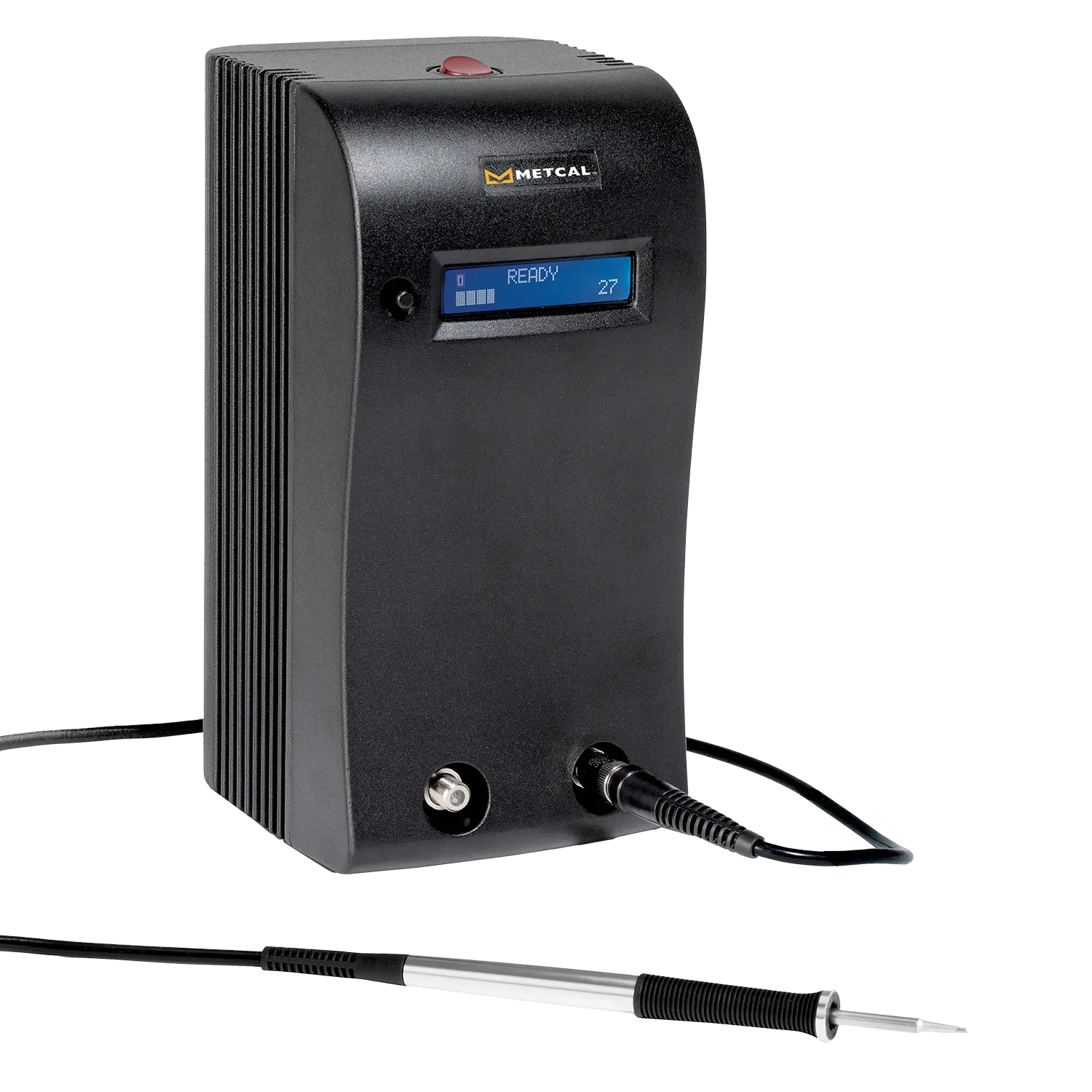

The MX-5200 Soldering, Desoldering, and Rework Series offers increased power and advanced process control, featuring dual-simultaneous ports to support two users or a single user handling dual applications. Powered by Metcal SmartHeat® Fixed Temperature, the system automatically adjusts power levels during each soldering operation to maintain accurate and consistent temperatures. This technology ensures that soldering and rework processes are consistently performed at safe, controlled levels. Utilizing moderate fixed temperatures where power is dynamically varied provides the highest assurance for a well-controlled manufacturing environment.
The system ensures a fast time-to-recovery, which delivers increased production rates and throughput across various applications. The MX-5200 super-charged 80W power supply seamlessly tackles the challenges of high-mass components, multilayered boards, and lead-free solders. Additionally, the dual-simultaneous output allows the system to operate with two handpieces that dynamically share the power output based on demand, adding extra application flexibility and speed.
The system features a built-in Net Power Meter that displays a graphical and numerical representation of the power applied to the cartridge. It also includes a User Programmable Power Save Mode, allowing the time to enter power saving to be adjusted from 10 to 120 minutes. Additionally, the Ground Fault Interrupt integrated into the AC ground monitor detects power line ground failures, immediately alerting the operator and shutting down the system. The Universal Power Supply automatically senses the input line voltage and adjusts accordingly, enabling worldwide operation without adaptors or any change in performance. The unit offers full compatibility with existing and previous MX upgrade kits, tip-cartridges, handpieces, and accessories.
Product Comprise of

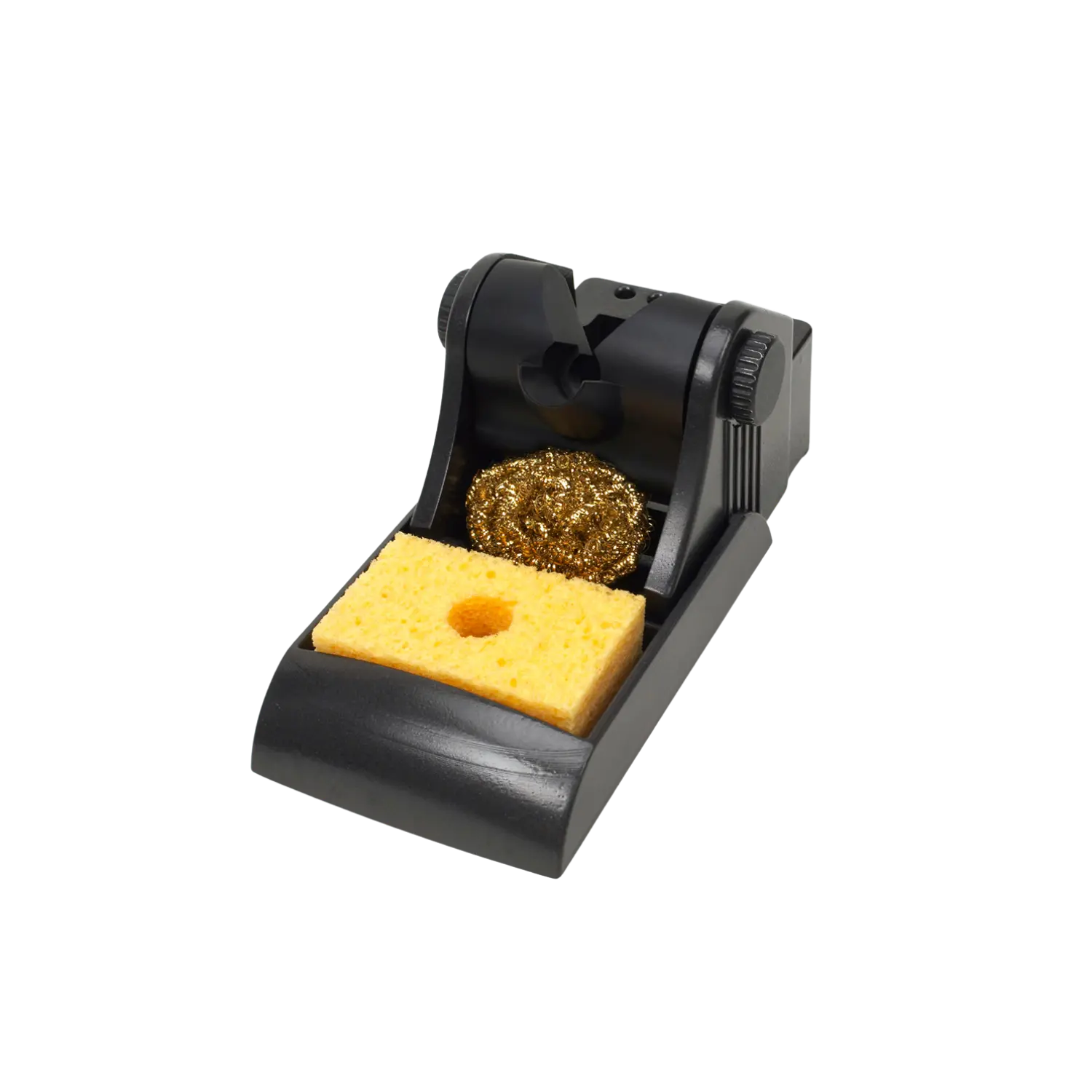

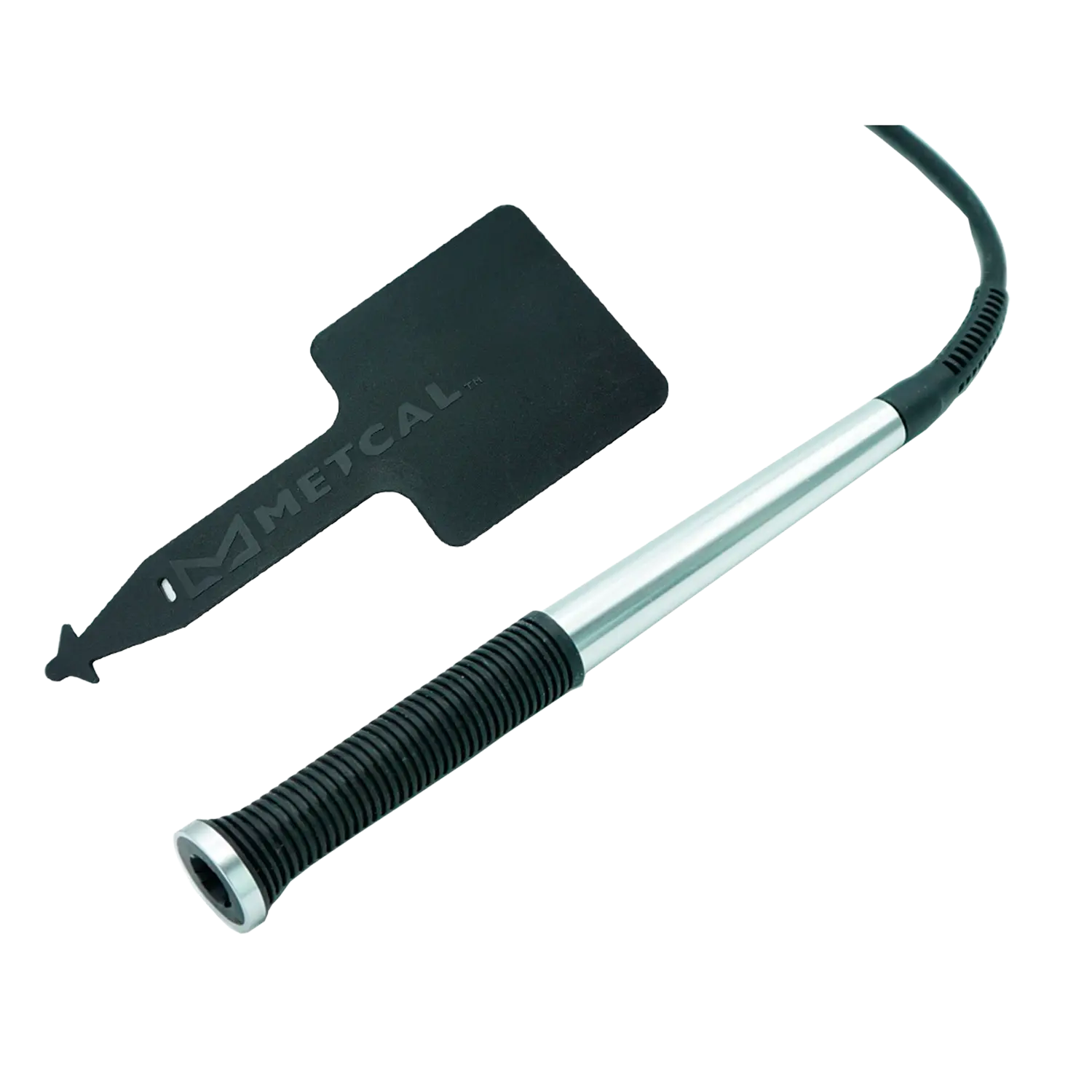

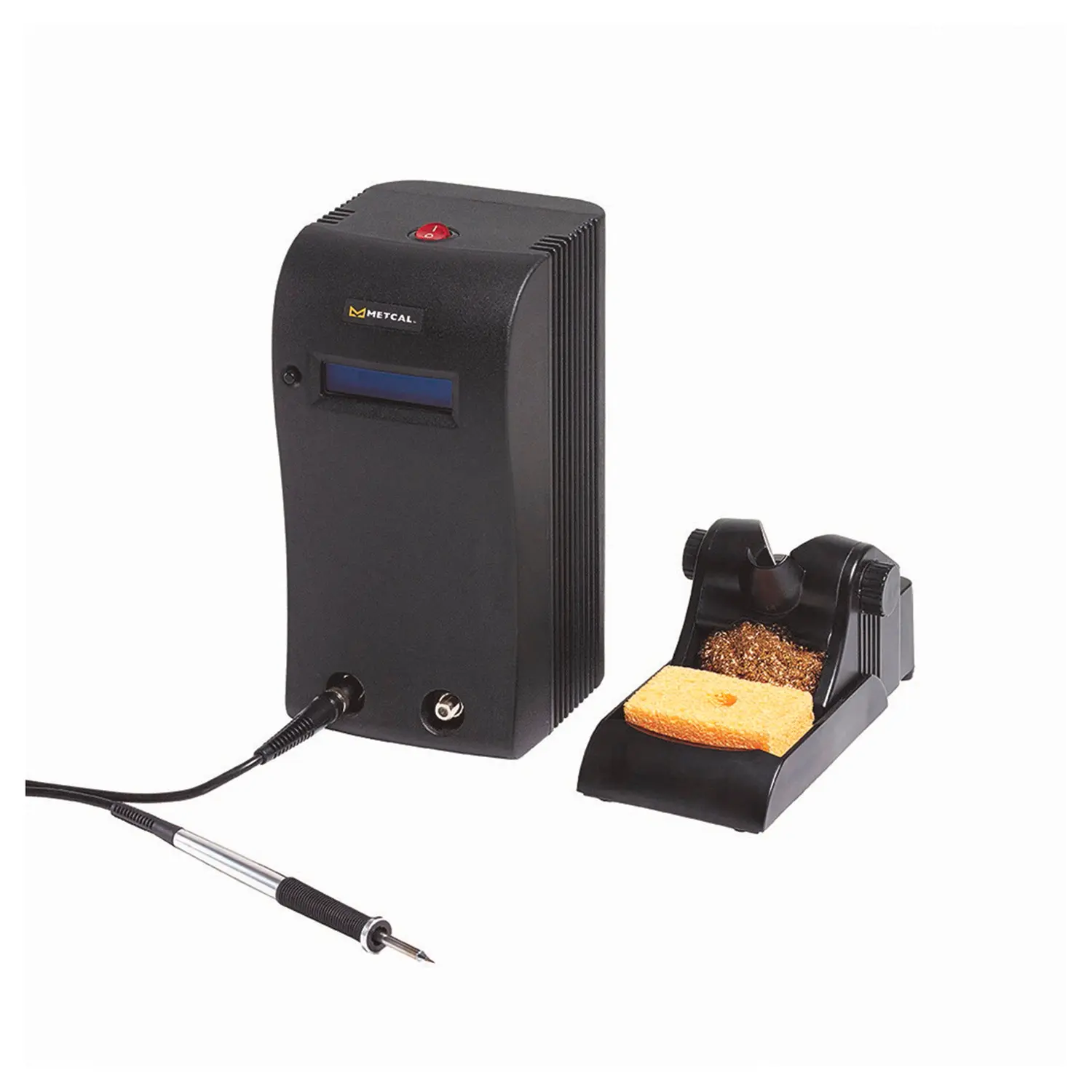

✔ The package includes the MX-PS5200 power supply and the MX-H1-AV advanced handpiece designed for MX systems. It also comes with the MX-W1AV tip-saver workstand for the advanced handpiece and an MX-CP1 cartridge removal pad. Please note that tips and cartridges are sold separately.
| Feature | MX-5210 |
|---|---|
| Input Line Voltage | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption | 125 W max. |
| Output Power | 80 Watts max. per channel at 22 °C ambient temperature |
| Output Frequency | 13.56 MHz |
| Heating Method | Induction, SmartHeat® |
| Connections | Dual Port, switchable |
| Power Supply Dim. W x D x H | 12.1 cm (4.8") x 13.0 cm (5.1") x 23.5 cm (9.3") |
| Power Supply Weight | 7.4 lbs (3.35 kg) |
| Certification / Marking | cTUVus, CE |
| Tip-to- Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Idle Temperature Stability | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length | 183 cm, 18/3 SJT |
| Warranty | 5 years |
| Ambient Operating Temp | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp | 55 °C (131 °F) |
| Hand-Piece Cable Length | L=122 cm (48"), burn proof, ESD safe |
| Hand-Piece Connector | F connector |
| Workstand Dimensions W x D x H | 8.6 cm (3.4") x 19.1 cm (7.5") x 8.3 cm (3.3") |
| Workstand Weight | 1.05 lbs (.476 kg) |
This product video introduces MX-5210 by summarizing its general working principle and typical application scenarios.
