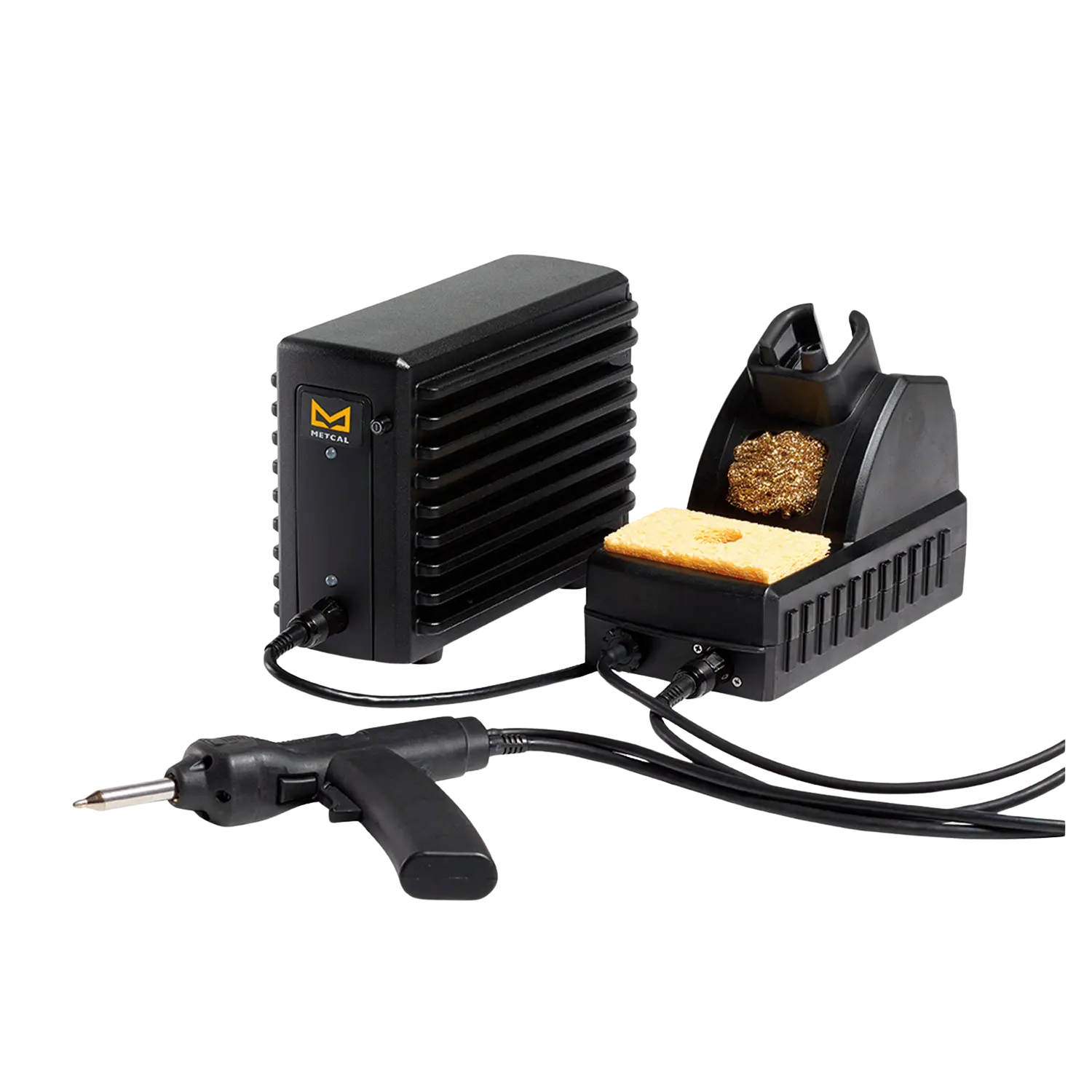

MFR-1150 Single Output Desolder System
MFR Single Port System, Desolder, External Air (Venturi Box)
The MFR-1150 Desolder System with a venturi workstand offers a compact and efficient shop air option. This powerful, cost-effective desoldering system features a small footprint that saves valuable workspace. Equipped with a built-in 0.85 bar vacuum in the workstand, it ensures through-hole desoldering is clean and straightforward.
The system includes a Desoldering Pistol featuring an easy-to-change, large-capacity solder collection chamber designed to minimize downtime. For additional control, the pistol can be easily converted to a pencil grip. A wide range of long-life desoldering tips is available to ensure the equipment operates efficiently.
SmartHeat® Technology provides exceptional power for high thermal demand applications. Single or dual simultaneous outputs allow for single or dual hand-piece use. Five hand-pieces are available for increased application solutions regarding soldering, desoldering via the MX-UK5 upgrade kit, and rework on one system. Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility. Ergonomic handpieces ensure operator safety and comfort.
Product Comprise of
✔ The MFR-PS1100 Soldering Station, MFR-H5-DS Hand-Piece, and MFR-WSDSX Workstand are included in the system.
| Feature | MFR-1150 |
|---|---|
| Input Line Voltage | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption | 70 W max. |
| Output Power | Variable, 60 W max.* |
| Output Frequency | 450 KHz |
| Heating Method | Induction, SmartHeat® |
| Connections | Single Port |
| Power Supply Dim. W x D x H | 90 x 200 x 152.5 mm (3.5" x 7.9" x 6") |
| Power Supply Weight | 2.3 kg (5.05 lb) |
| Certification / Marking | cTUVus, CE |
| Tip-to- Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Ground Detection | Permanent |
| Surface Resistivity | 10⁵ - 10⁹ Ohm |
| Idle Temperature Stability | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length | 183 cm, 18/3 SJT |
| Warranty | 1 year |
| Ambient Operating Temp | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp | 55 °C (131 °F) |
| Desolder-Pen Specificaton | MFR-H5-DS |
| Hand-Piece Cable Length | 152 cm (60”), burn proof, ESD-safe |
| Hand-Piece - RF Connector | 8-pin circular DIN |
| Air Hose | ESD-safe |

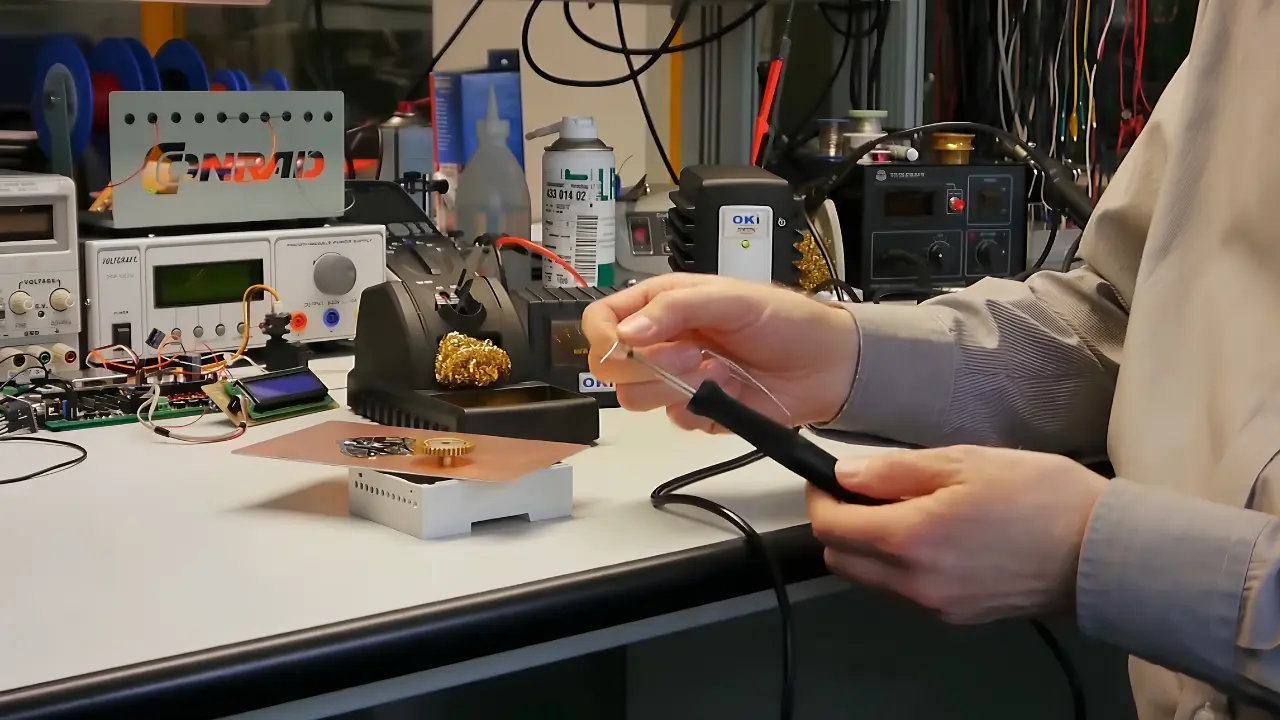

This product video introduces MFR-1150 by summarizing its general working principle and typical application scenarios.
