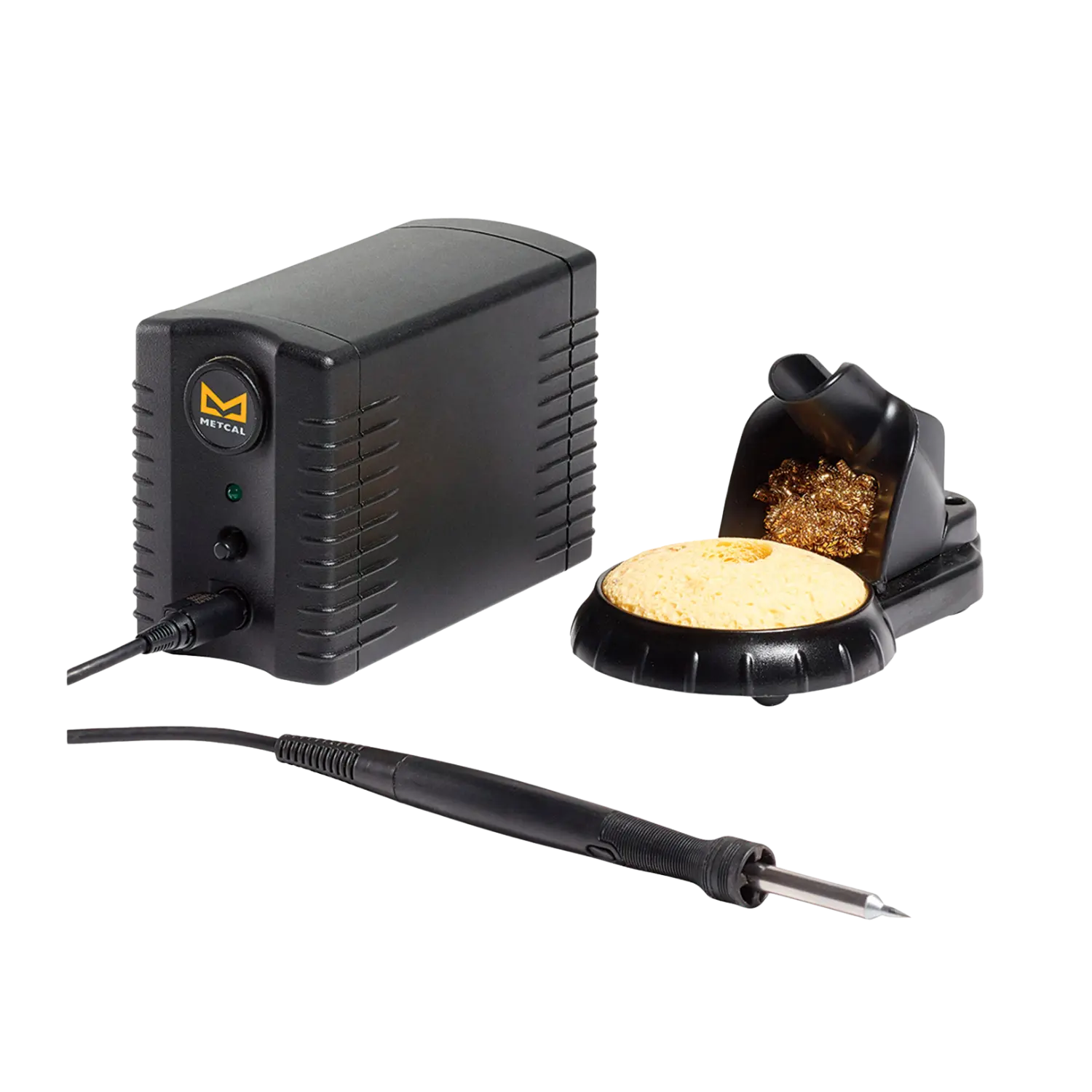

PS-900 Production Soldering System
The PS-900 packs power into a small benchtop footprint, providing exceptional thermal control.
| Feature | PS-900 |
|---|---|
| Input Line Voltage | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption | 90 W max. |
| Output Power | Variable, 60 W max.* |
| Output Frequency | 450 KHz |
| Heating Method | Induction, SmartHeat® |
| Connections | Single Port |
| Power Supply Dim. W x D x H | 80 x 160 x 115 mm (3.1" x 6.3" x 4.5") |
| Power Supply Weight | 1.4 kg |
| Certification / Marking | cTUVus, CE |
| Tip-to- Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Ground Detection | Permanent |
| Surface Resistivity | 10⁵ - 10⁹ Ohm |
| Idle Temperature Stability | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length | 183 cm, 18/3 SJT |
| Warranty | 1 year |
| Ambient Operating Temp | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp | 55 °C (131 °F) |
