MX-500SPT Soldering & Tweezer Rework System
The system utilizes SmartHeat® Technology, where each cartridge is equipped with a self-regulating heater that senses its own temperature and closely maintains its preset idle temperature for the life of the heater tip. The tip temperature is determined by the inherent metallurgical properties of the heater, requiring no external adjustment or equipment.
The MX-500 features a switchable dual port and 40W SmartHeat® Power.

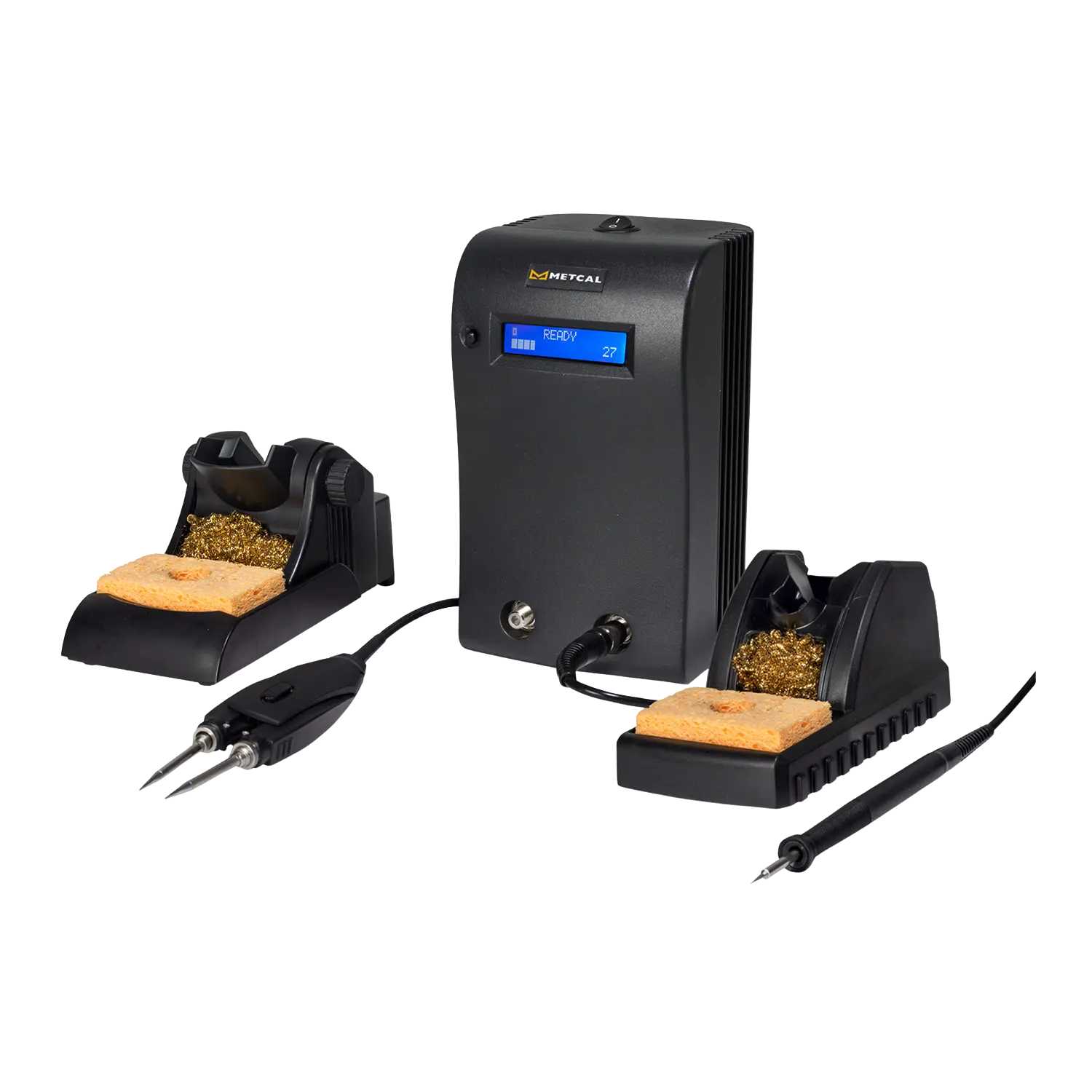

MX-500SPT includes the MX-RM3E handpiece and MX-PTZ precision tweezer handpiece.
A built-in Net Power Meter displays a graphical and numerical representation of the power applied to the cartridge. The user-programmable Power Save Mode allows the time to enter power saving to be adjusted from 10 to 120 minutes. With the Ground Fault Interrupt feature, the AC ground monitor detects power line ground failures, immediately alerting the operator and shutting down the system. Additionally, the Universal Power Supply automatically senses the input line voltage and adjusts accordingly, enabling worldwide operation without adapters or performance loss. This system provides full compatibility with existing and previous MX upgrade kits, tip-cartridges, handpieces, and accessories.
Product Comprise of
✔ MX-PS500 Power Supply
✔ MX-PTZ Precision Tweezer
✔ MX-RM3E Standard Handpiece for MX Systems
✔ MX-W4PT Tip Saver Workstand for Precision Tweezer Handpiece
✔ WS1 Workstand for MX-RM3E Handpiece
✔ MX-CP1 Cartridge Removal Pad
✔ Tips/Cartridges sold separately
| Feature | MX-500SPT |
|---|---|
| Input Line Voltage | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption | 70 W max. |
| Output Power | Variable, 40 W max.* |
| Output Frequency | 13.56 MHz |
| Heating Method | Induction, SmartHeat® |
| Connections | Dual Port, switchable |
| Power Supply Dim. W x D x H | 121 x 121 x 220 mm (4.8" x 4.8" x 8.7") |
| Power Supply Weight | 2.65 kg (5.8 lb) |
| Certification / Marking | cTUVus, CE |
| Tip-to- Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Ground Detection | Permanent |
| Surface Resistivity | 10⁵ - 10⁹ Ohm |
| Idle Temperature Stability | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length | 183 cm, 18/3 SJT |
| Warranty | 4 years |
| Ambient Operating Temp | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp | 55 °C (131 °F) |
| Tweezer Specification | MX-PTZ |
| Hand-Piece Cable Length | 183 cm (72”), burn proof, ESD-safe |
| Hand-Piece - RF Connector | F-type power connector |
This product video introduces MX-500SPT by summarizing its general working principle and typical application scenarios.
