MX-5251

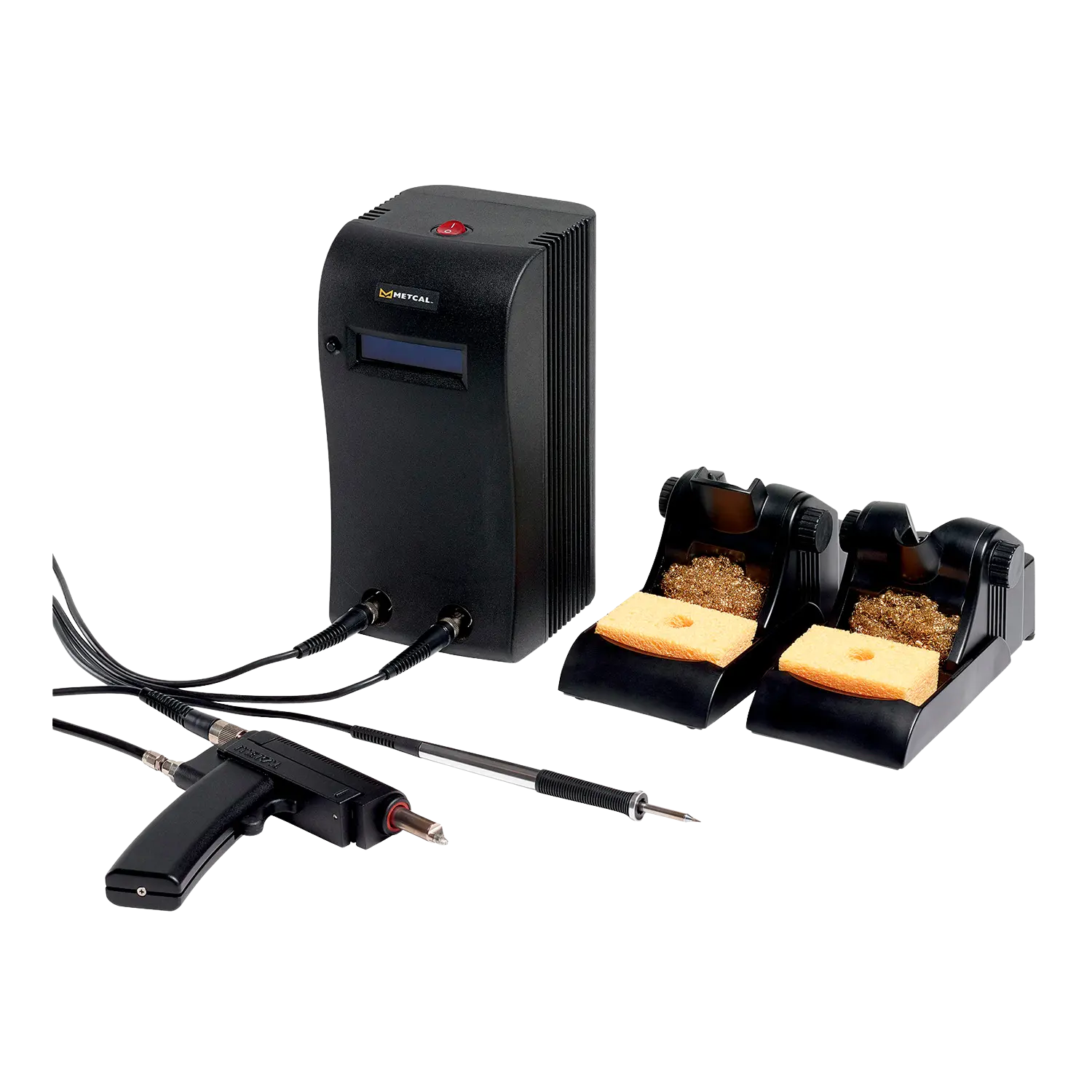

The MX-5200 Soldering, Desoldering, and Rework Series provides increased power and advanced process control, featuring dual-simultaneous ports that support two users or a single user with dual applications. This configuration includes an 80W MX system equipped with the MX-PS5200 power supply, one desoldering handpiece, one advanced handpiece, and two workstands.
The system operates efficiently with two handpieces dynamically sharing the 80-watt output power based on real-time demand, which increases overall application flexibility and operational speed.
The system delivers increased production rates and higher throughput regardless of the specific application. The super-charged power supply seamlessly tackles the technical challenges associated with high-mass components, multilayered boards, and lead-free solders.
The technology built into every Metcal SmartHeat® system ensures that soldering and rework processes are always performed at safe, controlled temperatures. Operators understand that moderate fixed temperatures, where power is dynamically varied, provide the best assurance for a well-controlled soldering and rework environment.
The system incorporates a built-in Net Power Meter that provides a clear graphical and numerical representation of the power applied to the cartridge. It features a User Programmable Power Save Mode, allowing operators to adjust the time to enter power saving from 10 to 120 minutes. Additionally, an integrated Ground Fault Interrupt within the AC ground monitor detects power line ground failures, which instantly alerts the operator and shuts down the system. The Universal Power Supply automatically senses the input line voltage and adapts accordingly, enabling seamless worldwide operation without external adaptors or any reduction in performance. The unit also delivers full compatibility with existing and previous MX upgrade kits, tip-cartridges, handpieces, and accessories.
Product Comprise of
✔ The complete package includes the MX-PS5200 power supply along with the MX-DS1 desolder handpiece designed for MX systems. It features the MX-DAH4 ESD air hose for the desoldering handpiece and the MX-RM8E desoldering handpiece cord for the MX-DS1. It also contains the MX-W5DS tip saver workstand for the desolder handpiece, two MX-CP1 cartridge removal pads, and an AC-TC desolder tip cleaner. Furthermore, the kit includes MX-DCF1 chamber liners (pack of 15) and fume/flux filters (pack of 6), the MX-H1-AV advanced handpiece for MX systems, and the MX-W1AV tip saver workstand for the advanced handpiece. Please note that tips and cartridges are sold separately.
| Feature | MX-5251 |
|---|---|
| Input Line Voltage | 100 - 240 VAC, grounded circuit, 50/60 Hz |
| Rated Power Consumption | 125 W max. |
| Output Power | 80 Watts max. per channel at 22 °C ambient temperature |
| Output Frequency | 13.56 MHz |
| Heating Method | Induction, SmartHeat® |
| Connections | Dual Port, switchable |
| Power Supply Dim. W x D x H | 12.1 cm (4.8") x 13.0 cm (5.1") x 23.5 cm (9.3") |
| Power Supply Weight | 7.4 lbs (3.35 kg) |
| Certification / Marking | cTUVus, CE |
| Tip-to- Ground Potential | < 2 mV |
| Tip-to-Ground Resistance | < 2 Ohm |
| Idle Temperature Stability | 1.1 °C ( 2 °F) in still air |
| Tip Temperature Accuracy | Meets or exceeds IPC J-STD-001 Standard |
| Power Cord Length | 183 cm, 18/3 SJT |
| Warranty | 5 years |
| Ambient Operating Temp | 10 - 40 °C (50 - 104 °F) |
| Max. Enclosure Temp | 55 °C (131 °F) |
| Hand-Piece Cable Length | L=122 cm (48"), burn proof, ESD safe |
| Hand-Piece Connector | F connector |
| Workstand Dimensions W x D x H | 8.6 cm (3.4") x 19.1 cm (7.5") x 8.3 cm (3.3") |
| Weight of the workstand | 1.05 lbs (.476 kg) |
This product video introduces MX-5251 by summarizing its general working principle and typical application scenarios.
