The Ideal Entry-Level Solution with VERSAFLOW 3 Technology in a Compact Footprint
ECO SELECT 1

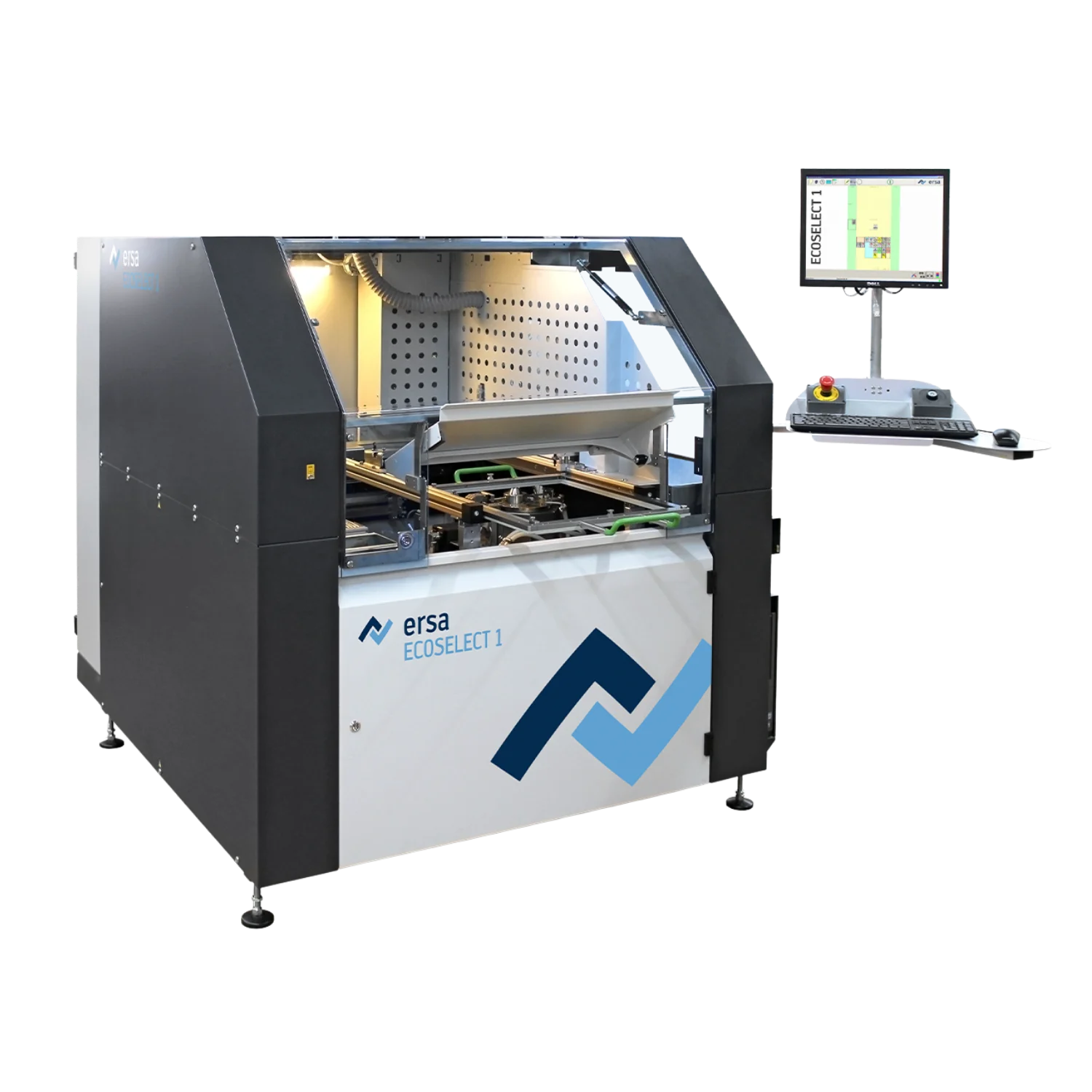

The ideal entry-level solution with VERSAFLOW 3 technology in a compact footprint With an area of less than 3 m², the ECOSELECT 1 is perfectly suited for production environments with cell layouts. Despite its compact semi-automatic design, it integrates proven Ersa selective soldering technology from the VERSAFLOW series, delivering uncompromising precision and quality.
| Technical Specification | ECO SELECT 1 |
|---|---|
| Length | 1,700 mm |
| Width | 1,500 mm |
| Height | 1,612 |
| Conveyor System | ECO SELECT 1 |
|---|---|
| Transport / Support Type | Universal mask holder |
| PCB width | 15-406 mm (opt. 508 mm) |
| PCB length | 15-508 mm |
| Max. Top PCB structures | up to 120 mm |
| Max. PCB superstructures at the bottom | up to 60 mm (30 mm to z-variable) |
| Max. PCB weight | 8 kg (opt. 12 kg) |
| Fluxer/Preheating/Soldering Module | ECO SELECT 1 |
|---|---|
| Fluxer | Drop jet in various sizes |
| Preheating | IR radiation heating at the bottom, convection at the top (optional), power convection at the top (optional) |
| Soldering module | Electromagnetic soldering pots, Mini wave 13 kg, up to 2 pots |

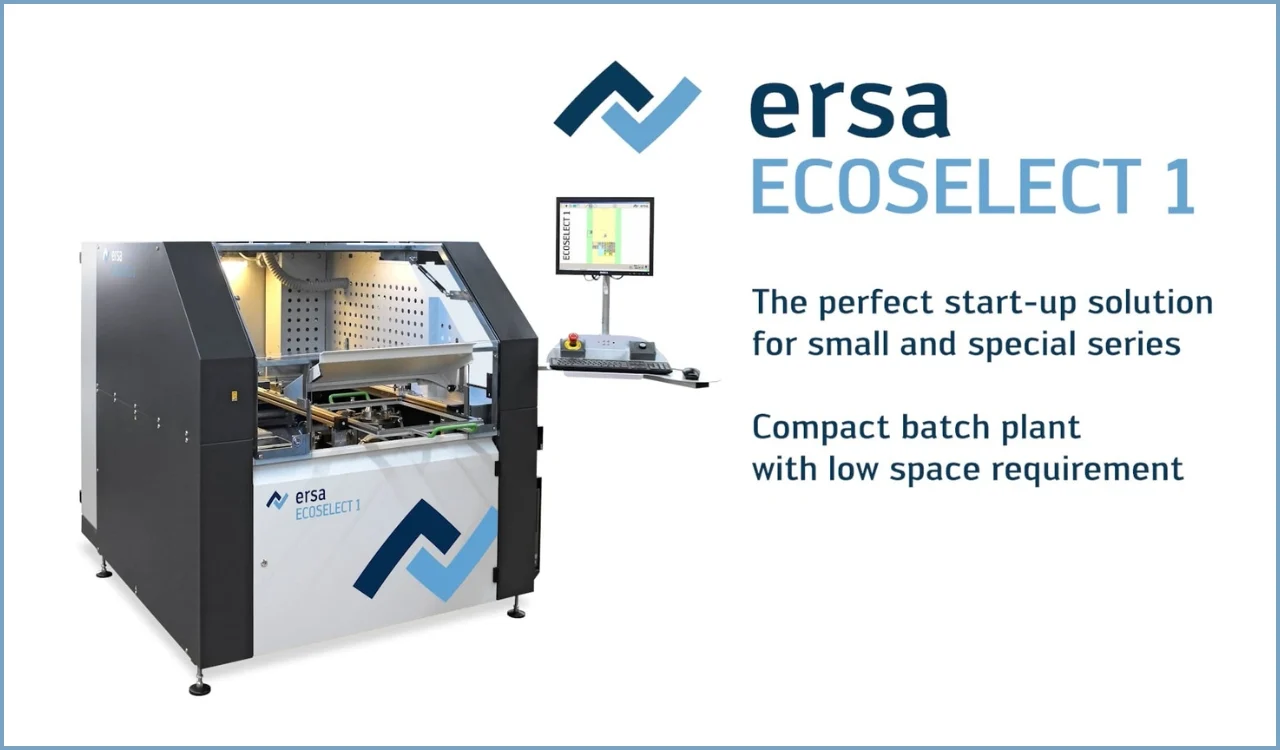

This product video introduces ECO SELECT 1 by summarizing its general working principle and typical application scenarios.
